RJ70L-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

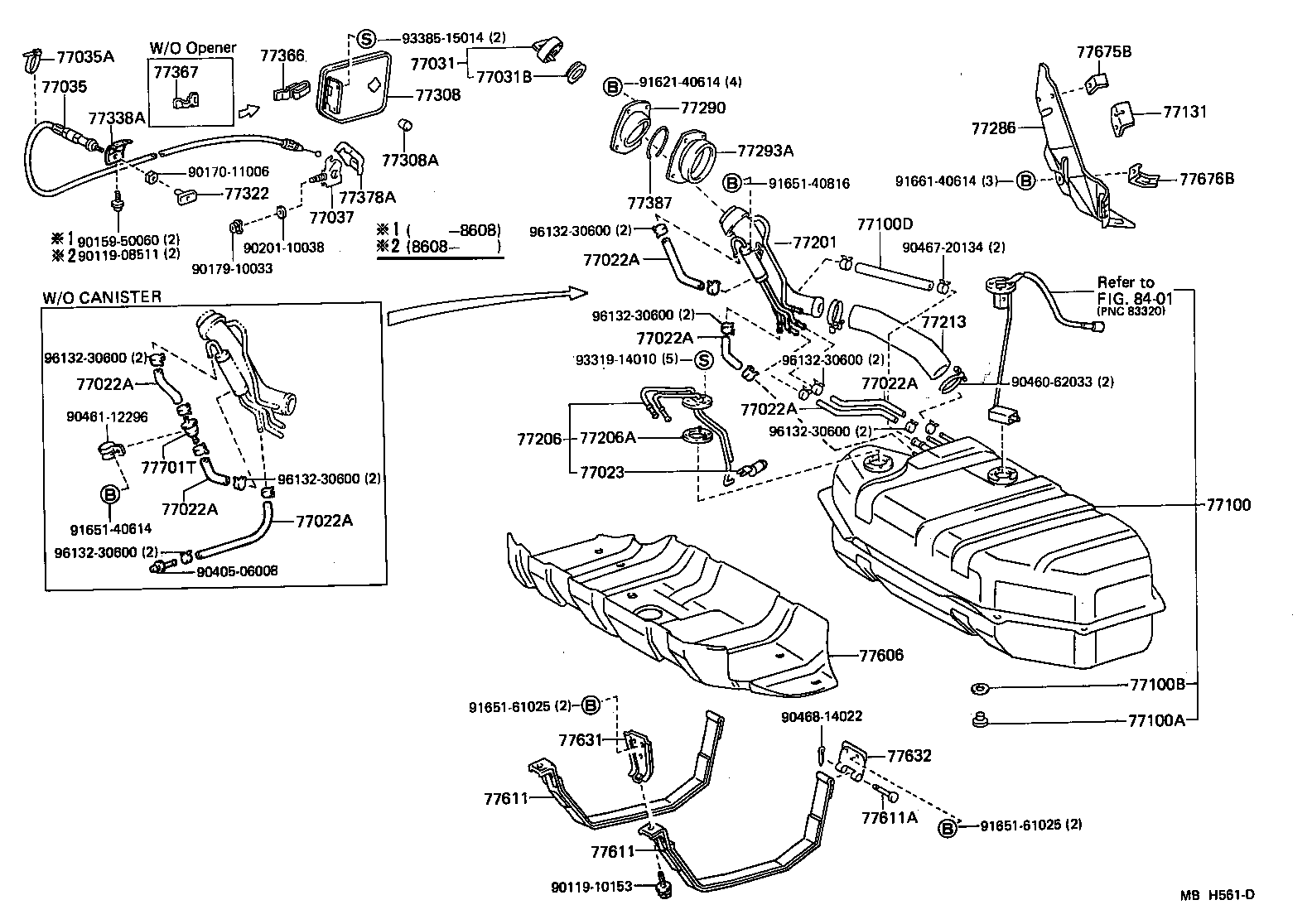

ILLUST NO. 1 OF 2(8411- )BJ70,73,74,FJ70,73,LJ70,RJ70

Click highlighted areas on diagram

diagram 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77023 77031 77031B 77035 77035A 77037 77100 77100A 77100B 77100D 77131 77201 77206 77206A 77213 77286 77290 77293A 77308 77308A 77322 77338A 77366 77367 77378A 77387 77606 77611 77611 77611A 77631 77632 77675B 77676B 77701T 8401 9011908511 9011910153 9015950060 9017011006 9017910033 9020110038 9040506008 9046062033 9046112296 9046720134 9046814022 9162140614 9165140614 9165140816 9165161025 9165161025 9166140614 9331914010 9338515014 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06010

FJ70,73,RJ70..GEN

*H,L=80

 1
95332-06030

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06020

FJ70,73,RJ70..GEN

*H,L=150

 1
95333-06022

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06030

FJ70,73,RJ70..GEN

*H,L=280

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06010

FJ70,73,RJ70..GEN

*H,L=80

 1
95332-06030

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06020

FJ70,73,RJ70..GEN

*H,L=150

 1
95333-06022

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06030

FJ70,73,RJ70..GEN

*H,L=280

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06010

FJ70,73,RJ70..GEN

*H,L=80

 1
95332-06030

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06020

FJ70,73,RJ70..GEN

*H,L=150

 1
95333-06022

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06030

FJ70,73,RJ70..GEN

*H,L=280

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06010

FJ70,73,RJ70..GEN

*H,L=80

 1
95332-06030

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06020

FJ70,73,RJ70..GEN

*H,L=150

 1
95333-06022

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06030

FJ70,73,RJ70..GEN

*H,L=280

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06010

FJ70,73,RJ70..GEN

*H,L=80

 1
95332-06030

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06020

FJ70,73,RJ70..GEN

*H,L=150

 1
95333-06022

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06030

FJ70,73,RJ70..GEN

*H,L=280

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06010

FJ70,73,RJ70..GEN

*H,L=80

 1
95332-06030

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06020

FJ70,73,RJ70..GEN

*H,L=150

 1
95333-06022

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06030

FJ70,73,RJ70..GEN

*H,L=280

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06010

FJ70,73,RJ70..GEN

*H,L=80

 1
95332-06030

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06020

FJ70,73,RJ70..GEN

*H,L=150

 1
95333-06022

BJ70,73,74,FJ70,73,LJ70,RJ70

*H,L=220

 2
95332-06030

FJ70,73,RJ70..GEN

*H,L=280

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

RJ70

 1
77031 - CAP ASSY, FUEL TANK
77310-12100

FJ7#,RJ70..HT,SOT

 2
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 2
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-90K04

BJ70,FJ70,LJ70,RJ70..LHD..SOT

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-90K00

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77100 - TANK ASSY, FUEL
77100-60280

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77100A - PLUG(FOR FUEL TANK)
90341-20004

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
90341-20003

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
77100B - GASKET(FOR FUEL TANK)
90430-20007

BJ7#,FJ7#,HJ75,LJ70,RJ70

T=2.5

 2
90430-20006

BJ7#,FJ7#,HJ75,LJ70,RJ70

T=2.0

 2
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-22011

BJ70,73,74,FJ70,73,LJ70,RJ70

L=220

 1
77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT
77131-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60200

BJ70,73,FJ70,73,LJ70,RJ70

 1
77201-60200

FJ70,73,RJ70..GEN,ME

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77240-60070

RJ70

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

BJ7#,FJ7#,HJ75,LJ70,RJ70

 2
77213 - HOSE, FUEL TANK SUB INLET
77213-60040

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-90K00

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-90K00

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77305-90K00

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05018

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 4
77322 - KNOB, FUEL TANK CAP
77319-90K00

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD
77338-90K00

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-12010

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 2
77366-12010

BJ70,73,FJ70,73,LJ70,RJ70

 1
77367 - STOPPER, FUEL FILLER OPENING LID
77358-12020

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 2
77378A - COVER, FUEL FILLER OPENING LID LOCK
77378-90K00

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77387 - RING, FUEL INLET BOX
77391-32010

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-60030

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
77611 - BAND, FUEL TANK
77601-60080

BJ70,73,74,FJ70,73,LJ70,RJ70

 2
77611 - BAND, FUEL TANK
77601-60080

BJ70,73,74,FJ70,73,LJ70,RJ70

 2
77611A - PIN (FOR FUEL TANK BAND)
90240-10025

BJ70,73,74,FJ70,73,LJ70,RJ70

 2
77631 - BRACKET, FUEL TANK, NO.1
77614-60050

BJ70,73,74,FJ70,73,LJ70,RJ70

 2
77632 - BRACKET, FUEL TANK, NO.2
77625-60020

BJ70,73,74,FJ70,73,LJ70,RJ70

 2
77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1
77675-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2
77676-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

FJ70,73,RJ70..GEN

 1
Common parts
90119-08511
90119-10153
90159-50060
90170-11006
90179-10033
90201-10038
90405-06008
90460-62033
90461-12296
90467-20134
90468-14022
91621-40614
91651-40614
91651-40816
91651-61025
91661-40614
93319-14010
93385-15014
96132-30600
Linked diagrams
8401

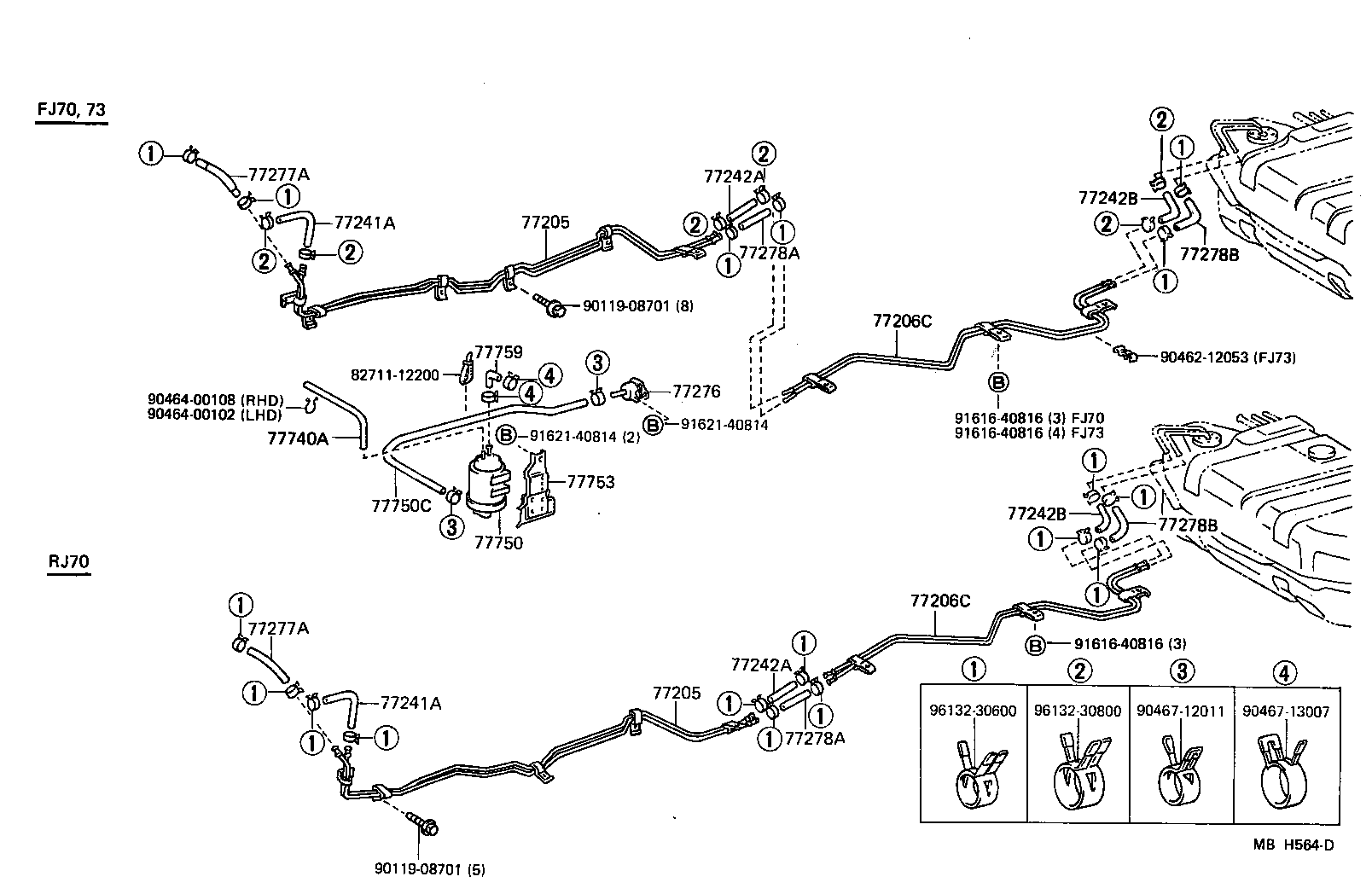

ILLUST NO. 2 OF 2(8411-8510)FJ70,73,RJ70..GEN,ME ; (8510- )FJ70,73,RJ70..GEN

Click highlighted areas on diagram

diagram 77205 77205 77206C 77206C 77241A 77241A 77242A 77242A 77242B 77242B 77276 77277A 77277A 77278A 77278A 77278B 77278B 77740A 77750 77750C 77753 77759 8271112200 9011908701 9011908701 9046212053 9046400102 9046400108 9046712011 9046713007 9161640816 9161640816 9161640816 9162140814 9162140814 9613230600 9613230800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60160

RJ70

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60160

RJ70

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-60210

RJ70..GEN

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-60210

RJ70..GEN

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
90447-12057

RJ70

L=340

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
90447-12057

RJ70

L=340

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-06020

RJ70

*H,L=200

 1
95333-06020

RJ70

*H,L=200

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06040

RJ70

*H,L=320

 1
95333-06032

RJ70

*H,L=320

 1
95332-06080

RJ70

*H,L=700

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06040

RJ70

*H,L=320

 1
95333-06032

RJ70

*H,L=320

 1
95332-06080

RJ70

*H,L=700

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95332-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
95333-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95332-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
95333-06020

FJ70,73,LJ70,RJ70

*H,L=200

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06020

FJ70,73,RJ70

*H,L=200

 1
95332-06020

FJ70,73,RJ70

*H,L=200

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06020

FJ70,73,RJ70

*H,L=200

 1
95332-06020

FJ70,73,RJ70

*H,L=200

 1
Common parts
82711-12200
90119-08701
90462-12053
90464-00102
90464-00108
90467-12011
90467-13007
91616-40816
91621-40814
96132-30600
96132-30800

(8411- )GEN,ME

Click highlighted areas on diagram

diagram 77107A 77130 77196A 77197B 77197B 77500 9011908277 9011908277 9020211006 9020211006 9811908277
Part # Description Qty Price
77107A - CARRIER SUB-ASSY, AUXILIARY FUEL TANK
77107-90K00

BJ70,73,FJ70,73,LJ70,RJ70..GEN,ME

 1
77130 - BRACKET ASSY, AUXILIARY FUEL TANK
77130-60031

BJ70,73,FJ70,73,LJ70,RJ70..GEN,ME

 1
77196A - PAD, AUXILIARY FUEL TANK CARRIER
77196-90K00

BJ70,73,FJ70,73,LJ70,RJ70..GEN,ME

 2
77196-90K01

BJ70,73,FJ70,73,LJ70,RJ70..GEN,ME

 2
77197B - COVER, AUXILIARY FUEL TANK CARRIER
77197-90K00

BJ70,73,FJ70,73,LJ70,RJ70..GEN,ME

 2
77197B - COVER, AUXILIARY FUEL TANK CARRIER
77197-90K00

BJ70,73,FJ70,73,LJ70,RJ70..GEN,ME

 2
77500 - TANK ASSY, AUXILIARY FUEL
77110-60010

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 5
77110-60010

BJ7#,FJ75,HJ75,LJ70,RJ70

 5
77110-60011

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 5
Common parts
90119-08277
90202-11006
98119-08277

ILLUST NO. 1 OF 3(9001-9908)FJ70,73,FZJ70,73,HZJ70,73,KZJ7#,LJ7#,PZJ70,73,RJ7#

Click highlighted areas on diagram

FUEL TANK

diagram 77011 77017 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77023 77031 77031B 77035 77037 77100 77100A 77100B 77100D 77131 77178 77201 77206 77206A 77213 77277R 77290 77293A 77305A 77308A 77319 77338A 77366 77378A 77391 77606 77611 77611 77611A 77631 77632 77653A 77675B 77676B 77682 77701T 8271112200 8401 9008011405 9011906195 9011906416 9011906724 9011908511 9011910153 9015940155 9015950219 9017011006 9017910033 9020110038 9040506008 9046065002 9046112296 9046720134 9046814017 9046814022 9048001303 9094901182 9161161020 9165140614 9165161025 9338315014 9413060800 9461210800 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
Common parts
82711-12200
90080-11405
90119-06195
90119-06416
90119-06724
90119-08511
90119-10153
90159-40155
90159-50219
90170-11006
90179-10033
90201-10038
90405-06008
90460-65002
90461-12296
90467-20134
90468-14017
90468-14022
90480-01303
90949-01182
91611-61020
91651-40614
91651-61025
93383-15014
94130-60800
94612-10800
96132-30600
Linked diagrams
8401

ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99

Click highlighted areas on diagram

FUEL SUB TANK

diagram 58279A 77017 77017B 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77023 77023 77031 77031B 77100 77100A 77100B 77100D 77133 77134 77201 77201 77206 77206A 77206A 77213 77222A 77269 77271C 77271C 77290 77291 77293A 77305A 77308A 77366 77391 77606 77611 77611 77611A 77701V 8401 9011906621 9011908701 9011910153 9011910539 9011910539 9011910556 9011910556 9015940155 9046065002 9046106174 9046112296 9046400239 9046720134 91626B0818 9165140614 9165140614 9165160814 9165160814 9165160820 9165160820 9165160820 9165160820 9166540616 9338315014 93383A6014 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100
Part # Description Qty Price
Common parts
90119-06621
90119-08701
90119-10153
90119-10539
90119-10556
90159-40155
90460-65002
90461-06174
90461-12296
90464-00239
90467-20134
91626-B0818
91651-40614
91651-60814
91651-60820
91665-40616
93383-15014
93383-A6014
96132-41100
Linked diagrams
8401

ILLUST NO. 2 OF 3(9001-9908)FJ70,73,FZJ70,73,RJ70..GEN..CBR

Click highlighted areas on diagram

FUEL TUBE

diagram 77205 77205 77206C 77206C 77241A 77241A 77242A 77242A 77242B 77242B 77276 77277A 77277B 77277B 77278A 77278A 77278B 77278B 77740A 77740C 77750 77750C 77753 77759 8271112200 9011908701 9011908701 9046212053 9046400102 9046400108 9046713007 9161160816 9161160816 9161160816 9162140814 9162140814 9613230600 9613231000
Part # Description Qty Price
Common parts
82711-12200
90119-08701
90462-12053
90464-00102
90464-00108
90467-13007
91611-60816
91621-40814
96132-30600
96132-31000
