RJ70L-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )BJ70,FJ70,LJ70,RJ70..SOT

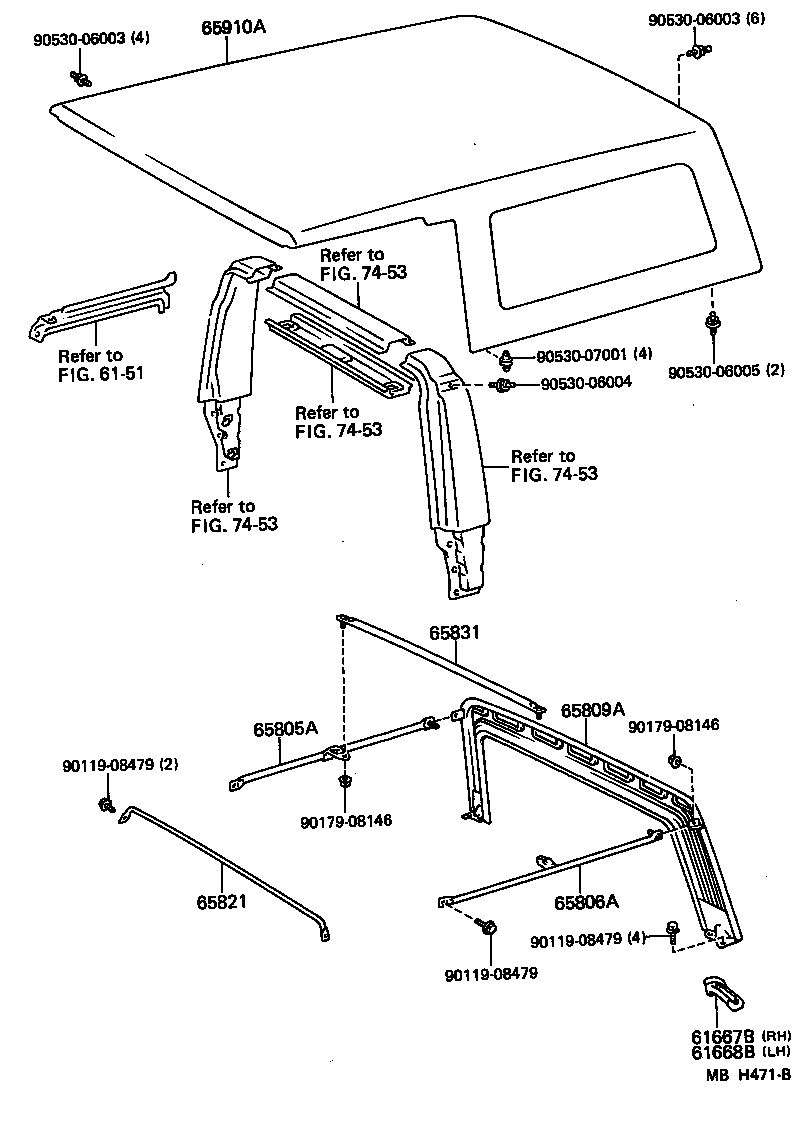

Click highlighted areas on diagram

diagram 6151 61667B 61668B 65805A 65806A 65809A 65821 65831 65910A 7453 7453 7453 7453 9011908479 9011908479 9011908479 9017908146 9017908146 9053006003 9053006003 9053006004 9053006005 9053007001
Part # Description Qty Price
61667B - WEATHERSTRIP, REAR BODY REAR SIDE, RH
61667-90K01

BJ70,73,FJ70,73,LJ70,RJ70..SOT

 1
61668B - WEATHERSTRIP, REAR BODY REAR SIDE, LH
61668-90K00

BJ70,73,FJ70,73,LJ70,RJ70..SOT

 1
65805A - BOW SUB-ASSY, CENTER TOP COVER TARPAULIN, RH
65805-90K00

BJ70,FJ70,LJ70,RJ70..SOT

 1
65806A - BOW SUB-ASSY, CENTER TOP COVER TARPAULIN, LH
65806-90K00

BJ70,FJ70,LJ70,RJ70..SOT

 1
65809A - BOW SUB-ASSY, REAR TOP COVER TARPAULIN
65809-90K00

BJ70,FJ70,LJ70,RJ70..SOT

 1
65821 - BOW, FRONT TOP COVER TARPAULIN
65821-90K00

BJ70,73,FJ70,73,LJ70,RJ70..SOT

 1
65831 - BOW, CENTER TOP COVER TARPAULIN
65831-90K00

BJ70,73,FJ70,73,LJ70,RJ70..SOT

 2
65910A - TARPAULIN ASSY
65910-90K00

BJ70,FJ70,LJ70,RJ70..SOT

 1
Common parts
90119-08479
90179-08146
90530-06003
90530-06004
90530-06005
90530-07001
Linked diagrams
6151
7453
