RJ70L-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990

Engine 22R

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8411- )LJ70,RJ70

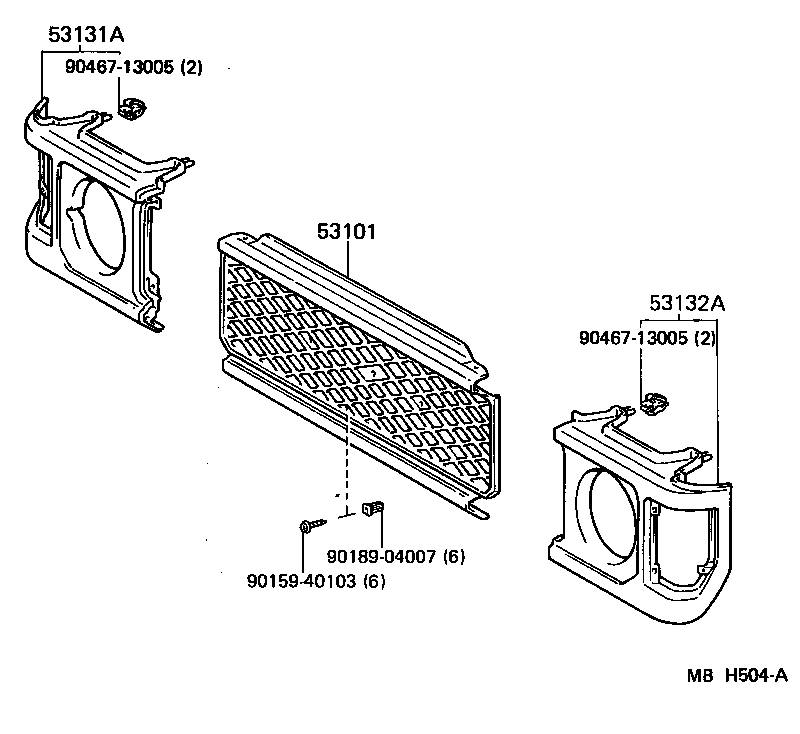

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-90K02	LJ70,RJ70	11/1984 - 08/1986	1
53101-90K03	LJ70,RJ70 CHROME PLATING	11/1984 - 08/1986	1
53101-90K02	LJ70,RJ70..ARL,GEN	08/1986 - 01/1990	1
53101-90K03	LJ70,RJ70..GEN,ME CHROME PLATING	08/1986 - 01/1990	1
53131A - DOOR, HEADLAMP, RH
53031-90K00	LJ70,RJ70	11/1984 - 08/1986	1
53031-90K01	LJ70,RJ70..GEN,ME CHROME PLATING	08/1986 - 01/1990	1
53031-90K01	LJ70,RJ70 CHROME PLATING	11/1984 - 08/1986	1
53031-90K00	LJ70,RJ70..ARL,GEN	08/1986 - 01/1990	1
53132A - DOOR, HEADLAMP, LH
53032-90K01	LJ70,RJ70..GEN,ME CHROME PLATING	08/1986 - 01/1990	1
53032-90K00	LJ70,RJ70	11/1984 - 08/1986	1
53032-90K00	LJ70,RJ70..ARL,GEN	08/1986 - 01/1990	1
53032-90K01	LJ70,RJ70 CHROME PLATING	11/1984 - 08/1986	1
Common parts
90159-40103
90189-04007
90467-13005

(9001-9604)KZJ7#,LJ7#,RJ7#

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90159-40211
90189-04185
90467-12020
90467-13011
