RJ70L-KR (1984)
Toyota Land Cruiser

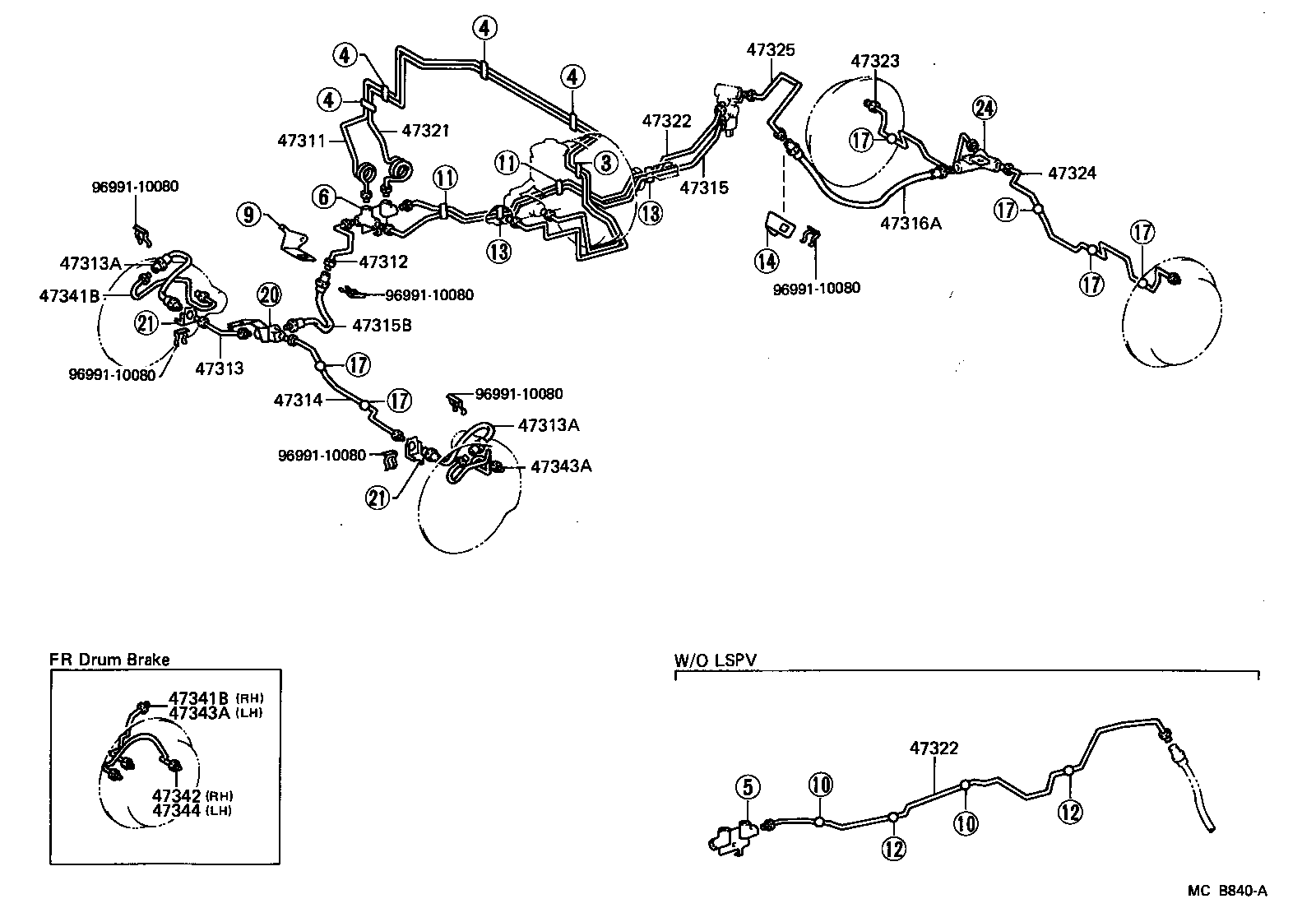

ILLUST NO. 1 OF 3(8411- )RJ70..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-60530 |
RJ70..LHD |
1 | ||
| 47312-60531 |
RJ70..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60150 |
RJ70 |
1 | ||
| 47313-60130 |
FJ7#,HJ75,RJ70 |
1 | ||
| 47313-60151 |
RJ70 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60150 |
LJ70,RJ70 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02467 |
LJ70,RJ70 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02467 |
LJ70,RJ70 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60300 |
LJ70,RJ70 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60260 |
RJ70 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96940-32755 |
LJ70,RJ70 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34605 |
LJ70,RJ70 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60420 |
RJ70..LHD |
1 | ||
| 47322-60421 |
RJ70..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60320 |
RJ70..STD..GEN W/O LSPV |
1 | ||
| 47323-60330 |
RJ70 W/LSPV |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60320 |
RJ70..STD..GEN W/O LSPV |
1 | ||
| 47323-60330 |
RJ70 W/LSPV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60080 |
LJ70,RJ70 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60070 |
LJ70,RJ70 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47326-60070 |
LJ70,RJ70 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-60050 |
LJ70,RJ70 FR DISC BRAKE |
1 | ||
| 47341-60040 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-60050 |
LJ70,RJ70 FR DISC BRAKE |
1 | ||
| 47341-60040 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-35010 |
LJ70,RJ70..STD..(CBR,DSL)..GEN |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-60040 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
1 | ||
| 47343-60050 |
LJ70,RJ70 FR DISC BRAKE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-60040 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
1 | ||
| 47343-60050 |
LJ70,RJ70 FR DISC BRAKE |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-35010 |
LJ70,RJ70..STD..(CBR,DSL)..GEN |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
ILLUST NO. 2 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10173 |
FJ7#,HJ75,RJ70 W/LSPV |
1 | ||
| 90413-10173 |
FJ7#,HJ75,RJ70..ARL,GEN,ME W/LSPV |
1 | ||
| 90412-10120 |
FJ7#,HJ75,RJ70..STD..GEN W/O LSPV |
1 | ||
| 90412-10120 |
HJ75..4F;FJ75..4F..CBU;FJ75,HJ75..SA;FJ75..GEN..IV;FJ70,73,RJ70..GEN;FJ75,HJ75..LHD..5F..GEN..CBU W/O LSPV |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10173 |
FJ7#,HJ75,RJ70 W/LSPV |
1 | ||
| 90413-10173 |
FJ7#,HJ75,RJ70..ARL,GEN,ME W/LSPV |
1 | ||
| 90412-10120 |
FJ7#,HJ75,RJ70..STD..GEN W/O LSPV |
1 | ||
| 90412-10120 |
HJ75..4F;FJ75..4F..CBU;FJ75,HJ75..SA;FJ75..GEN..IV;FJ70,73,RJ70..GEN;FJ75,HJ75..LHD..5F..GEN..CBU W/O LSPV |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10173 |
FJ7#,HJ75,RJ70 W/LSPV |
1 | ||
| 90413-10173 |
FJ7#,HJ75,RJ70..ARL,GEN,ME W/LSPV |
1 | ||
| 90412-10120 |
FJ7#,HJ75,RJ70..STD..GEN W/O LSPV |
1 | ||
| 90412-10120 |
HJ75..4F;FJ75..4F..CBU;FJ75,HJ75..SA;FJ75..GEN..IV;FJ70,73,RJ70..GEN;FJ75,HJ75..LHD..5F..GEN..CBU W/O LSPV |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10173 |
FJ7#,HJ75,RJ70 W/LSPV |
1 | ||
| 90413-10173 |
FJ7#,HJ75,RJ70..ARL,GEN,ME W/LSPV |
1 | ||
| 90412-10120 |
FJ7#,HJ75,RJ70..STD..GEN W/O LSPV |
1 | ||
| 90412-10120 |
HJ75..4F;FJ75..4F..CBU;FJ75,HJ75..SA;FJ75..GEN..IV;FJ70,73,RJ70..GEN;FJ75,HJ75..LHD..5F..GEN..CBU W/O LSPV |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01069 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
7 | ||
| 90480-01069 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
7 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01069 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
7 | ||
| 90480-01069 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
7 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10178 |
LJ70,RJ70 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10178 |
LJ70,RJ70 |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10175 |
LJ70,RJ70 |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10175 |
LJ70,RJ70 |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10175 |
LJ70,RJ70 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60090 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 47354-60040 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60121 |
LJ70,RJ70 |
1 | ||
| 47351-60120 |
LJ70,RJ70 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60070 |
LJ70,RJ70 |
1 | ||
| 47352-60071 |
LJ70,RJ70 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60030 |
BJ70,73,74,FJ70,73,LJ70,RJ70 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60030 |
BJ70,73,74,FJ70,73,LJ70,RJ70 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35020 |
FJ7#,HJ75,RJ70..MTM |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
5 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-10069 | ||||
| 90179-10026 | ||||
| 90461-06112 | ||||
| 90461-10574 | ||||
| 90461-10652 | ||||
| 90949-01071 | ||||
| 90949-01183 | ||||
| 90949-01184 | ||||
| 90949-01288 | ||||
| 90949-01309 | ||||
| 91111-41035 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91611-61018 | ||||
| 91616-40816 | ||||
| 91616-40820 | ||||
| 91651-60614 | ||||
| 96221-20906 | ||||
| 96221-30905 | ||||
ILLUST NO. 2 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-60050 |
LJ70,RJ70 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-60060 |
LJ70,RJ70 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60060 |
LJ70,RJ70 |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60060 |
LJ70,RJ70 |
1 | ||
| 47932A - BRACKET, LOAD SENSING VALVE UNION | ||||
| 47932-60010 |
LJ70,RJ70 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60060 |
LJ70,RJ70 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60060 |
LJ70,RJ70 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60060 |
LJ70,RJ70 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35020 |
LJ70,RJ70 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90179-08146 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 5 OF 6(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08834 | ||||
| 90179-08204 | ||||
| 90179-10132 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94110-41000 | ||||
| 94130-00802 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 2 OF 6(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08701 | ||||
| 90119-10121 | ||||
| 90461-08706 | ||||
| 90461-10629 | ||||
| 90461-10793 | ||||
| 90464-00208 | ||||
| 90949-01071 | ||||
| 90949-01183 | ||||
| 90949-01184 | ||||
| 90949-01854 | ||||
| 91611-60614 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
ILLUST NO. 1 OF 6(9001-9604)RJ7#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-08034 | ||||
