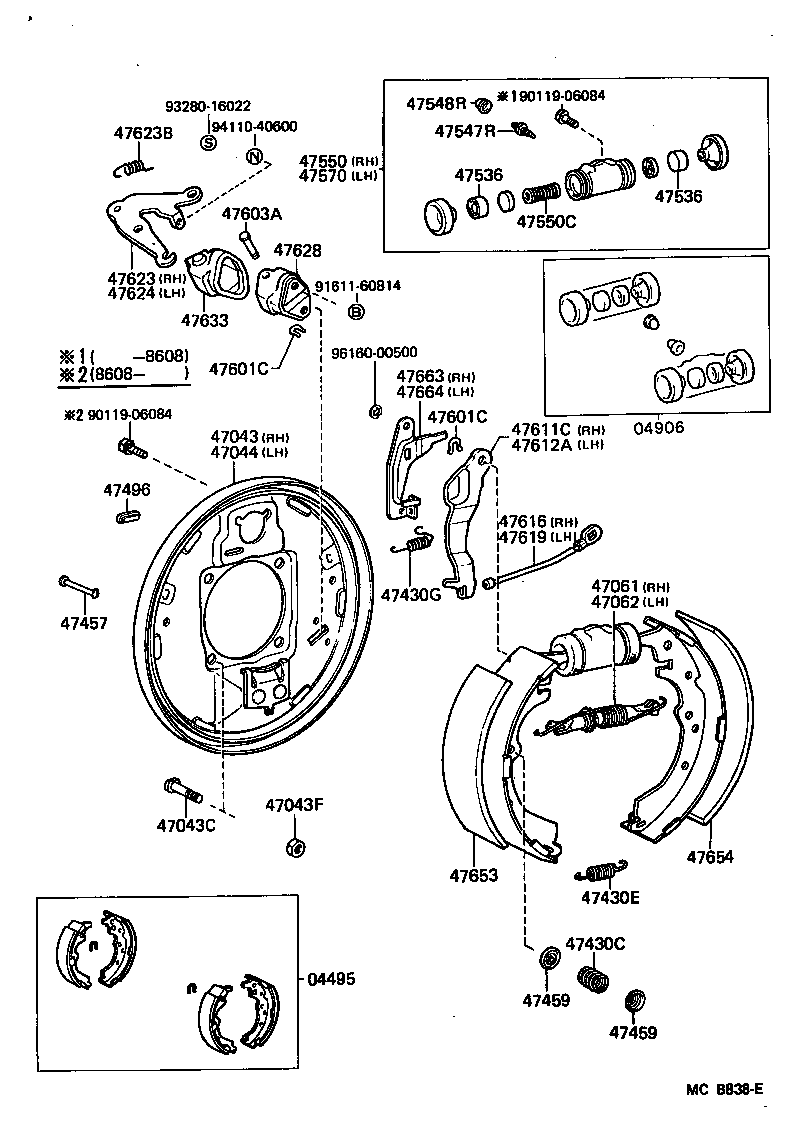

RJ70L-KR (1984)
Toyota Land Cruiser
(8411- )LJ70,RJ70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-40021 |
LJ70,RJ70 FR DISC BRAKE |
1 | ||
| 04495-60040 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
1 | ||
| 04495-40020 |
LJ70,RJ70 FR DISC BRAKE |
1 | ||
| 04495-60041 |
LJ70,RJ70..STD FR DRUM BRAKE |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-30080 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
1 | ||
| 04906-30060 |
LJ70,RJ70 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-60070 |
LJ70,RJ70 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LJ70,RJ70 *10-1.25PX37-18.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LJ70,RJ70 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-60020 |
LJ70,RJ70 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47062-35020 |
LJ70,RJ70 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47061-35020 |
LJ70,RJ70 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LJ70,RJ70 |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20005 |
LJ70,RJ70 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12015 |
LJ70,RJ70 |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30020 |
LJ70,RJ70 |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70 |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70 |
8 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-30030 |
LJ70,RJ70 |
4 | ||
| 47051-22040 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-30030 |
LJ70,RJ70 |
4 | ||
| 47051-22040 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
LJ70,RJ70 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-30100 |
LJ70,RJ70 |
1 | ||
| 47550-30120 |
LJ70,RJ70..STD..GEN FR DRUM BRAKE |
1 | ||
| 47550-39175 |
LJ70,RJ70 |
1 | ||
| 47550-39215 |
LJ70,RJ70..(CBR,DSL)..GEN FR DRUM BRAKE |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
1 | ||
| 47509-35020 |
LJ70,RJ70 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-39175 |
LJ70,RJ70 |
1 | ||
| 47550-39215 |
LJ70,RJ70..(CBR,DSL)..GEN FR DRUM BRAKE |
1 | ||
| 47550-30100 |
LJ70,RJ70 |
1 | ||
| 47550-30120 |
LJ70,RJ70..STD..GEN FR DRUM BRAKE |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=1.6,T=1.6 |
2 | ||
| 90213-06013 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=1.2,T=1.2 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=1.6,T=1.6 |
2 | ||
| 90213-06013 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=1.2,T=1.2 |
2 | ||
| 47603A - PIN, W/HOLE(FOR REAR BRAKE) | ||||
| 90249-08075 |
LJ70,RJ70 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47612-35020 |
LJ70,RJ70 |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47611-35020 |
LJ70,RJ70 |
1 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-26020 |
LJ70,RJ70 |
1 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-26020 |
LJ70,RJ70 |
1 | ||
| 47623 - CRANK, PARKING BRAKE BELL, NO.1 | ||||
| 47624-26020 |
LJ70,RJ70 |
1 | ||
| 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) | ||||
| 90507-23006 |
LJ70,RJ70 |
4 | ||
| 47624 - CRANK, PARKING BRAKE BELL, NO.2 | ||||
| 47625-26020 |
LJ70,RJ70 |
1 | ||
| 47628 - BRACKET, REAR BRAKE BELLCRANK | ||||
| 47628-26010 |
LJ70,RJ70 |
2 | ||
| 47633 - BOOT, PARKING BRAKE BELLCRANK | ||||
| 47633-26010 |
LJ70,RJ70 |
2 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47655-30050 |
LJ70,RJ70 FR DISK BRAKE |
2 | ||
| 47655-60030 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47655-30050 |
LJ70,RJ70 FR DISK BRAKE |
2 | ||
| 47655-60030 |
LJ70,RJ70..STD..(CBR,DSL)..GEN FR DRUM BRAKE |
2 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47644-35020 |
LJ70,RJ70 |
1 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47643-35020 |
LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 91611-60814 | ||||
| 93280-16022 | ||||
| 94110-40600 | ||||
| 96160-00500 | ||||
(9001-9305)LJ70,72,RJ70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06084 | ||||
| 91611-60814 | ||||
| 93280-56025 | ||||
| 94110-40600 | ||||
| 96160-00500 | ||||
