RJ70L-KR (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
22R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )LJ70,RJ70

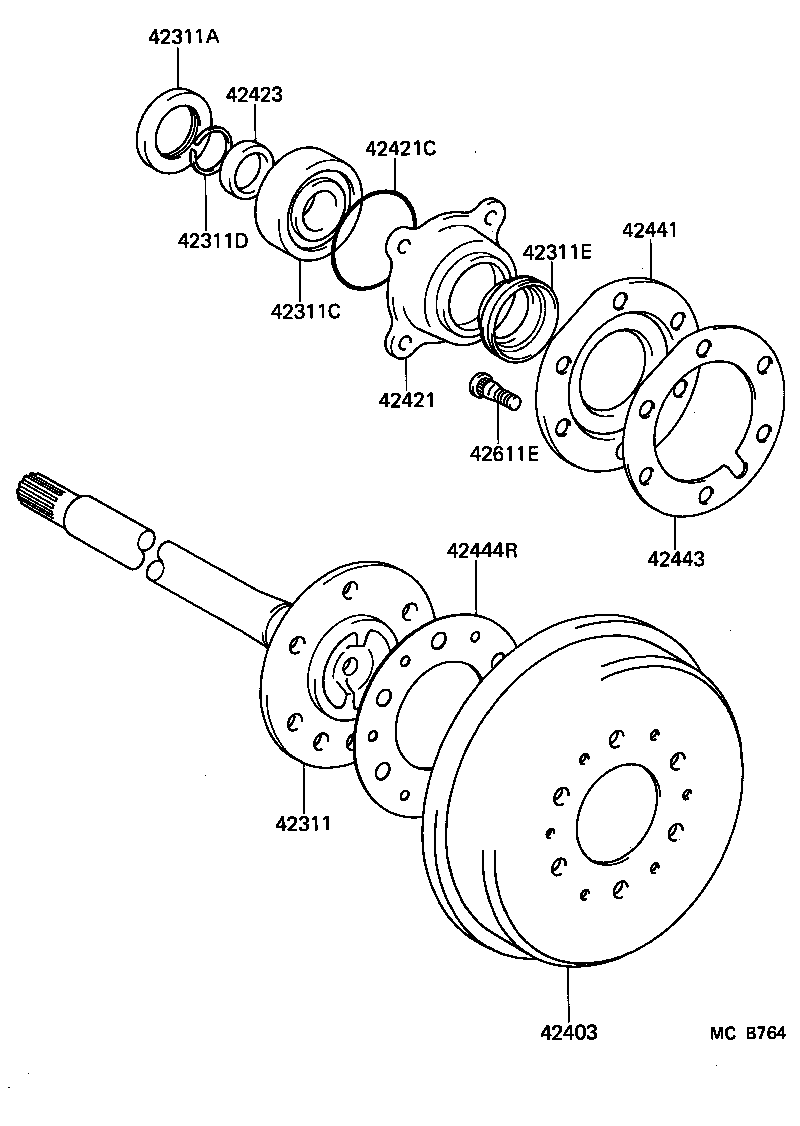

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42312-60100 |
LJ70,RJ70 LH |
1 | ||
| 42311-60070 |
LJ70,RJ70 RH |
1 | ||
| 42312-60101 |
LJ70,RJ70 LH |
1 | ||
| 42311-60071 |
LJ70,RJ70 RH |
1 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-50001 |
LJ70,RJ70 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90363-40020 |
LJ70,RJ70 |
2 | ||
| 97144-06308 |
LJ70,RJ70 |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90520-36045 |
LJ70,RJ70 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-48001 |
LJ70,RJ70 |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-60040 |
LJ70,RJ70 |
2 | ||
| 42421 - CASE, REAR AXLE BEARING | ||||
| 42421-35030 |
LJ70,RJ70 |
2 | ||
| 42421C - RING, O (FOR REAR AXLE BEARING CASE) | ||||
| 90301-88077 |
LJ70,RJ70 |
2 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-20010 |
LJ70,RJ70 |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-35010 |
LJ70,RJ70 |
2 | ||
| 42441-35020 |
LJ70,RJ70 |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-55020 |
LJ70,RJ70 |
2 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-35040 |
LJ70,RJ70 |
2 | ||
| 42444-35050 |
LJ70,RJ70 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02052 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
12 | ||
(9001-9604)KZJ7#,LJ7#,RJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
