RJ70L-KR (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
22R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )RJ70

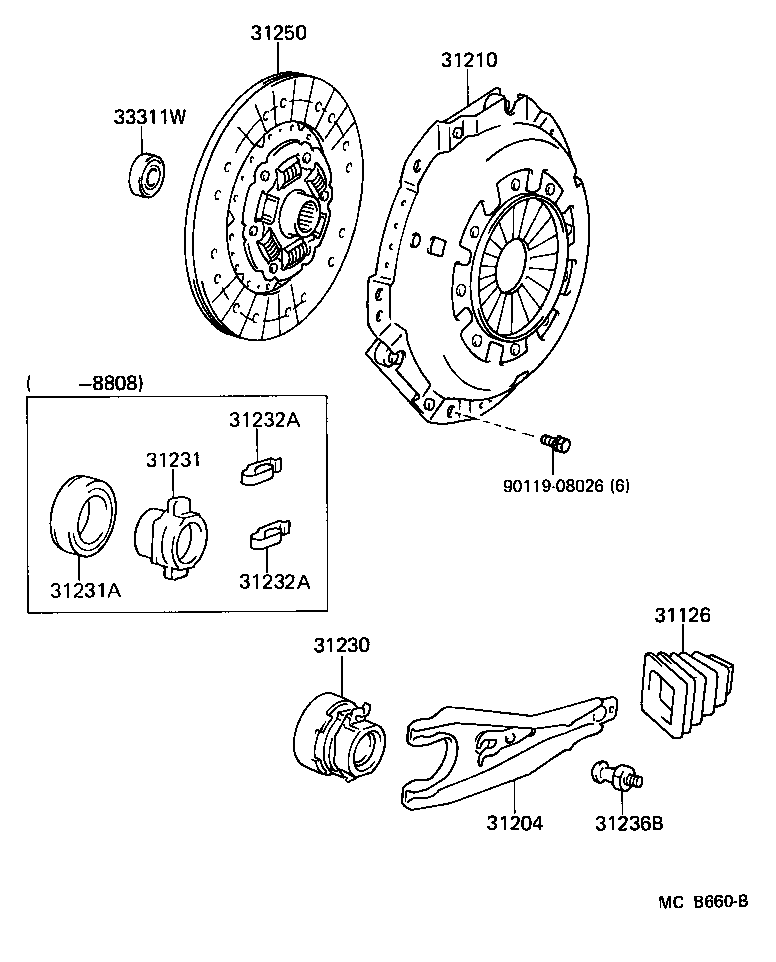

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20060 |
LJ70,RJ70..CBR,TD |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-20070 |
RJ70 |
1 | ||
| 31204-20071 |
RJ70 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-24020 |
LJ70,RJ70..CBR,TD |
1 | ||
| 31210-35130 |
RJ70 |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-35070 |
LJ70,RJ70 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-20090 |
LJ70,RJ70..CBR,DSL |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40022 |
LJ70,RJ70..CBR,DSL |
1 | ||
| 90363-40022 |
LJ70,RJ70 |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-22010 |
LJ70,RJ70..CBR,DSL |
2 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-22010 |
LJ70,RJ70..CBR,DSL |
2 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-30060 |
LJ70,RJ70..CBR,DSL |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-60110 |
RJ70 |
1 | ||
| 31250-22290 |
RJ70 |
1 | ||
| 31250-35101 |
RJ70 |
1 | ||
| 31250-26140 |
RJ70 |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
BJ7#,LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
(9001-9604)RJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08026 | ||||
