RJ70L-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )22R

Click highlighted areas on diagram

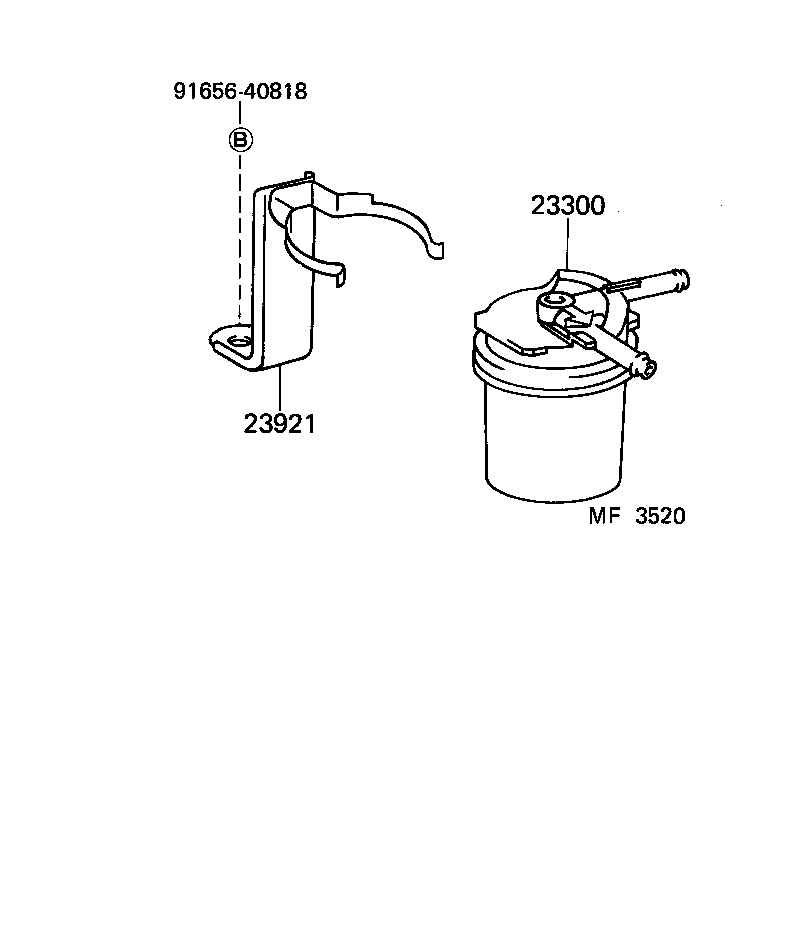

diagram 23300 23921 9165640818
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-44060

22R..RJ70

 1
23300-35060

22R..RJ70

 1
23921 - SUPPORT, FUEL FILTER
23921-35080

22R..RJ70

 1
Common parts
91656-40818
