RJ70L-KR (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
22R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )22R,3F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
22R,3F..FJ7#,RJ70 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-34080 |
22R..RJ70 12V 1.0KW,12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-34080 |
22R..RJ70 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
22R,3F..FJ7#,RJ70 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-34060 |
22R,3F..FJ7#,RJ70 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
22R,3F..FJ7#,RJ70 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
22R,3F..FJ7#,RJ70 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
22R,3F..FJ7#,RJ70 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
22R,3F..FJ7#,RJ70 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
22R,3F..FJ7#,RJ70 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
22R,3F..FJ7#,RJ70 12V 1.0KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
22R,3F..FJ7#,RJ70 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
22R,3F..FJ7#,RJ70 12V 1.0KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
22R,3F,2L#..FJ7#,LJ70,RJ70 12V 1.0KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
22R,3F,2L#..FJ7#,LJ70,RJ70 12V 1.0KW,2.0KW |
1 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
22R,3F,2L#..FJ7#,LJ70,RJ70 12V 1.0KW,2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
22R,3F..FJ7#,RJ70 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90116-12005 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91212-41230 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||

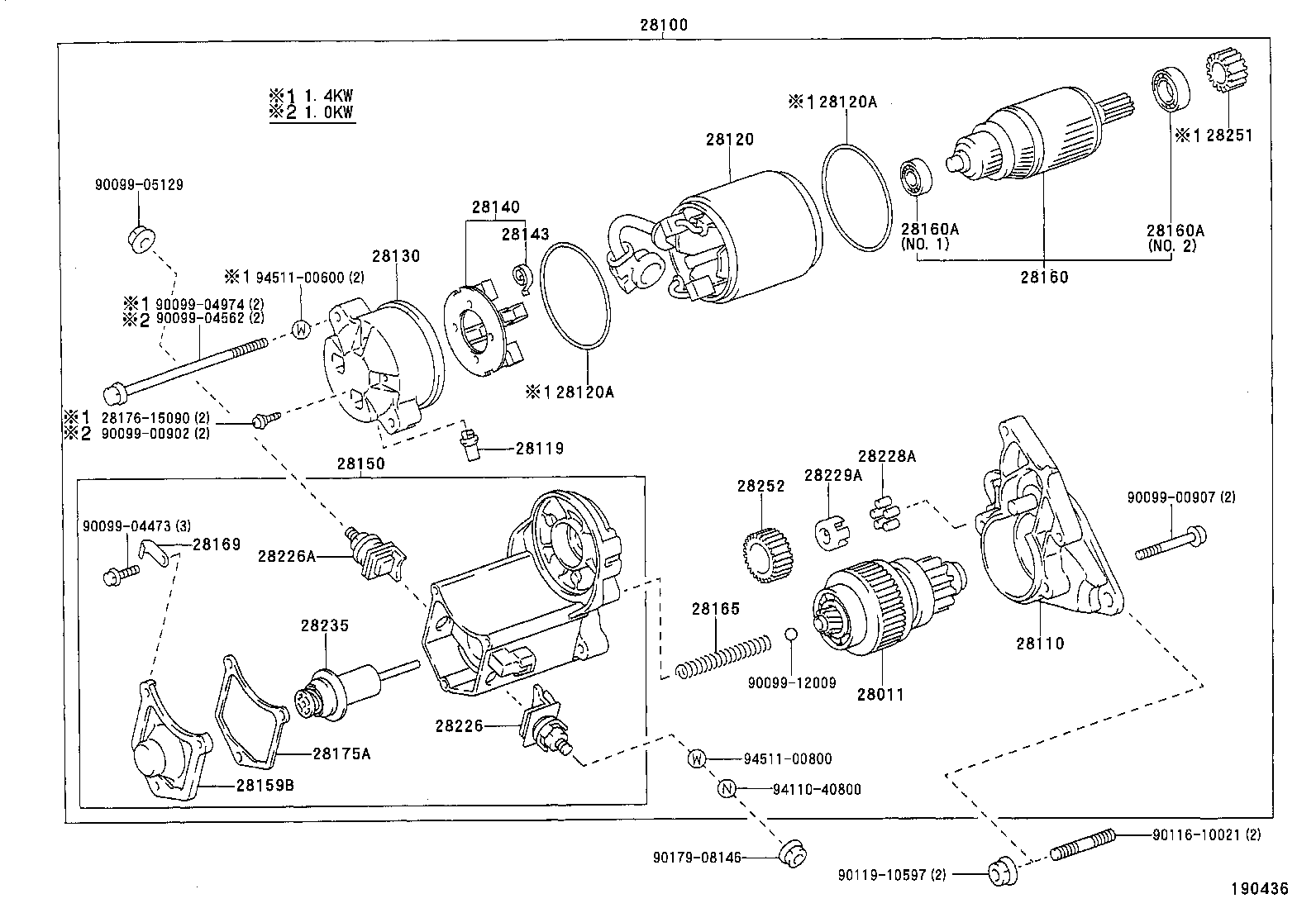

(9001-9604)22R
Click highlighted areas on diagram
12V 1.0KW,1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90119-10597 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
