RJ70L-KR (1984)
Toyota Land Cruiser
(8411- )22R..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-37010 |
22R..RJ70..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35200 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700-35180 |
22R..RJ70..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-35270 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700-35271 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700-35190 |
22R..RJ70..LHD..GEN |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
22R..RJ70..LHD..GEN |
1 | ||
| 94271-00800 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
22R..RJ70..LHD..GEN |
1 | ||
| 90116-06021 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700T - BOLT, STUD(FOR AIR CLEANER) | ||||
| 90116-08033 |
22R..RJ70..LHD..GEN |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-35060 |
22R..RJ70..LHD..GEN |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24011 |
22R..RJ70..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17728-24010 |
22R..RJ70..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
22R..RJ70..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
22R..RJ70..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
22R..RJ70..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-90K00 |
22R..RJ70..LHD..GEN |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-90K00 |
22R..RJ70..LHD..GEN |
1 | ||
| 17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT) | ||||
| 90460-01016 |
22R..RJ70..LHD..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31050 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17801-37010 |
22R..RJ70..LHD..GEN |
1 | ||
| 17801-54080 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
22R..RJ70..LHD..GEN |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
22R..RJ70..LHD..GEN |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
22R..RJ70..LHD..GEN *G,L=1130 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
22R..RJ70 |
1 | ||
| 17853 - INSULATOR, AIR CLEANER BRACKET | ||||
| 17853-38010 |
22R..RJ70..LHD..GEN |
1 | ||
| 17853-35010 |
22R..RJ70..LHD..GEN |
1 | ||
| 17853-35010 |
22R..RJ70 CYCLONE TYPE |
2 | ||
| 17853-38010 |
22R..RJ70 CYCLONE TYPE |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-37030 |
22R..RJ70..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91661-40614 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1709 | ||||

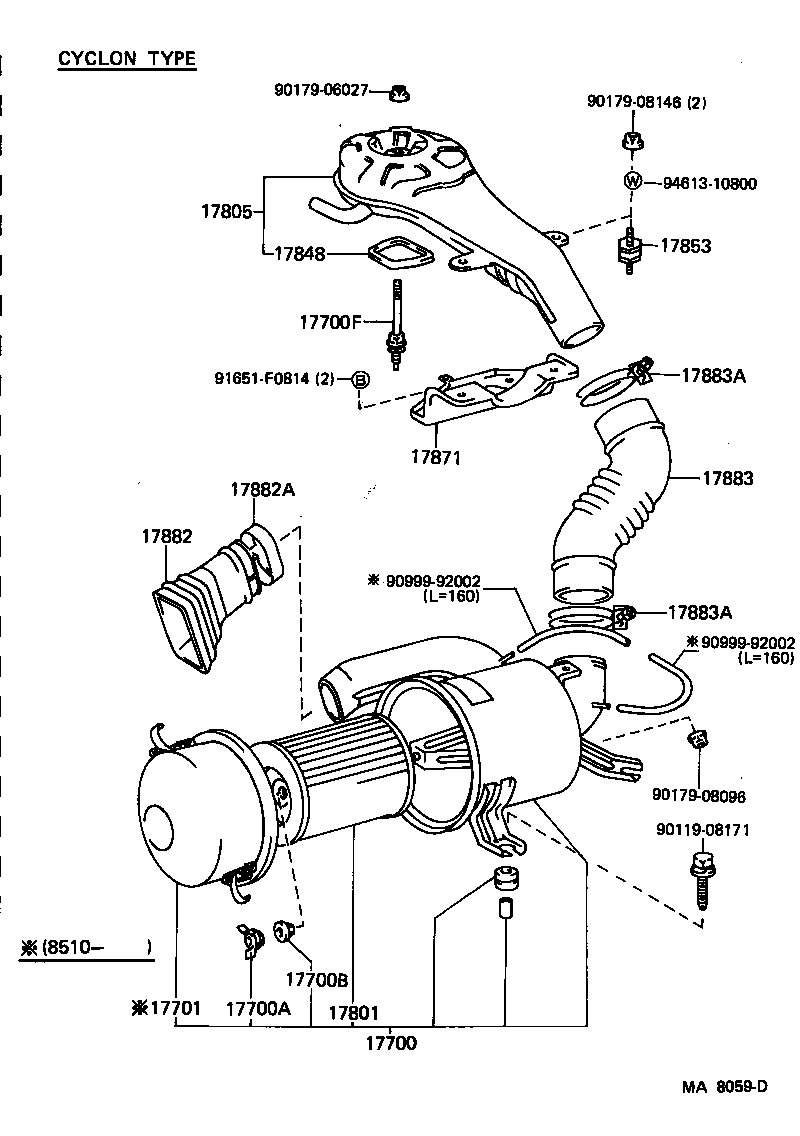

(8411- )22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35200 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700-35180 |
22R..RJ70..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-35270 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700-35271 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700-35190 |
22R..RJ70..LHD..GEN |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
22R..RJ70..LHD..GEN |
1 | ||
| 94271-00800 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
22R..RJ70..LHD..GEN |
1 | ||
| 90116-06021 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-35180 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31050 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17801-37010 |
22R..RJ70..LHD..GEN |
1 | ||
| 17801-54080 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-35021 |
22R..RJ70..GEN,ME CYCLONE TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
22R..RJ70 |
1 | ||
| 17853 - INSULATOR, AIR CLEANER BRACKET | ||||
| 17853-38010 |
22R..RJ70..LHD..GEN |
1 | ||
| 17853-35010 |
22R..RJ70..LHD..GEN |
1 | ||
| 17853-35010 |
22R..RJ70 CYCLONE TYPE |
2 | ||
| 17853-38010 |
22R..RJ70 CYCLONE TYPE |
2 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-35010 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-35010 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01037 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17881-35030 |
22R..RJ70 CYCLONE TYPE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-78005 |
22R..RJ70 CYCLONE TYPE |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-78005 |
22R..RJ70 CYCLONE TYPE |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-06027 | ||||
| 90179-08096 | ||||
| 90179-08146 | ||||
| 90999-92002 | ||||
| 91651-F0814 | ||||
| 94613-10800 | ||||
