RJ70L-KR (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
22R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

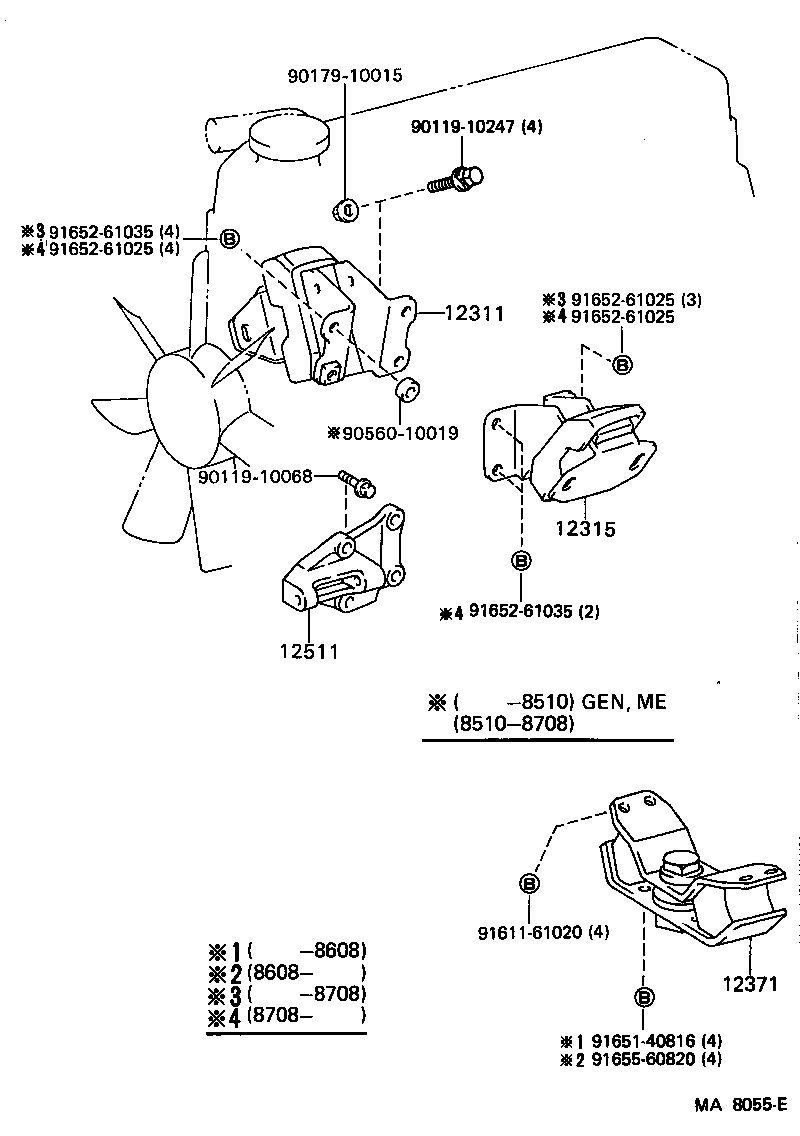

(8411- )22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-35190 |
22R..RJ70 |
1 | ||
| 12301-35141 |
22R..RJ70 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-35070 |
22R..RJ70 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-35030 |
22R..RJ70 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-35010 |
22R..RJ70 |
1 | ||
| Common parts | ||||
| 90119-10068 | ||||
| 90119-10247 | ||||
| 90179-10015 | ||||
| 90560-10019 | ||||
| 91611-61020 | ||||
| 91651-40816 | ||||
| 91652-61025 | ||||
| 91652-61035 | ||||
| 91655-60820 | ||||

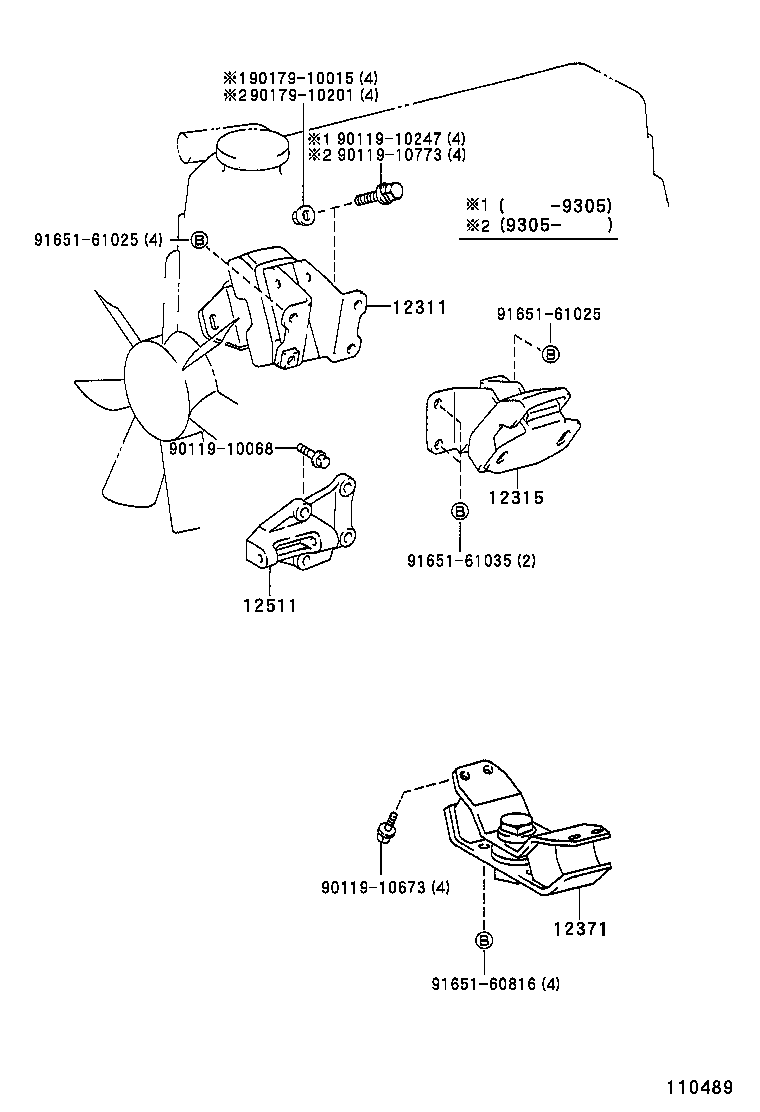

(9001-9604)22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10068 | ||||
| 90119-10247 | ||||
| 90119-10673 | ||||
| 90119-10773 | ||||
| 90179-10015 | ||||
| 90179-10201 | ||||
| 91651-60816 | ||||
| 91651-61025 | ||||
| 91651-61035 | ||||
