PZJ75LV-KR (1990)
Toyota Land Cruiser

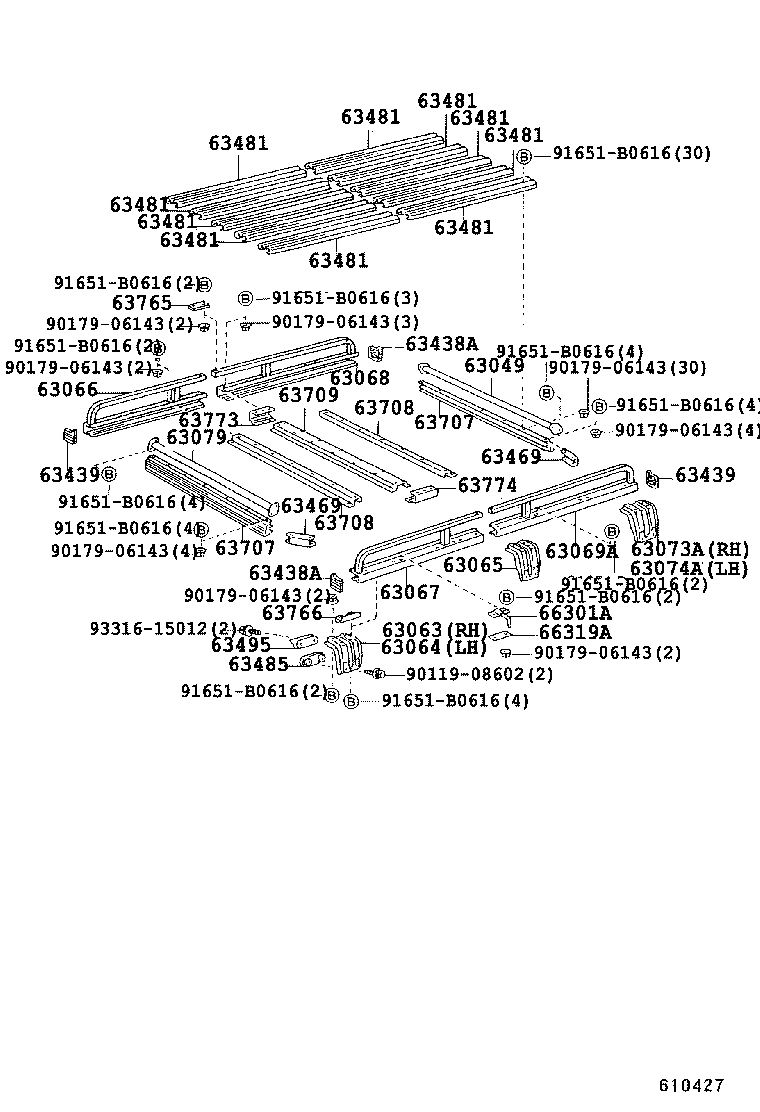

ILLUST NO. 2 OF 2(9001- )FZJ75,HDJ78..HT..CBR,TDEFI ; (9001-)FJ75,FZJ78,HZJ75,78,PZJ75..HT..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K02 |
PZJ75..HT |
1 | ||
| 63049-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63063 - STAY SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63063-90K00 |
PZJ75..HT |
1 | ||
| 63063-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63064 - STAY SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63063-90K00 |
PZJ75..HT |
1 | ||
| 63063-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63065 - STAY SUB-ASSY, ROOF RACK, CENTER | ||||
| 63065-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63065-90K00 |
PZJ75..HT |
2 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-90K03 |
PZJ75..HT |
1 | ||
| 63066-90K03 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-90K03 |
PZJ75..HT |
1 | ||
| 63067-90K03 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63068 - FRAME SUB-ASSY, ROOF RACK, LOWER REAR RH | ||||
| 63068-90K03 |
PZJ75..HT |
1 | ||
| 63068-90K03 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63069A - FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH | ||||
| 63069-90K03 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63069-90K03 |
PZJ75..HT |
1 | ||
| 63073A - STAY SUB-ASSY, ROOF RACK, REAR RH | ||||
| 63064-90K00 |
PZJ75..HT |
1 | ||
| 63064-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63074A - STAY SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63064-90K00 |
PZJ75..HT |
1 | ||
| 63064-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63079 - FRAME SUB-ASSY, ROOF RACK, UPPER FRONT | ||||
| 63049-90K02 |
PZJ75..HT |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
PZJ75..HT |
2 | ||
| 63438-90K00 |
FJ75,FZJ75,HZJ75,LJ77,79,PZJ75,RJ77..HT..(GCC,GEN) |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
PZJ75..HT |
2 | ||
| 63438-90K00 |
FJ75,FZJ75,HZJ75,LJ77,79,PZJ75,RJ77..HT..(GCC,GEN) |
1 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
FJ75,FZJ75,HZJ75,LJ77,79,PZJ75,RJ77..HT..(GCC,GEN) |
1 | ||
| 63439-90K00 |
PZJ75..HT |
2 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
FJ75,FZJ75,HZJ75,LJ77,79,PZJ75,RJ77..HT..(GCC,GEN) |
1 | ||
| 63439-90K00 |
PZJ75..HT |
2 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
1 | ||
| 63469-90K01 |
PZJ70,75..HT |
4 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
1 | ||
| 63469-90K01 |
PZJ70,75..HT |
4 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63481-90K02 |
PZJ75..HT |
10 | ||
| 63485 - CUSHION, ROOF RACK LEG, CENTER | ||||
| 63485-90K01 |
PZJ75..HT |
6 | ||
| 63485-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63495 - SPACER, ROOF RACK SUPPORT | ||||
| 63495-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
6 | ||
| 63495-90K01 |
PZJ75..HT |
6 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-90K02 |
PZJ75..HT |
2 | ||
| 63463-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
2 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-90K02 |
PZJ75..HT |
2 | ||
| 63463-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90K01 |
HZJ78..GEN;FZJ75..HT..CBR;FJ75,FZJ78,HZJ75,PZJ75..HT..(GCC,GEN) |
2 | ||
| 63708-90K01 |
PZJ75..HT |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90K01 |
HZJ78..GEN;FZJ75..HT..CBR;FJ75,FZJ78,HZJ75,PZJ75..HT..(GCC,GEN) |
2 | ||
| 63708-90K01 |
PZJ75..HT |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-90K04 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63795-90K04 |
PZJ75..HT |
1 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
FJ70,75,FZJ70,75,HZJ75,LJ70,72,PZJ70,75,RJ70..HT..(GCC,GEN) |
2 | ||
| 63765-90K00 |
PZJ70,75..HT |
2 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K05 |
PZJ75..HT |
6 | ||
| 63766-90K05 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
6 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K02 |
PZJ75..HT |
1 | ||
| 63773-90K02 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63774 - GUSSET, ROOF RACK CENTER FRAME, LH | ||||
| 63774-90K01 |
PZJ75..HT |
1 | ||
| 63774-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 66301A - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K01 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
8 | ||
| 66301-90K01 |
PZJ70,75..HT |
8 | ||
| 66319A - PLATE, ROPE HOOK | ||||
| 66319-90K00 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
8 | ||
| 66319-90K00 |
PZJ70,75..HT |
8 | ||
| Common parts | ||||
| 90119-08602 | ||||
| 90179-06143 | ||||
| 91651-B0616 | ||||
| 93316-15012 | ||||
ILLUST NO. 1 OF 2(9001- )FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K02 |
FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,78,LJ7#,PZJ70,75,RJ7#..HT |
1 | ||
| 63102-90K02 |
PZJ70,75..HT |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT |
1 | ||
| 63103-90K00 |
PZJ75..HT |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT |
1 | ||
| 63104-90K00 |
PZJ75..HT |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90K05 |
PZJ75..HT |
1 | ||
| 63105-90K05 |
FJ75,FZJ75,HZJ75,PZJ75..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..HT..STD |
1 | ||
| 63111-60150 |
FZJ75,HZJ75,PZJ75..HT..STD..(ARL,GEN) W(*HSL) |
1 | ||
| 63111-90K01 |
PZJ75..HT |
1 | ||
| 63111-60150 |
PZJ75..HT W(*HSL) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..HT |
1 | ||
| 63143-90K01 |
PZJ75..HT |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90K00 |
PZJ75..HT |
3 | ||
| 63189-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90K00 |
PZJ75..HT |
3 | ||
| 63189-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90K00 |
PZJ75..HT |
3 | ||
| 63189-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..HT..(GCC,GEN) |
1 | ||
| 63189B - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90K00 |
HZJ78..GEN;FZJ75..HT..CBR;FJ75,FZJ78,HZJ75,PZJ75..HT..(GCC,GEN) |
3 | ||
| 63189-90K00 |
PZJ75..HT |
3 | ||
| 63189B - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90K00 |
HZJ78..GEN;FZJ75..HT..CBR;FJ75,FZJ78,HZJ75,PZJ75..HT..(GCC,GEN) |
3 | ||
| 63189-90K00 |
PZJ75..HT |
3 | ||
| 63189B - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90K00 |
HZJ78..GEN;FZJ75..HT..CBR;FJ75,FZJ78,HZJ75,PZJ75..HT..(GCC,GEN) |
3 | ||
| 63189-90K00 |
PZJ75..HT |
3 | ||
| Common parts | ||||
| 90950-01440 | ||||
| 91651-40612 | ||||
ILLUST NO. 1 OF 3(9001-0106)FZJ71..LHD..STD..GEN ; (9001-0106)FJ70,73,FZJ70,73,HZJ70,73,KZJ70,LJ70,7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K02 |
FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,78,LJ7#,PZJ70,75,RJ7#..HT |
1 | ||
| 63102-90K02 |
PZJ70,75..HT |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90K05 |
PZJ75..HT |
1 | ||
| 63105-90K05 |
FJ75,FZJ75,HZJ75,PZJ75..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..HT..STD |
1 | ||
| 63111-60150 |
FZJ75,HZJ75,PZJ75..HT..STD..(ARL,GEN) W(*HSL) |
1 | ||
| 63111-90K01 |
PZJ75..HT |
1 | ||
| 63111-60150 |
PZJ75..HT W(*HSL) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..HT..STD |
1 | ||
| 63111-60150 |
FZJ75,HZJ75,PZJ75..HT..STD..(ARL,GEN) W(*HSL) |
1 | ||
| 63111-90K01 |
PZJ75..HT |
1 | ||
| 63111-60150 |
PZJ75..HT W(*HSL) |
1 | ||
| Common parts | ||||
| 67868-3003001 | ||||
| 67868-30040 | ||||
| 90179-06175 | ||||
| 91656-40620 | ||||
| 93260-16010 | ||||
