Toyota Land cruiser PZJ75 AIR CLEANER

PZJ75LV-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1994

Engine 1PZ

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

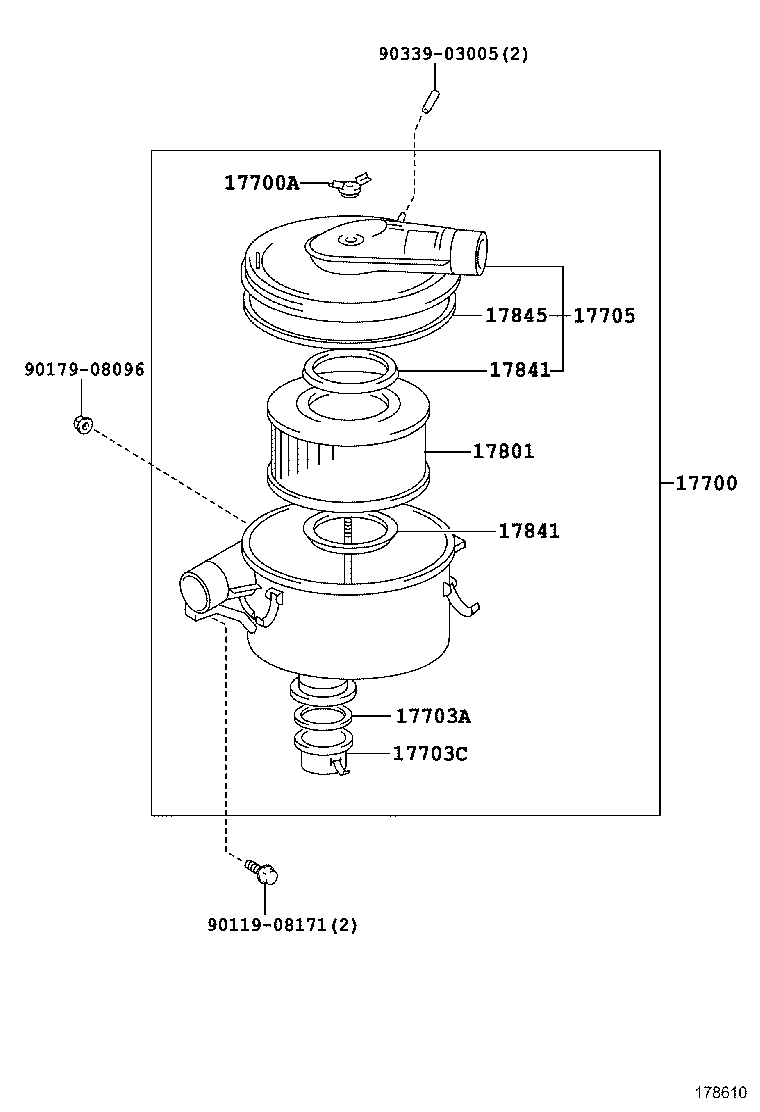

ILLUST NO. 1 OF 3(9001-9401)1PZ

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-17060	1PZ..PZJ7#	01/1990 - 05/1993	1
17700-17070	1PZ..PZJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER)	01/1990 - 05/1993	1
17700-61280	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	01/1990 - 05/1993	1
17700-17060	1PZ..PZJ7#	05/1993 - 01/1994	1
17700-17070	1PZ..PZJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 01/1994	1
17700-61280	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	05/1993 - 01/1994	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008	1PZ..PZJ7#	01/1990 - 05/1993	1
17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
90430-98001	1PZ..PZJ7#	01/1990 - 05/1993	1
17703C - CAP SUB-ASSY, DUST
17703-68010	1PZ..PZJ7#	01/1990 - 05/1993	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-17030	1PZ..PZJ70,75..LHD..4F..CBU W(CHINA SPEC & CYCLON TYPE & PRE CLEANER)	01/1990 - 05/1993	1
17705-61170	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	01/1990 - 05/1993	1
17705-17030	1PZ..PZJ7#	01/1990 - 05/1993	1
17705-17030	1PZ..PZJ7#	05/1993 - 01/1994	1
17705-17030	1PZ..PZJ70,75..LHD..4F..CBU W(CHINA SPEC & CYCLON & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 08/1993	1
17705-61170	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	05/1993 - 01/1994	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61030	1PZ..PZJ7#	01/1990 - 05/1993	1
17841 - GASKET, FILTER ELEMENT
17841-68010	1PZ..PZJ7#	01/1990 - 05/1993	2
17841 - GASKET, FILTER ELEMENT
17841-68010	1PZ..PZJ7#	01/1990 - 05/1993	2
17845 - GASKET, AIR CLEANER CAP
17845-61011	1PZ..PZJ7#	01/1990 - 05/1993	1
Common parts
90119-08171
90179-08096
90339-03005

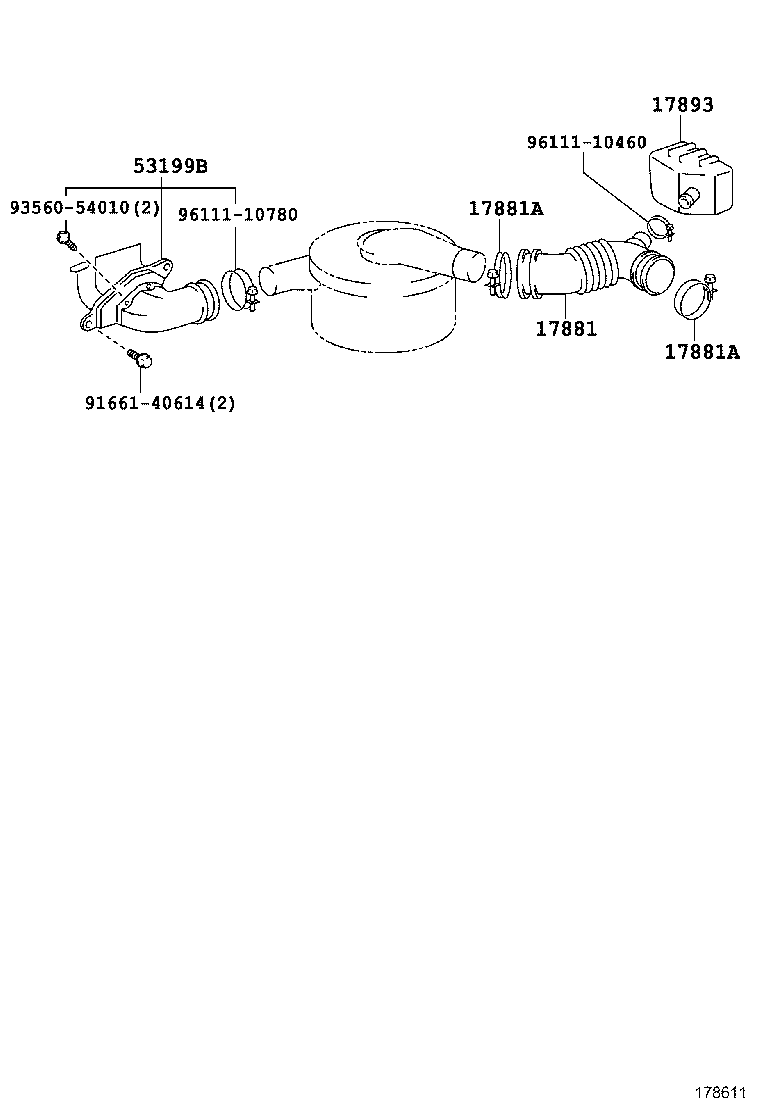

ILLUST NO. 2 OF 3(9001-9501)1PZ

Click highlighted areas on diagram

Part #	Description	Period	Qty
17881 - HOSE, AIR CLEANER, NO.1
17881-17040	1PZ..PZJ7#	01/1990 - 05/1993	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	1PZ..PZJ7#	01/1990 - 05/1993	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	1PZ..PZJ7#	01/1990 - 05/1993	2
17893 - RESONATOR, INTAKE AIR
17893-17010	1PZ..PZJ7#	01/1990 - 05/1993	1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-90K01	FJ70..GCC,GEN;FJ73,75..ARL,GCC,GEN W(HOT AIR INTAKE)	01/1990 - 01/1992	1
53207-60070	FJ73,75;FJ70..GCC,GEN	01/1990 - 08/1992	1
53207-60070	PZJ7#	01/1990 - 05/1993	1
53207-90K01	FJ75..ARL;FJ70,75..GEN..CBU W(HOT AIR INTAKE)	01/1992 - 08/1992	1
53207-60070	PZJ7#	05/1993 - 01/1994	1
Common parts
91661-40614
93560-54010
96111-10460
96111-10780

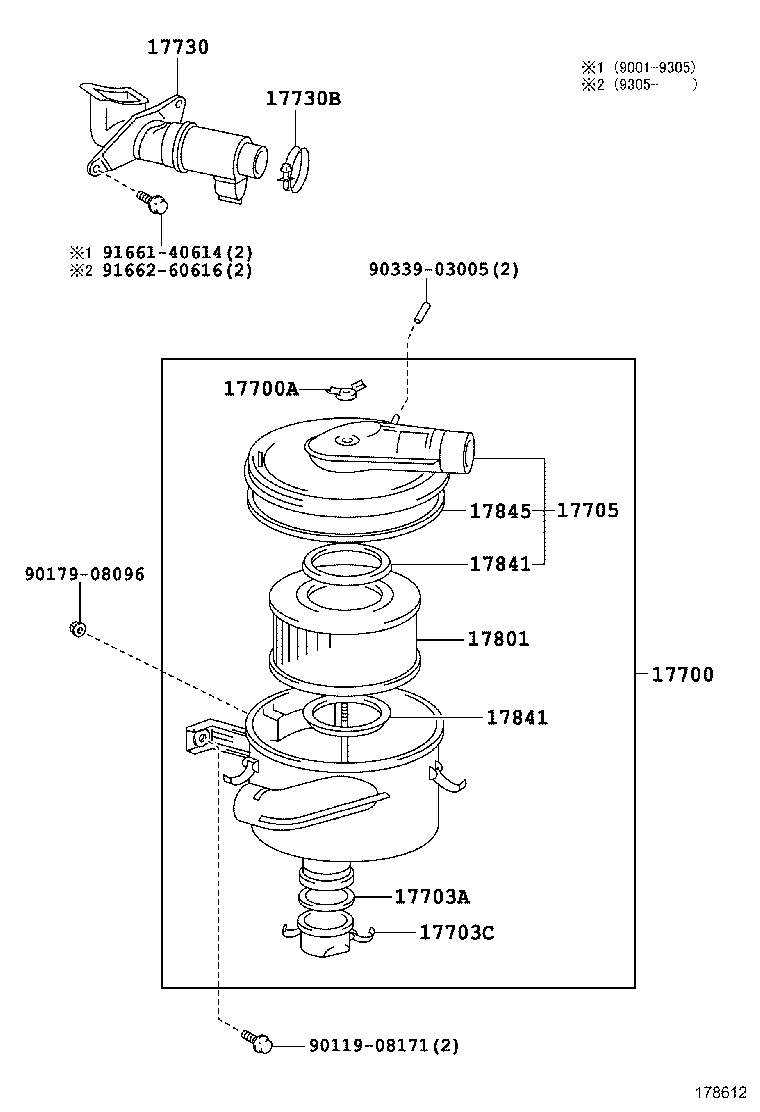

ILLUST NO. 3 OF 3(9001-9401)1PZ

Click highlighted areas on diagram

W(PRE CLEANER)

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-17060	1PZ..PZJ7#	01/1990 - 05/1993	1
17700-17070	1PZ..PZJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER)	01/1990 - 05/1993	1
17700-61280	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	01/1990 - 05/1993	1
17700-17060	1PZ..PZJ7#	05/1993 - 01/1994	1
17700-17070	1PZ..PZJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 01/1994	1
17700-61280	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	05/1993 - 01/1994	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008	1PZ..PZJ7#	01/1990 - 05/1993	1
17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
90430-98001	1PZ..PZJ7#	01/1990 - 05/1993	1
17703C - CAP SUB-ASSY, DUST
17703-68010	1PZ..PZJ7#	01/1990 - 05/1993	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-17030	1PZ..PZJ70,75..LHD..4F..CBU W(CHINA SPEC & CYCLON TYPE & PRE CLEANER)	01/1990 - 05/1993	1
17705-61170	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	01/1990 - 05/1993	1
17705-17030	1PZ..PZJ7#	01/1990 - 05/1993	1
17705-17030	1PZ..PZJ7#	05/1993 - 01/1994	1
17705-17030	1PZ..PZJ70,75..LHD..4F..CBU W(CHINA SPEC & CYCLON & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 08/1993	1
17705-61170	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	05/1993 - 01/1994	1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-61010	1PZ..PZJ7#	01/1990 - 01/1992	1
17730-61010	1PZ..PZJ7# W(PRE CLEANER)	01/1992 - 05/1993	1
17730-66010	1PZ..PZJ7# W(CYCLONE & SCHNORKEL TYPE AIR CLEANER)	01/1992 - 05/1993	1
17730-61010	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	05/1993 - 01/1994	1
17730-66010	1PZ..PZJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 01/1994	1
17730B - CLAMP, HOSE(FOR PRECLEANER HOSE)
96111-10930	1PZ..PZJ7#	01/1990 - 05/1993	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61030	1PZ..PZJ7#	01/1990 - 05/1993	1
17841 - GASKET, FILTER ELEMENT
17841-68010	1PZ..PZJ7#	01/1990 - 05/1993	2
17841 - GASKET, FILTER ELEMENT
17841-68010	1PZ..PZJ7#	01/1990 - 05/1993	2
17845 - GASKET, AIR CLEANER CAP
17845-61011	1PZ..PZJ7#	01/1990 - 05/1993	1
Common parts
90119-08171
90179-08096
90339-03005
91661-40614
91662-60616

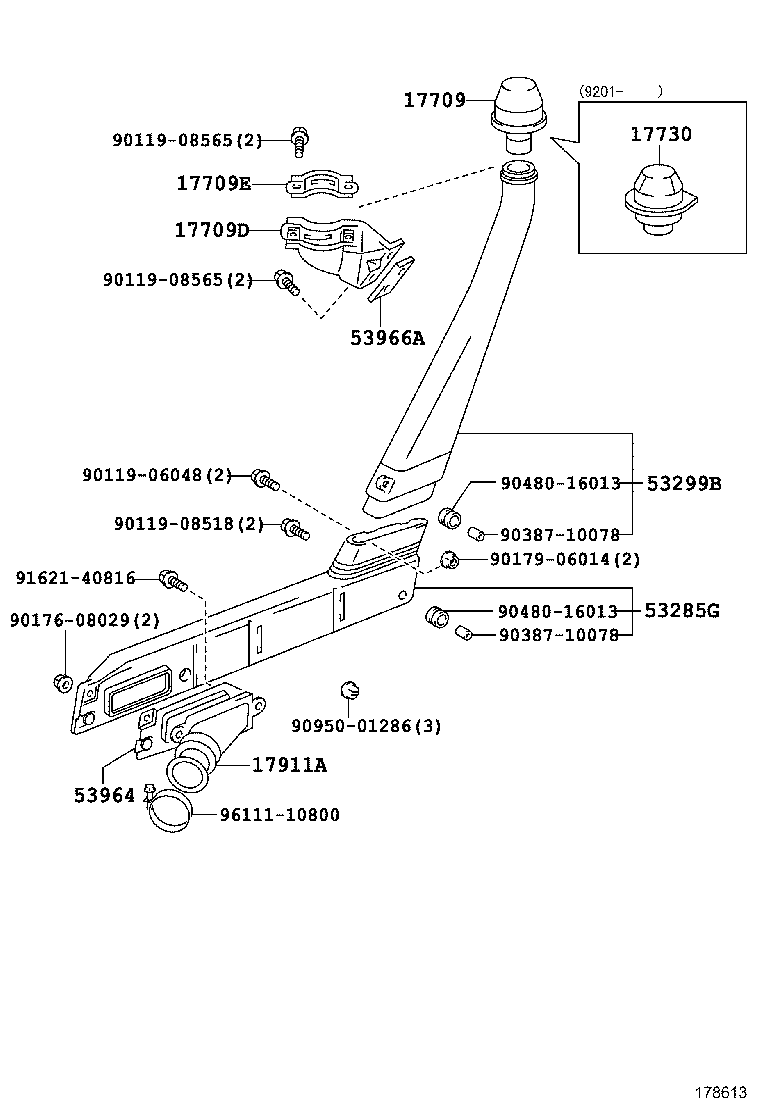

(9001-9401)1PZ

Click highlighted areas on diagram

W(SCHNORKEL)

Part #	Description	Period	Qty
17709 - INLET SUB-ASSY, AIR CLEANER
17709-61031	1PZ..PZJ70,75..LHD..4F..CBU W(HOT AIR INTAKE)	01/1990 - 01/1992	1
17709D - BRACKET, AIR CLEANER INLET, NO.1
53772-90K00	1PZ..PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1990 - 01/1992	1
53772-60020	1PZ..PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1992 - 05/1993	1
53772-60020	1PZ..PZJ70,75..LHD..4F..CBU W(CYCLON & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 08/1993	1
53772-60020	1PZ..PZJ7#	08/1993 - 01/1994	1
17709E - BRACKET, AIR CLEANER INLET, NO.2
53773-60020	1PZ..PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1992 - 05/1993	1
53773-90K00	1PZ..PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1990 - 01/1992	1
53773-60020	1PZ..PZJ7#	08/1993 - 01/1994	1
53773-60020	1PZ..PZJ70,75..LHD..4F..CBU W(CYCLON & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 08/1993	1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-61010	1PZ..PZJ7#	01/1990 - 01/1992	1
17730-61010	1PZ..PZJ7# W(PRE CLEANER)	01/1992 - 05/1993	1
17730-66010	1PZ..PZJ7# W(CYCLONE & SCHNORKEL TYPE AIR CLEANER)	01/1992 - 05/1993	1
17730-61010	1PZ..PZJ7# W(CYCLON TYPE & PRE CLEANER)	05/1993 - 01/1994	1
17730-66010	1PZ..PZJ7# W(CYCLON & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 01/1994	1
17911A - HOSE, COOL AIR INTAKE, NO.1
52831-90K00	1PZ..PZJ70,75..LHD..4F..CBU W(CYCLONE & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 08/1993	1
52831-90K00	1PZ..PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1990 - 05/1993	1
52831-90K00	1PZ..PZJ7#	08/1993 - 01/1994	1
53285G - DUCT, COOL AIR INTAKE, NO.2
53285-60040	FJ75..GEN..IV;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU W(SCHNORKEL)	01/1992 - 08/1992	1
53285-90K01	PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1990 - 01/1992	1
53285-90K01	FJ70,75..LHD..4F W(SCHNORKEL)	01/1990 - 05/1991	1
53285-90K01	FJ75..LHD..IV;FJ70,75..LHD..4F W(SCHNORKEL)	05/1991 - 01/1992	1
53285-60040	FZJ70,75..LHD..(HT,PIC)..STD..GEN W(SCHNORKEL)	08/1992 - 05/1993	1
53285-60040	PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1992 - 05/1993	1
53285-60040	PZJ7#	08/1993 - 01/1994	1
53285-60040	PZJ70,75..LHD..4F..CBU W(CYCLONE & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 08/1993	1
53299B - DUCT, COOL AIR INTAKE
53299-90K08	PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1990 - 01/1992	1
53299-90K08	FJ70,75..LHD..4F W(SCHNORKEL)	01/1990 - 05/1991	1
53299-90K08	FJ75..LHD..IV;FJ70,75..LHD..4F W(SCHNORKEL)	05/1991 - 01/1992	1
53299-60130	PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1992 - 05/1993	1
53299-60130	FZJ70,75..LHD..(HT,PIC)..STD..GEN W(SCHNORKEL)	08/1992 - 05/1993	1
53299-60130	FJ75..GEN..IV;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU W(SCHNORKEL)	01/1992 - 08/1992	1
53299-60130	PZJ70,75..LHD..4F..CBU W(CYCLONE & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 08/1993	1
53299-60130	PZJ7#	08/1993 - 01/1994	1
53964 - PLATE, AIR CLEANER INLET PIPE
53964-90K00	FJ70,75..LHD..4F W(SCHNORKEL)	01/1990 - 05/1991	1
53964-90K00	FZJ70,75..LHD..(HT,PIC)..STD..GEN W(SCHNORKEL)	08/1992 - 05/1993	1
53964-90K00	PZJ7#	08/1993 - 01/1994	1
53964-90K00	FJ75..LHD..IV;FJ70,75..LHD..4F;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU W(SCHNORKEL)	05/1991 - 08/1992	1
53964-90K00	PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1990 - 05/1993	1
53964-90K00	PZJ70,75..LHD..4F..CBU W(CYCLONE & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 08/1993	1
53966A - PAD, PRECLEANER
53966-90K00	FJ75..LHD..IV;FJ70,75..LHD..4F;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU W(SCHNORKEL)	05/1991 - 08/1992	1
53966-90K00	FJ70,75..LHD..4F W(SCHNORKEL)	01/1990 - 05/1991	1
53966-90K00	PZJ7#	08/1993 - 01/1994	1
53966-90K00	FZJ70,75..LHD..(HT,PIC)..STD..GEN W(SCHNORKEL)	08/1992 - 05/1993	1
53966-90K00	PZJ70,75..LHD..4F..CBU W(SCHNORKEL)	01/1990 - 05/1993	1
53966-90K00	PZJ70,75..LHD..4F..CBU W(CYCLON & SCHNORKEL TYPE AIR CLEANER)	05/1993 - 08/1993	1
Common parts
90119-06048
90119-08518
90119-08565
90176-08029
90179-06014
90387-10078
90480-16013
90950-01286
91621-40816
96111-10800
