PZJ75LV-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9501)1PZ

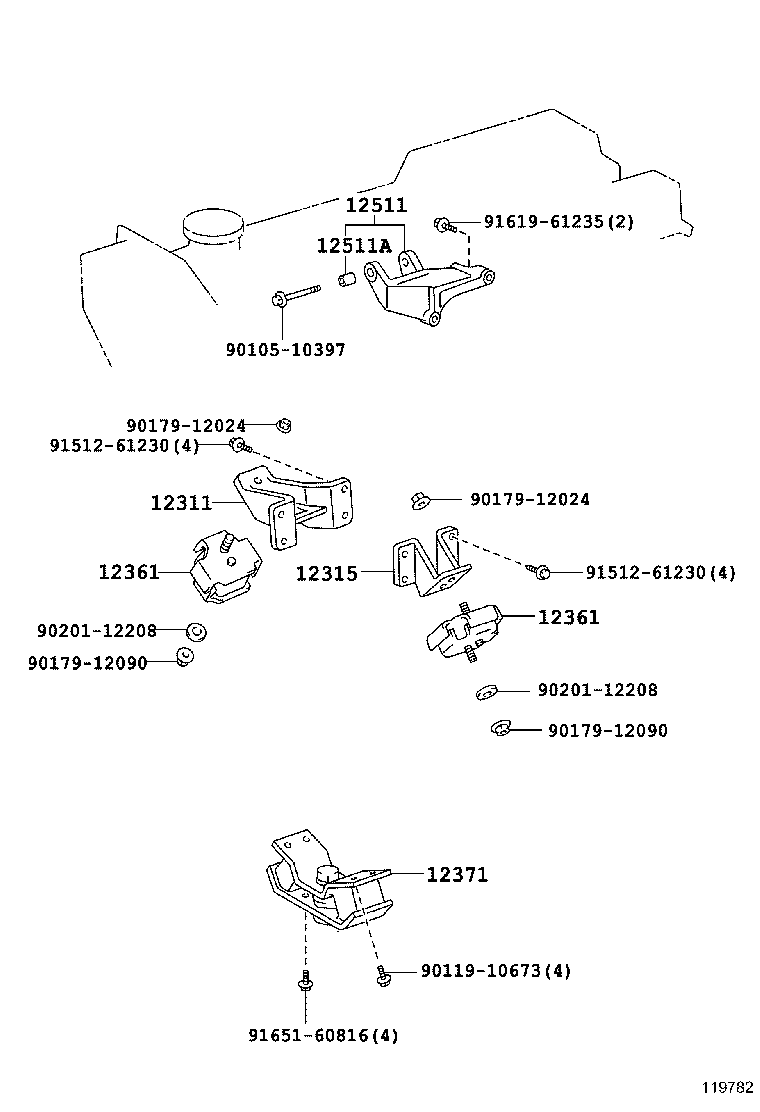

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 12511A 9010510397 9011910673 9017912024 9017912024 9017912090 9017912090 9020112208 9020112208 9151261230 9151261230 9161961235 9165160816
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-17020

1PZ..PZJ7#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-17020

1PZ..PZJ7#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17020

1PZ..PZJ7#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17020

1PZ..PZJ7#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-17030

1PZ..PZJ7#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-17010

1PZ..PZJ7#

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10101

1PZ..PZJ7#

 1
Common parts
90105-10397
90119-10673
90179-12024
90179-12090
90201-12208
91512-61230
91619-61235
91651-60816
