PZJ75LV-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9501)1PZ

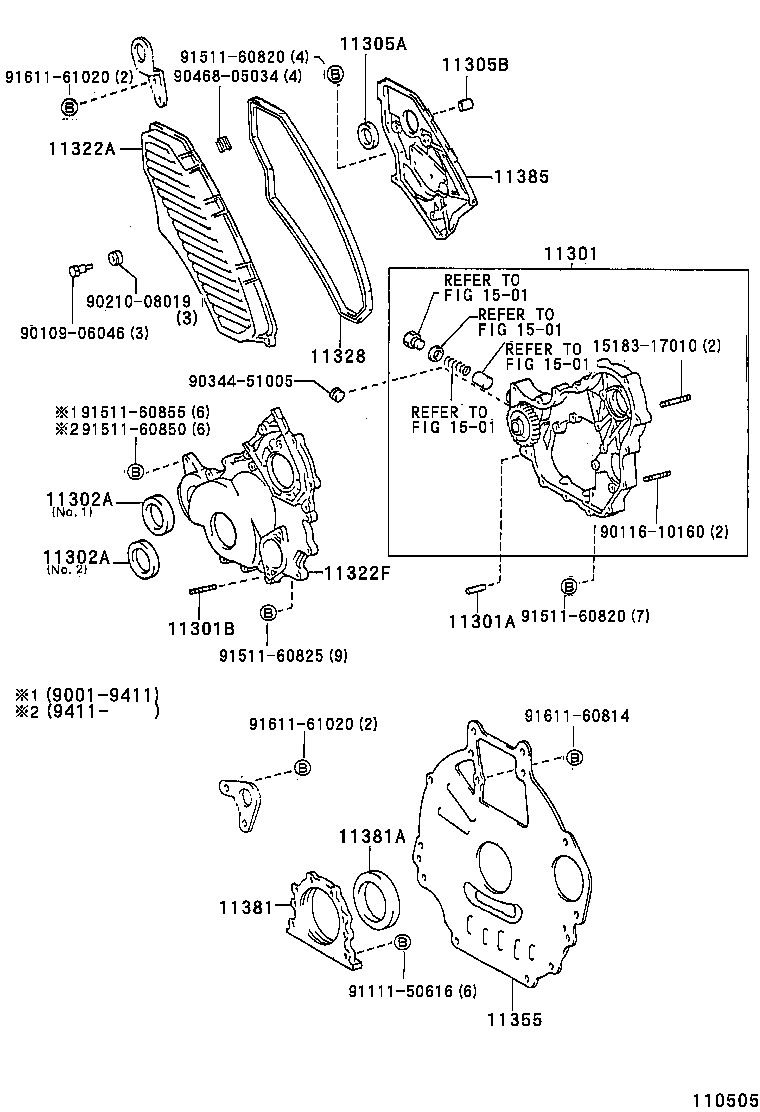

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302A 11302A 11305A 11305B 11322A 11322F 11328 11355 11381 11381A 11385 1501 1501 1501 1501 1518317010 9010906046 9011610160 9021008019 9034451005 9046805034 9111150616 9151160820 9151160820 9151160825 9151160850 9151160855 9161160814 9161161020 9161161020
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-17020

1PZ..PZJ7#..GEN

W(POWER STEERING)

 1
11301-17010

1PZ..PZJ7#..GEN

 1
11301-17020

1PZ..PZJ7#

W(POWER STEERING)

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08054

1PZ..PZJ7#

L=23,OD=8

 1
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10160

1PZ..PZJ7#

 2
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-58006

1PZ..PZJ7#

NO.1

 1
90311-58007

1PZ..PZJ7#

NO.2

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-58006

1PZ..PZJ7#

NO.1

 1
90311-58007

1PZ..PZJ7#

NO.2

 1
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32017

1PZ..PZJ7#

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11021

1PZ..PZJ7#

 2
11322A - COVER, TIMING BELT, NO.1
11321-17010

1PZ..PZJ7#

 1
11322F - COVER, TIMING GEAR, NO.2
11322-17010

1PZ..PZJ7#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-17010

1PZ..PZJ7#

 1
11355 - PLATE, REAR END
11355-18010

1PZ..PZJ7#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-17010

1PZ..PZJ7#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95008

1PZ..PZJ7#

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-17010

1PZ..PZJ7#

 1
Common parts
15183-17010
90109-06046
90116-10160
90210-08019
90344-51005
90468-05034
91111-50616
91511-60820
91511-60825
91511-60850
91511-60855
91611-60814
91611-61020
Linked diagrams
1501
