PZJ75LV-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9501)1PZ

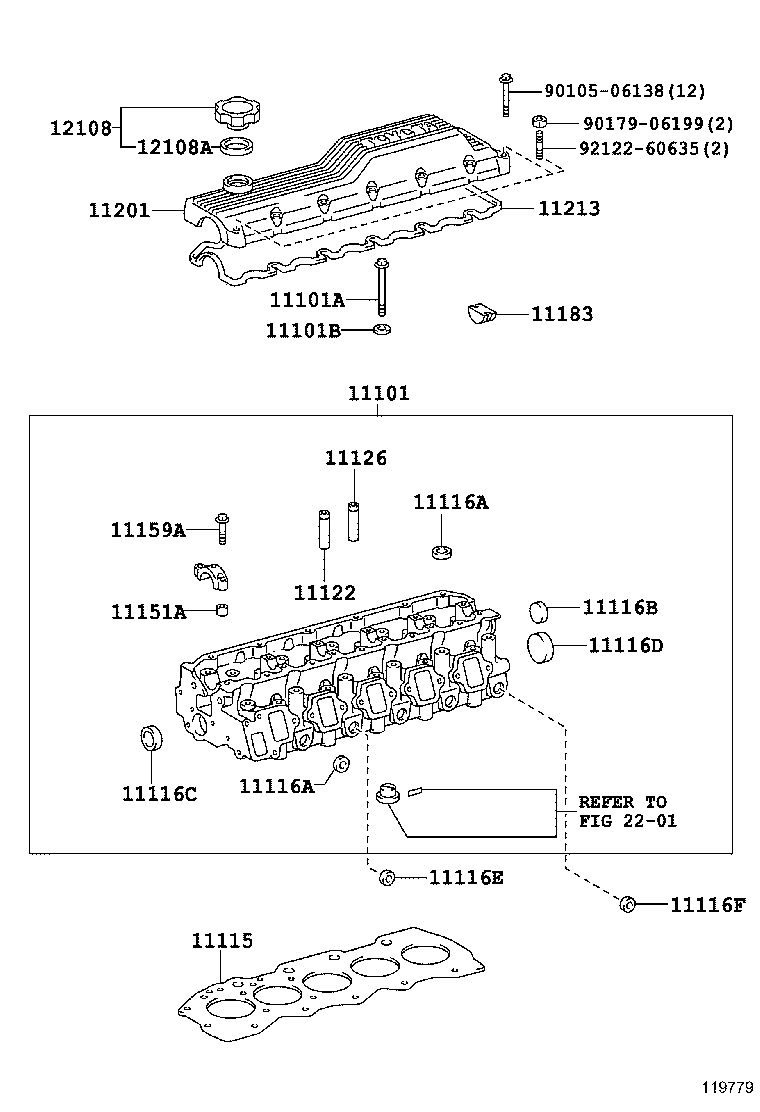

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11116A 11116A 11116B 11116C 11116D 11116E 11116F 11122 11126 11151A 11159A 11183 11201 11213 12108 12108A 2201 9010506138 9017906199 9212260635
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-18030

1PZ..PZJ7#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02096

1PZ..PZJ7#

 22
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11027

1PZ..PZJ7#

 22
11115 - GASKET, CYLINDER HEAD
11115-1801005

1PZ..PZJ7#

MARK 5

 1
11115-1801001

1PZ..PZJ7#

MARK 1

 1
11115-1801003

1PZ..PZJ7#

MARK 3

 1
11116A - PLUG, TIGHT, NO.1
96411-42500

1PZ..PZJ7#

 8
11116A - PLUG, TIGHT, NO.1
96411-42500

1PZ..PZJ7#

 8
11116B - PLUG, TIGHT, NO.2
96411-43500

1PZ..PZJ7#

 1
11116C - PLUG, TIGHT, NO.3
96411-44000

1PZ..PZJ7#

 1
11116D - PLUG, TIGHT, NO.4
96411-44500

1PZ..PZJ7#

 1
11116E - PLUG, TIGHT, NO.5
96411-42500

1PZ..PZJ7#

 1
11116F - PLUG, TIGHT, NO.6
96411-42500

1PZ..PZJ7#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-54020

1PZ..PZJ7#

STD

 5
11123-54020

1PZ..PZJ7#

O/S 0.05

 5
11126 - BUSH, EXHAUST VALVE GUIDE
11122-54020

1PZ..PZJ7#

STD

 5
11123-54020

1PZ..PZJ7#

O/S 0.05

 5
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1PZ..PZJ7#

L=8,OD=11

 12
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08789

1PZ..PZJ7#

 12
11183 - PLUG, SEMICIRCULAR
11183-54011

1PZ..PZJ7#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-18010

1PZ..PZJ7#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-18010

1PZ..PZJ7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1PZ..PZJ7#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1PZ..PZJ7#

 1
Common parts
90105-06138
90179-06199
92122-60635
Linked diagrams
2201
