PZJ73RV-MNQ (1990)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(9001-9607)FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60101 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-60060 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60090 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14177 |
FZJ70,73;FJ70,73,HZJ70,73,PZJ70,73..ARL,GEN L=175 |
6 | ||
| 90117-14178 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN L=185,W(PNC 48475R) |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60080 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
8 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60050 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 48404A - BRACKET SUB-ASSY, SPRING, NO.3 RH | ||||
| 48404-60020 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 48407 - BRACKET SUB-ASSY, SPRING, NO.3 LH | ||||
| 48407-60020 |
FJ73,FZJ73,HZJ73,PZJ73 |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-60060 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48417-60010 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69295 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 MARK 48531-60340 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69295 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 MARK 48531-60340 |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94115-51400 | ||||

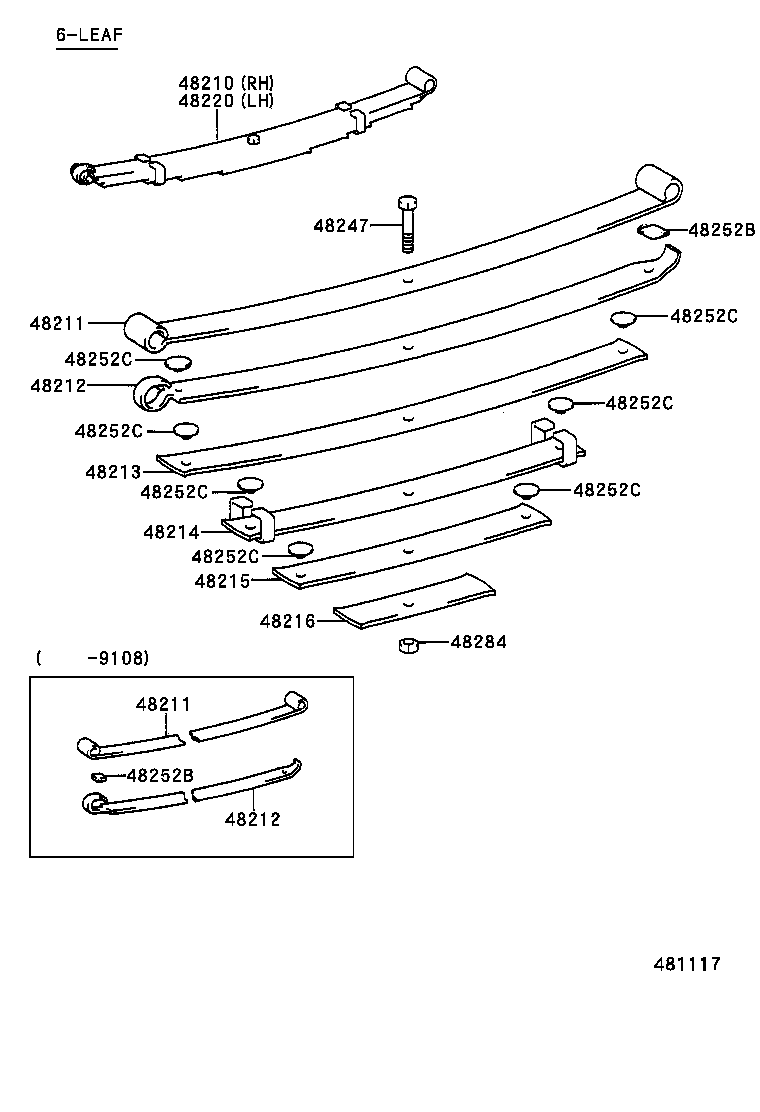

ILLUST NO. 2 OF 3(9001- )FZJ75..CBR ; (9001- )FZJ75..ARL ;(9001- )FJ7#,FZJ70,73,HJ75,HZJ70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60493 |
FJ70,73,HZJ70,73,PZJ70,73..RHD 6-LEAF |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60460 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60460 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60461 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60461 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60492 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-60492 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60492 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-60492 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60563 |
FJ70,73,HZJ70,73,PZJ70,73..RHD 6-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60160 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN L=60 |
2 | ||
| 48289-60010 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 L=120 |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48153-60230 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48153-60230 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
12 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
HZJ75..PIC..4F;HZJ75..5F..(GCC,GEN);FJ70,73,HZJ70,73,PZJ70,73;FJ75,PZJ75..PIC..(GCC,GEN) |
2 | ||
ILLUST NO. 2 OF 3(9001- )FZJ75 ; (9001- )FZJ70..ARL ; (9001- )FJ7#,FZJ70,73,HZJ70,73,75,PZJ
HARD SUSPENSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60493 |
FJ70,73,HZJ70,73,PZJ70,73..RHD 6-LEAF |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60460 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60460 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60461 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60461 |
FJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60492 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-60492 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60492 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-60492 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60563 |
FJ70,73,HZJ70,73,PZJ70,73..RHD 6-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60160 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..ARL,GEN L=60 |
2 | ||
| 48289-60010 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 L=120 |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-37010 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-37010 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-37010 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
HZJ75..PIC..4F;HZJ75..5F..(GCC,GEN);FJ70,73,HZJ70,73,PZJ70,73;FJ75,PZJ75..PIC..(GCC,GEN) |
2 | ||
