PZJ73RV-MNQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991
Engine 1PZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

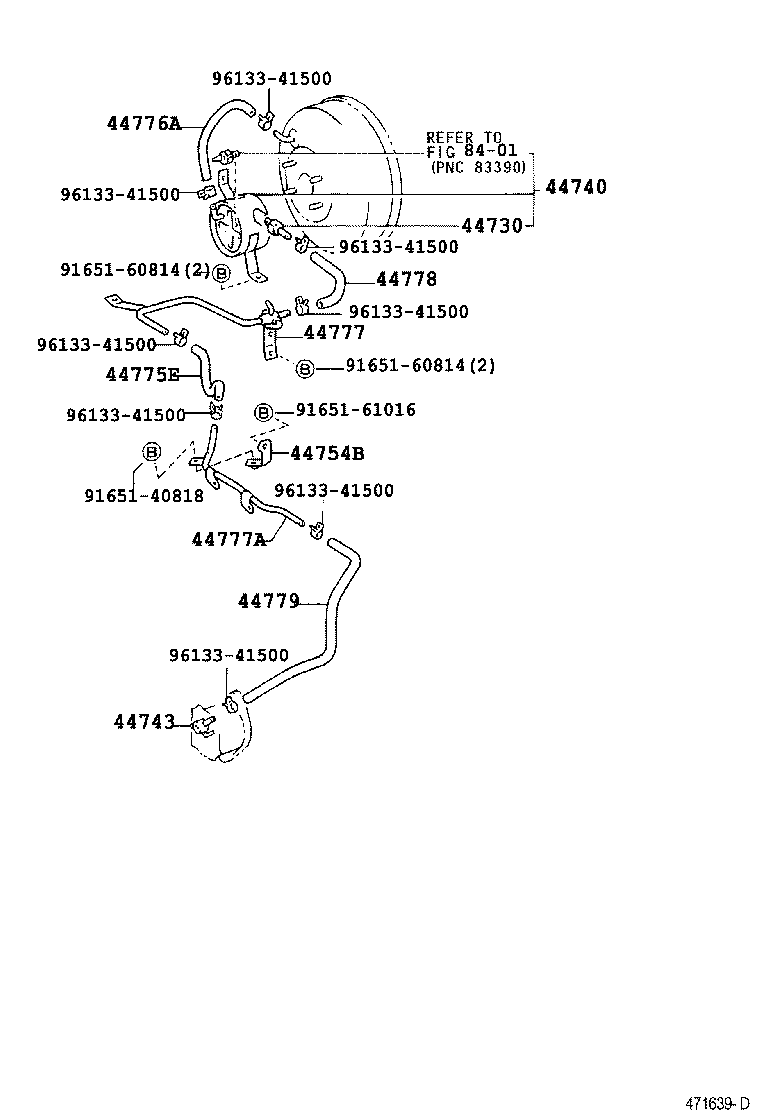

ILLUST NO. 2 OF 2(9001-0405)HZJ70,73,75,PZJ7#..RHD

Click highlighted areas on diagram

diagram 44730 44740 44743 44754B 44775E 44776A 44777 44777A 44778 44779 8401 9165140818 9165160814 9165160814 9165161016 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

HJ75,HZJ7#,LJ7#,PZJ7#

 1
44740 - RESERVOIR ASSY, VACUUM
44740-60090

HJ75,HZJ7#,PZJ7#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09141

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
90405-09142

HZJ7#,PZJ7#..ARL,GCC,GEN

W(AIR CONDITIONER)

 1
44754B - BRACKET, VACUUM TUBE
44754-60010

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
44775E - HOSE, WAY TO CONNECTOR
44775-60050

PZJ7#

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
95441-09300

HZJ7#,LJ7#,PZJ7#..RHD

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60200

HZJ7#,PZJ7#..RHD..MTM

 1
44799-60070

HZJ7#,PZJ7#..RHD..MTM..(ARL,GEN)

W(*CLB & *ELC)

 1
44799-60090

HZJ7#,PZJ7#..RHD..MTM..(ARL,GEN)

W(*ELC)

 1
44799-60080

HZJ7#,PZJ7#..RHD..MTM..(ARL,GEN)

W(*CLB(MOUNTED INSIDE))

 1
44777A - CONNECTOR, VACUUM HOSE, NO.2
44777-60220

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60030

HJ75,HZJ7#,LJ7#,PZJ7#

 1
44779 - HOSE, UNION TO CONNECTOR
44774-60130

HZJ75..RHD;HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ71,78,79,PZJ7#

 1
Common parts
91651-40818
91651-60814
91651-61016
96133-41500
Linked diagrams
8401

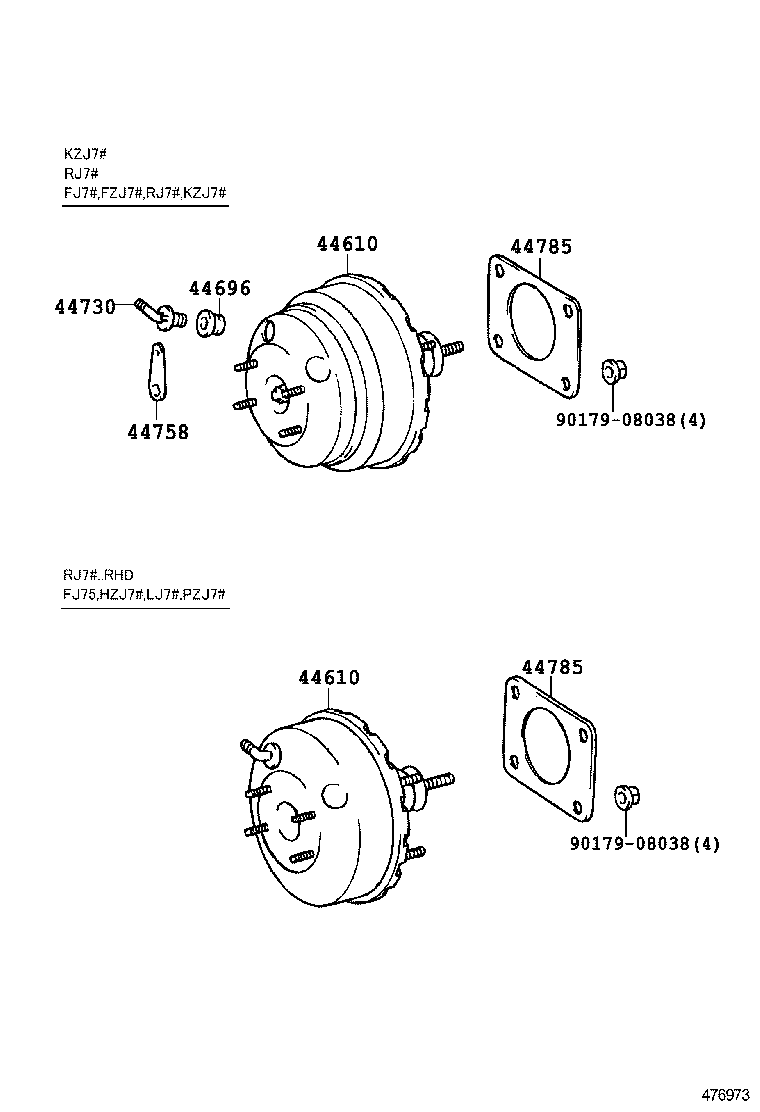

ILLUST NO. 1 OF 2(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,

Click highlighted areas on diagram

diagram 44610 44610 44696 44730 44758 44785 44785 9017908038 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60460

LJ77,79..RHD;HJ75,HZJ7#,LJ70,PZJ70,73..ARL,SA

 1
44610 - BOOSTER ASSY, BRAKE
44610-60460

LJ77,79..RHD;HJ75,HZJ7#,LJ70,PZJ70,73..ARL,SA

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

HJ75,HZJ7#,LJ7#,PZJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
Common parts
90179-08038
