LJ77RV-MNX (1990)

Toyota Land Cruiser

Production Apr 1990 - May 1993
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9604)KZJ7#,LJ70,77,PZJ7#

Click highlighted areas on diagram

R141,R150,R151

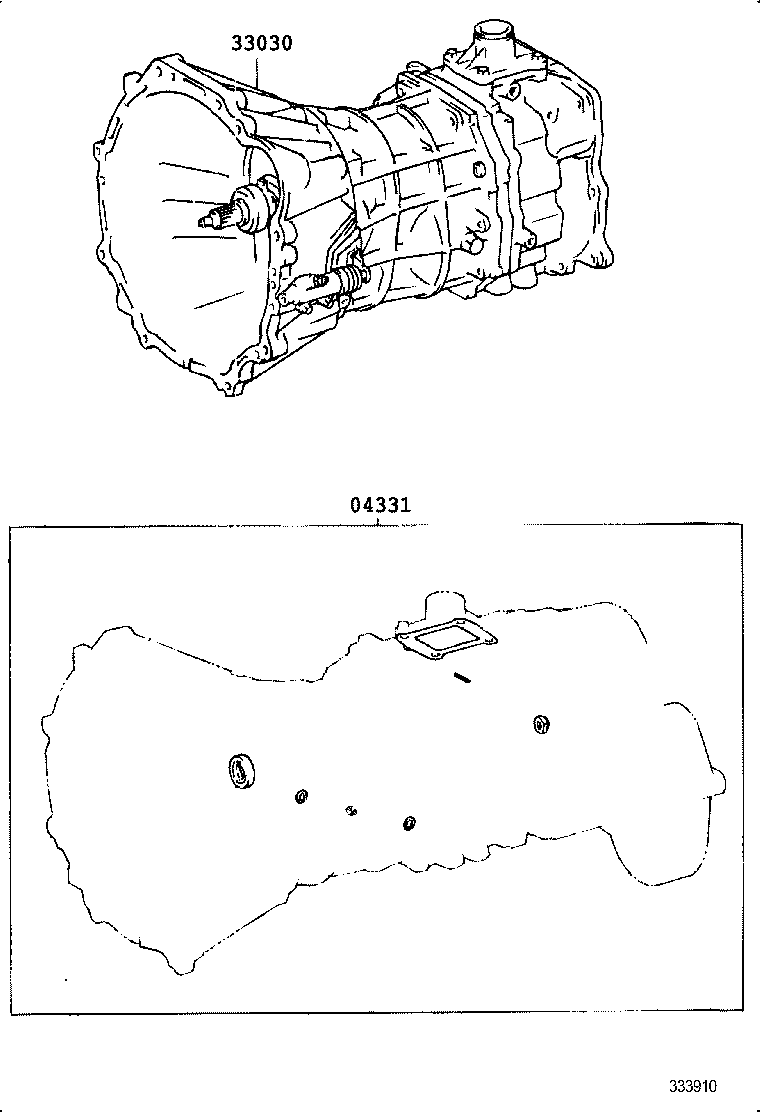

diagram 04331 33030
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-60220

LJ70,77,PZJ7#

 1
33030 - TRANSMISSION UNIT ASSY, MANUAL
33030-60820

LJ70,77

 1
33030-60821

LJ77

 1
