LJ72L-KR (1990)

Toyota Land Cruiser

Production Apr 1990 - May 1993
Engine 3L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9604)LJ7#,RJ7#..LHD

Click highlighted areas on diagram

MAKER OPTION

diagram 88460 88460B 8846714050 8846722060 8846722060 88470 88472 88472 8868860330 8868860540 8868890K03 8868890K03 88711 88712 88715A 88716A 88716B 88716E 8871812180 8871860510 8871860550 8871890K07 8871890K11 88723B 8889560010 8889960070 9009120618 9009901520 9009932128 9011906100 9011906336 9011906429 9011906429 9011906429 9017906032 9017906274 9165140814 9165140814 91651B0835 91651F0610 91651F0616 91651F0616 91651F0616 91651F0616 9359056014
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60080

LJ7#,RJ7#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-12020

LJ7#,RJ7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60080

LJ7#,RJ7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60080

LJ7#,RJ7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60180

LJ7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60240

LJ7#..LHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60030

LJ7#,RJ7#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60520

LJ7#,RJ7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60490

LJ7#,RJ7#..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-60570

LJ7#,RJ7#..LHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22050

FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN

 1
88723-22050

FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN

 1
Common parts
88467-14050
88467-22060
88688-60330
88688-60540
88688-90K03
88718-12180
88718-60510
88718-60550
88718-90K07
88718-90K11
88895-60010
88899-60070
90091-20618
90099-01520
90099-32128
90119-06100
90119-06336
90119-06429
90179-06032
90179-06274
91651-40814
91651-B0835
91651-F0610
91651-F0616
93590-56014

ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00

Click highlighted areas on diagram

MAKER OPTION

diagram 88450 88460 88460B 8846714050 8846722060 8846722060 88470 88472 88472 88479 8868890K01 8868890K01 8868890K04 8868890K06 88711 88712 88715A 88716A 88716B 88716E 88717A 88717B 8871860510 8871860520 8871890K04 8871890K27 88723B 88891A 8889560010 8889560010 9009120618 9009901520 9009932128 9011906100 9011906100 9011906336 9011906336 9011906429 9017906032 9017906274 91611B0835 9165140616 9165140616 9165140616 91651F0610 91651F0616
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60080

LJ7#,RJ7#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-12020

LJ7#,RJ7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60080

LJ7#,RJ7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60080

LJ7#,RJ7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60180

LJ7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60240

LJ7#..LHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60030

LJ7#,RJ7#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60520

LJ7#,RJ7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60490

LJ7#,RJ7#..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-60570

LJ7#,RJ7#..LHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22050

FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN

 1
88723-22050

FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN

 1
Common parts
88467-14050
88467-22060
88688-90K01
88688-90K04
88688-90K06
88718-60510
88718-60520
88718-90K04
88718-90K27
88895-60010
90091-20618
90099-01520
90099-32128
90119-06100
90119-06336
90119-06429
90179-06032
90179-06274
91611-B0835
91651-40616
91651-F0610
91651-F0616

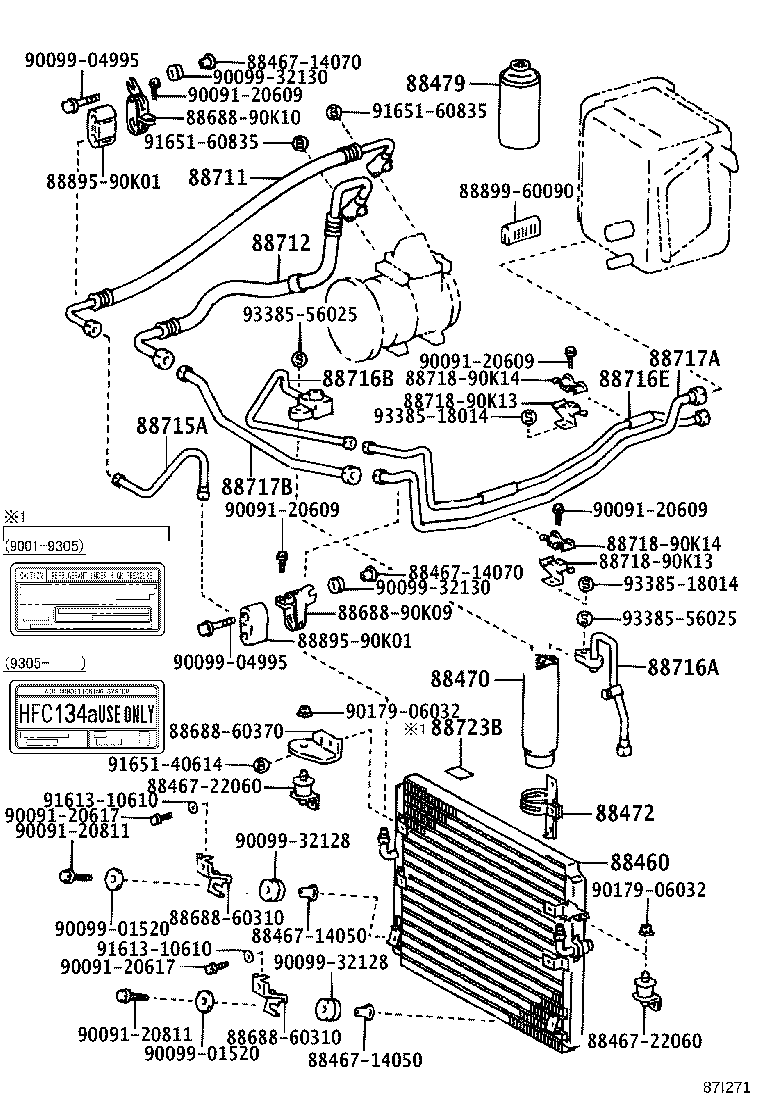

ILLUST NO. 1 OF 3(9001-9604)LJ7#

Click highlighted areas on diagram

DEALER OPTION

diagram 88460 8846714050 8846714050 8846714070 8846714070 8846722060 8846722060 88470 88472 88479 8868860310 8868860310 8868860370 8868890K09 8868890K10 88711 88712 88715A 88716A 88716B 88716E 88717A 88717B 8871890K13 8871890K13 8871890K14 8871890K14 88723B 8889590K01 8889590K01 8889960090 9009120609 9009120609 9009120609 9009120609 9009120617 9009120617 9009120811 9009120811 9009901520 9009901520 9009904995 9009904995 9009932128 9009932128 9009932130 9009932130 9017906032 9017906032 9161310610 9161310610 9165140614 9165160835 9165160835 9338518014 9338518014 9338556025 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60080

LJ7#,RJ7#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-12020

LJ7#,RJ7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60080

LJ7#,RJ7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60180

LJ7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60240

LJ7#..LHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60030

LJ7#,RJ7#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60520

LJ7#,RJ7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60490

LJ7#,RJ7#..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-60570

LJ7#,RJ7#..LHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22050

FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN

 1
88723-22050

FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN

 1
Common parts
88467-14050
88467-14070
88467-22060
88688-60310
88688-60370
88688-90K09
88688-90K10
88718-90K13
88718-90K14
88895-90K01
88899-60090
90091-20609
90091-20617
90091-20811
90099-01520
90099-04995
90099-32128
90099-32130
90179-06032
91613-10610
91651-40614
91651-60835
93385-18014
93385-56025
