Toyota Land cruiser LJ70 CLUTCH & RELEASE FORK

LJ70RV-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990

Engine 2L

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

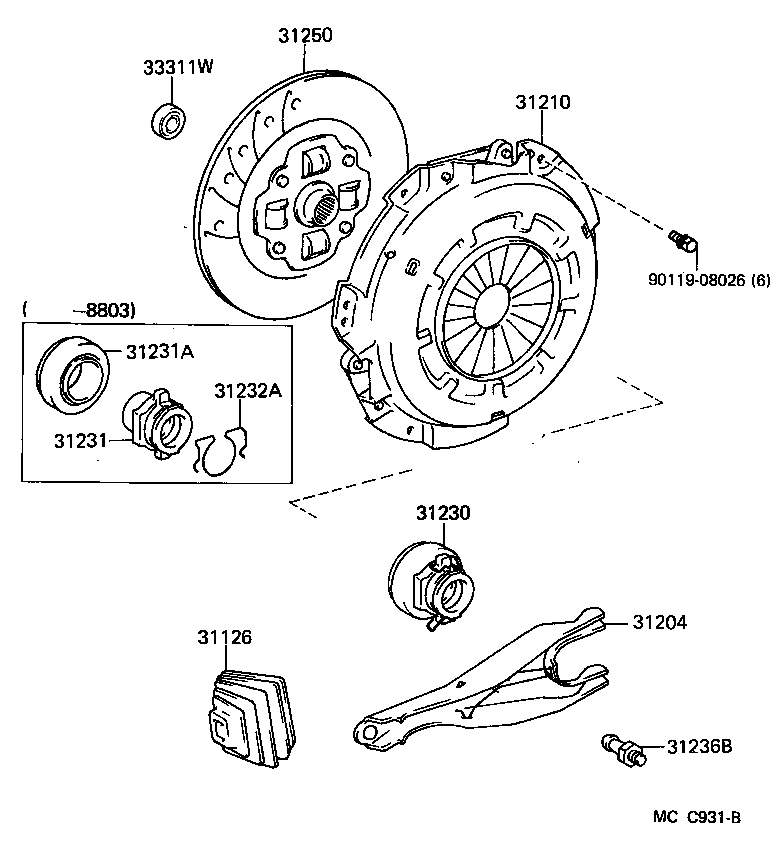

Click highlighted areas on diagram

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060	LJ70,RJ70..CBR,TD	11/1984 - 01/1990	1
31126-20070	LJ70..DSL	11/1984 - 01/1990	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35050	LJ70..DSL	08/1988 - 01/1990	1
31204-20090	LJ70..DSL	11/1984 - 08/1988	1
31204-35030	LJ70..TD	10/1985 - 01/1990	1
31210 - COVER ASSY, CLUTCH
31210-24020	LJ70..TD	01/1988 - 08/1988	1
31210-24020	LJ70,RJ70..CBR,TD	11/1984 - 01/1988	1
31210-35090	LJ70..DSL	08/1988 - 01/1990	1
31210-35110	LJ70..TD	08/1988 - 01/1990	1
31210-14130	LJ70..DSL	11/1984 - 08/1988	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35070	LJ70,RJ70	08/1988 - 01/1990	1
31230-35070	LJ70..TD	03/1988 - 08/1988	1
31231 - HUB, CLUTCH RELEASE BEARING
31231-35030	LJ70..TD	10/1985 - 03/1988	1
31231-20090	LJ70,RJ70..CBR,DSL	11/1984 - 08/1988	1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022	LJ70,RJ70..CBR,DSL	03/1988 - 08/1988	1
90363-40022	LJ70,RJ70	11/1984 - 03/1988	1
31232A - CLIP, RELEASE BEARING HUB
31232-35010	LJ70..TD	10/1985 - 03/1988	1
31232-22010	LJ70,RJ70..CBR,DSL	11/1984 - 08/1988	2
31232A - CLIP, RELEASE BEARING HUB
31232-35010	LJ70..TD	10/1985 - 03/1988	1
31232-22010	LJ70,RJ70..CBR,DSL	11/1984 - 08/1988	2
31236B - SUPPORT, RELEASE FORK
31236-30060	LJ70,RJ70..CBR,DSL	11/1984 - 01/1990	1
31236-35030	LJ70..TD	10/1985 - 01/1990	1
31250 - DISC ASSY, CLUTCH
31250-60151	LJ70	12/1987 - 01/1990	1
31250-30350	LJ70	11/1984 - 05/1986	1
31250-60150	LJ70	05/1986 - 12/1987	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002	BJ7#,LJ70,RJ70	11/1984 - 01/1990	1
Common parts
90119-08026

Click highlighted areas on diagram

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060	LJ70,RJ70..CBR,TD	11/1984 - 01/1990	1
31126-20070	LJ70..DSL	11/1984 - 01/1990	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35050	LJ70..DSL	08/1988 - 01/1990	1
31204-20090	LJ70..DSL	11/1984 - 08/1988	1
31204-35030	LJ70..TD	10/1985 - 01/1990	1
31210 - COVER ASSY, CLUTCH
31210-24020	LJ70..TD	01/1988 - 08/1988	1
31210-24020	LJ70,RJ70..CBR,TD	11/1984 - 01/1988	1
31210-35090	LJ70..DSL	08/1988 - 01/1990	1
31210-35110	LJ70..TD	08/1988 - 01/1990	1
31210-14130	LJ70..DSL	11/1984 - 08/1988	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35070	LJ70,RJ70	08/1988 - 01/1990	1
31230-35070	LJ70..TD	03/1988 - 08/1988	1
31231 - HUB, CLUTCH RELEASE BEARING
31231-35030	LJ70..TD	10/1985 - 03/1988	1
31231-20090	LJ70,RJ70..CBR,DSL	11/1984 - 08/1988	1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022	LJ70,RJ70..CBR,DSL	03/1988 - 08/1988	1
90363-40022	LJ70,RJ70	11/1984 - 03/1988	1
31232A - CLIP, RELEASE BEARING HUB
31232-35010	LJ70..TD	10/1985 - 03/1988	1
31232-22010	LJ70,RJ70..CBR,DSL	11/1984 - 08/1988	2
31236B - SUPPORT, RELEASE FORK
31236-30060	LJ70,RJ70..CBR,DSL	11/1984 - 01/1990	1
31236-35030	LJ70..TD	10/1985 - 01/1990	1
31250 - DISC ASSY, CLUTCH
31250-60151	LJ70	12/1987 - 01/1990	1
31250-30350	LJ70	11/1984 - 05/1986	1
31250-60150	LJ70	05/1986 - 12/1987	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002	BJ7#,LJ70,RJ70	11/1984 - 01/1990	1
Common parts
90119-08026

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08026
