LJ70RV-KR (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
2L
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )2L

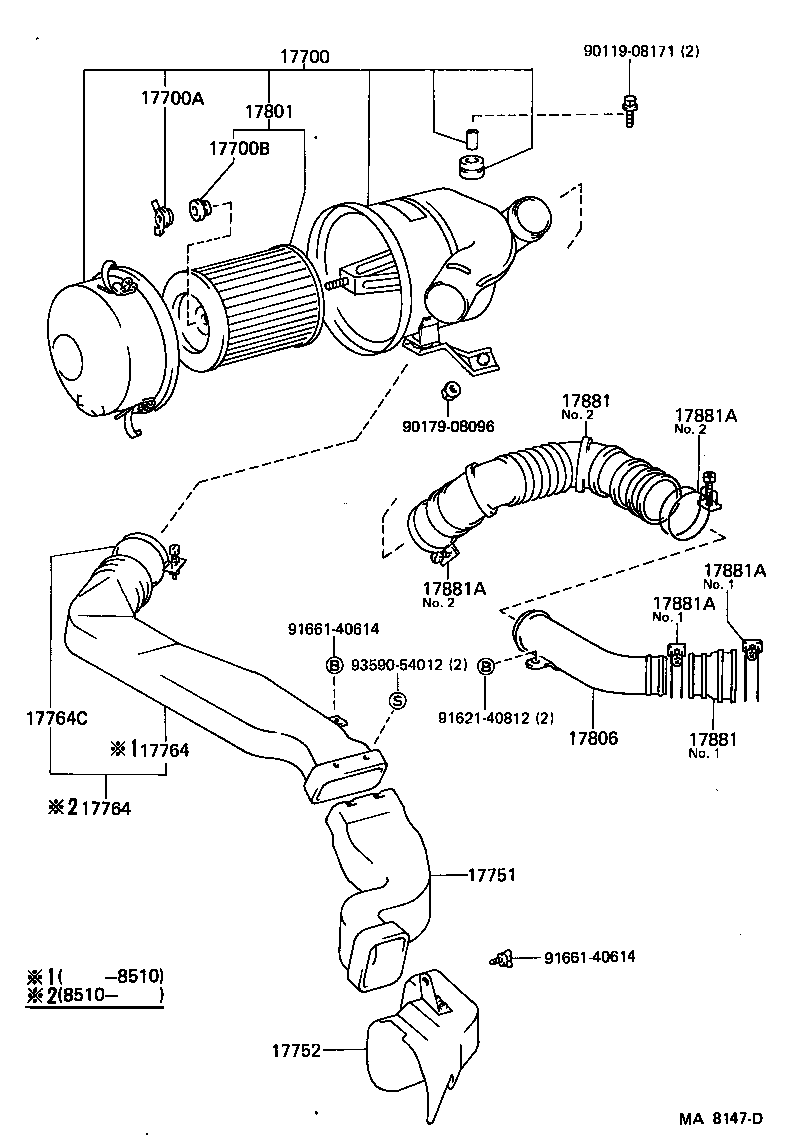

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54320 |
2L..LJ70 |
1 | ||
| 17700-54400 |
2L#..LJ70 |
1 | ||
| 17700-54321 |
2L#..LJ70 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
2L#..LJ70 CYCLONE TYPE |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
2L#..LJ70 CYCLONE TYPE |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 52811-90K00 |
2L#..LJ70 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 52812-90K00 |
2L#..LJ70 |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 53299-90K02 |
2L..LJ70 |
1 | ||
| 53207-90K02 |
2L#..LJ70 |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 53299-90K02 |
2L..LJ70 |
1 | ||
| 53207-90K02 |
2L#..LJ70 |
1 | ||
| 17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT) | ||||
| 96111-10750 |
2L#..LJ70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31050 |
2L#..LJ70 CYCLONE TYPE |
1 | ||
| 17801-54080 |
2L#..LJ70 CYCLONE TYPE |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17113-54020 |
2L..LJ70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54260 |
2L..LJ70 NO.2 |
1 | ||
| 17349-54020 |
2L..LJ70 NO.1 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54260 |
2L..LJ70 NO.2 |
1 | ||
| 17349-54020 |
2L..LJ70 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LJ70 PIPE SIDE,NO.1 |
1 | ||
| 96111-10670 |
2L..LJ70 FLANGE SIDE,NO.1 |
1 | ||
| 96111-10710 |
2L#..LJ70 NO.2 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LJ70 PIPE SIDE,NO.1 |
1 | ||
| 96111-10670 |
2L..LJ70 FLANGE SIDE,NO.1 |
1 | ||
| 96111-10710 |
2L#..LJ70 NO.2 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LJ70 PIPE SIDE,NO.1 |
1 | ||
| 96111-10670 |
2L..LJ70 FLANGE SIDE,NO.1 |
1 | ||
| 96111-10710 |
2L#..LJ70 NO.2 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LJ70 PIPE SIDE,NO.1 |
1 | ||
| 96111-10670 |
2L..LJ70 FLANGE SIDE,NO.1 |
1 | ||
| 96111-10710 |
2L#..LJ70 NO.2 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| 91621-40812 | ||||
| 91661-40614 | ||||
| 93590-54012 | ||||
