LJ70LV-MN (1986)
Toyota Land Cruiser

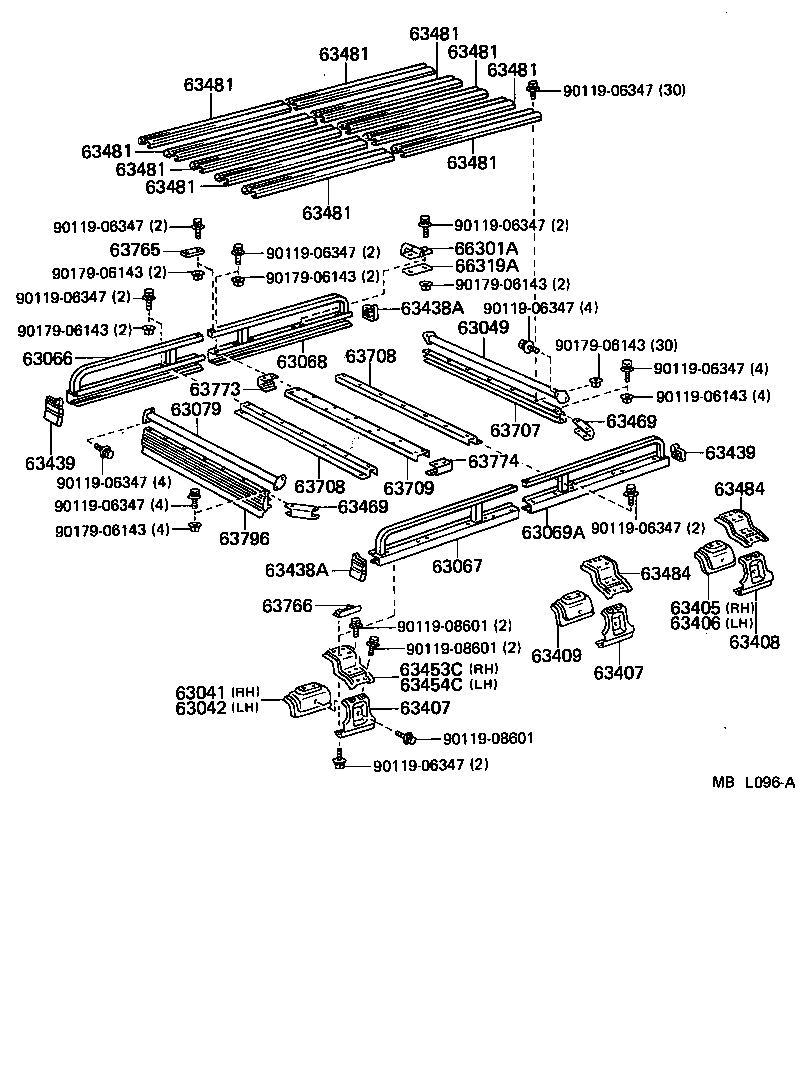

ILLUST NO. 3 OF 3(8608- )BJ70,FJ70,LJ70,RJ70..HT..GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63041 - LEG SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63041-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63041-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63042 - LEG SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63042-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63042-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90A00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63049-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63066-90K02 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63067-90K02 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63068 - FRAME SUB-ASSY, ROOF RACK, LOWER REAR RH | ||||
| 63068-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63068-90K02 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63069A - FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH | ||||
| 63069-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63069-90K02 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63079 - FRAME SUB-ASSY, ROOF RACK, UPPER FRONT | ||||
| 63049-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63079-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63405 - LEG SUB-ASSY, ROOF RACK, REAR RH | ||||
| 63405-90K02 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63405-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63406 - LEG SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63406-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63406-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63407-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63407-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63408 - SUPPORT SUB-ASSY, ROOF RACK LEG, REAR | ||||
| 63408-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63408-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63409 - LEG SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63409-90K02 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) FR |
1 | ||
| 63438-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) RR |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) FR |
1 | ||
| 63438-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) RR |
1 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) RR |
1 | ||
| 63439-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) FR |
1 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) RR |
1 | ||
| 63439-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) FR |
1 | ||
| 63453C - STAY, ROOF RACK, FRONT RH | ||||
| 63453-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63454C - STAY, ROOF RACK, FRONT LH | ||||
| 63454-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
10 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63707-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63464-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63708-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63464-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63708-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-90K02 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63709-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
6 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63774 - GUSSET, ROOF RACK CENTER FRAME, LH | ||||
| 63773-90K01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63796 - FRAME, ROOF RACK, LOWER NO.4 | ||||
| 63796-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 66301A - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K01 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
8 | ||
| 66319A - PLATE, ROPE HOOK | ||||
| 66319-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(GEN,ME) |
8 | ||
| Common parts | ||||
| 90119-06143 | ||||
| 90119-06347 | ||||
| 90119-08601 | ||||
| 90179-06143 | ||||
ILLUST NO. 1 OF 3(9001-0106)FZJ71..LHD..STD..GEN ; (9001-0106)FJ70,73,FZJ70,73,HZJ70,73,KZJ70,LJ70,7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67868-3003001 | ||||
| 67868-30040 | ||||
| 90179-06175 | ||||
| 91656-40620 | ||||
| 93260-16010 | ||||
