LJ70LV-MN (1986)

Toyota Land Cruiser

Production Aug 1986 - Jan 1990
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8411-8708)BJ7#,FJ7#,HJ75,LJ70 ; (8411- )RJ70..LHD ; (8708- )FJ75..STD ; (870

Click highlighted areas on diagram

diagram 04443 44608 44610 44610 44618 44629 44642 44663 44696 44730 44758 44785 44785 9017908038 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-60200

BJ70,LJ70

FR DISC BRAKE

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

BJ7#,FJ70,73,HJ75,LJ70

 1
44606-12520

BJ7#,FJ7#,HJ75,LJ70

 1
44610 - BOOSTER ASSY, BRAKE
44610-60320

BJ7#,LJ70;HJ75..RHD

FR DISC BRAKE

 1
44610-60460

LJ70

FR DISC BRAKE

 1
44610 - BOOSTER ASSY, BRAKE
44610-60320

BJ7#,LJ70;HJ75..RHD

FR DISC BRAKE

 1
44610-60460

LJ70

FR DISC BRAKE

 1
44618 - SEAL, BOOSTER BODY
44621-28120

BJ7#,FJ70,73,HJ75,LJ70

 1
44621-28120

BJ7#,FJ7#,HJ75,LJ70

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

BJ7#,FJ7#,HJ75,LJ70

 1
44628-28120

BJ7#,FJ70,73,HJ75,LJ70

 1
44642 - PISTON, BRAKE BOOSTER
44642-60280

RJ70..LHD;BJ70,FJ70,73,LJ70

FR DISC BRAKE

 1
44663 - KEY, VALVE STOPPER
44635-28120

BJ7#,FJ70,73,HJ75,LJ70

 1
44635-28120

BJ7#,FJ7#,HJ75,LJ70

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BJ7#,HJ75,LJ70

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
Common parts
90179-08038

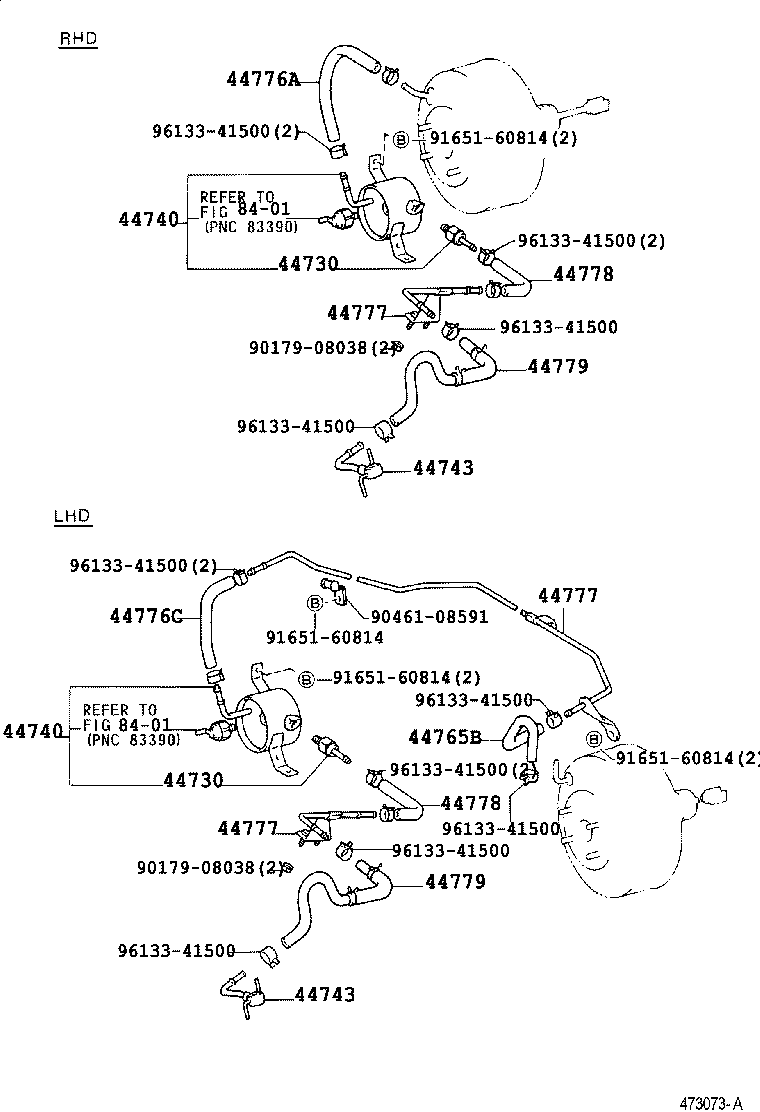

ILLUST NO. 2 OF 2(9001-9604)LJ7#

Click highlighted areas on diagram

diagram 44730 44730 44740 44740 44743 44743 44765B 44776A 44776C 44777 44777 44777 44778 44778 44779 44779 8401 8401 9017908038 9017908038 9046108591 9165160814 9165160814 9165160814 9165160814 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
Common parts
90179-08038
90461-08591
91651-60814
96133-41500
Linked diagrams
8401
