LJ70L-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )LJ70,RJ70..CBR,DSL..GEN,ME

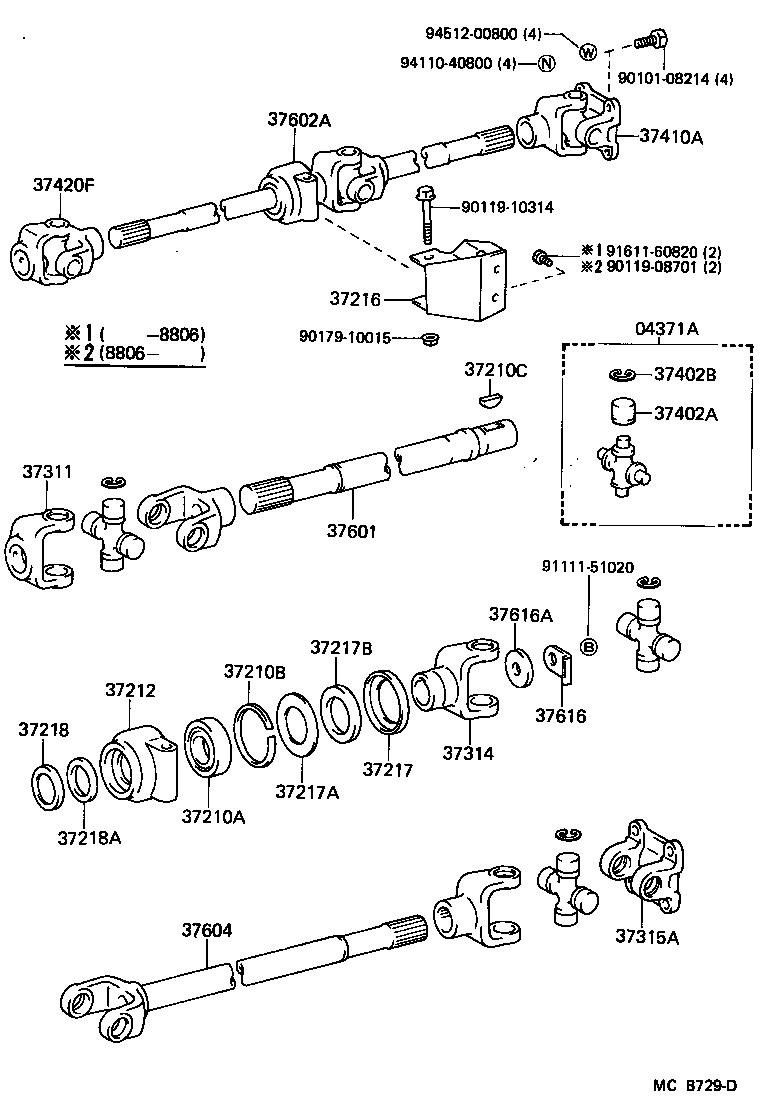

Click highlighted areas on diagram

diagram 04371A 37210A 37210B 37210C 37212 37216 37217 37217A 37217B 37218 37218A 37311 37314 37315A 37402A 37402B 37410A 37420F 37601 37602A 37604 37616 37616A 9010108214 9011908701 9011910314 9017910015 9111151020 9161160820 9411040800 9451200800
Part # Description Qty Price
04371A - SPIDER KIT, UNIVERSAL JOINT(FOR WINCH DRIVE SHAFT)
04371-10011

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 4
37210A - BEARING (FOR PILLOW BLOCK)
90363-25039

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37210B - RING, HOLE SNAP (FOR PILLOW BLOCK BEARING)
90521-55007

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37210C - KEY, WOODRUFF (FOR PILLOW BLOCK)
90280-05001

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 2
37212 - BODY, PILLOW BLOCK, NO.2
37212-60020

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37216 - BRACKET, PILLOW BLOCK
37216-60100

LJ70,RJ70..(CBR,DSL)..(GEN,ME)

 1
37217 - RETAINER, DUST SEAL, NO.1
37217-60010

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37217A - WASHER, PLATE (FOR PILLOW BLOCK RETAINER)
90201-37068

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37217B - SEAL, DUST (FOR PILLOW BLOCK RETAINER)
90303-37008

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37218 - RETAINER, DUST SEAL, NO.2
37218-60020

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37218A - SEAL, DUST (FOR NO.2 PILLOW BLOCK RETAINER)
90303-30025

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37311 - YOKE, UNIVERSAL JOINT, NO.1 (FOR WINCH DRIVE SHAFT)
37311-60041

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37314 - YOKE, UNIVERSAL JOINT SLEEVE
37314-60010

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37315A - YOKE, UNIVERSAL JOINT FLANGE (FOR WINCH DRIVE SHAFT)
37315-60040

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37402A - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (FOR WINCH)
37402-10020

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 16
37402B - RING, HOLE SNAP (FOR WINCH DRIVE SHAFT SPIDER BEARING)
90521-22011

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

T=1.2,T=1.20

 16
90521-22012

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

T=1.25,T=1.25

 16
90521-22013

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

T=1.30,T=1.30

 16
37410A - JOINT ASSY, UNIVERSAL, W/YOKE (FOR WINCH)
37410-60060

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37420F - JOINT ASSY, UNIVERSAL, W/FLANGE YOKE
37420-60031

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37601 - SHAFT SUB-ASSY, DRIVE, FRONT NO.1
37601-60110

LJ70,RJ70..(CBR,DSL)..(GEN,ME)

 1
37602A - SHAFT SUB-ASSY, W/YOKE DRIVE, FRONT
37602-60190

LJ70,RJ70..(CBR,DSL)..(GEN,ME)

 1
37604 - SHAFT SUB-ASSY, DRIVE, FRONT NO.2
37604-60120

LJ70,RJ70..(CBR,DSL)..(GEN,ME)

 1
37616 - PLATE, DRIVE SHAFT LOCK
37616-60010

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
37616A - WASHER (FOR DRIVE SHAFT LOCK PLATE)
90201-12169

BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME)

 1
Common parts
90101-08214
90119-08701
90119-10314
90179-10015
91111-51020
91611-60820
94110-40800
94512-00800
