LJ70L-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )2H,2L#

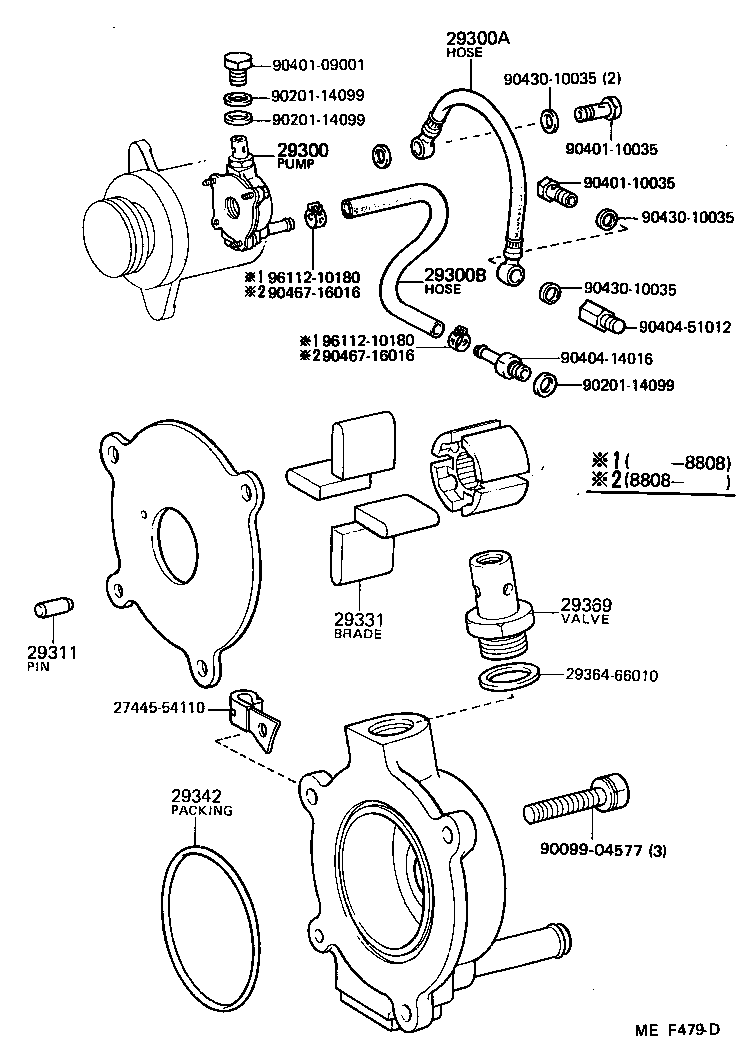

Click highlighted areas on diagram

2H=SOUTH AFRICA SPEC

diagram 2744554110 29300 29300A 29300B 29311 29331 29342 2936466010 29369 9009904577 9020114099 9020114099 9020114099 9040109001 9040110035 9040110035 9040414016 9040451012 9043010035 9043010035 9043010035 9046716016 9046716016 9611210180 9611210180
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54050

2L#..LJ70

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02077

2L..LJ70

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02076

2L#..LJ70

 1
29611-54030

2L#..LJ70

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

13BT,3B,2H,2L#..BJ7#,HJ75,LJ70

 1
90099-08082

13BT,3B,2H,2L#..BJ7#,HJ75,LJ70

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

13BT,3B,2H,2L#..BJ7#,HJ75,LJ70

 1
29331-56070

13BT,2H,2L#..BJ74,HJ75,LJ70

 1
29342 - PACKING, VACUUM PUMP
96740-02063

13BT,3B,2H,2L#..BJ7#,HJ75,LJ70

 1
96740-02063

13BT,2H,2L#..BJ74,HJ75,LJ70

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

13BT,3B,2H,2L#..BJ7#,HJ75,LJ70

 1
29369-56070

13BT,2H,2L#..BJ74,HJ75,LJ70

 1
Common parts
27445-54110
29364-66010
90099-04577
90201-14099
90401-09001
90401-10035
90404-14016
90404-51012
90430-10035
90467-16016
96112-10180
