Toyota Land cruiser KZJ77 BRAKE TUBE & CLAMP

KZJ77RV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996

Engine 1KZT

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 5 OF 6(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#

Click highlighted areas on diagram

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010	KZJ77,LJ79,RJ77	05/1993 - 04/1996	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-60100	KZJ77,LJ79,RJ77	05/1993 - 04/1996	1
47920 - SPRING ASSY, LOAD SENSING
47920-60100	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
47931 - BRACKET, LOAD SENSING VALVE
47931-60060	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47931 - BRACKET, LOAD SENSING VALVE
47931-60060	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47932A - BRACKET, LOAD SENSING VALVE UNION
47932-60010	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47932A - BRACKET, LOAD SENSING VALVE UNION
47932-60010	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-60090	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-60090	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35020	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-60020	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
Common parts
90119-08834
90179-08204
90179-10132
90201-23360
91131-50840
91611-B0816
91651-60816
91651-B0825
94110-41000
94130-00802
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 2 OF 6(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10174	LJ79;LJ70,72,77..LX	01/1990 - 01/1991	1
47391-60040	KZJ7#	05/1993 - 04/1996	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10174	LJ79;LJ70,72,77..LX	01/1990 - 01/1991	1
47391-60040	KZJ7#	05/1993 - 04/1996	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10174	LJ79;LJ70,72,77..LX	01/1990 - 01/1991	1
47391-60040	KZJ7#	05/1993 - 04/1996	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10174	LJ79;LJ70,72,77..LX	01/1990 - 01/1991	1
47391-60040	KZJ7#	05/1993 - 04/1996	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10174	LJ79;LJ70,72,77..LX	01/1990 - 01/1991	1
47391-60040	KZJ7#	05/1993 - 04/1996	1
47311H - GROMMET(FOR BRAKE TUBE)
90480-01069	KZJ77	05/1993 - 04/1996	6
47311H - GROMMET(FOR BRAKE TUBE)
90480-01069	KZJ77	05/1993 - 04/1996	6
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10178	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10178	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47321A - WAY(FOR REAR BRAKE TUBE)
47396-60020	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47321A - WAY(FOR REAR BRAKE TUBE)
47396-60020	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-60140	KZJ7#,LJ7#	05/1993 - 04/1996	1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47354-60090	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47354-60090	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-60160	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-60090	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-60090	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-60090	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
Common parts
90119-08701
90119-10121
90461-08706
90461-10629
90461-10793
90464-00208
90949-01071
90949-01183
90949-01184
90949-01854
91611-60614
91611-B0816
91621-J0814
91651-60614
91651-B0814

ILLUST NO. 1 OF 6(9305-9604)KZJ77..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty

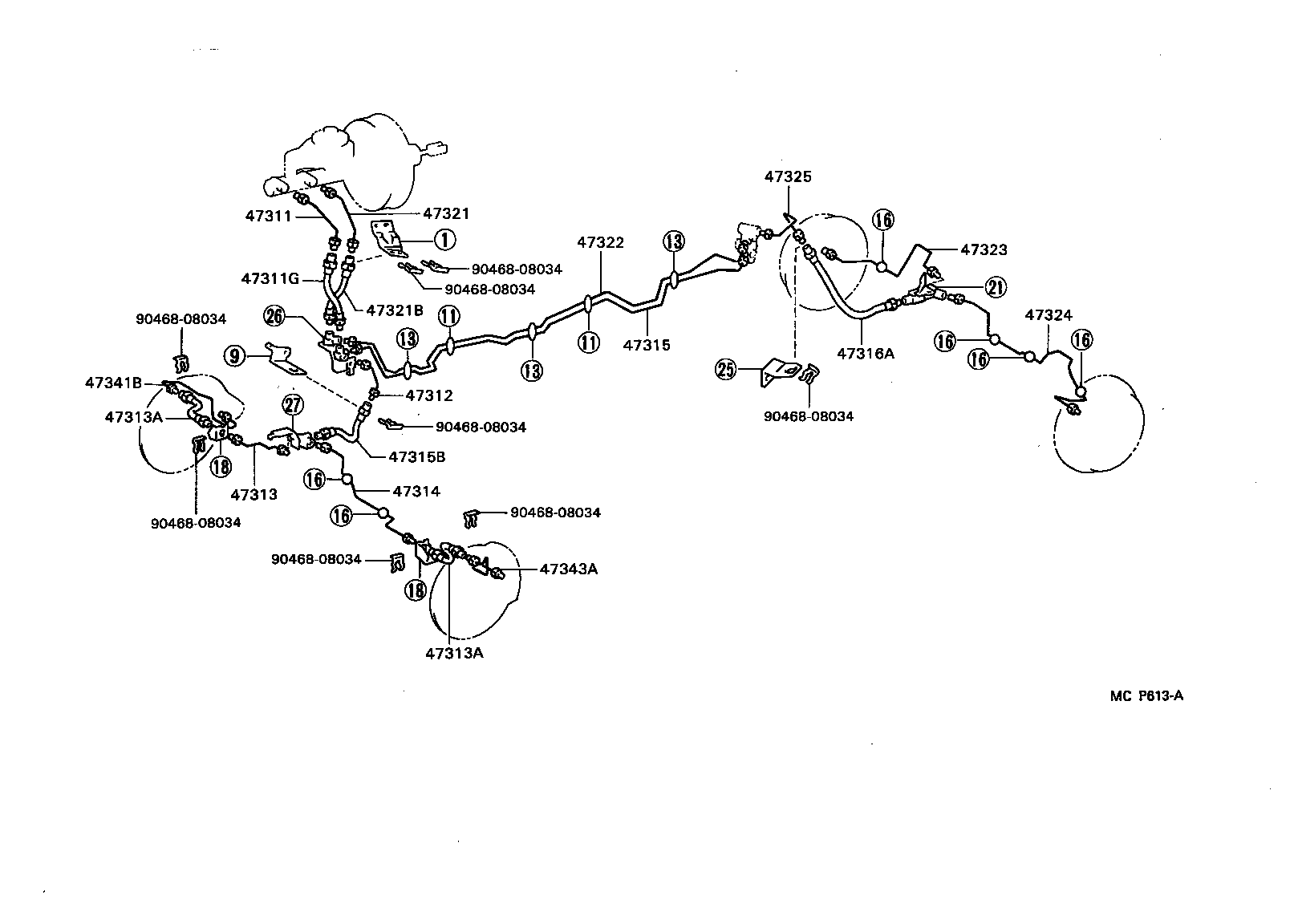

47311 - TUBE, FRONT BRAKE, NO.1
47312-60561	LJ70,77..RHD	01/1990 - 05/1993	1
47312-60820	KZJ77..RHD	05/1993 - 04/1996	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-32606	KZJ7#	05/1993 - 04/1996	1
47312 - TUBE, FRONT BRAKE, NO.2
47313-60230	KZJ7#	05/1993 - 04/1996	1
47313 - TUBE, FRONT BRAKE, NO.3
47314-60200	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855	LJ72,RJ70..LX;FJ7#,HJ75,HZJ7#,LJ70,77,79,PZJ7#,RJ77	01/1990 - 01/1992	2
96940-39855	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855	LJ72,RJ70..LX;FJ7#,HJ75,HZJ7#,LJ70,77,79,PZJ7#,RJ77	01/1990 - 01/1992	2
96940-39855	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
47314 - TUBE, FRONT BRAKE, NO.4
47315-60350	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47315 - TUBE, FRONT BRAKE, NO.5
47316-60470	KZJ77	05/1993 - 04/1996	1
47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-32755	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34305	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47321 - TUBE, REAR BRAKE, NO.1
47322-60451	LJ70,77..RHD	01/1990 - 05/1993	1
47322-60700	KZJ77..RHD	05/1993 - 04/1996	1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32006	KZJ7#	05/1993 - 04/1996	1
47322 - TUBE, REAR BRAKE, NO.2
47323-60570	KZJ77	05/1993 - 04/1996	1
47323 - TUBE, REAR BRAKE, NO.3
47324-60180	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47324 - TUBE, REAR BRAKE, NO.4
47325-60140	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47325 - TUBE, REAR BRAKE, NO.5
47326-60071	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60060	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47341-60060	LJ79,RJ77;LJ70,72,77,RJ70..LX	01/1990 - 01/1992	1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60060	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	1
47343-60060	LJ79,RJ77;LJ70,72,77,RJ70..LX	01/1990 - 01/1992	1
Common parts
90468-08034
