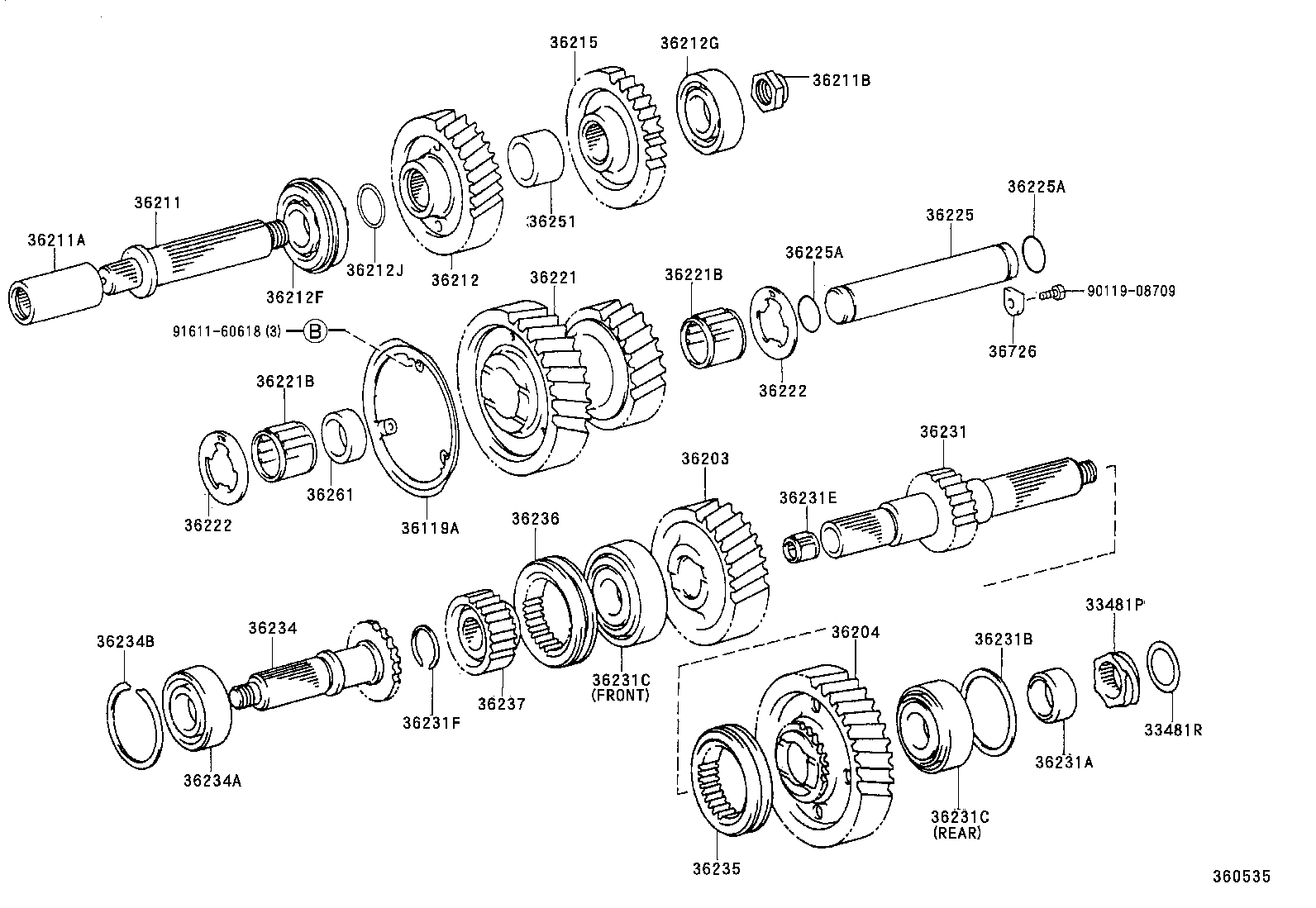

KZJ77RV-MNX (1993)
Toyota Land Cruiser
(9001-9604)KZJ7#,LJ7#,PZJ7#,RJ7# ; (9908-0309)HZJ71,78,79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60051 |
KZJ7#,LJ72,RJ7#..HT N=6,MARK 6:18-20 |
1 | ||
| 33481R - WASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90201-35002 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR) | ||||
| 36119-60020 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60050 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT | ||||
| 36204-60070 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-60021 |
HZJ71,78,79,LJ70,77,PZJ7# |
1 | ||
| 36211-60021 |
KZJ7# |
1 | ||
| 36211A - YOKE, TRANSMISSION SLEEVE | ||||
| 33399-60020 |
KZJ7# |
1 | ||
| 33399-60020 |
LJ70,77,PZJ7# |
1 | ||
| 36211B - NUT (FOR TRANSFER INPUT SHAFT) | ||||
| 90179-26002 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60081 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90363-35020 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36212G - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR) | ||||
| 90363-35013 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36212J - RING, O (FOR TRANSFER INPUT GEAR) | ||||
| 90301-34005 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36215 - GEAR, POWER TAKE-OFF DRIVE | ||||
| 36215-60030 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60090 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 36225 - SHAFT, TRANSFER IDLER GEAR | ||||
| 36225-60050 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
KZJ7#,LJ7#,RJ7#..HT |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-60021 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90560-35008 |
KZJ7#,LJ7#,RJ7#..HT T=17.5 |
1 | ||
| 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90564-70001 |
KZJ7#,LJ7#,RJ7#..HT T=0.15 |
1 | ||
| 90564-70004 |
KZJ7#,LJ7#,RJ7#..HT T=0.60 |
1 | ||
| 90564-70002 |
KZJ7#,LJ7#,RJ7#..HT T=0.40 |
1 | ||
| 90564-70003 |
KZJ7#,LJ7#,RJ7#..HT T=0.50 |
1 | ||
| 90564-70007 |
KZJ7#,LJ7#,RJ7#..HT T=0.90 |
1 | ||
| 90564-70010 |
KZJ7#,LJ7#,RJ7#..HT T=1.20 |
1 | ||
| 90564-70006 |
KZJ7#,LJ7#,RJ7#..HT T=0.80 |
1 | ||
| 90564-70005 |
KZJ7#,LJ7#,RJ7#..HT T=0.70 |
1 | ||
| 90564-70011 |
KZJ7#,LJ7#,RJ7#..HT T=1.30 |
1 | ||
| 90564-70012 |
KZJ7#,LJ7#,RJ7#..HT T=1.40 |
1 | ||
| 90564-70013 |
KZJ7#,LJ7#,RJ7#..HT T=1.50 |
1 | ||
| 90564-70009 |
KZJ7#,LJ7#,RJ7#..HT T=1.10 |
1 | ||
| 90564-70008 |
KZJ7#,LJ7#,RJ7#..HT T=1.00 |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35011 |
KZJ7#,LJ7#,RJ7#..HT FRONT |
1 | ||
| 90366-35053 |
KZJ7#,LJ7#,RJ7#..HT REAR |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35011 |
KZJ7#,LJ7#,RJ7#..HT FRONT |
1 | ||
| 90366-35053 |
KZJ7#,LJ7#,RJ7#..HT REAR |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-17010 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-33107 |
KZJ7#,LJ7#,RJ7#..HT T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33110 |
KZJ7#,LJ7#,RJ7#..HT T=2.6-2.65,MARK 17 |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-60040 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36234-60031 |
LJ79..STD;LJ79..LHD..LX;HZJ7#,KZJ7#,LJ72,PZJ7#,RJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 36234-60031 |
LJ79..STD;LJ79..LHD..LX;HZJ7#,KZJ7#,LJ72,RJ7#..ARL,GCC,GEN W(*ELC) |
1 | ||
| 36234-60031 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..GEN W(*ELC) |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-35013 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-75023 |
KZJ7#,LJ7#,RJ7#..HT T=1.6 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60020 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60030 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT..GEN W(*ELC) |
1 | ||
| 36236-60050 |
KZJ7#,LJ7# |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60020 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-60030 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36261 - SPACER, TRANSFER IDLER GEAR | ||||
| 90560-38003 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 36726 - PLATE, LOCK (FOR TRANSFER GEAR) | ||||
| 36726-60020 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| Common parts | ||||
| 90119-08709 | ||||
| 91611-60618 | ||||
