KZJ77RV-MNX (1993)
Toyota Land Cruiser

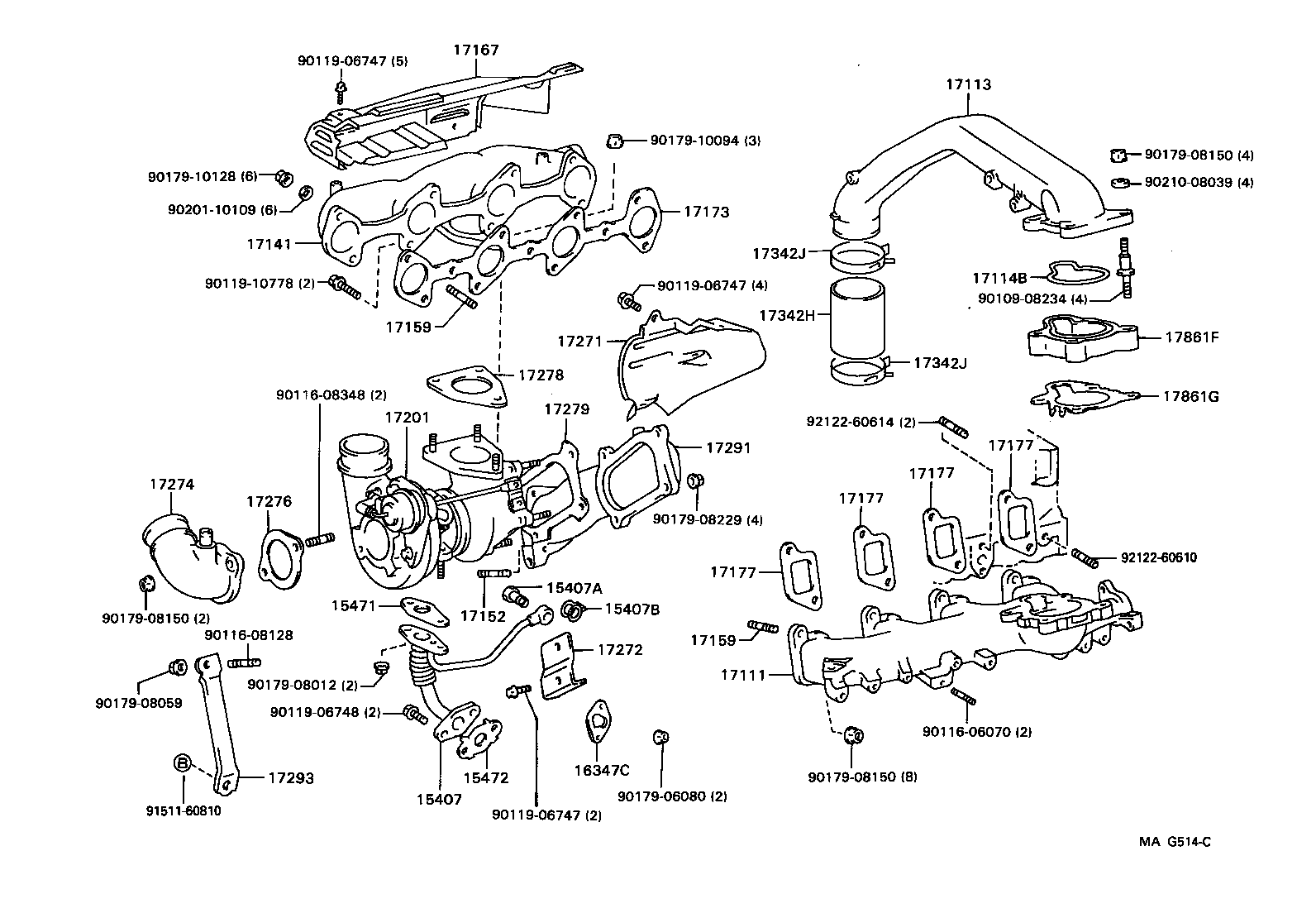

ILLUST NO. 1 OF 2(9305-9604)1KZT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-67010 |
1KZT..KZJ7# |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
1KZT..KZJ7# |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30004 |
1KZT..KZJ7# |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-58010 |
1KZT..KZJ7# |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-67010 |
1KZT..KZJ7# |
1 | ||
| 16347C - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-67010 |
1KZT..KZJ7# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-67021 |
1KZT..KZJ7# |
1 | ||
| 17101-67020 |
1KZT..KZJ7# |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-67010 |
1KZT..KZJ7# |
1 | ||
| 17113-67011 |
1KZT..KZJ7# |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-67010 |
1KZT..KZJ7# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-67030 |
1KZT..KZJ7# |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
1KZT..KZJ7# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1KZT..KZJ7# INTAKE MANIFOLD |
8 | ||
| 90126-10017 |
1KZT..KZJ7# EXHAUST MANIFOLD |
6 | ||
| 90116-10150 |
1KZT..KZJ7# EXHAUST MANIFOLD |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1KZT..KZJ7# INTAKE MANIFOLD |
8 | ||
| 90126-10017 |
1KZT..KZJ7# EXHAUST MANIFOLD |
6 | ||
| 90116-10150 |
1KZT..KZJ7# EXHAUST MANIFOLD |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-67020 |
1KZT..KZJ7# |
1 | ||
| 17167-67030 |
1KZT..KZJ7# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-67020 |
1KZT..KZJ7# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-67010 |
1KZT..KZJ7# |
4 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-67010 |
1KZT..KZJ7# |
4 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-67010 |
1KZT..KZJ7# |
4 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-67010 |
1KZT..KZJ7# |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-67010 |
1KZT..KZJ7# |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-67010 |
1KZT..KZJ7# |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17272-67010 |
1KZT..KZJ7# |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-67010 |
1KZT..KZJ7# |
1 | ||
| 17274-67011 |
1KZT..KZJ7# |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1KZT..KZJ7# |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
1KZT..KZJ7# |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-67010 |
1KZT..KZJ7# |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-67010 |
1KZT..KZJ7# |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-67010 |
1KZT..KZJ7# |
1 | ||
| 17342H - HOSE, AIR, NO.2(FOR TURBOCHARGER) | ||||
| 17342-67010 |
1KZT..KZJ7# |
1 | ||
| 17342J - CLIP, HOSE(FOR INTAKE PIPE) | ||||
| 90467-53002 |
1KZT..KZJ7# |
2 | ||
| 17342J - CLIP, HOSE(FOR INTAKE PIPE) | ||||
| 90467-53002 |
1KZT..KZJ7# |
2 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-67020 |
1KZT..KZJ7# |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-67010 |
1KZT..KZJ7# |
1 | ||
| Common parts | ||||
| 90109-08234 | ||||
| 90116-06070 | ||||
| 90116-08128 | ||||
| 90116-08348 | ||||
| 90119-06747 | ||||
| 90119-06748 | ||||
| 90119-10778 | ||||
| 90179-06080 | ||||
| 90179-08012 | ||||
| 90179-08059 | ||||
| 90179-08150 | ||||
| 90179-08229 | ||||
| 90179-10094 | ||||
| 90179-10128 | ||||
| 90201-10109 | ||||
| 90210-08039 | ||||
| 91511-60810 | ||||
| 92122-60610 | ||||
| 92122-60614 | ||||

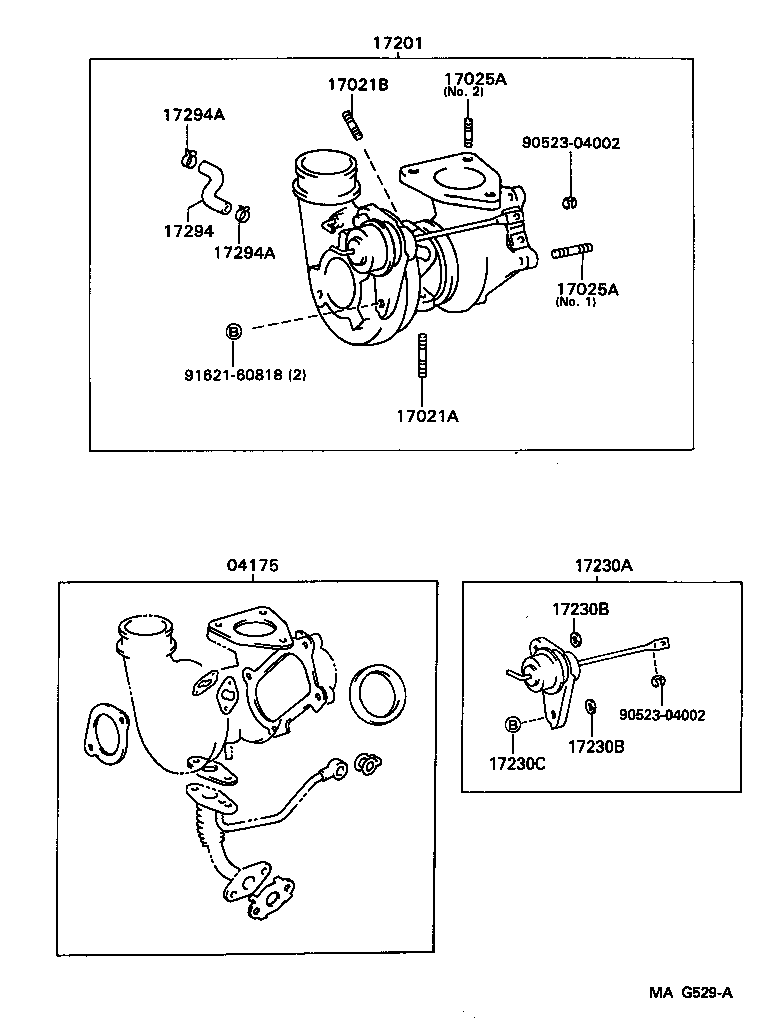

ILLUST NO. 2 OF 2(9305-9604)1KZT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-67010 |
1KZT..KZJ7# |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
1KZT..KZJ7# |
2 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
1KZT..KZJ7# |
4 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10175 |
1KZT..KZJ7# NO.2 |
3 | ||
| 90126-08009 |
1KZT..KZJ7# NO.1 |
4 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10175 |
1KZT..KZJ7# NO.2 |
3 | ||
| 90126-08009 |
1KZT..KZJ7# NO.1 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-67010 |
1KZT..KZJ7# |
1 | ||
| 17230A - REPAIR ACTUAOR ASSY, W/BRACKET | ||||
| 17230-69015 |
1KZT..KZJ7# |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08081 |
1KZT..KZJ7# T=0.5 |
2 | ||
| 90201-08087 |
1KZT..KZJ7# T=3.0 |
2 | ||
| 90201-08082 |
1KZT..KZJ7# T=1.0 |
2 | ||
| 90201-08086 |
1KZT..KZJ7# T=2.0 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08081 |
1KZT..KZJ7# T=0.5 |
2 | ||
| 90201-08087 |
1KZT..KZJ7# T=3.0 |
2 | ||
| 90201-08082 |
1KZT..KZJ7# T=1.0 |
2 | ||
| 90201-08086 |
1KZT..KZJ7# T=2.0 |
2 | ||
| 17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60822 |
1KZT..KZJ7# |
2 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-12265 |
1KZT..KZJ7# |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
1KZT..KZJ7# |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
1KZT..KZJ7# |
2 | ||
| Common parts | ||||
| 90523-04002 | ||||
| 91621-60818 | ||||
