KZJ77RV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZT

Click highlighted areas on diagram

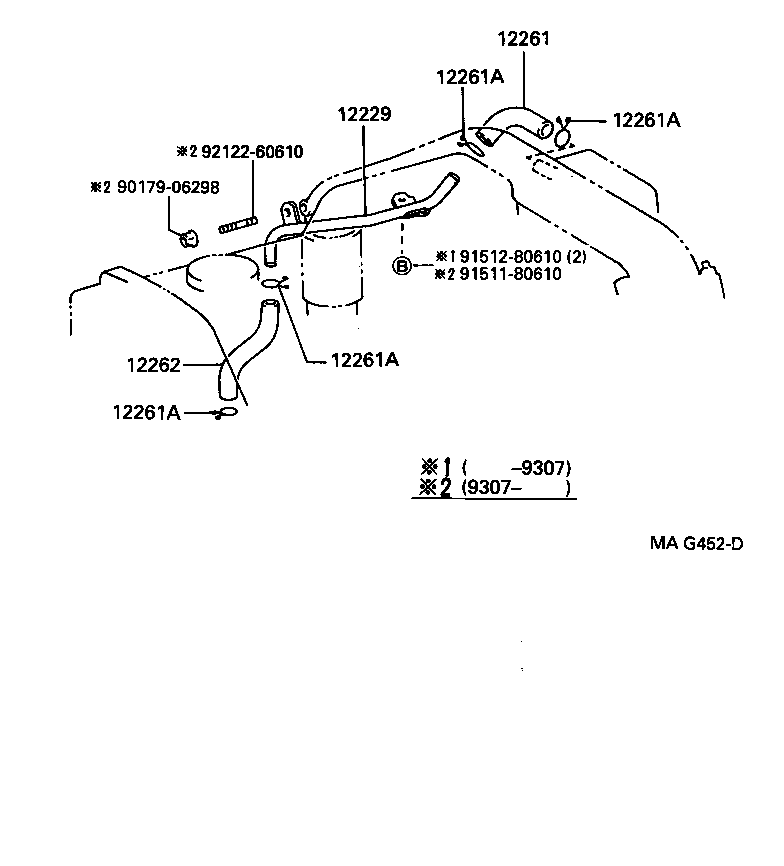

diagram 12229 12261 12261A 12261A 12261A 12261A 12262 9017906298 9151180610 9151280610 9212260610
Part # Description Qty Price
12229 - PIPE, VENTILATION
12229-67010

1KZT..KZJ7#

 1
12261 - HOSE, VENTILATION
12261-67010

1KZT..KZJ7#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1KZT..KZJ7#

 4
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1KZT..KZJ7#

 4
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1KZT..KZJ7#

 4
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1KZT..KZJ7#

 4
12262 - HOSE, VENTILATION, NO.2
12262-67010

1KZT..KZJ7#

 1
Common parts
90179-06298
91511-80610
91512-80610
92122-60610
