Toyota Land cruiser KZJ77 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-60120	KZJ7#	05/1993 - 04/1996	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88409-60020	LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#	01/1994 - 04/1996	1
88409-60020	LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN	05/1993 - 01/1994	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT	05/1993 - 04/1996	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60100	KZJ7#	05/1993 - 04/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60270	KZJ7#	05/1993 - 04/1996	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60470	KZJ7#..LHD	05/1993 - 04/1996	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60070	KZJ7#	05/1993 - 04/1996	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-60060	KZJ7#	05/1993 - 04/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6A110	LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT	05/1993 - 04/1996	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A150	KZJ7#..LHD	05/1993 - 04/1996	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6A140	KZJ7#..LHD	05/1993 - 04/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN	05/1993 - 01/1994	1
88723-20040	LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,RJ7#..GCC,GEN	01/1994 - 01/1995	1
88723-20040	LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#	01/1995 - 04/1996	1
Common parts
88467-14050
88467-22060
88688-60330
88688-60450
88688-60470
88688-60540
88718-60550
88718-60730
88718-60740
88718-60750
90091-20609
90091-20618
90099-12120
90119-06429
90179-06032
90179-06274
91632-G0645
91632-G0660
91651-40814
91651-F0610
91651-F0616
91662-60632

KZJ77LV-MNX (1993)

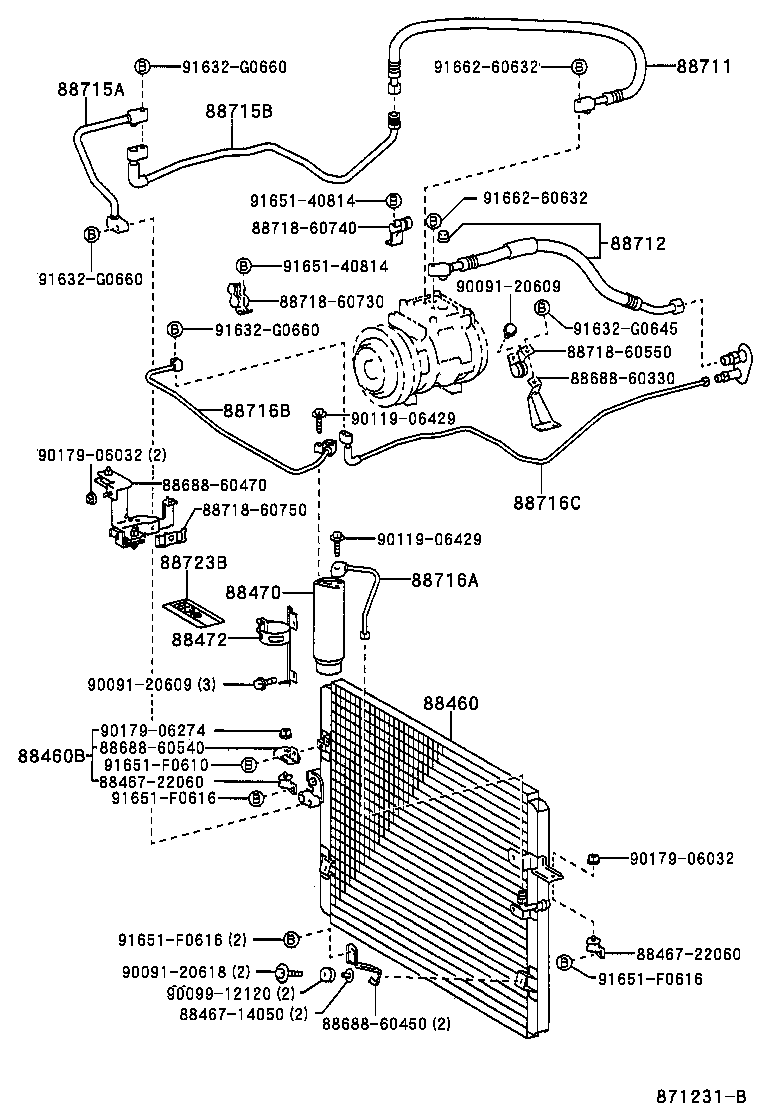

ILLUST NO. 1 OF 3(9305-9604)KZJ7#..LHD
