KZJ77LV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)KZJ7#..LHD

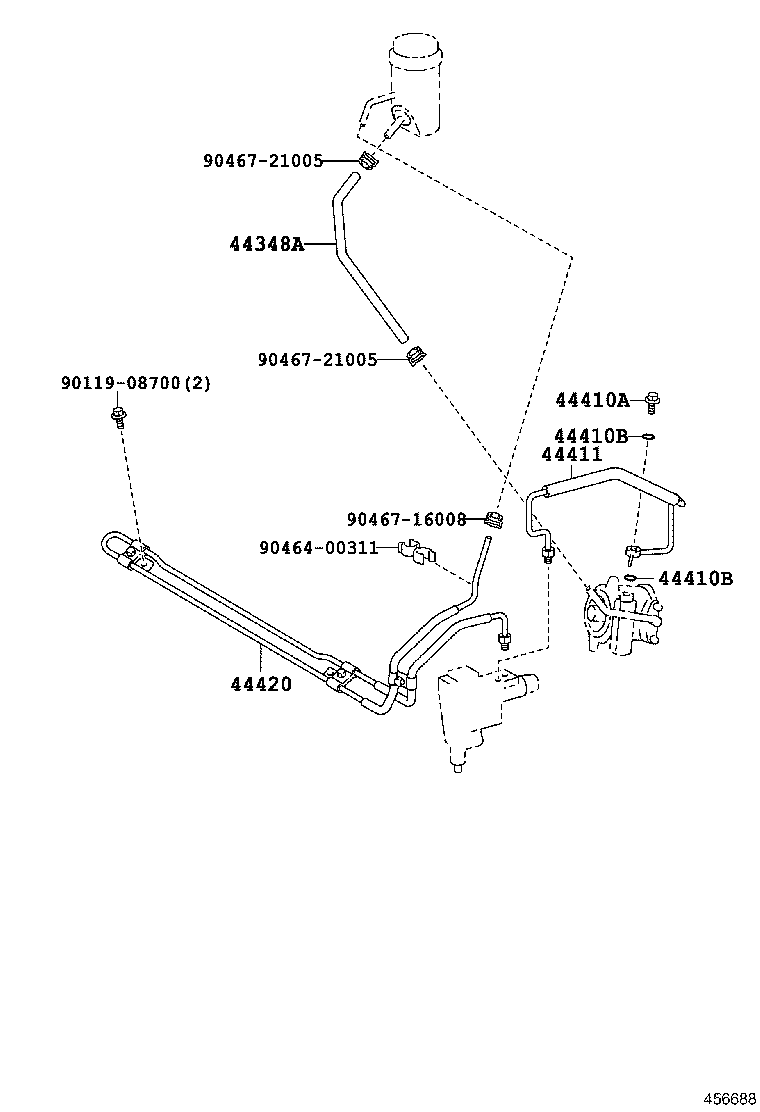

Click highlighted areas on diagram

diagram 44348A 44410A 44410B 44410B 44411 44420 9011908700 9046400311 9046716008 9046721005 9046721005
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60190

KZJ7#

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16027

FZJ7#,HZJ7#,KZJ7#,LJ7#,PZJ7#..ARL,GCC,GEN

 1
90401-16027

KZJ7#,LJ7#

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16168

KZJ7#,LJ7#

 2
90430-16168

FZJ7#,HZJ7#,KZJ7#,LJ7#,PZJ7#..ARL,GCC,GEN

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16168

KZJ7#,LJ7#

 2
90430-16168

FZJ7#,HZJ7#,KZJ7#,LJ7#,PZJ7#..ARL,GCC,GEN

 2
44411 - HOSE, PRESSURE FEED
44411-60470

KZJ7#..LHD

 1
44420 - COOLER ASSY, OIL
44420-60300

KZJ7#..LHD

 1
Common parts
90119-08700
90464-00311
90467-16008
90467-21005
