KZJ77LV-MNX (1993)
Toyota Land Cruiser

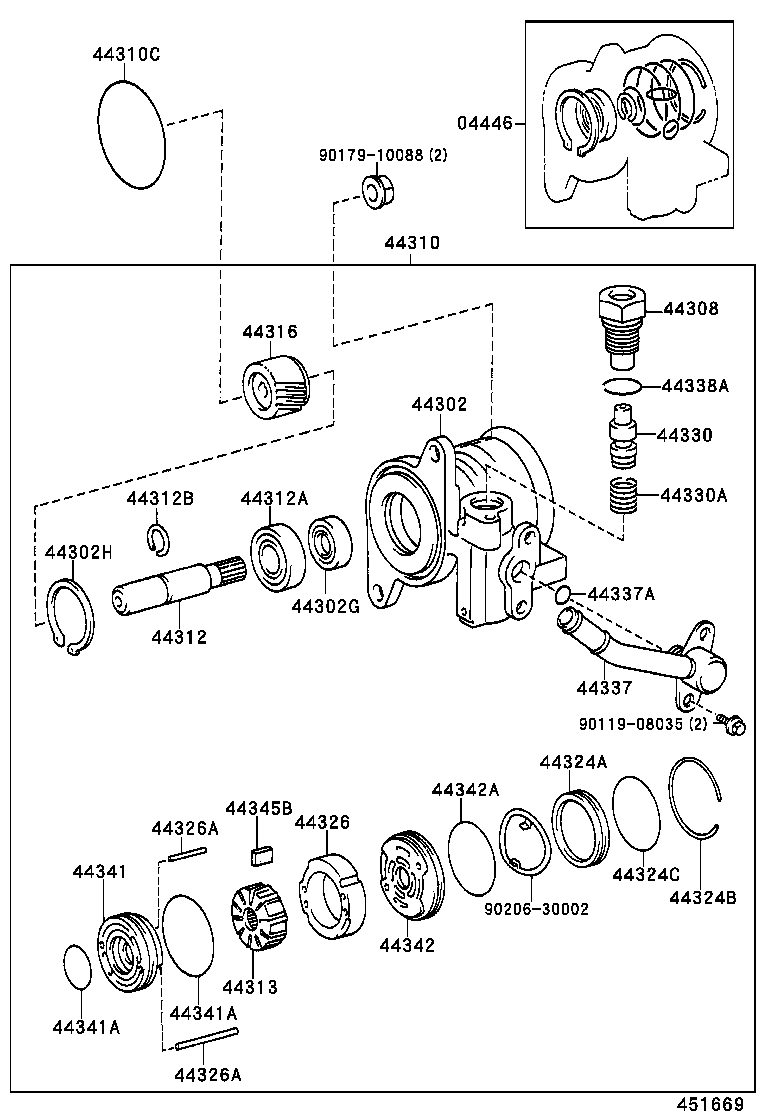

ILLUST NO. 1 OF 2(9305-9604)KZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-60091 |
KZJ7# |
1 | ||
| 04446-60090 |
KZJ7# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-60060 |
KZJ7# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90316-17004 |
KZJ7# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90520-38016 |
KZJ7# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-60050 |
KZJ7# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44310-60220 |
KZJ7# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
KZJ7# |
1 | ||
| 90301-60002 |
HZJ7#,KZJ7#,PZJ7#..ARL,GCC,GEN |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-60020 |
KZJ7# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17016 |
FZJ7#,KZJ7#..ARL,GCC,GEN |
1 | ||
| 90363-17016 |
KZJ7# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15005 |
KZJ7# |
1 | ||
| 90520-15005 |
FZJ7#,KZJ7#..ARL,GCC,GEN |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26060 |
FZJ7#,KZJ7#..ARL,GCC,GEN NO MARK |
1 | ||
| 44313-26080 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK 2 |
1 | ||
| 44313-26070 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK 1 |
1 | ||
| 44313-26100 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK 4 |
1 | ||
| 44313-26070 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,75,KZJ7#..CBU MARK 1 |
1 | ||
| 44313-26060 |
KZJ7# NO MARK |
1 | ||
| 44313-26090 |
KZJ7# MARK 3 |
1 | ||
| 44313-26090 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK 3 |
1 | ||
| 44313-26080 |
KZJ7# MARK 2 |
1 | ||
| 44313-26100 |
KZJ7# MARK 4 |
1 | ||
| 44313-26070 |
KZJ7# MARK 1 |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-60030 |
KZJ7# |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
KZJ7# |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
FZJ7#,KZJ7#..ARL,GCC,GEN |
1 | ||
| 90521-62002 |
KZJ7# |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53004 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,75,KZJ7#..CBU |
1 | ||
| 90301-53006 |
KZJ7# |
1 | ||
| 90301-53004 |
FZJ7#,KZJ7#..ARL,GCC,GEN |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12270 |
KZJ7# NO MARK |
1 | ||
| 44325-12300 |
KZJ7# MARK 3 |
1 | ||
| 44325-12280 |
KZJ7# MARK 1 |
1 | ||
| 44325-12310 |
KZJ7# MARK 4 |
1 | ||
| 44325-12290 |
KZJ7# MARK 2 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
FZJ7#,KZJ7#..ARL,GCC,GEN L=43,OD=4.0 |
1 | ||
| 90250-04047 |
FZJ7#,KZJ7#..ARL,GCC,GEN L=28,OD=4.0 |
1 | ||
| 90250-04047 |
KZJ7# L=28,OD=4.0 |
1 | ||
| 90250-04049 |
KZJ7# L=43,OD=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
FZJ7#,KZJ7#..ARL,GCC,GEN L=43,OD=4.0 |
1 | ||
| 90250-04047 |
FZJ7#,KZJ7#..ARL,GCC,GEN L=28,OD=4.0 |
1 | ||
| 90250-04047 |
KZJ7# L=28,OD=4.0 |
1 | ||
| 90250-04049 |
KZJ7# L=43,OD=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-60070 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK A |
1 | ||
| 44330-60090 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK C |
1 | ||
| 44330-60120 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK F |
1 | ||
| 44330-60110 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK E |
1 | ||
| 44330-60100 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK D |
1 | ||
| 44330-60080 |
FZJ7#,KZJ7#..ARL,GCC,GEN MARK B |
1 | ||
| 44330-60070 |
KZJ7# MARK A |
1 | ||
| 44330-60100 |
KZJ7# MARK D |
1 | ||
| 44330-60080 |
KZJ7# MARK B |
1 | ||
| 44330-60120 |
KZJ7# MARK F |
1 | ||
| 44330-60110 |
KZJ7# MARK E |
1 | ||
| 44330-60090 |
KZJ7# MARK C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
FZJ7#,KZJ7#,LJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 90501-12103 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-60080 |
KZJ7# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11010 |
FZJ7#,KZJ7#..ARL,GCC,GEN |
1 | ||
| 90301-11010 |
KZJ7# |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
FZJ7#,KZJ7#..ARL,GCC,GEN ID=19.5,OD=22.5 |
1 | ||
| 90301-19003 |
KZJ7# ID=19.5,OD=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-60010 |
FZJ7#,KZJ7#..ARL,GCC,GEN |
1 | ||
| 44341-60010 |
KZJ7# |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-28005 |
KZJ7# INNER |
1 | ||
| 90301-28005 |
FZJ7#,KZJ7#..ARL,GCC,GEN INNER |
1 | ||
| 90301-53004 |
KZJ7# OUTER |
1 | ||
| 90301-53004 |
FZJ7#,KZJ7#..ARL,GCC,GEN OUTER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-28005 |
KZJ7# INNER |
1 | ||
| 90301-28005 |
FZJ7#,KZJ7#..ARL,GCC,GEN INNER |
1 | ||
| 90301-53004 |
KZJ7# OUTER |
1 | ||
| 90301-53004 |
FZJ7#,KZJ7#..ARL,GCC,GEN OUTER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-60020 |
FZJ7#,KZJ7#..ARL,GCC,GEN |
1 | ||
| 44342-60020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,75,KZJ7#..CBU |
1 | ||
| 44342-60020 |
KZJ7# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53004 |
FZJ7#,KZJ7#..ARL,GCC,GEN |
1 | ||
| 90301-53004 |
KZJ7# |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26010 |
FZJ7#,KZJ7#..ARL,GCC,GEN L=15.000 |
10 | ||
| 44345-26050 |
FZJ7#,KZJ7#..ARL,GCC,GEN L=14.992 |
10 | ||
| 44345-26020 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,75,KZJ7#..CBU L=14.998 |
10 | ||
| 44345-26050 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,75,KZJ7#..CBU L=14.992 |
10 | ||
| 44345-26030 |
FZJ7#,KZJ7#..ARL,GCC,GEN L=14.996 |
10 | ||
| 44345-26040 |
FZJ7#,KZJ7#..ARL,GCC,GEN L=14.994 |
10 | ||
| 44345-60010 |
KZJ7# L=15.000 |
10 | ||
| 44345-26040 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,75,KZJ7#..CBU L=14.994 |
10 | ||
| 44345-26030 |
FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,75,KZJ7#..CBU L=14.996 |
10 | ||
| 44345-26010 |
KZJ7# L=15.000 |
10 | ||
| 44345-60020 |
KZJ7# L=14.998 |
10 | ||
| 44345-60030 |
KZJ7# L=14.996 |
10 | ||
| 44345-26020 |
FZJ7#,KZJ7#..ARL,GCC,GEN L=14.998 |
10 | ||
| 44345-60040 |
KZJ7# L=14.994 |
10 | ||
| 44345-60050 |
KZJ7# L=14.992 |
10 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90179-10088 | ||||
| 90206-30002 | ||||

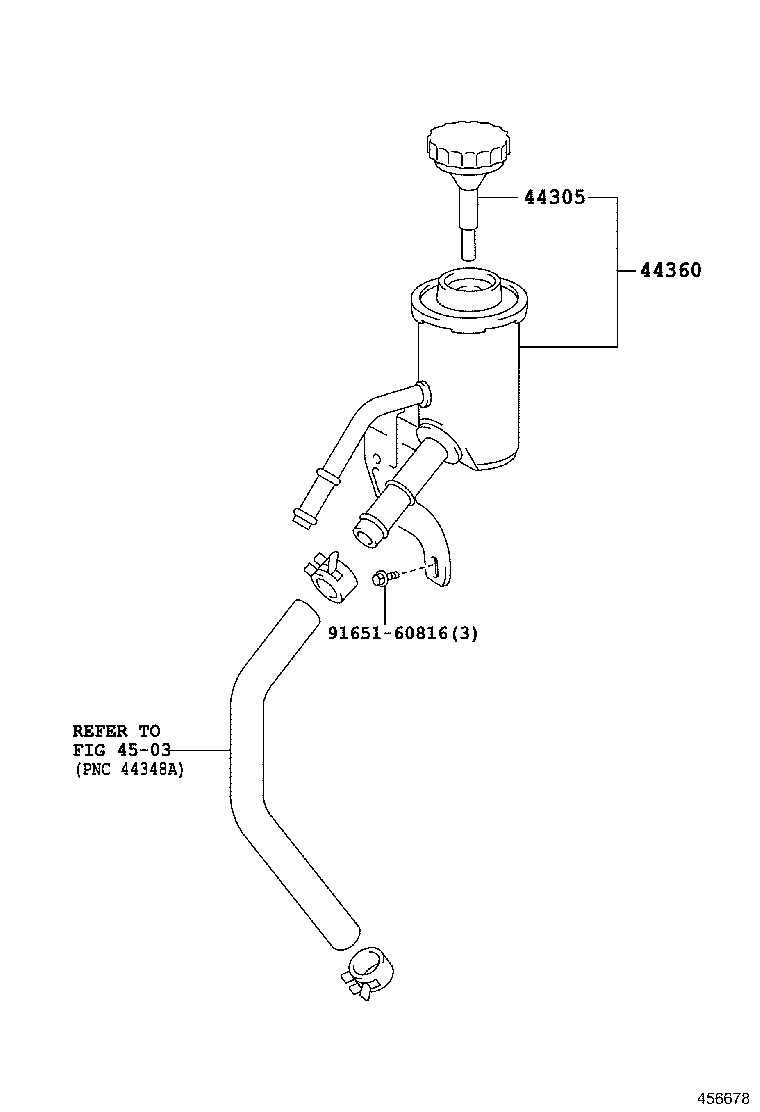

ILLUST NO. 2 OF 2(9305-9604)KZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-24030 |
FZJ7#,KZJ7#..ARL,GCC,GEN |
1 | ||
| 44305-24030 |
KZJ7# |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-60190 |
KZJ7# |
1 | ||
| Common parts | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4503 | ||||
