KZJ77LV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)KZJ7#

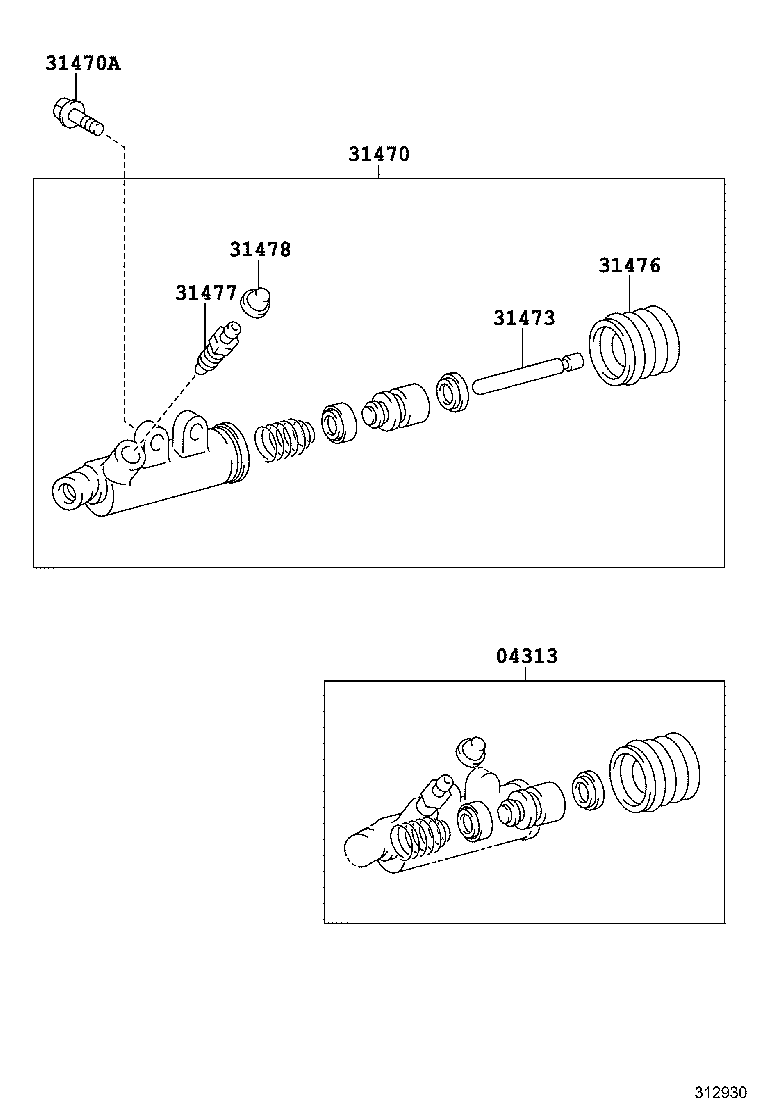

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-22020

LJ70,77

 1
04313-18010

KZJ7#

 1
04313-60120

KZJ7#

 1
04313-18020

KZJ7#

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-25031

LJ70,77

 1
31470-60201

KZJ7#

 1
31470-60200

KZJ7#

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60820

LJ70,77

 2
91611-B0825

KZJ7#,LJ7#,RJ7#..HT

*8-1.25PX25-25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-60140

KZJ7#

 1
31473-60141

KZJ7#

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

KZJ7#,LJ7#,RJ7#..HT

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

KZJ7#,LJ7#,RJ7#..HT

 1
