KZJ77LV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZT

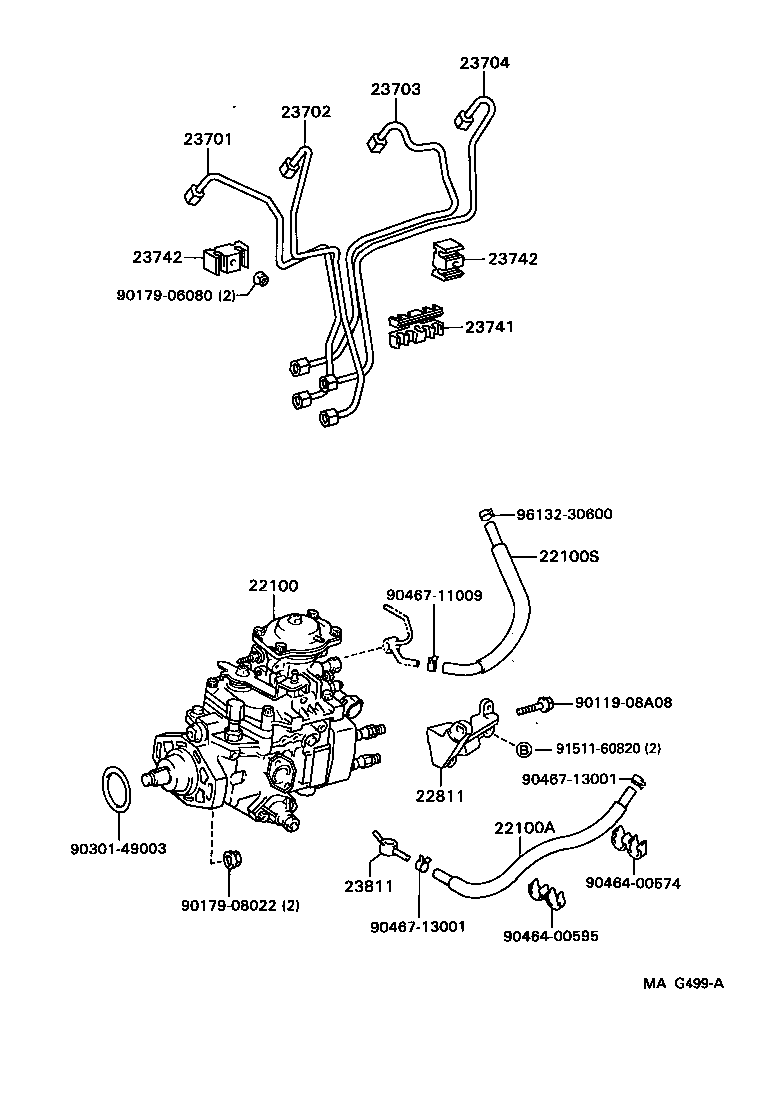

Click highlighted areas on diagram

diagram 22100 22100A 22100S 22811 23701 23702 23703 23704 23741 23742 23742 23811 9011908A08 9017906080 9017908022 9030149003 9046400574 9046400595 9046711009 9046713001 9046713001 9151160820 9613230600
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-67050

1KZT..KZJ7#

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-67020

1KZT..KZJ7#..LHD

L=580

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
90447-12004

1KZT..KZJ7#

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-67010

1KZT..KZJ7#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-67020

1KZT..KZJ7#

 1
23701-67021

1KZT..KZJ7#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-67020

1KZT..KZJ7#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-67020

1KZT..KZJ7#

 1
23703-67021

1KZT..KZJ7#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-67020

1KZT..KZJ7#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64030

1KZT..KZJ7#

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-67010

1KZT..KZJ7#

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23742-67010

1KZT..KZJ7#

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-67020

1KZT..KZJ7#

 1
Common parts
90119-08A08
90179-06080
90179-08022
90301-49003
90464-00574
90464-00595
90467-11009
90467-13001
91511-60820
96132-30600
