KZJ77LV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZT

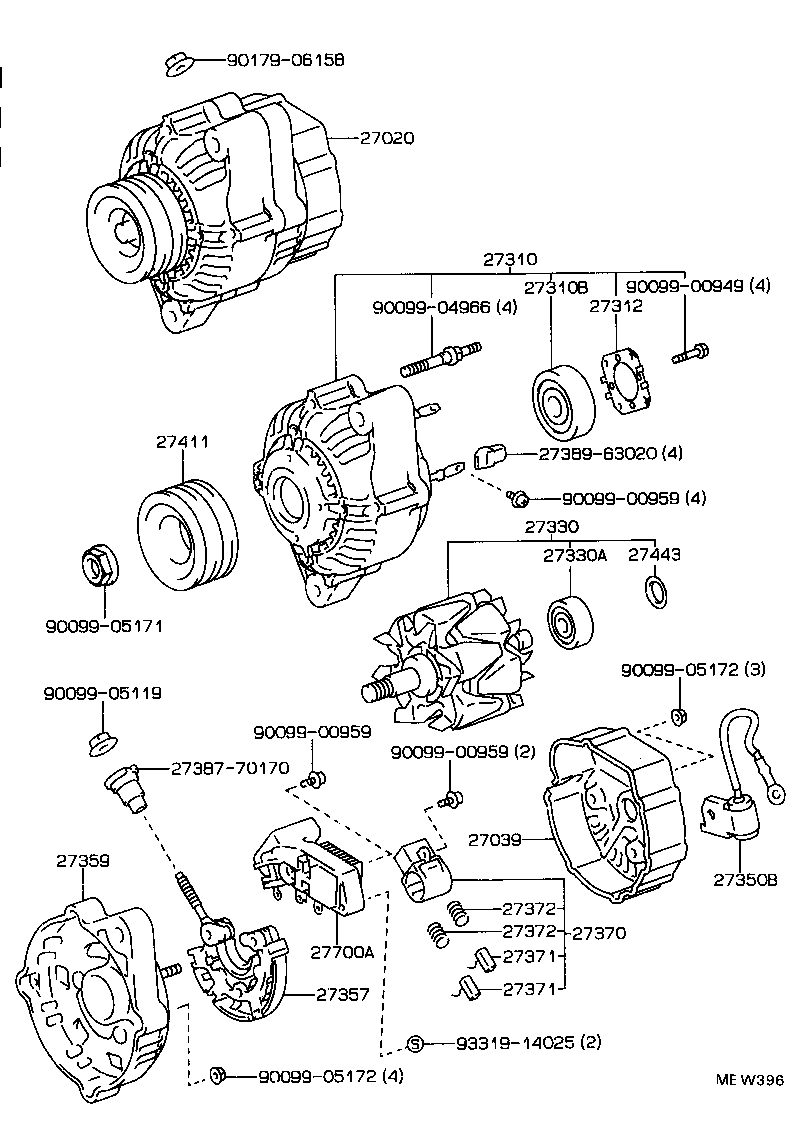

Click highlighted areas on diagram

12V 55A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27350B 27357 27359 27370 27371 27371 27372 27372 2738770170 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-67010

1KZT..KZJ7#

12V 55A

 1
27039 - COVER, ALTERNATOR REAR END
27039-73020

1KZT,3L..KZJ7#,LJ7#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-67020

1KZT..KZJ7#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

1KZT..KZJ7#

24V 30A

 1
27312 - PLATE, RETAINER
27312-70200

1KZT..KZJ7#

24V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

1KZT..KZJ7#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1KZT,3L..KZJ7#,LJ7#

12V 55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52108

1KZT..KZJ7#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63060

1KZT,3L..KZJ7#,LJ7#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-67020

1KZT..KZJ7#

 4
27359-67021

1KZT..KZJ7#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58320

1KZT,3L..KZJ7#,LJ7#

 1
27370-54450

1KZT,3L..KZJ7#,LJ7#

 1
27371 - BRUSH, ALTERNATOR
27371-70300

1KZT,3L..KZJ7#,LJ7#

 2
27371 - BRUSH, ALTERNATOR
27371-70300

1KZT,3L..KZJ7#,LJ7#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1KZT,3L..KZJ7#,LJ7#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1KZT,3L..KZJ7#,LJ7#

 2
27411 - PULLEY, ALTERNATOR
27411-67020

1KZT..KZJ7#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1KZT,3L..KZJ7#,LJ7#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-54060

1KZT..KZJ7#

 1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90179-06158
93319-14025
