KZJ77LV-MNX (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZT

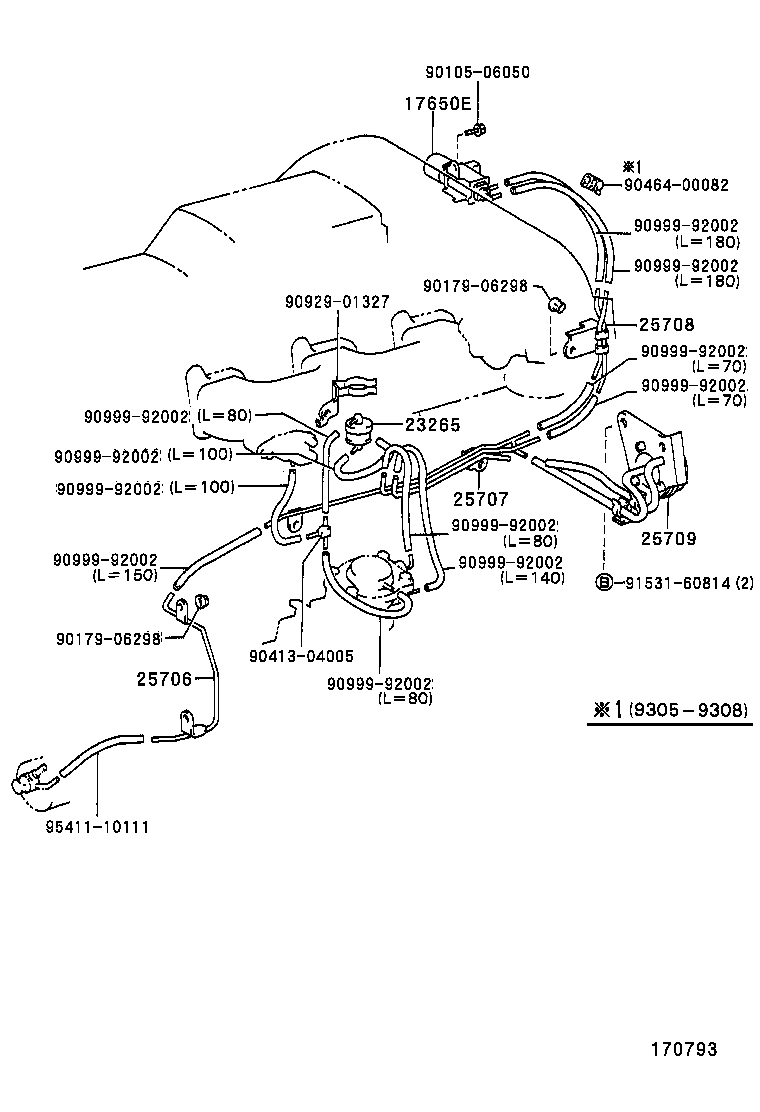

Click highlighted areas on diagram

diagram 17650E 23265 25706 25707 25708 25709 9010506050 9017906298 9017906298 9041304005 9046400082 9092901327 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9153160814 9541110111
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
90910-12126

1KZT..KZJ7#

 1
23265 - FILTER, GAS, NO.1
90917-11036

1KZT..KZJ7#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-67010

1KZT..KZJ7#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-67030

1KZT..KZJ7#

W(HIGH ALTITUDE COMPENSATOR)

 1
25707-67020

1KZT..KZJ7#

 1
25708 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3
25708-67020

1KZT..KZJ7#

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-67010

1KZT..KZJ7#

 1
Common parts
90105-06050
90179-06298
90413-04005
90464-00082
90929-01327
90999-92002
91531-60814
95411-10111
