HZJ80R-GNMNSQ (1990)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(9001- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88688-90K01 | ||||
| 88688-90K04 | ||||
| 88688-90K06 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88718-90K04 | ||||
| 88718-90K27 | ||||
| 88895-60010 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-32128 | ||||
| 90119-06100 | ||||
| 90119-06336 | ||||
| 90119-06429 | ||||
| 90179-06032 | ||||
| 90179-06274 | ||||
| 91611-B0835 | ||||
| 91651-40616 | ||||
| 91651-F0610 | ||||
| 91651-F0616 | ||||
ILLUST NO. 1 OF 4(9001- )GX,STD
CONDENSOR---SINGLE(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60060 |
FZJ80..GEN;HDJ80,HZJ80;FJ80..STD,VX;FJ80..GX..(ARL,GEN);FZJ80..(STD,VX)..GCC |
1 | ||
| 88460-60160 |
HDJ80,HZJ80;FZJ80..ARL,GEN;FZJ80..(STD,VX)..GCC |
1 | ||
| 88460-60160 |
HDJ80,HZJ80;FZJ80..4FC..VX..GEN;FZJ80..(STD,VX)..GCC;FZJ80..5F..(ARL,GEN);FZJ80..4FC..GX..(ARL,GEN) |
1 | ||
| 88460-60060 |
HDJ80,HZJ80;FZJ80..ARL,GEN;FZJ80..(STD,VX)..GCC |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT |
1 | ||
| 88471-30350 |
FJ80,HDJ80,HZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88471-30350 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88471-16040 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88471-16040 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88471-50020 |
FZJ80,HDJ80,HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88471-30350 |
FZJ80,HDJ80,HZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88471-50020 |
HDJ80,HZJ80;FZJ80..GCC,GEN |
1 | ||
| 88471-30370 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60071 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) |
1 | ||
| 88472-60071 |
FZJ80,HDJ80,HZJ80..GX..ARL |
1 | ||
| 88472-60071 |
FJ80,HDJ80,HZJ80..GX..ARL |
1 | ||
| 88472-60071 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 88472-60071 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..GX;FZJ80..LHD..4FC..VX |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60290 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) W(AUTOMATIC AIR CONDITIONER),CONDENSER SIDE |
1 | ||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88706-60030 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88716-60730 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,CONDENSER SIDE |
1 | ||
| 88716-60760 |
FZJ80..RHD..LUB;HDJ80,HZJ80..(GX,VX)..(ARL,GEN) |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88716-6A421 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..GX;FZJ80..LHD..4FC..VX W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716-6A421 |
FZJ80,HDJ80,HZJ80 W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60290 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) W(AUTOMATIC AIR CONDITIONER),CONDENSER SIDE |
1 | ||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88706-60030 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88716-60730 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,CONDENSER SIDE |
1 | ||
| 88716-60760 |
FZJ80..RHD..LUB;HDJ80,HZJ80..(GX,VX)..(ARL,GEN) |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88716-6A421 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..GX;FZJ80..LHD..4FC..VX W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716-6A421 |
FZJ80,HDJ80,HZJ80 W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60290 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) W(AUTOMATIC AIR CONDITIONER),CONDENSER SIDE |
1 | ||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88706-60030 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88716-60730 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,CONDENSER SIDE |
1 | ||
| 88716-60760 |
FZJ80..RHD..LUB;HDJ80,HZJ80..(GX,VX)..(ARL,GEN) |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88716-6A421 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..GX;FZJ80..LHD..4FC..VX W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716-6A421 |
FZJ80,HDJ80,HZJ80 W(SINGLE AIR CONDITIONER) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-26010 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER & W(COOL BOX) |
1 | ||
| 88723-28070 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88723-30040 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88723-26010 |
FJ80,HDJ80..GX..(EFI,TD2);FZJ80,HDJ80..(GX,VX)..GEN;HZJ80..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-28080 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER & W(COOL BOX) |
1 | ||
| 88723-30040 |
FZJ80..(GX,VX)..GEN;FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88723-26010 |
HDJ80..GX;FZJ80..4FC..GX;FZJ80,HDJ80..VX..GEN..(EFI,TD2);FZJ80,HZJ80..5F..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-20040 |
HDJ80,HZJ80;FZJ80..GX,STD;FZJ80..VX..(ARL,GCC) |
1 | ||
| 88723-20040 |
HDJ80;HZJ80..GCC,GEN;FZJ80..RHD..VX..CBR;FZJ80,HZJ80..GX..ARL;FZJ80..VX..(ARL,GCC);FZJ80..(GX,STD)..(GCC,GEN) |
1 | ||
| 88723-20040 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,STD);FZJ80..4FC..VX..(ARL,GCC) |
1 | ||
| 88723-30040 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88578-60080 | ||||
| 88578-60090 | ||||
| 88578-90A00 | ||||
| 88688-60190 | ||||
| 90119-06106 | ||||
| 90119-06126 | ||||
| 90119-06336 | ||||
| 90119-06429 | ||||
| 90119-08572 | ||||
| 90179-06032 | ||||
| 90950-01242 | ||||
| 91632-G0645 | ||||

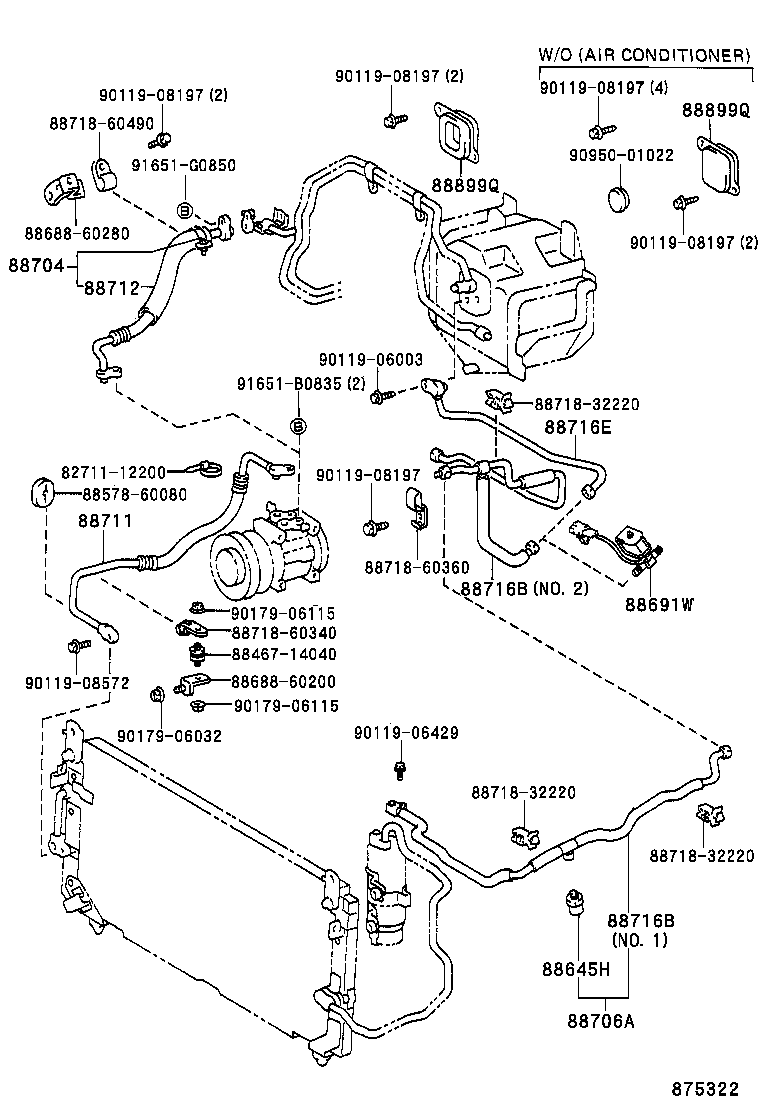

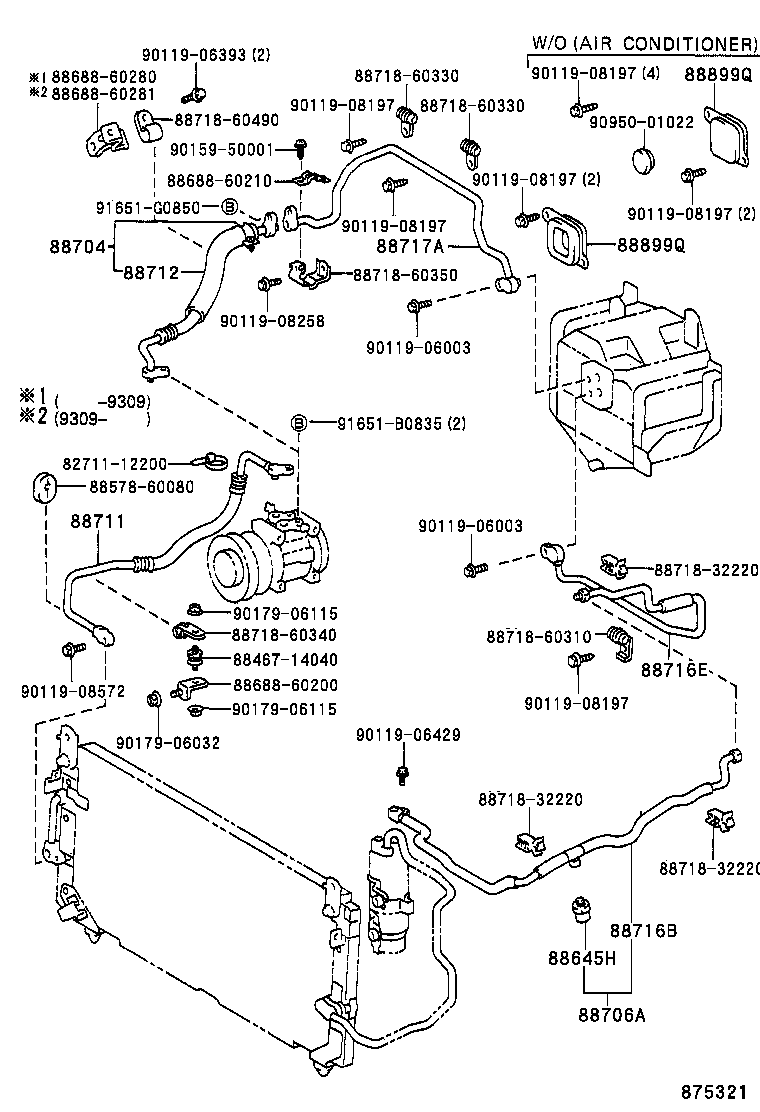

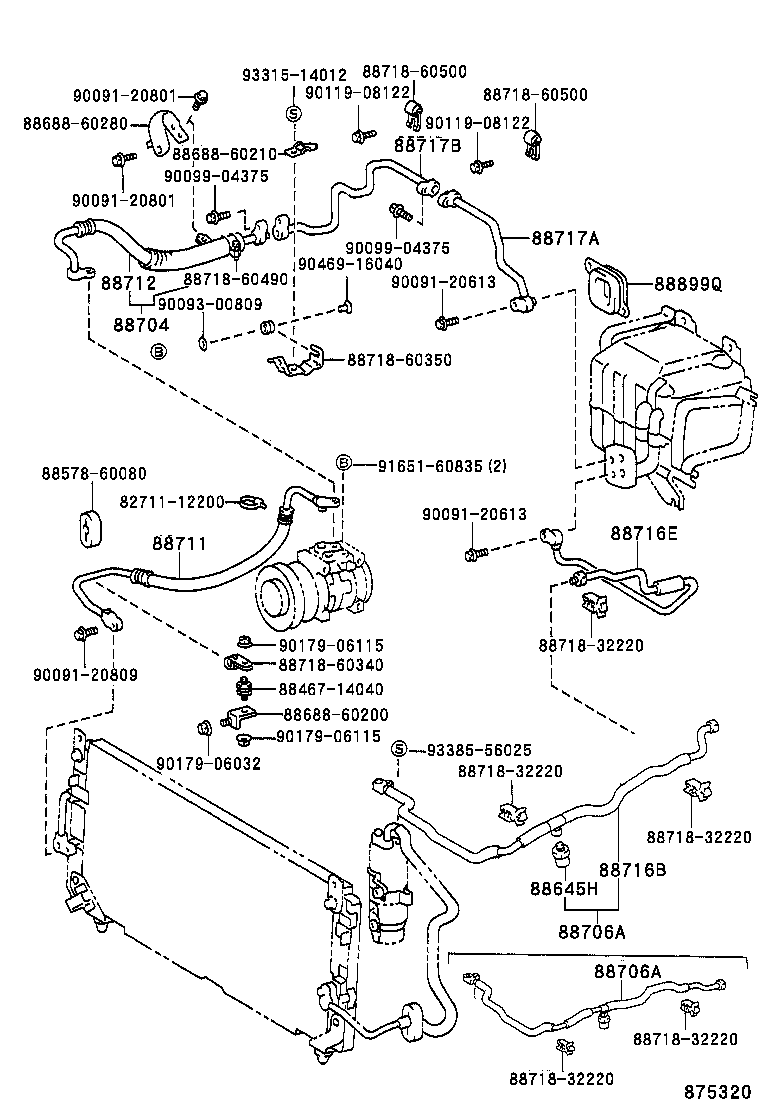

ILLUST NO. 2 OF 4(9001- )FZJ80,HDJ80,HZJ80..RHD
FRONT PIPING---SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60010 |
HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX SUCTION |
1 | ||
| 88645-60010 |
FZJ80..LHD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX SUCTION |
1 | ||
| 88645-60030 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX) |
1 | ||
| 88645-60010 |
FZJ80..LHD;HDJ80..RHD;HZJ80..GX,VX;HDJ80..LHD..5F;HZJ80..LHD..STD SUCTION |
1 | ||
| 88645-60020 |
HDJ80,HZJ80..(GX,STD)..ARL..(DSL,TD2) LIQUID |
1 | ||
| 88645-60020 |
FZJ80..GX,VX;HDJ80,HZJ80..RHD;FZJ80..RHD..STD..CBR |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60010 |
HDJ80,HZJ80 |
1 | ||
| 88704-60060 |
HDJ80,HZJ80..LUB..ARL |
1 | ||
| 88704-60010 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88704-60010 |
HZJ80;HDJ80..RHD;HDJ80..LHD..5F |
1 | ||
| 88704-60040 |
HDJ80,HZJ80 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-60010 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88706-60080 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88706-60010 |
HDJ80..RHD;HZJ80..GX,STD;HDJ80..LHD..5F;HZJ80..VX..GCC |
1 | ||
| 88706-60010 |
HDJ80,HZJ80 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-60010 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88706-60080 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88706-60010 |
HDJ80..RHD;HZJ80..GX,STD;HDJ80..LHD..5F;HZJ80..VX..GCC |
1 | ||
| 88706-60010 |
HDJ80,HZJ80 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60100 |
HDJ80,HZJ80..ARL,GEN |
1 | ||
| 88711-60100 |
HDJ80,HZJ80..ARL,GEN |
1 | ||
| 88711-60110 |
HZJ80;HDJ80..RHD;HDJ80..LHD..5F |
1 | ||
| 88711-60350 |
HDJ80,HZJ80 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60130 |
HDJ80..RHD;HDJ80..LHD..5F;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60130 |
HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60630 |
HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88712-60580 |
HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60130 |
HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60580 |
HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60030 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60780 |
HDJ80,HZJ80..GX..ARL NO.1 |
1 | ||
| 88726-60030 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60030 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) NO.2 |
1 | ||
| 88716-60780 |
HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-60300 |
HDJ80;HZJ80..GX;HZJ80..VX..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-6A380 |
HDJ80,HZJ80 |
1 | ||
| 88716-60300 |
HZJ80..GX;HDJ80..RHD SINGLE AIR CONDITIONER |
1 | ||
| 88716-6A380 |
HDJ80;HZJ80..GX;HZJ80..VX..GEN NO.1 |
1 | ||
| 88716-6A410 |
FZJ80..4FC..VX..GEN;HDJ80,HZJ80..GX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88726-60370 |
HDJ80,HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88726-60230 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) NO.2 |
1 | ||
| 88716-6A410 |
FZJ80..VX..GEN;HDJ80,HZJ80..GX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-60040 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88726-60070 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT |
1 | ||
| 88726-60040 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60070 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88726-60070 |
HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88726-60240 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88726-60320 |
HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60840 |
FZJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88717-60841 |
FZJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88717-60250 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60240 |
FZJ80,HDJ80,HZJ80..(GX,STD)..ARL NO.1 |
1 | ||
| 88717-60240 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL NO.1 |
1 | ||
| 88717-60850 |
FZJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88717-60250 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL NO.2 |
1 | ||
| 88717-60250 |
FZJ80,HDJ80,HZJ80..(GX,STD)..ARL NO.2 |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-14040 | ||||
| 88578-60080 | ||||
| 88688-60200 | ||||
| 88688-60210 | ||||
| 88688-60280 | ||||
| 88718-32220 | ||||
| 88718-60340 | ||||
| 88718-60350 | ||||
| 88718-60490 | ||||
| 88718-60500 | ||||
| 90091-20613 | ||||
| 90091-20801 | ||||
| 90091-20809 | ||||
| 90093-00809 | ||||
| 90099-04375 | ||||
| 90119-08122 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90469-16040 | ||||
| 91651-60835 | ||||
| 93315-14012 | ||||
| 93385-56025 | ||||
ILLUST NO. 2 OF 4(9001- )HDJ80,HZJ80..RHD
FRONT PIPING---SINGLE(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60010 |
HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX SUCTION |
1 | ||
| 88645-60010 |
FZJ80..LHD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX SUCTION |
1 | ||
| 88645-60030 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX) |
1 | ||
| 88645-60010 |
FZJ80..LHD;HDJ80..RHD;HZJ80..GX,VX;HDJ80..LHD..5F;HZJ80..LHD..STD SUCTION |
1 | ||
| 88645-60020 |
HDJ80,HZJ80..(GX,STD)..ARL..(DSL,TD2) LIQUID |
1 | ||
| 88645-60020 |
FZJ80..GX,VX;HDJ80,HZJ80..RHD;FZJ80..RHD..STD..CBR |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60010 |
HDJ80,HZJ80 |
1 | ||
| 88704-60060 |
HDJ80,HZJ80..LUB..ARL |
1 | ||
| 88704-60010 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88704-60010 |
HZJ80;HDJ80..RHD;HDJ80..LHD..5F |
1 | ||
| 88704-60040 |
HDJ80,HZJ80 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-60010 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88706-60080 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88706-60010 |
HDJ80..RHD;HZJ80..GX,STD;HDJ80..LHD..5F;HZJ80..VX..GCC |
1 | ||
| 88706-60010 |
HDJ80,HZJ80 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60100 |
HDJ80,HZJ80..ARL,GEN |
1 | ||
| 88711-60100 |
HDJ80,HZJ80..ARL,GEN |
1 | ||
| 88711-60110 |
HZJ80;HDJ80..RHD;HDJ80..LHD..5F |
1 | ||
| 88711-60350 |
HDJ80,HZJ80 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60130 |
HDJ80..RHD;HDJ80..LHD..5F;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60130 |
HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60630 |
HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88712-60580 |
HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60130 |
HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60580 |
HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60030 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60780 |
HDJ80,HZJ80..GX..ARL NO.1 |
1 | ||
| 88726-60030 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60030 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) NO.2 |
1 | ||
| 88716-60780 |
HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-60300 |
HDJ80;HZJ80..GX;HZJ80..VX..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-6A380 |
HDJ80,HZJ80 |
1 | ||
| 88716-60300 |
HZJ80..GX;HDJ80..RHD SINGLE AIR CONDITIONER |
1 | ||
| 88716-6A380 |
HDJ80;HZJ80..GX;HZJ80..VX..GEN NO.1 |
1 | ||
| 88716-6A410 |
FZJ80..4FC..VX..GEN;HDJ80,HZJ80..GX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88726-60370 |
HDJ80,HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88726-60230 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) NO.2 |
1 | ||
| 88716-6A410 |
FZJ80..VX..GEN;HDJ80,HZJ80..GX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-60040 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88726-60070 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT |
1 | ||
| 88726-60040 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60070 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88726-60070 |
HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88726-60240 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88726-60320 |
HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60840 |
FZJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88717-60841 |
FZJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88717-60250 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-14040 | ||||
| 88578-60080 | ||||
| 88688-60200 | ||||
| 88688-60210 | ||||
| 88688-60280 | ||||
| 88688-60281 | ||||
| 88718-32220 | ||||
| 88718-60310 | ||||
| 88718-60330 | ||||
| 88718-60340 | ||||
| 88718-60350 | ||||
| 88718-60490 | ||||
| 90119-06003 | ||||
| 90119-06393 | ||||
| 90119-06429 | ||||
| 90119-08197 | ||||
| 90119-08258 | ||||
| 90119-08572 | ||||
| 90159-50001 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90950-01022 | ||||
| 91651-B0835 | ||||
| 91651-G0850 | ||||
ILLUST NO. 2 OF 4(9001- )HDJ80,HZJ80..RHD
FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60010 |
HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX SUCTION |
1 | ||
| 88645-60010 |
FZJ80..LHD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX SUCTION |
1 | ||
| 88645-60030 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX) |
1 | ||
| 88645-60010 |
FZJ80..LHD;HDJ80..RHD;HZJ80..GX,VX;HDJ80..LHD..5F;HZJ80..LHD..STD SUCTION |
1 | ||
| 88645-60020 |
HDJ80,HZJ80..(GX,STD)..ARL..(DSL,TD2) LIQUID |
1 | ||
| 88645-60020 |
FZJ80..GX,VX;HDJ80,HZJ80..RHD;FZJ80..RHD..STD..CBR |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-60050 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88690-60190 |
FZJ80..4FC..SOB;FZJ80..5F..(GX,VX);HDJ80,HZJ80..GX,VX;FZJ80..4FC..LUB..VX..GCC;FZJ80..4FC..(GX,VX)..(ARL,GEN) |
1 | ||
| 88690-60050 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88690-60050 |
HDJ80..RHD;FZJ80,HZJ80..GX,VX |
1 | ||
| 88690-60050 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60010 |
HDJ80,HZJ80 |
1 | ||
| 88704-60060 |
HDJ80,HZJ80..LUB..ARL |
1 | ||
| 88704-60010 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88704-60010 |
HZJ80;HDJ80..RHD;HDJ80..LHD..5F |
1 | ||
| 88704-60040 |
HDJ80,HZJ80 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-60010 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88706-60080 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88706-60010 |
HDJ80..RHD;HZJ80..GX,STD;HDJ80..LHD..5F;HZJ80..VX..GCC |
1 | ||
| 88706-60010 |
HDJ80,HZJ80 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60100 |
HDJ80,HZJ80..ARL,GEN |
1 | ||
| 88711-60100 |
HDJ80,HZJ80..ARL,GEN |
1 | ||
| 88711-60110 |
HZJ80;HDJ80..RHD;HDJ80..LHD..5F |
1 | ||
| 88711-60350 |
HDJ80,HZJ80 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60130 |
HDJ80..RHD;HDJ80..LHD..5F;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60130 |
HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60630 |
HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88712-60580 |
HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60130 |
HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
1 | ||
| 88712-60580 |
HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60030 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60780 |
HDJ80,HZJ80..GX..ARL NO.1 |
1 | ||
| 88726-60030 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60030 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) NO.2 |
1 | ||
| 88716-60780 |
HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-60300 |
HDJ80;HZJ80..GX;HZJ80..VX..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-6A380 |
HDJ80,HZJ80 |
1 | ||
| 88716-60300 |
HZJ80..GX;HDJ80..RHD SINGLE AIR CONDITIONER |
1 | ||
| 88716-6A380 |
HDJ80;HZJ80..GX;HZJ80..VX..GEN NO.1 |
1 | ||
| 88716-6A410 |
FZJ80..4FC..VX..GEN;HDJ80,HZJ80..GX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88726-60370 |
HDJ80,HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88726-60230 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) NO.2 |
1 | ||
| 88716-6A410 |
FZJ80..VX..GEN;HDJ80,HZJ80..GX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60030 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60780 |
HDJ80,HZJ80..GX..ARL NO.1 |
1 | ||
| 88726-60030 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60030 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) NO.2 |
1 | ||
| 88716-60780 |
HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716-60300 |
HDJ80;HZJ80..GX;HZJ80..VX..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88716-6A380 |
HDJ80,HZJ80 |
1 | ||
| 88716-60300 |
HZJ80..GX;HDJ80..RHD SINGLE AIR CONDITIONER |
1 | ||
| 88716-6A380 |
HDJ80;HZJ80..GX;HZJ80..VX..GEN NO.1 |
1 | ||
| 88716-6A410 |
FZJ80..4FC..VX..GEN;HDJ80,HZJ80..GX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88726-60370 |
HDJ80,HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88726-60230 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) NO.2 |
1 | ||
| 88716-6A410 |
FZJ80..VX..GEN;HDJ80,HZJ80..GX..ARL SINGLE AIR CONDITIONER |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-60040 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88726-60070 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT |
1 | ||
| 88726-60040 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60070 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88726-60070 |
HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88726-60240 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88726-60320 |
HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-14040 | ||||
| 88578-60080 | ||||
| 88688-60200 | ||||
| 88688-60280 | ||||
| 88718-32220 | ||||
| 88718-60340 | ||||
| 88718-60360 | ||||
| 88718-60490 | ||||
| 90119-06003 | ||||
| 90119-06429 | ||||
| 90119-08197 | ||||
| 90119-08572 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90950-01022 | ||||
| 91651-B0835 | ||||
| 91651-G0850 | ||||
ILLUST NO. 1 OF 4(9001- )GX,VX
CONDENSOR---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88453-20030 |
HZJ80..VX..GEN;FZJ80..4FC..VX..GEN;FZJ80..VX..GCC..EFI;FZJ80,HZJ80..GX..(DSL,EFI);FZJ80,HDJ80..(GX,VX)..(CBR,TD2,TD4) |
1 | ||
| 88453-20030 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88453-20030 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60060 |
FZJ80..GEN;HDJ80,HZJ80;FJ80..STD,VX;FJ80..GX..(ARL,GEN);FZJ80..(STD,VX)..GCC |
1 | ||
| 88460-60160 |
HDJ80,HZJ80;FZJ80..ARL,GEN;FZJ80..(STD,VX)..GCC |
1 | ||
| 88460-60160 |
HDJ80,HZJ80;FZJ80..4FC..VX..GEN;FZJ80..(STD,VX)..GCC;FZJ80..5F..(ARL,GEN);FZJ80..4FC..GX..(ARL,GEN) |
1 | ||
| 88460-60060 |
HDJ80,HZJ80;FZJ80..ARL,GEN;FZJ80..(STD,VX)..GCC |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT |
1 | ||
| 88471-30350 |
FJ80,HDJ80,HZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88471-30350 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88471-16040 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88471-16040 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88471-50020 |
FZJ80,HDJ80,HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88471-30350 |
FZJ80,HDJ80,HZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88471-50020 |
HDJ80,HZJ80;FZJ80..GCC,GEN |
1 | ||
| 88471-30370 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60071 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) |
1 | ||
| 88472-60071 |
FZJ80,HDJ80,HZJ80..GX..ARL |
1 | ||
| 88472-60071 |
FJ80,HDJ80,HZJ80..GX..ARL |
1 | ||
| 88472-60071 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 88472-60071 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..GX;FZJ80..LHD..4FC..VX |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-60040 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88550-60040 |
HZJ80..VX..GEN;FZJ80..4FC..VX..GEN;FZJ80..VX..GCC..EFI;FZJ80,HZJ80..GX..(DSL,EFI);FZJ80,HDJ80..(GX,VX)..(CBR,TD2,TD4) |
1 | ||
| 88550-60040 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88550-60040 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-60010 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88590-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88590-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88590-60010 |
HZJ80..VX..GEN;FZJ80..4FC..VX..GEN;FZJ80..VX..GCC..EFI;FZJ80,HZJ80..GX..(DSL,EFI);FZJ80,HDJ80..(GX,VX)..(CBR,TD2,TD4) |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88596-24010 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88596-24010 |
HZJ80..VX..GEN;FZJ80..4FC..VX..GEN;FZJ80..VX..GCC..EFI;FZJ80,HZJ80..GX..(DSL,EFI);FZJ80,HDJ80..(GX,VX)..(CBR,TD2,TD4) |
1 | ||
| 88596-24010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60290 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) W(AUTOMATIC AIR CONDITIONER),CONDENSER SIDE |
1 | ||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88706-60030 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88716-60730 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,CONDENSER SIDE |
1 | ||
| 88716-60760 |
FZJ80..RHD..LUB;HDJ80,HZJ80..(GX,VX)..(ARL,GEN) |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88716-6A421 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..GX;FZJ80..LHD..4FC..VX W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716-6A421 |
FZJ80,HDJ80,HZJ80 W(SINGLE AIR CONDITIONER) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-26010 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER & W(COOL BOX) |
1 | ||
| 88723-28070 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88723-30040 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88723-26010 |
FJ80,HDJ80..GX..(EFI,TD2);FZJ80,HDJ80..(GX,VX)..GEN;HZJ80..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-28080 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER & W(COOL BOX) |
1 | ||
| 88723-30040 |
FZJ80..(GX,VX)..GEN;FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88723-26010 |
HDJ80..GX;FZJ80..4FC..GX;FZJ80,HDJ80..VX..GEN..(EFI,TD2);FZJ80,HZJ80..5F..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-20040 |
HDJ80,HZJ80;FZJ80..GX,STD;FZJ80..VX..(ARL,GCC) |
1 | ||
| 88723-20040 |
HDJ80;HZJ80..GCC,GEN;FZJ80..RHD..VX..CBR;FZJ80,HZJ80..GX..ARL;FZJ80..VX..(ARL,GCC);FZJ80..(GX,STD)..(GCC,GEN) |
1 | ||
| 88723-20040 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,STD);FZJ80..4FC..VX..(ARL,GCC) |
1 | ||
| 88723-30040 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88578-60080 | ||||
| 88578-60090 | ||||
| 88578-90A00 | ||||
| 88688-60190 | ||||
| 90119-06126 | ||||
| 90119-06429 | ||||
| 90119-08572 | ||||
| 90950-01242 | ||||
| 91651-40614 | ||||
ILLUST NO. 3 OF 4(9001-9501)RHD..GX,VX
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60451 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60450 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60451 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88716-6A470 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88716-60451 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6A460 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88716-60440 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60440 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60440 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-6A540 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-6A540 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-60370 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-6A530 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88716-60370 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-60320 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88716-6A500 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88716-6A060 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60100 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88717-60750 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88717-60100 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60780 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60780 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60790 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88727D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-60210 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60210 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88717-60710 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88717-60210 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-60220 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60221 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88717-60720 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88717-60221 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60221 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| Common parts | ||||
| 88688-60210 | ||||
| 88718-60350 | ||||
| 88718-60380 | ||||
| 88718-60400 | ||||
| 88718-60410 | ||||
| 88718-60420 | ||||
| 88718-60460 | ||||
| 88718-60470 | ||||
| 88718-60480 | ||||
| 88718-60580 | ||||
| 90119-06003 | ||||
| 90119-06092 | ||||
| 90119-08197 | ||||
| 90119-08258 | ||||
| 90159-50001 | ||||
| 90179-06161 | ||||
ILLUST NO. 4 OF 4(9001-9501)GX,VX
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-6A550 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88716-6A070 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-6A550 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88716-6A070 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-6A540 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60380 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-6A540 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60380 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-60150 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60790 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-60150 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60790 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737B - TUBE, SUCTION, B(FOR COOL BOX) | ||||
| 88717-60810 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88717-60510 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737B - TUBE, SUCTION, B(FOR COOL BOX) | ||||
| 88717-60810 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88717-60510 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| Common parts | ||||
| 88718-60400 | ||||
| 88718-60410 | ||||
| 88718-60420 | ||||
| 88718-60430 | ||||
| 88718-60450 | ||||
| 90119-06003 | ||||
| 90119-06092 | ||||
| 90179-06161 | ||||
ILLUST NO. 1 OF 4(9001- )GX,STD..ARL
CONDENSOR---SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60060 |
FZJ80..GEN;HDJ80,HZJ80;FJ80..STD,VX;FJ80..GX..(ARL,GEN);FZJ80..(STD,VX)..GCC |
1 | ||
| 88460-60160 |
HDJ80,HZJ80;FZJ80..ARL,GEN;FZJ80..(STD,VX)..GCC |
1 | ||
| 88460-60160 |
HDJ80,HZJ80;FZJ80..4FC..VX..GEN;FZJ80..(STD,VX)..GCC;FZJ80..5F..(ARL,GEN);FZJ80..4FC..GX..(ARL,GEN) |
1 | ||
| 88460-60060 |
HDJ80,HZJ80;FZJ80..ARL,GEN;FZJ80..(STD,VX)..GCC |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT |
1 | ||
| 88471-30350 |
FJ80,HDJ80,HZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88471-30350 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88471-16040 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88471-16040 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88471-50020 |
FZJ80,HDJ80,HZJ80..GX..ARL DUAL AIR CONDITIONER |
1 | ||
| 88471-30350 |
FZJ80,HDJ80,HZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88471-50020 |
HDJ80,HZJ80;FZJ80..GCC,GEN |
1 | ||
| 88471-30370 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-60010 |
FZJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88473-60010 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
FZJ80,HDJ80,HZJ80..(GX,STD)..ARL 250G |
3 | ||
| 90986-02004 |
HDJ80,HZJ80..(GX,STD)..ARL 250G |
3 | ||
| 90986-02004 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL 250G |
3 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL..(DSL,EFI,TD2) SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60290 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) W(AUTOMATIC AIR CONDITIONER),CONDENSER SIDE |
1 | ||
| 88716-60290 |
FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,RECEIVER SIDE |
1 | ||
| 88706-60030 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT |
1 | ||
| 88716-60730 |
FZJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT,CONDENSER SIDE |
1 | ||
| 88716-60760 |
FZJ80..RHD..LUB;HDJ80,HZJ80..(GX,VX)..(ARL,GEN) |
1 | ||
| 88716-60760 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88716-6A421 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..GX;FZJ80..LHD..4FC..VX W(SINGLE AIR CONDITIONER) |
1 | ||
| 88716-6A421 |
FZJ80,HDJ80,HZJ80 W(SINGLE AIR CONDITIONER) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-26010 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER & W(COOL BOX) |
1 | ||
| 88723-28070 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88723-30040 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88723-26010 |
FJ80,HDJ80..GX..(EFI,TD2);FZJ80,HDJ80..(GX,VX)..GEN;HZJ80..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-28080 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER & W(COOL BOX) |
1 | ||
| 88723-30040 |
FZJ80..(GX,VX)..GEN;FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88723-26010 |
HDJ80..GX;FZJ80..4FC..GX;FZJ80,HDJ80..VX..GEN..(EFI,TD2);FZJ80,HZJ80..5F..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-20040 |
HDJ80,HZJ80;FZJ80..GX,STD;FZJ80..VX..(ARL,GCC) |
1 | ||
| 88723-20040 |
HDJ80;HZJ80..GCC,GEN;FZJ80..RHD..VX..CBR;FZJ80,HZJ80..GX..ARL;FZJ80..VX..(ARL,GCC);FZJ80..(GX,STD)..(GCC,GEN) |
1 | ||
| 88723-20040 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,STD);FZJ80..4FC..VX..(ARL,GCC) |
1 | ||
| 88723-30040 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88578-60080 | ||||
| 88578-90A01 | ||||
| 88895-89102 | ||||
| 90091-20809 | ||||
| 90099-32128 | ||||
| 90119-06126 | ||||
| 90119-06336 | ||||
| 90179-06032 | ||||
| 93385-56025 | ||||
ILLUST NO. 3 OF 4(9501- )RHD..GX,VX
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-60110 |
FZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88706C - TUBE SUB-ASSY, LIQUID, C | ||||
| 88706-60120 |
FZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-60070 |
FZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-60080 |
FZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60451 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60450 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60451 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88716-6A470 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88716-60451 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6A460 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88716-60440 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60440 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60440 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-6A540 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-60370 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-6A530 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88716-60370 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-60320 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88716-6A500 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88716-6A060 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60100 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88717-60750 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88717-60100 |
HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60780 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60790 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88727D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-60210 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60210 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88717-60710 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88717-60210 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-60220 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60221 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88717-60720 |
FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4) |
1 | ||
| 88717-60221 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60221 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| 88899-60060 |
FZJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| Common parts | ||||
| 88688-60210 | ||||
| 88718-60350 | ||||
| 88718-60380 | ||||
| 88718-60400 | ||||
| 88718-60410 | ||||
| 88718-60420 | ||||
| 88718-60460 | ||||
| 88718-60470 | ||||
| 88718-60480 | ||||
| 88718-60580 | ||||
| 90119-06003 | ||||
| 90119-06092 | ||||
| 90119-08197 | ||||
| 90119-08258 | ||||
| 90159-50001 | ||||
| 90179-06161 | ||||
ILLUST NO. 4 OF 4(9501- )GX,VX
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88706E - TUBE SUB-ASSY, LIQUID, E | ||||
| 88706-60130 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88707C - TUBE SUB-ASSY, SUCTION, C | ||||
| 88707-60090 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-6A550 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88716-6A070 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-6A540 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60380 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-60150 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60790 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737B - TUBE, SUCTION, B(FOR COOL BOX) | ||||
| 88717-60810 |
HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX) |
1 | ||
| 88717-60510 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| Common parts | ||||
| 88718-60400 | ||||
| 88718-60410 | ||||
| 88718-60420 | ||||
| 90119-06003 | ||||
| 90119-06092 | ||||
| 90179-06161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
