HZJ80R-GNMNSQ (1990)
Toyota Land Cruiser
ILLUST NO. 2 OF 9(9001-0701)
COWL & INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 64777-90A00 | ||||
| 90119-06390 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF 9(9001- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-1A210 | ||||
| 82711-20490 | ||||
| 82711-22240 | ||||
| 82711-22270 | ||||
| 82711-24130 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-30830 | ||||
| 82711-34310 | ||||
| 82711-3A020 | ||||
| 82711-60010 | ||||
| 82711-90K00 | ||||
| 82711-90K02 | ||||
| 82711-90K06 | ||||
| 90461-08385 | ||||
| 90461-08430 | ||||
| 90462-10047 | ||||
| 90463-00366 | ||||
| 90463-10031 | ||||
| 90464-00108 | ||||
| 90464-00115 | ||||
| 90464-00373 | ||||
| 90464-00598 | ||||
| 90467-13030 | ||||
| 91651-60816 | ||||
ILLUST NO. 8 OF 9(9001- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-30080 | ||||
| 82710-87003 | ||||
| 82710-87005 | ||||
| 82711-12140 | ||||
| 82711-14110 | ||||
| 82711-14680 | ||||
| 82711-16450 | ||||
| 82711-32720 | ||||
| 82711-60230 | ||||
| 82711-60290 | ||||
| 82711-60300 | ||||
| 82711-60510 | ||||
| 82711-90K01 | ||||
| 82711-90K07 | ||||
| 82715-12020 | ||||
| 82715-30500 | ||||
| 82715-60040 | ||||
| 82715-60050 | ||||
| 82715-60170 | ||||
| 82715-60190 | ||||
| 82715-87003 | ||||
| 90119-08701 | ||||
| 90461-08359 | ||||
| 90464-00311 | ||||
| 90464-00627 | ||||
| 90467-13030 | ||||
| 91611-60812 | ||||
| 94130-61000 | ||||
ILLUST NO. 8 OF 9(9001- )
GROMMET & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 64777-90A00 | ||||
| 82711-1A310 | ||||
| 82711-60130 | ||||
| 82711-60150 | ||||
| 82711-60520 | ||||
| 82715-32200 | ||||
| 82715-60020 | ||||
| 82715-60030 | ||||
| 82715-60060 | ||||
| 82715-60080 | ||||
| 82715-60090 | ||||
| 82715-60100 | ||||
| 82715-60110 | ||||
| 82715-60140 | ||||
| 82715-60200 | ||||
| 82817-90351 | ||||
| 82817-90K00 | ||||
| 82817-95600 | ||||
| 82819-90B00 | ||||
| 82822-60010 | ||||
| 90119-08701 | ||||
| 90480-25020 | ||||
| 90480-34001 | ||||
| 90480-36508 | ||||
| 90950-01018 | ||||
| 91611-60816 | ||||
| 91621-J0814 | ||||
| 91622-G1014 | ||||
| 91641-80814 | ||||
| 91651-61016 | ||||
| 91651-B0820 | ||||
ILLUST NO. 8 OF 9(9001- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2A730 | ||||
| 82711-50240 | ||||
| 82715-30120 | ||||
| 82715-30150 | ||||
| 82715-60340 | ||||
| 82715-60510 | ||||
| 82715-60540 | ||||
| 82715-60690 | ||||
| 82715-60760 | ||||
| 82715-60810 | ||||
| 82715-60860 | ||||
| 82729-60030 | ||||
| 82729-60031 | ||||
| 82729-60090 | ||||
| 82729-60110 | ||||
| 82729-60200 | ||||
| 82729-60210 | ||||
| 82822-60030 | ||||
| 82822-60050 | ||||
| 90119-08701 | ||||
| 90464-00598 | ||||
| 90467-09043 | ||||
| 90929-01246 | ||||
| 90950-01866 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
ILLUST NO. 8 OF 9(9001- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-60030 | ||||
| 82710-60050 | ||||
| 82711-1A840 | ||||
| 82711-20050 | ||||
| 82711-22460 | ||||
| 82711-24140 | ||||
| 82711-2A430 | ||||
| 82711-2A530 | ||||
| 82711-2A590 | ||||
| 82711-3A440 | ||||
| 82711-3H180 | ||||
| 82711-50240 | ||||
| 82711-60240 | ||||
| 82711-60320 | ||||
| 82715-60360 | ||||
| 82715-60520 | ||||
| 82715-60530 | ||||
| 82715-60590 | ||||
| 82715-60600 | ||||
| 82729-60060 | ||||
| 90119-06416 | ||||
| 91512-61014 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| 91651-B0814 | ||||
ILLUST NO. 8 OF 9(9001- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12480 | ||||
| 82711-14360 | ||||
| 82711-22870 | ||||
| 82711-30360 | ||||
| 82711-30640 | ||||
| 82711-90K01 | ||||
| 82711-90K03 | ||||
| 82711-90K04 | ||||
| 82711-90K05 | ||||
| 90461-06645 | ||||
| 90461-08202 | ||||
| 90461-08265 | ||||
| 90461-08348 | ||||
| 90462-08015 | ||||
| 90463-08207 | ||||
| 90463-10032 | ||||
| 90463-10060 | ||||
| 90463-10521 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15004 | ||||
| 90464-00073 | ||||
| 90464-00165 | ||||
| 90467-09007 | ||||

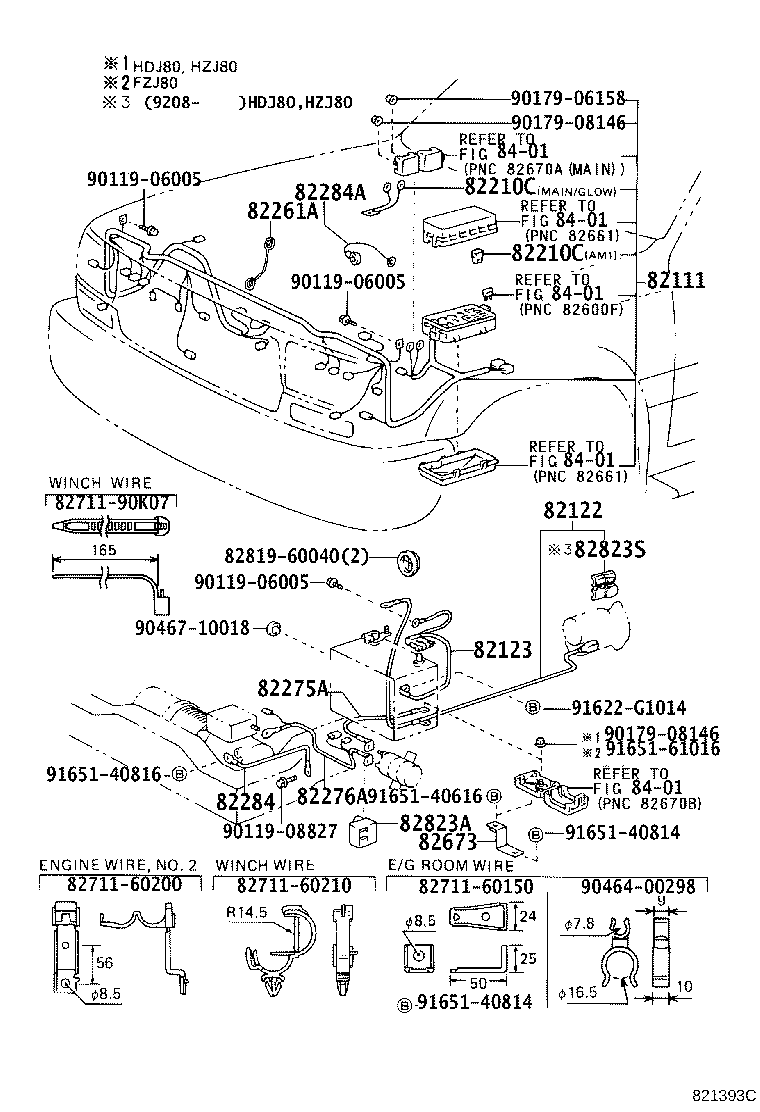

ILLUST NO. 1 OF 8(9001- )FZJ80,HDJ80,HZJ80
E/G ROOM WIRE & WINCH WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60110 |
HDJ80,HZJ80..ARL W(SPEAR WHEEL CARRIER---BACK DOOR) |
1 | ||
| 82111-60100 |
HDJ80,HZJ80..RHD |
1 | ||
| 82111-60111 |
HDJ80,HZJ80..ARL W(SPEAR WHEEL CARRIER---BACK DOOR) |
1 | ||
| 82111-60101 |
HDJ80,HZJ80..RHD |
1 | ||
| 82111-60102 |
HDJ80,HZJ80..RHD |
1 | ||
| 82111-60112 |
HDJ80,HZJ80..ARL W(SPEAR WHEEL CARRIER---BACK DOOR) |
1 | ||
| 82111-60114 |
HZJ80..ARL W(SPEAR WHEEL CARRIER---BACK DOOR) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60041 |
HDJ80,HZJ80 |
1 | ||
| 82122-60040 |
HDJ80,HZJ80 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-60030 |
HDJ80,HZJ80 |
1 | ||
| 82123-60030 |
HDJ80,HZJ80 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08206 |
HZJ80..ARL;HDJ80..4FC..ARL GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08267 |
HDJ80,HZJ80 L=110,MAIN,GLOW,MAIN/GLOW |
1 | ||
| 90982-08267 |
HDJ80,HZJ80 L=110,MAIN,GLOW |
1 | ||
| 90982-08227 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED,AM1(RELAY BLOCK) |
1 | ||
| 90982-08206 |
HDJ80,HZJ80..ARL GLOW RESISTER |
1 | ||
| 90982-08227 |
FZJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08206 |
HZJ80..ARL;HDJ80..4FC..ARL GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08267 |
HDJ80,HZJ80 L=110,MAIN,GLOW,MAIN/GLOW |
1 | ||
| 90982-08267 |
HDJ80,HZJ80 L=110,MAIN,GLOW |
1 | ||
| 90982-08227 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED,AM1(RELAY BLOCK) |
1 | ||
| 90982-08206 |
HDJ80,HZJ80..ARL GLOW RESISTER |
1 | ||
| 90982-08227 |
FZJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-60010 |
HDJ80,HZJ80;FJ80,FZJ80..GCC,GEN |
1 | ||
| 82673-60020 |
HZJ80..ARL |
1 | ||
| Common parts | ||||
| 82711-60150 | ||||
| 82711-60200 | ||||
| 82711-60210 | ||||
| 82711-90K07 | ||||
| 82819-60040 | ||||
| 90119-06005 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90464-00298 | ||||
| 90467-10018 | ||||
| 91622-G1014 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-61016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

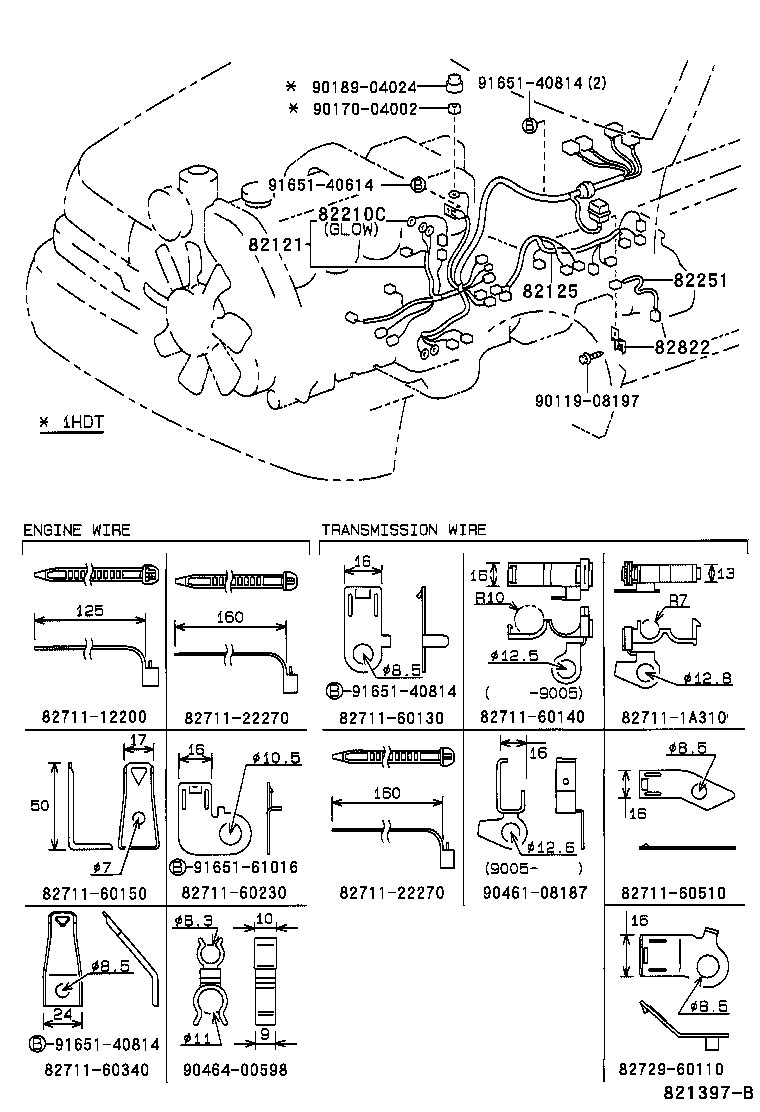

ILLUST NO. 2 OF 8(9001- )HDJ80,HZJ80
E/G WIRE & T/M WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-60110 |
HDJ80,HZJ80..5F..ARL |
1 | ||
| 82121-60111 |
HDJ80,HZJ80..5F..ARL |
1 | ||
| 82121-60112 |
HDJ80,HZJ80..5F..ARL |
1 | ||
| 82121-60115 |
HZJ80..ARL |
1 | ||
| 82121-60114 |
HZJ80..ARL |
1 | ||
| 82121-60113 |
HDJ80,HZJ80..5F..ARL |
1 | ||
| 82121-60116 |
HZJ80..ARL |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60042 |
HZJ80..GX..ARL;FJ80,HDJ80..5F..LUB;FZJ80,HZJ80..VX..GEN |
1 | ||
| 82125-60040 |
HDJ80..5F;FJ80,HZJ80..5F..GX..ARL;FJ80,HZJ80..5F..VX..GEN |
1 | ||
| 82125-60041 |
HDJ80..5F;FJ80,HZJ80..5F..GX..ARL;FJ80,HZJ80..5F..VX..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08206 |
HZJ80..ARL;HDJ80..4FC..ARL GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08267 |
HDJ80,HZJ80 L=110,MAIN,GLOW,MAIN/GLOW |
1 | ||
| 90982-08267 |
HDJ80,HZJ80 L=110,MAIN,GLOW |
1 | ||
| 90982-08227 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED,AM1(RELAY BLOCK) |
1 | ||
| 90982-08206 |
HDJ80,HZJ80..ARL GLOW RESISTER |
1 | ||
| 90982-08227 |
FZJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED |
1 | ||
| 82251 - WIRE, SPEED SENSOR | ||||
| 82251-60050 |
FZJ80..5F..GCC..EFI;FZJ80,HDJ80,HZJ80..LUB..ARL W(TRANSFER) |
1 | ||
| 82251-60040 |
FZJ80..(GX,STD)..EFI;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 82822-60010 |
HZJ80..ARL;HDJ80..4FC..GEN;FZJ80..(GX,VX)..EFI |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-1A310 | ||||
| 82711-22270 | ||||
| 82711-60130 | ||||
| 82711-60140 | ||||
| 82711-60150 | ||||
| 82711-60230 | ||||
| 82711-60340 | ||||
| 82711-60510 | ||||
| 82729-60110 | ||||
| 90119-08197 | ||||
| 90170-04002 | ||||
| 90189-04024 | ||||
| 90461-08187 | ||||
| 90464-00598 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91651-61016 | ||||
ILLUST NO. 3 OF 8(9001-9501)RHD
COWL & INSTRUMENT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-60220 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60210 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60221 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60211 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60222 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60212 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60223 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60213 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60224 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60214 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60215 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 82131-60225 |
HDJ80,HZJ80..GX..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60216 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 82131-60226 |
HDJ80,HZJ80..GX..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60217 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 82131-60227 |
HDJ80,HZJ80..GX..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-6C050 |
HDJ80,HZJ80..(GX,STD)..ARL *80 |
1 | ||
| 82131-6C060 |
HDJ80,HZJ80..GX..ARL W(*80 & DUAL AIR CONDITIONER) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60020 |
FJ80,HDJ80,HZJ80..LUB..ARL |
1 | ||
| 82141-60030 |
FJ80,HDJ80,HZJ80..RHD..(CBR,DSL,TD2) W(SUB FUEL TANK) |
1 | ||
| 82141-60160 |
FJ80,HDJ80,HZJ80..ARL..(CBR,DSL,TD2) W(SUB FUEL TANK) |
1 | ||
| 82141-60150 |
FJ80,HDJ80,HZJ80..LUB..ARL |
1 | ||
| 82141-60151 |
FZJ80,HDJ80,HZJ80..5F..LUB..ARL |
1 | ||
| 82141-60153 |
FZJ80,HDJ80,HZJ80..ARL |
1 | ||
| 82141-60152 |
FZJ80,HDJ80,HZJ80..ARL |
1 | ||
| Common parts | ||||
| 82711-60330 | ||||
| 82817-60060 | ||||
| 82817-60070 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90339-04018 | ||||
| 90339-04024 | ||||
| 90339-07016 | ||||
| 90461-08202 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 8(9501- )RHD
COWL & INSTRUMENT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-60220 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60210 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60221 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60211 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60222 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60212 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60223 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60213 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60224 |
HDJ80,HZJ80..RHD..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60214 |
HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 82131-60215 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 82131-60225 |
HDJ80,HZJ80..GX..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60216 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 82131-60226 |
HDJ80,HZJ80..GX..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-60217 |
HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 82131-60227 |
HDJ80,HZJ80..GX..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 82131-6C050 |
HDJ80,HZJ80..(GX,STD)..ARL *80 |
1 | ||
| 82131-6C060 |
HDJ80,HZJ80..GX..ARL W(*80 & DUAL AIR CONDITIONER) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60020 |
FJ80,HDJ80,HZJ80..LUB..ARL |
1 | ||
| 82141-60030 |
FJ80,HDJ80,HZJ80..RHD..(CBR,DSL,TD2) W(SUB FUEL TANK) |
1 | ||
| 82141-60160 |
FJ80,HDJ80,HZJ80..ARL..(CBR,DSL,TD2) W(SUB FUEL TANK) |
1 | ||
| 82141-60150 |
FJ80,HDJ80,HZJ80..LUB..ARL |
1 | ||
| 82141-60151 |
FZJ80,HDJ80,HZJ80..5F..LUB..ARL |
1 | ||
| 82141-60153 |
FZJ80,HDJ80,HZJ80..ARL |
1 | ||
| 82141-60152 |
FZJ80,HDJ80,HZJ80..ARL |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
FZJ80..GX..GCC..EFI;FZJ80..STD..GEN..EFI;FZJ80..5F..VX..GEN..EFI;HDJ80,HZJ80..LHD..SOB..(GX,VX)..GEN;FZJ80,HDJ80,HZJ80..RHD..(DSL,EFI,TD2,TD4) NO.3 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 82817-60060 | ||||
| 82817-60070 | ||||
| 90119-06390 | ||||
| 90159-50138 | ||||
| 90179-06158 | ||||
| 90339-04018 | ||||
| 90339-04024 | ||||
| 90339-07016 | ||||
| 90461-08202 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 8(9001- )
DOOR & ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX W(DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82151-60020 |
FZJ80,HDJ80,HZJ80..GX W(DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82151-60030 |
FZJ80,HDJ80,HZJ80..RHD..GX W(POWER WINDOW) |
1 | ||
| 82151-60030 |
FJ80,FZJ80,HDJ80,HZJ80..RHD..GX W(POWER WINDOW) |
1 | ||
| 82151-60041 |
FZJ80,HDJ80,HZJ80..RHD..GX W(POWER WINDOW & DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82151-60040 |
FJ80,FZJ80,HDJ80,HZJ80..RHD..GX W(POWER WINDOW & DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82151-60042 |
HZJ80..GX..ARL;FZJ80,HDJ80..RHD..(EFI,TD2,TD4) W(POWER WINDOW & DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82151-60310 |
FZJ80,HDJ80,HZJ80..GX..ARL |
1 | ||
| 82151-60320 |
HZJ80..GX..ARL;FZJ80,HDJ80..RHD..(EFI,TD2,TD4) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60040 |
FJ80,HDJ80,HZJ80..GX W(POWER WINDOW & DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82152-60020 |
FJ80,HDJ80,HZJ80..GX W(DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82151-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX W(DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82152-60030 |
FJ80,HDJ80,HZJ80..GX W(POWER WINDOW) |
1 | ||
| 82152-60031 |
FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW) |
1 | ||
| 82152-60041 |
FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW & DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82151-60020 |
FZJ80,HDJ80,HZJ80..GX W(DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82152-60031 |
FZJ80,HDJ80,HZJ80..RHD..GX W(POWER WINDOW) |
1 | ||
| 82152-60041 |
FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW & DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82152-60260 |
FZJ80,HDJ80,HZJ80..GX..ARL |
1 | ||
| 82152-60042 |
HDJ80;FZJ80..ARL;HZJ80..LHD..LUB;FZJ80..LHD..(GX,VX);HZJ80..(GX,VX)..(ARL,GCC) W(POWER WINDOW & DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82152-60043 |
HDJ80;FZJ80,HZJ80..VX;FZJ80..4FC..STD;FZJ80,HZJ80..GX..ARL W(POWER WINDOW & DOOR REMOTE CONTROL MIRROR) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX W(REAR SPEAKER) |
1 | ||
| 82153-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-60021 |
FZJ80,HDJ80,HZJ80..GX,VX W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-60060 |
HDJ80..GX;FZJ80..4FC..GX;FZJ80,HZJ80..5F..(GX,VX);FZJ80,HDJ80..VX..(GCC,GEN)..(EFI,TD2) W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-60010 |
FZJ80,HDJ80,HZJ80..GX W(REAR SPEAKER) |
1 | ||
| 82153-60011 |
HZJ80..GX..GCC;FZJ80,HDJ80..GX;HZJ80..RHD..5F..GX;HZJ80..LHD..LUB..GX W(REAR SPEAKER) |
1 | ||
| 82153-60020 |
FZJ80,HDJ80,HZJ80..GX,VX W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-60110 |
FZJ80,HDJ80,HZJ80..GX..ARL W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-60020 |
FZJ80,HDJ80,HZJ80..GX,VX W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-60010 |
FZJ80,HDJ80,HZJ80..GX W(REAR SPEAKER) |
1 | ||
| 82153-60021 |
FZJ80,HDJ80,HZJ80..GX,VX W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-60060 |
HDJ80..GX;FZJ80..4FC..GX;FZJ80,HZJ80..5F..(GX,VX);FZJ80,HDJ80..VX..(GCC,GEN)..(EFI,TD2) W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX W(REAR SPEAKER) |
1 | ||
| 82153-60110 |
FZJ80,HDJ80,HZJ80..GX..ARL W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82153-60011 |
HZJ80..GX..GCC;FZJ80,HDJ80..GX;HZJ80..RHD..5F..GX;HZJ80..LHD..LUB..GX W(REAR SPEAKER) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60170 |
HDJ80..GX;HDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FJ80..SOB..VX;FJ80..(GX,VX)..(ARL,GEN)..CBR W(ACCESSORY METER) |
1 | ||
| 82171-60090 |
HZJ80..GX,VX;FJ80..SOB..VX;FJ80..GX..(ARL,GCC)..CBR;FJ80,HDJ80..LHD..(GX,VX)..GEN W(3RD SEAT---TRANSVERS & ACCESSORY METER & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60130 |
HDJ80..GEN;HZJ80..GX,VX;FJ80..SOB..VX;FJ80..GX..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR W(MOON ROOF & 3RD SEAT---TRANSVERS & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60100 |
HDJ80..GEN;FJ80..SOB..VX;FJ80,HDJ80,HZJ80..GX W(3RD SEAT---TRANSVERS & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60010 |
HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2) |
1 | ||
| 82171-60110 |
FJ80..SOB..VX;HZJ80..(GX,VX)..(ARL,GEN);FJ80,HDJ80..LHD..(GX,VX)..GEN;FJ80,HDJ80..GX..ARL..(CBR,TD2) W(*MR & 3RD SEAT---TRANSVERS & ACCESSORY METER & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60050 |
FZJ80..GX;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,FZJ80..SOB..VX;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR W(MOON ROOF & 3RD SEAT---TRANSVERS) |
1 | ||
| 82171-60030 |
FZJ80..GX;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,FZJ80..SOB..VX;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR W(MOON ROOF) |
1 | ||
| 82171-60020 |
FZJ80..GX;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,FZJ80..SOB..VX;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR;FZJ80,HZJ80..LHD..5F..SOB..STD..GEN W(3RD SEAT---TRANSVERS) |
1 | ||
| 82171-60170 |
HDJ80..GX;HDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;FJ80,FZJ80..SOB..VX;FJ80,HZJ80..STD..ARL;FJ80..(GX,VX)..(ARL,GEN)..CBR W(ACCESSORY METER) |
1 | ||
| 82171-60200 |
HDJ80..GEN;FJ80..GX..GCC;FZJ80..LHD..GX;HDJ80,HZJ80..GX;FZJ80,HZJ80..LHD..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR W(MOON ROOF & ACCESSORY METER) |
1 | ||
| 82171-60210 |
HDJ80..GX;HDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FZJ80..LHD..GX;FJ80,FZJ80..SOB..VX;FZJ80..LHD..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR W(*MR & 3RD SEAT---TRANSVERS & ACCESSORY METER) |
1 | ||
| 82171-60190 |
HDJ80..GX;HDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FZJ80..LHD..GX;FJ80,FZJ80..SOB..VX;FZJ80..LHD..VX..GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR W(3RD SEAT---TRANSVERS & ACCESSORY METER) |
1 | ||
| 82171-60020 |
HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80,HDJ80..GX;FZJ80,HDJ80..VX..GEN;FZJ80,HZJ80..LHD..SOB..STD..GEN W(3RD SEAT---TRANSVERS) |
1 | ||
| 82171-60100 |
FZJ80..GX;FZJ80,HDJ80..VX..GEN;FZJ80,HZJ80..SOB..VX;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2) W(3RD SEAT---TRANSVERS & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60030 |
HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80,HDJ80..GX;FZJ80,HDJ80..VX..GEN W(MOON ROOF) |
1 | ||
| 82171-60110 |
HDJ80..GX;HDJ80..GEN;FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;FZJ80,HZJ80..SOB..VX;HZJ80..(GX,VX)..(ARL,GEN) W(*MR & 3RD SEAT---TRANSVERS & ACCESSORY METER & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60090 |
HZJ80..GX;FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;HDJ80,HZJ80..VX..GEN W(3RD SEAT---TRANSVERS & ACCESSORY METER & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60010 |
HZJ80;FZJ80..SOB..VX;FZJ80,HDJ80..GX,STD;FZJ80,HDJ80..VX..GEN |
1 | ||
| 82171-60130 |
FZJ80..GX;HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2) W(MOON ROOF & 3RD SEAT---TRANSVERS & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60050 |
HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80,HDJ80..GX;FZJ80,HDJ80..VX..GEN W(MOON ROOF & 3RD SEAT---TRANSVERS) |
1 | ||
| 82171-60110 |
HDJ80..GEN;HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;FZJ80,HDJ80..GX..ARL W(*MR & 3RD SEAT---TRANSVERS & ACCESSORY METER & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60090 |
HZJ80..GX;HDJ80..GEN;FZJ80..LHD..GX;FZJ80,HDJ80..GX..ARL;FZJ80,HZJ80..LHD..VX..GEN W(3RD SEAT---TRANSVERS & ACCESSORY METER & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60130 |
HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80,HDJ80..GX;FZJ80,HDJ80..VX..GEN W(MOON ROOF & 3RD SEAT---TRANSVERS & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60190 |
HDJ80..GEN;HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;FZJ80,HDJ80..GX..ARL W(3RD SEAT---TRANSVERS & ACCESSORY METER) |
1 | ||
| 82171-60200 |
HDJ80..GEN;HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;FZJ80,HDJ80..GX..ARL W(MOON ROOF & ACCESSORY METER) |
1 | ||
| 82171-60100 |
HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80,HDJ80..GX;FZJ80,HDJ80..VX..GEN W(3RD SEAT---TRANSVERS & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60170 |
HDJ80..GEN;HZJ80..GX,VX;FZJ80..LHD..GX;FZJ80..SOB..VX;HZJ80..STD..ARL;FZJ80..LHD..VX..GEN;FZJ80,HDJ80..(GX,STD)..ARL W(ACCESSORY METER) |
1 | ||
| 82171-60450 |
FZJ80,HDJ80,HZJ80..GX..ARL W(3RD SEAT---TRANSVERS & GPS) |
1 | ||
| 82171-60470 |
FZJ80,HDJ80,HZJ80..GX..ARL W(MOON ROOF + CAUTION PLATE & GPS) |
1 | ||
| 82171-60480 |
FZJ80,HDJ80,HZJ80..GX..ARL W(MOON ROOF + CAUTION PLATE & 3RD SEAT---TRANSVERS & GPS) |
1 | ||
| 82171-60210 |
HDJ80..GEN;HZJ80..GX,VX;FZJ80..SOB..VX;FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;FZJ80,HDJ80..GX..ARL W(*MR & 3RD SEAT---TRANSVERS & ACCESSORY METER) |
1 | ||
| 82171-60490 |
FZJ80,HDJ80,HZJ80..GX..ARL W(MOON ROOF + CAUTION PLATE & 3RD SEAT---TRANSVERS & GPS & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60460 |
FZJ80,HDJ80,HZJ80..GX..ARL W(3RD SEAT---TRANSVERS & GPS & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60461 |
FZJ80,HDJ80,HZJ80..LUB..ARL W(GPS) |
1 | ||
| 82171-60440 |
FZJ80,HDJ80,HZJ80..GX..ARL W(GPS) |
1 | ||
| 82171-60241 |
FZJ80..4FC..GEN;FZJ80,HDJ80..ARL;FZJ80..VX..GCC..EFI;HDJ80,HZJ80..LHD..LUB;HZJ80..SOB..(ARL,GCC);FZJ80..LHD..(GX,VX)..CBR;HDJ80,HZJ80..RHD..5F..(GX,VX)..(DSL,TD2) W(ACCESSORY METER) |
1 | ||
| 82171-60251 |
HZJ80..GCC;FZJ80..4FC..GEN;FZJ80,HDJ80..ARL;FZJ80..VX..GCC..EFI;HDJ80,HZJ80..LHD..LUB;FZJ80..LHD..(GX,VX)..CBR;HDJ80,HZJ80..RHD..5F..(GX,VX)..(DSL,TD2) W(*MR & ROOF CARRIER & 3RD SEAT---TRANSVERS & ACCESSORY METER & DUAL AIR CONDITIONER) |
1 | ||
| 82171-60491 |
FZJ80,HDJ80,HZJ80..LUB..ARL W(MOON ROOF + CAUTION PLATE & GPS) |
1 | ||
| 82171-60231 |
HDJ80..LHD;FZJ80..4FC..GEN;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80..(GX,VX)..(CBR,TD4) W(MOON ROOF) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-60090 |
HZJ80..5F..GX;FZJ80,HDJ80..GX;HDJ80..RHD..5F..TD2;HDJ80,HZJ80..LHD..VX..GEN |
1 | ||
| 82172-60040 |
FZJ80,HZJ80..GX;HDJ80,HZJ80..VX..GEN |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-60010 |
HDJ80..RHD;FZJ80..GX,VX;HZJ80..VX..GCC;FJ80,HZJ80..LUB..ARL |
1 | ||
| 82173-60010 |
HDJ80..LHD;FZJ80..4FC..GEN;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..5F..(GX,VX)..(CBR,DSL);FZJ80,HDJ80..(GX,VX)..(ARL,GCC)..(EFI,TD2,TD4) |
1 | ||
| Common parts | ||||
| 82711-60310 | ||||
| 90339-04018 | ||||
ILLUST NO. 5 OF 8(9001- )
FLOOR,FRAME & SEAT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-60010 |
FJ80,HDJ80,HZJ80..MTM..(GX,STD) |
1 | ||
| 82161-60020 |
FJ80,HDJ80,HZJ80..5F..GX..(ARL,GCC) W(*RWD) OR W(SUB FUEL TANK) OR W(5 SPEAKER)---EXCL(DIFFERENTIAL LOCK) |
1 | ||
| 82161-60011 |
FJ80,FZJ80,HDJ80,HZJ80..5F..(GX,STD) |
1 | ||
| 82161-60021 |
FJ80,HDJ80,HZJ80..5F..GX..ARL W(*RWD) OR W(SUB FUEL TANK) OR W(5 SPEAKER)---EXCL(DIFFERENTIAL LOCK) |
1 | ||
| 82161-60040 |
FJ80,HDJ80,HZJ80 W(DIFFERENTIAL LOCK) |
1 | ||
| 82161-60031 |
HZJ80..4FC;FZJ80..LHD..GX..GEN;FJ80,HDJ80,HZJ80..GX..ARL W(POWER WINDOW)---EXCL(DIFFERENTIAL LOCK) |
1 | ||
| 82161-60030 |
FJ80,HDJ80,HZJ80..GX W(POWER WINDOW)---EXCL(DIFFERENTIAL LOCK) |
1 | ||
| 82161-60012 |
FZJ80,HDJ80,HZJ80..5F..(GX,STD)..(CBR,DSL,TD2) |
1 | ||
| 82161-60041 |
FJ80,HDJ80;FZJ80..GX,VX;HZJ80..STD,VX;HZJ80..LHD..GX;HZJ80..GX..ARL;FZJ80..SOB..STD W(DIFFERENTIAL LOCK) |
1 | ||
| 82161-60022 |
HDJ80,HZJ80..5F..GX..ARL W(*RWD) OR W(SUB FUEL TANK) OR W(5 SPEAKER)---EXCL(DIFFERENTIAL LOCK) |
1 | ||
| 82161-60023 |
HZJ80..ARL;HZJ80..LHD..SOB..GX..GEN;FZJ80,HDJ80..GX..(EFI,TD4) W(*RWD) OR W(SUB FUEL TANK)---EXCL(DIFFERENTIAL LOCK) |
1 | ||
| 82161-60032 |
FZJ80..5F..GX;HDJ80,HZJ80..GX;FZJ80..4FC..GX..ARL W(POWER WINDOW OR *66) |
1 | ||
| 82161-60042 |
HZJ80..ARL,GEN;FZJ80,HZJ80..VX..GCC;FZJ80..SOB..STD..(ARL,GEN);FZJ80,HDJ80..(GX,VX)..(ARL,GEN) W(DIFFERENTIAL LOCK) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60040 |
FJ80,HDJ80,HZJ80..GX..(ARL,GEN) W(POWER WINDOW & 5 SPEAKER) OR W(5 SPEAKER)---EXCL(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 82162-60060 |
FJ80,HDJ80,HZJ80..GX W(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60060 |
HDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR W(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60030 |
FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW)---EXCL(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60020 |
FJ80,FZJ80,HDJ80,HZJ80..(GX,STD)..(ARL,GEN) W(REAR HEATER) |
1 | ||
| 82162-60060 |
FZJ80..GX..GCC;FZJ80,HDJ80,HZJ80..LHD..VX..GEN;FJ80,HDJ80,HZJ80..GX..(DSL,EFI,TD2) W(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60021 |
FZJ80,HDJ80,HZJ80..(GX,STD)..(ARL,GEN) W(REAR HEATER) |
1 | ||
| 82162-60041 |
FZJ80,HDJ80,HZJ80..GX..ARL W(POWER WINDOW & 5 SPEAKER) OR W(5 SPEAKER)---EXCL(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60040 |
FJ80,HDJ80,HZJ80..GX..ARL W(POWER WINDOW & 5 SPEAKER) OR W(5 SPEAKER)---EXCL(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60031 |
FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW)---EXCL(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60011 |
FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 82162-60061 |
FZJ80,HDJ80,HZJ80..GX;FZJ80,HDJ80,HZJ80..LHD..VX..GEN W(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60032 |
HZJ80..5F..GX;FZJ80,HDJ80..GX W(POWER WINDOW)---EXCL(DUAL AIR CONDITIONER) |
1 | ||
| 82162-60042 |
HDJ80..GX;FZJ80..LHD..4FC..VX;FZJ80..4FC..GX..(ARL,GCC);FZJ80,HZJ80..5F..(GX,VX)..(ARL,GCC);FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(5 SPEAKER) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60050 |
FJ80..LUB;HDJ80,HZJ80;FJ80..SOB..(ARL,GCC) W(DIFFERENTIAL LOCK) |
1 | ||
| 82163-60030 |
FJ80..LUB;HDJ80,HZJ80;FJ80..SOB..(GX,STD) W(WIRE FOR TRAILER SOCKET)---EXCE(DIFFERENTIAL LOCK,*RWD) |
1 | ||
| 82163-60010 |
HZJ80..GX,STD;HZJ80..VX..GEN;FJ80,FZJ80,HDJ80..LUB;FJ80,FZJ80..SOB..(GX,STD) |
1 | ||
| 82163-60020 |
HZJ80..GX,STD;HZJ80..VX..GEN;FJ80..SOB..(GX,STD);FZJ80..LHD..LUB..(GX,VX);FZJ80..LHD..SOB..(GX,STD);FJ80,HDJ80..LUB..(CBR,TD2) W(SUB FUEL TANK)---EXCE(DIFFERENTIAL LOCK) |
1 | ||
| 82163-60050 |
HZJ80..ARL,GEN;FZJ80..LHD..SOB..GEN;FJ80..SOB..(ARL,GEN);FJ80,FZJ80,HZJ80..SOB..VX;FJ80,FZJ80,HDJ80..LUB..(GX,VX) W(DIFFERENTIAL LOCK) |
1 | ||
| 82163-60030 |
FJ80..LUB;HZJ80..GX,STD;HZJ80..VX..GEN;FJ80..SOB..(GX,STD);FZJ80,HDJ80..ARL,GEN TOWING PACKAGE |
1 | ||
| 82163-60051 |
HZJ80..ARL,GEN;FZJ80..STD..EFI;FZJ80,HZJ80..VX..GCC;FZJ80..LHD..SOB..STD..GEN;FZJ80,HDJ80..(GX,VX)..(ARL,GEN) W(DIFFERENTIAL LOCK) |
1 | ||
| 82163-60031 |
FZJ80..ARL,GEN;HZJ80..5F..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;HDJ80,HZJ80..LUB..ARL TOWING PACKAGE |
1 | ||
| 82163-60021 |
HZJ80..VX..GEN;HDJ80..RHD..5F..GEN;HDJ80,HZJ80..LUB..ARL;HZJ80..5F..(GX,STD)..(GCC,GEN);FZJ80..LHD..SOB..(GX,STD)..CBR;FZJ80,HDJ80..LHD..LUB..(GX,VX)..(CBR,TD2) W(SUB FUEL TANK)---EXCE(DIFFERENTIAL LOCK) |
1 | ||
| 82163-60041 |
FZJ80,HDJ80,HZJ80..LUB..ARL W(*66) OR W(TOWING PACKAGE SPEC & *66) |
1 | ||
| 82163-60011 |
HDJ80..ARL;FZJ80..SOB..GX;FZJ80..STD..GCC;FZJ80..RHD..STD;HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80..LUB..(GX,STD)..EFI;HZJ80..LHD..SOB..(GX,STD);FZJ80,HZJ80..LUB..(CBR,DSL);FZJ80..LUB..VX..(ARL,GCC)..EFI |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60020 |
FJ80,HDJ80,HZJ80..RHD |
1 | ||
| 82164-60021 |
FJ80,HDJ80,HZJ80..RHD |
1 | ||
| 82164-60022 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 82164-60022 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 82164-60022 |
HDJ80,HZJ80..RHD |
1 | ||
| 82164-60023 |
HDJ80,HZJ80..RHD |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60010 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80 |
1 | ||
| 82165-60010 |
FZJ80..5F..GCC..EFI;FZJ80,HDJ80,HZJ80..LUB..ARL W(DIFFERENTIAL LOCK) |
1 | ||
| 82165-60070 |
FZJ80..5F..GCC..EFI;FZJ80,HDJ80,HZJ80..LUB..ARL W(*66) |
1 | ||
| 82165-60080 |
FZJ80..5F..GCC..EFI;FZJ80,HDJ80,HZJ80..LUB..ARL W(*66 & DIFFERENTIAL LOCK) |
1 | ||
| 82165-60011 |
HDJ80..LHD..LUB;FZJ80..VX..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LUB..ARL W(DIFFERENTIAL LOCK) |
1 | ||
| 82165-60081 |
HDJ80..LHD..LUB;FZJ80..VX..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LUB..ARL W(*66 & DIFFERENTIAL LOCK) |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-60030 |
HDJ80,HZJ80..LUB..ARL W(SUB FUEL TANK & GPS) |
1 | ||
| 82169-60020 |
HDJ80,HZJ80..LUB..ARL W(SEPA FRONT SEAT) |
1 | ||
| 82169-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-60010 |
FJ80,FZJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 82182-60030 |
FJ80,HDJ80,HZJ80..CBR,DSL,TD2 W(SUB FUEL TANK) |
1 | ||
| 82182-60030 |
HZJ80..5F;HDJ80..ARL;HDJ80..LHD;HDJ80..RHD..5F..GEN W(SUB FUEL TANK) |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-60040 |
HZJ80..VX..GCC;HDJ80,HZJ80..(GX,VX)..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 82710-60010 | ||||
| 82710-60011 | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-24070 | ||||
| 82711-95410 | ||||
| 82817-60060 | ||||
| 90119-06005 | ||||
| 90119-06416 | ||||
| 90461-06083 | ||||
ILLUST NO. 6 OF 8(9001- )
LUGGAGE & BACK DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-60021 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,STD) W(*RWD) |
1 | ||
| 82181-60021 |
FJ80,HDJ80,HZJ80..LUB..GX W(REAR WINDOW DEFOGGER) OR W(POWER WINDOW) |
1 | ||
| 82181-60011 |
FZJ80,HZJ80..GX;HZJ80..LHD..STD;HZJ80..(STD,VX)..(ARL,GCC);FZJ80..SOB..(STD,VX)..(GCC,GEN) |
1 | ||
| 82181-60010 |
FJ80,FZJ80,HZJ80..SOB..VX;FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 82181-60050 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..GX W(POWER WINDOW) |
1 | ||
| 82181-60051 |
FZJ80,HDJ80,HZJ80..LUB..GX W(POWER WINDOW) |
1 | ||
| 82181-60020 |
FJ80,HDJ80,HZJ80..LUB..GX W(REAR WINDOW DEFOGGER) OR W(POWER WINDOW) |
1 | ||
| 82181-60022 |
FZJ80,HZJ80..LUB..GX W(*RWD & *PW) |
1 | ||
| 82181-60023 |
FZJ80,HDJ80,HZJ80..GX..ARL W(POWER WINDOW) |
1 | ||
| 82181-60080 |
FZJ80,HDJ80,HZJ80..GX..ARL |
1 | ||
| 82181-60060 |
FZJ80,HZJ80..LUB..GX W(*RWD) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-60021 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,STD) W(*RWD) |
1 | ||
| 82181-60021 |
FJ80,HDJ80,HZJ80..LUB..GX W(REAR WINDOW DEFOGGER) OR W(POWER WINDOW) |
1 | ||
| 82181-60011 |
FZJ80,HZJ80..GX;HZJ80..LHD..STD;HZJ80..(STD,VX)..(ARL,GCC);FZJ80..SOB..(STD,VX)..(GCC,GEN) |
1 | ||
| 82181-60010 |
FJ80,FZJ80,HZJ80..SOB..VX;FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 82181-60050 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..GX W(POWER WINDOW) |
1 | ||
| 82181-60051 |
FZJ80,HDJ80,HZJ80..LUB..GX W(POWER WINDOW) |
1 | ||
| 82181-60020 |
FJ80,HDJ80,HZJ80..LUB..GX W(REAR WINDOW DEFOGGER) OR W(POWER WINDOW) |
1 | ||
| 82181-60022 |
FZJ80,HZJ80..LUB..GX W(*RWD & *PW) |
1 | ||
| 82181-60023 |
FZJ80,HDJ80,HZJ80..GX..ARL W(POWER WINDOW) |
1 | ||
| 82181-60080 |
FZJ80,HDJ80,HZJ80..GX..ARL |
1 | ||
| 82181-60060 |
FZJ80,HZJ80..LUB..GX W(*RWD) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82183-60011 |
FZJ80,HDJ80,HZJ80..LUB..ARL |
1 | ||
| 82183-60080 |
FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82183-60011 |
FZJ80,HDJ80,HZJ80..LUB..ARL |
1 | ||
| 82183-60080 |
FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60100 |
FZJ80,HZJ80..GX..ARL |
1 | ||
| 82184-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..GX W(REAR WINDOW DEFOGGER) OR W(POWER WINDOW) |
1 | ||
| 82184-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,STD) |
1 | ||
| 82184-60110 |
FZJ80,HDJ80,HZJ80..LUB..GX..(ARL,GCC)..(CBR,DSL,EFI,TD2) W(REAR WINDOW DEFOGGER) OR W(POWER WINDOW) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60100 |
FZJ80,HZJ80..GX..ARL |
1 | ||
| 82184-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..GX W(REAR WINDOW DEFOGGER) OR W(POWER WINDOW) |
1 | ||
| 82184-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,STD) |
1 | ||
| 82184-60110 |
FZJ80,HDJ80,HZJ80..LUB..GX..(ARL,GCC)..(CBR,DSL,EFI,TD2) W(REAR WINDOW DEFOGGER) OR W(POWER WINDOW) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60020 |
FZJ80,HZJ80..GX..ARL W(POWER WINDOW) |
1 | ||
| 82185-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..GX W(POWER WINDOW) |
1 | ||
| 82185-60010 |
HZJ80..LUB..GX;FJ80,FZJ80,HDJ80..(4FC,5F)..LUB..GX W(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-60030 |
FJ80,FZJ80,HDJ80,HZJ80..LUB..GX W(REAR WINDOW DEFOGGER & POWER WINDOW) |
1 | ||
| 82185-60011 |
FZJ80,HDJ80,HZJ80..LUB..GX..(CBR,DSL,EFI,TD2) W(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-60031 |
FZJ80,HDJ80,HZJ80..LUB..GX..(CBR,DSL,EFI,TD2) W(REAR WINDOW DEFOGGER & POWER WINDOW) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-60010 |
FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82186-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82186-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82186-60010 |
FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82186-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82186-60010 |
FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82186-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82186-60010 |
FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90480-12002 | ||||
| 90480-30007 | ||||
ILLUST NO. 7 OF 8(9001- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 87616-22010 | ||||
| 90119-06005 | ||||
| 90119-08063 | ||||
| 90119-08116 | ||||
| 90119-08146 | ||||
| 90179-06161 | ||||
| 90464-00073 | ||||
| 90468-05112 | ||||
| 91511-B0814 | ||||
| 91611-60814 | ||||
| 91651-60816 | ||||

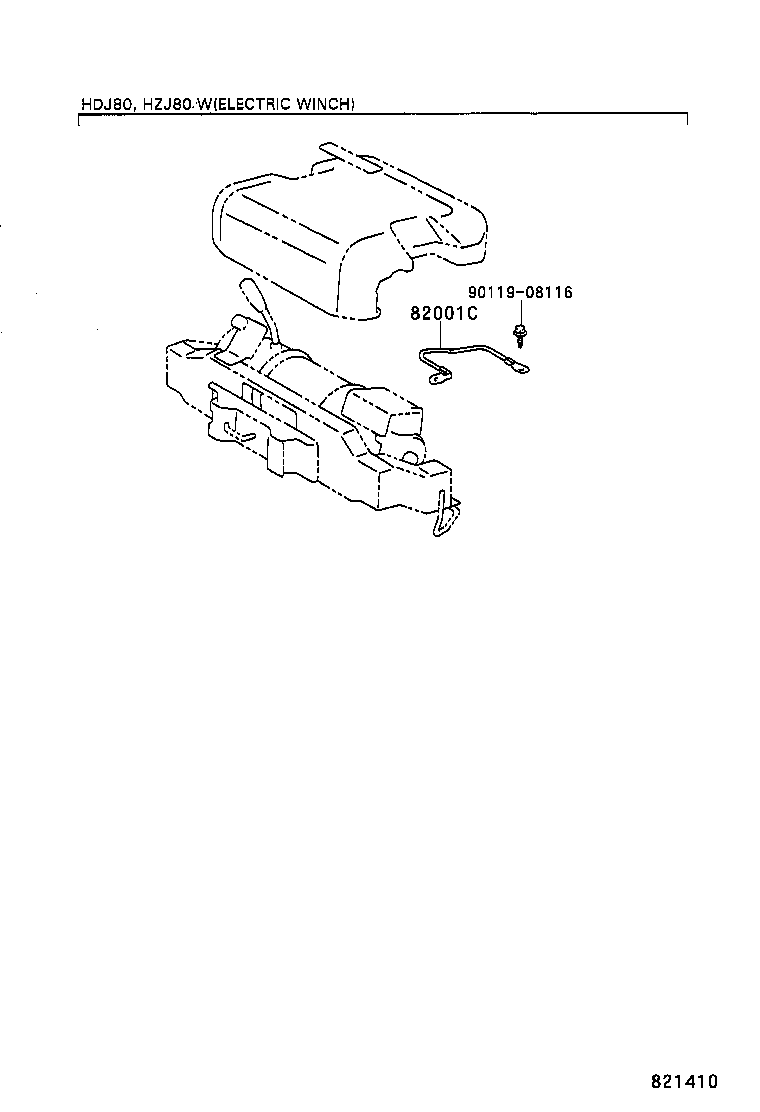

ILLUST NO. 7 OF 8(9001- )HDJ80,HZJ80
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08116 | ||||
ILLUST NO. 8 OF 8(9208- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-32020 |
FZJ80..GX..GCC..EFI;FZJ80..STD..GEN..EFI;FZJ80..5F..VX..GEN..EFI;HDJ80,HZJ80..LHD..SOB..(GX,VX)..GEN;FZJ80,HDJ80,HZJ80..RHD..(DSL,EFI,TD2,TD4) NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
FZJ80..GX..GCC..EFI;FZJ80..STD..GEN..EFI;FZJ80..5F..VX..GEN..EFI;HDJ80,HZJ80..LHD..SOB..(GX,VX)..GEN;FZJ80,HDJ80,HZJ80..RHD..(DSL,EFI,TD2,TD4) NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
FZJ80..GX..GCC..EFI;FZJ80..STD..GEN..EFI;FZJ80..5F..VX..GEN..EFI;HDJ80,HZJ80..LHD..SOB..(GX,VX)..GEN;FZJ80,HDJ80,HZJ80..RHD..(DSL,EFI,TD2,TD4) NO.3 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
