Toyota Land cruiser HZJ80 INJECTION PUMP ASSEMBLY

Manufacturers Home
Toyota
GR
LAND CRUISER
HZJ80R-GNMNSQ (1990)
2202 - INJECTION PUMP ASSEMBLY

HZJ80R-GNMNSQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1998

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9001- )1HZ

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10630
90126-06008
90179-06080
90179-08022
90301-49003
90464-00265
90464-00299
90464-00569
90464-00774
91512-61230
91512-81230
91642-81230
91651-B0814
96132-31000
96132-41500
96132-51300
96135-41400

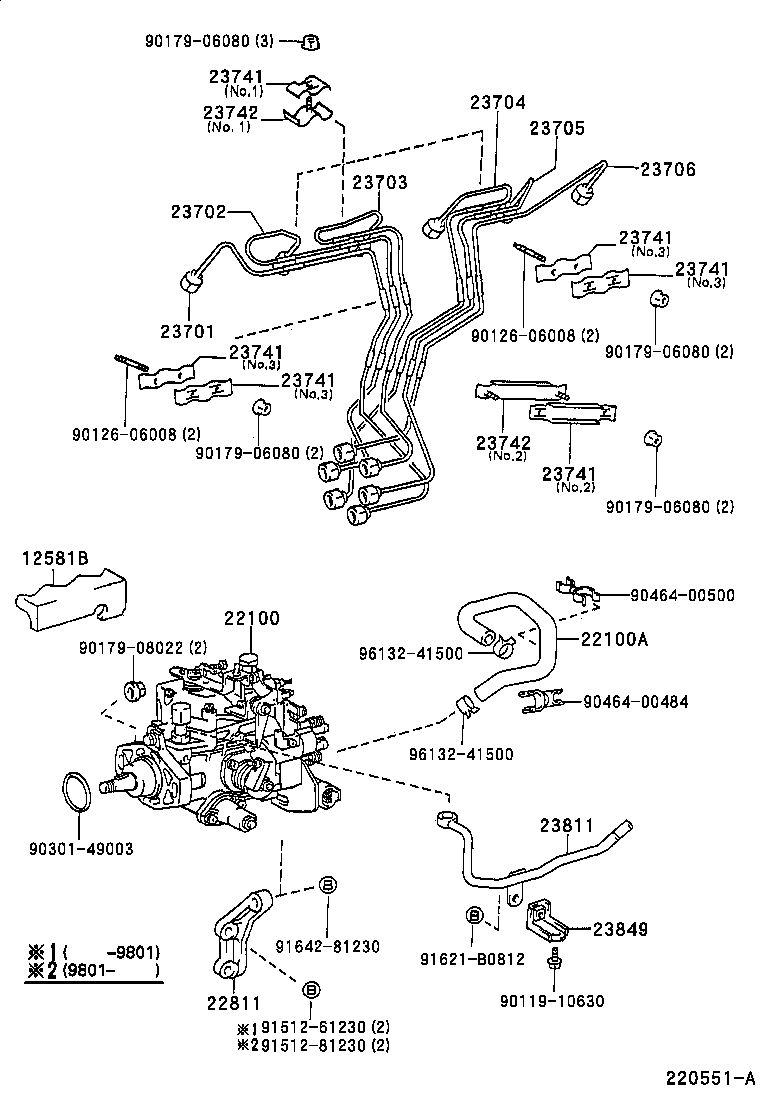

(9208- )1HZ

Click highlighted areas on diagram

Part #	Description	Period	Qty
12581B - INSULATOR, CYLINDER BLOCK, NO.1
12581-17010	1HZ..HZJ80..ARL	08/1991 - 08/1992	1
12581-17010	1HDFT,1HZ..HDJ80,HZJ80..ARL	08/1992 - 01/1998	1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-17020	1HZ..HZJ80..GX..ARL	01/1990 - 08/1992	1
22100-17450	1HZ..HZJ80..GX..ARL	08/1992 - 01/1998	1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23271-17070	1HZ..HZJ80	08/1992 - 01/1995	1
23271-17101	1HD#,1HZ..HDJ80,HZJ80	01/1995 - 01/1998	1
22811 - STAY, INJECTION PUMP, NO.1
22811-17010	1H#..HDJ80,HZJ80	01/1990 - 08/1992	1
22811-17010	1HDT,1HZ..HDJ80,HZJ80	08/1992 - 05/1995	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23742-17020	1HDT,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23742-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23742-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23742-17020	1HDT,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23742-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23742-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-17060	1HD#,1HZ..HDJ80,HZJ80	01/1995 - 01/1998	1
23811-17020	1HZ..HZJ80	08/1992 - 01/1995	1
23849 - SUPPORT, FUEL
23849-17010	1HD#,1HZ..HDJ80,HZJ80	08/1992 - 01/1998	1
Common parts
90119-10630
90126-06008
90179-06080
90179-08022
90301-49003
90464-00484
90464-00500
91512-61230
91512-81230
91621-B0812
91642-81230
96132-41500

(9001-9208)1HZ

Click highlighted areas on diagram

Part #	Description	Period	Qty
12581B - INSULATOR, CYLINDER BLOCK, NO.1
12581-17010	1HZ..HZJ80..ARL	08/1991 - 08/1992	1
12581-17010	1HDFT,1HZ..HDJ80,HZJ80..ARL	08/1992 - 01/1998	1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-17020	1HZ..HZJ80..GX..ARL	01/1990 - 08/1992	1
22100-17450	1HZ..HZJ80..GX..ARL	08/1992 - 01/1998	1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23271-17070	1HZ..HZJ80	08/1992 - 01/1995	1
23271-17101	1HD#,1HZ..HDJ80,HZJ80	01/1995 - 01/1998	1
22811 - STAY, INJECTION PUMP, NO.1
22811-17010	1H#..HDJ80,HZJ80	01/1990 - 08/1992	1
22811-17010	1HDT,1HZ..HDJ80,HZJ80	08/1992 - 05/1995	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-17010	1HZ..HZJ80	01/1990 - 08/1992	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23741-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23741-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23741-17030	1H#..HDJ80,HZJ80 NO.3	01/1990 - 08/1992	4
23741-17030	1HDT,1HZ..HDJ80,HZJ80 NO.3	08/1992 - 01/1998	4
23741-17020	1HD#,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23742-17020	1HDT,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23742-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23742-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17020	1H#..HDJ80,HZJ80 NO.2	01/1990 - 08/1992	1
23742-17020	1HDT,1HZ..HDJ80,HZJ80 NO.2	08/1992 - 01/1998	1
23742-17010	1HDT,1HZ..HDJ80,HZJ80 NO.1	08/1992 - 01/1998	3
23742-17010	1H#..HDJ80,HZJ80 NO.1	01/1990 - 08/1992	3
Common parts
90116-06070
90179-06080
90179-08022
90301-49003
91619-61230
91659-61230
96132-41500

HZJ80R-GNMNSQ (1990)

(9001- )1HZ

(9208- )1HZ

(9001-9208)1HZ
