HZJ80R-GNMNSQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1998
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9001- )1HZ

Click highlighted areas on diagram

diagram 17709 17709D 17709E 17730 17730 17730B 17743 17911A 53199B 53285G 53299B 53964 53966A 9011906048 9011908518 9011908565 9011908565 9017608029 9017906014 9033320001 9038710078 9038710078 9048016013 9048016013 9162140816 9166140614 9166140616 9166260616 9356054010 9611110780 9611110800
Part # Description Qty Price
Common parts
90119-06048
90119-08518
90119-08565
90176-08029
90179-06014
90333-20001
90387-10078
90480-16013
91621-40816
91661-40614
91661-40616
91662-60616
93560-54010
96111-10780
96111-10800

ILLUST NO. 1 OF 2(9001- )1HZ

Click highlighted areas on diagram

diagram 17700 17700A 17703A 17703C 17705 17801 17841 17841 17845 17881 17881A 17881A 17893 53199B 9011908806 9017908096 9033903005 9046400082 9099992002 9099992002 9099992002 9099992002 9165160616 9356054010 9611110460 9611110780
Part # Description Qty Price
Common parts
90119-08806
90179-08096
90339-03005
90464-00082
90999-92002
91651-60616
93560-54010
96111-10460
96111-10780

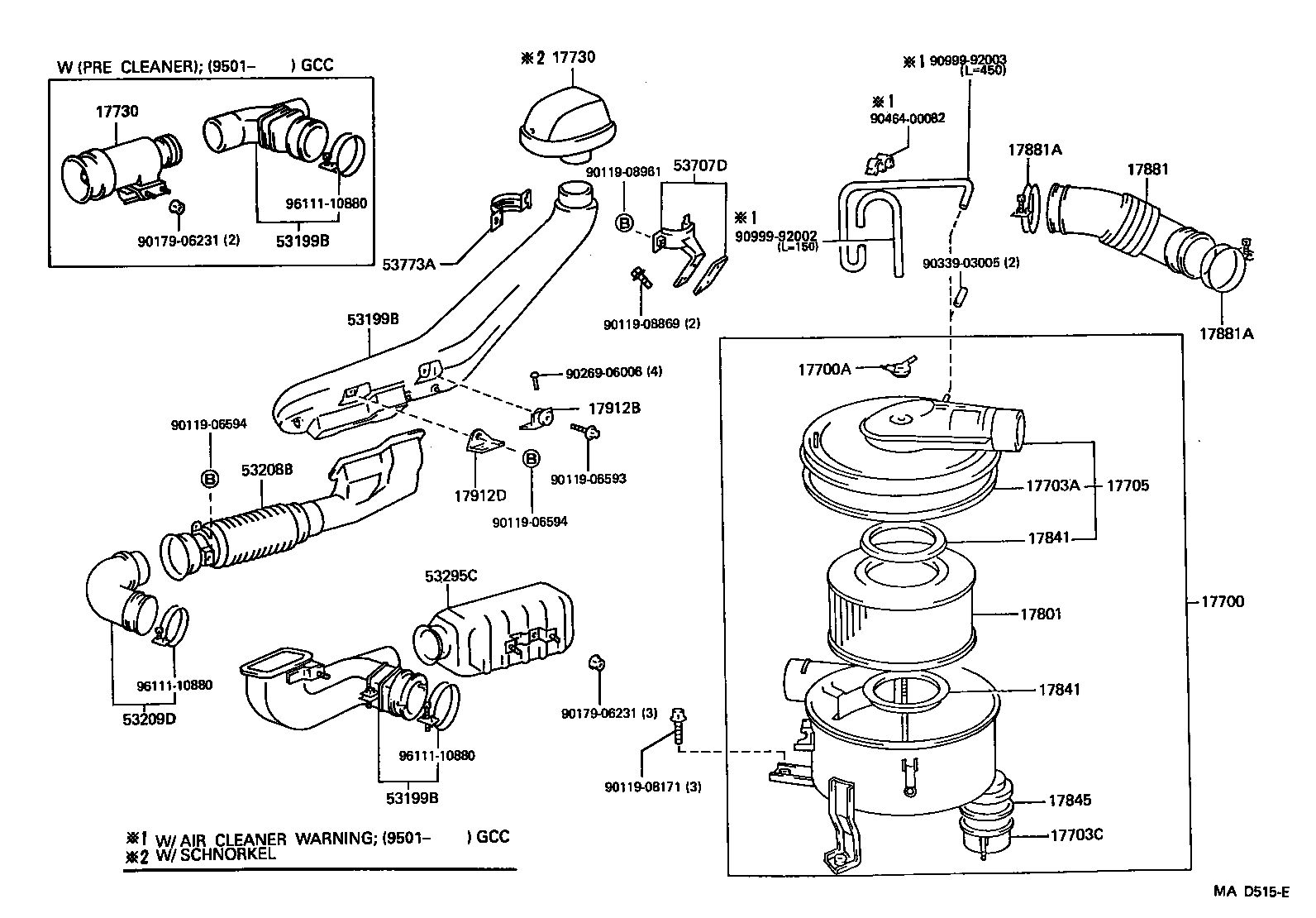

(9001- )1HZ

Click highlighted areas on diagram

diagram 17700 17700A 17703A 17703C 17705 17730 17730 17801 17841 17841 17845 17881 17881A 17881A 17912B 17912D 53199B 53199B 53199B 53208B 53209D 53295C 53707D 53773A 9011906593 9011906594 9011906594 9011908171 9011908869 9011908961 9017906231 9017906231 9026906006 9033903005 9046400082 9099992002 9099992003 9611110880 9611110880 9611110880
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-17030

1HZ..HZJ80

 1
17700-17030

1HZ..HZJ80

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

1HD#,1HZ..HDJ80,HZJ80

 1
90175-08008

1H#..HDJ80,HZJ80

 1
17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
17845-61011

1HD#,1HZ..HDJ80,HZJ80

 1
17845-61011

1H#..HDJ80,HZJ80

 1
17703C - CAP SUB-ASSY, DUST
17703-68010

1H#..HDJ80,HZJ80

 1
17703-68010

1H#..HDJ80,HZJ80

 1
17703-17010

1HD#,1HZ..HDJ80,HZJ80

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-17020

1HZ..HZJ80

 1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-17010

1HDT..HDJ80;1HZ..HZJ80..ARL

 1
17730-17010

1HDT..HDJ80;1HZ..HZJ80..ARL

 1
17730-17010

1HDT..HDJ80..LHD;1HDT..HDJ80..RHD..5F;1HDFT,1HZ..HDJ80,HZJ80..(GX,VX)..(ARL,GCC)

 1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-17010

1HDT..HDJ80;1HZ..HZJ80..ARL

 1
17730-17010

1HDT..HDJ80;1HZ..HZJ80..ARL

 1
17730-17010

1HDT..HDJ80..LHD;1HDT..HDJ80..RHD..5F;1HDFT,1HZ..HDJ80,HZJ80..(GX,VX)..(ARL,GCC)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61030

1HD#,1HZ..HDJ80,HZJ80

 1
17801-61030

1H#..HDJ80,HZJ80

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

1HD#,1HZ..HDJ80,HZJ80

 2
17841-68010

1H#..HDJ80,HZJ80

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

1HD#,1HZ..HDJ80,HZJ80

 2
17841-68010

1H#..HDJ80,HZJ80

 2
17845 - GASKET, AIR CLEANER CAP
17845-68030

1H#..HDJ80,HZJ80

 1
17845-68030

1HD#,1HZ..HDJ80,HZJ80

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-17020

1HZ..HZJ80

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1HZ..HZJ80

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1HZ..HZJ80

 2
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60090

HDJ80,HZJ80

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60030

HDJ80,HZJ80

 1
53207-60101

HDJ80,HZJ80

 1
53207-60121

HDJ80,HZJ80

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60121

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

W(PRE CLEANER) & W/O(SNORKEL)

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60090

HDJ80,HZJ80

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60030

HDJ80,HZJ80

 1
53207-60101

HDJ80,HZJ80

 1
53207-60121

HDJ80,HZJ80

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60121

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

W(PRE CLEANER) & W/O(SNORKEL)

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60090

HDJ80,HZJ80

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60030

HDJ80,HZJ80

 1
53207-60101

HDJ80,HZJ80

 1
53207-60121

HDJ80,HZJ80

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60121

HDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)

W(PRE CLEANER) & W/O(SNORKEL)

 1
53295C - SILENCER, COOL AIR INTAKE
53295-60010

HZJ80

 1
Common parts
90119-06593
90119-06594
90119-08171
90119-08869
90119-08961
90179-06231
90269-06006
90339-03005
90464-00082
90999-92002
90999-92003
96111-10880
