HZJ80R-GCMRSQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1998
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

Click highlighted areas on diagram

diagram 81240 81240 81240 81240B 81240B 81240B 81241 81241 8124860050 8124860050 81250 81250B 81260A 81260C 81260C 81261 81370 81370B 9015040004 9016445012 9016445012 9354014014 9354044514 9356024014
Part # Description Qty Price
Common parts
81248-60050
90150-40004
90164-45012
93540-14014
93540-44514
93560-24014

(9001- )

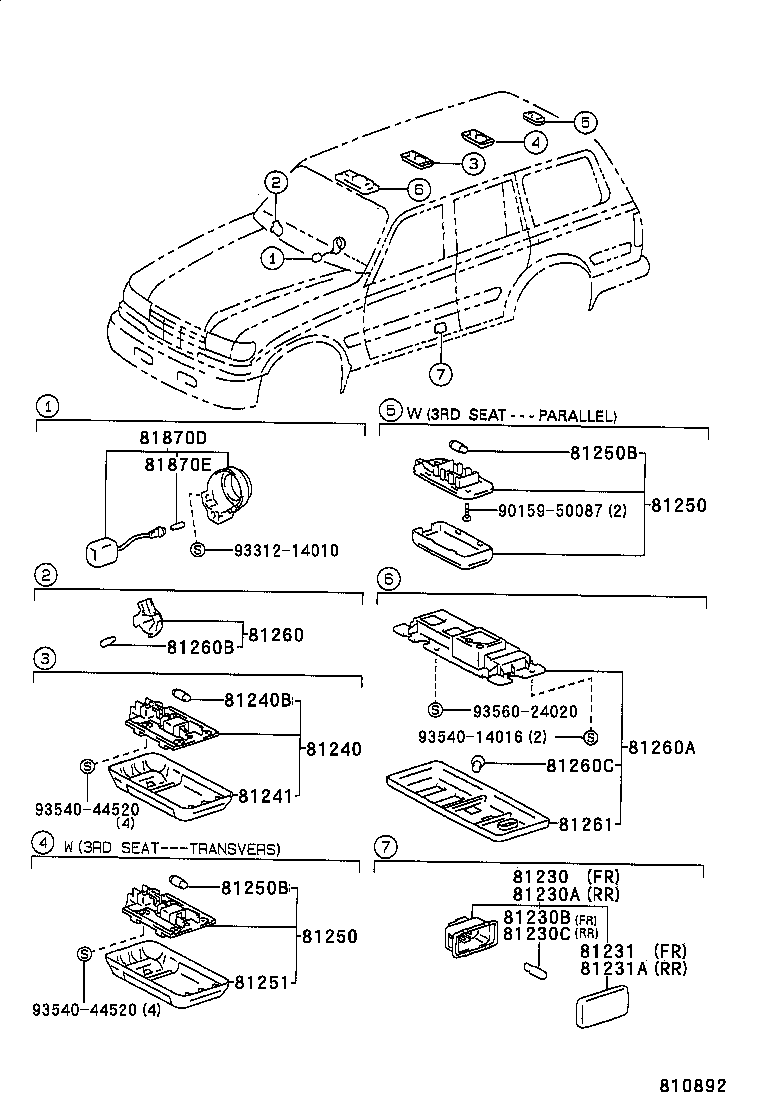

Click highlighted areas on diagram

diagram 81230 81230A 81230B 81230C 81231 81231A 81240 81240B 81241 81250 81250 81250B 81250B 81251 81260 81260A 81260B 81260C 81261 81870D 81870E 9015950087 9331214010 9354014016 9354044520 9354044520 9356024020
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-6003003

HZJ80;HDJ80..GEN;FZJ80..LHD..CBR;FZJ80..GX..GEN..EFI;FZJ80..RHD..(GX,STD)..CBR;FZJ80..(GX,VX)..(ARL,GCC)..EFI

GRAY,TRIM1#

 1
81240-6003006

FZJ80..5F;HDJ80,HZJ80;FZJ80..GX..GEN..EFI;FZJ80..4FC..(ARL,GCC)

LIGHT SABLE,TRIM4#

 1
81240-6003003

FJ80,FZJ80,HDJ80,HZJ80

GRAY,TRIM1#

 1
81240-6003006

FJ80,FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

FJ80,FZJ80,HDJ80,HZJ80

12V 10W

 1
99132-12100

FZJ80,HDJ80,HZJ80

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-24020

FJ80,FZJ80,HDJ80,HZJ80

 1
81241-24020

FZJ80,HDJ80,HZJ80

 1
81250 - LAMP ASSY, ROOM, NO.2
81240-9570403

HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2)

GRAY,TRIM1#

 1
81240-95704B1

HZJ80;HDJ80..GEN;FZJ80..SOB..VX;FZJ80..GX..ARL;FZJ80..LHD..VX..GEN;FZJ80..(GX,STD)..(GCC,GEN)

LIGHT GRAY,TRIM1#

 1
81240-9570416

HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2)

LIGHT SABLE,TRIM4#

 1
81240-9570442

HZJ80;FZJ80..SOB..VX;FZJ80,HDJ80..GX,STD;FZJ80,HDJ80..VX..GEN

SABLE,TRIM4#

 1
81250 - LAMP ASSY, ROOM, NO.2
81240-9570403

HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2)

GRAY,TRIM1#

 1
81240-95704B1

HZJ80;HDJ80..GEN;FZJ80..SOB..VX;FZJ80..GX..ARL;FZJ80..LHD..VX..GEN;FZJ80..(GX,STD)..(GCC,GEN)

LIGHT GRAY,TRIM1#

 1
81240-9570416

HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2)

LIGHT SABLE,TRIM4#

 1
81240-9570442

HZJ80;FZJ80..SOB..VX;FZJ80,HDJ80..GX,STD;FZJ80,HDJ80..VX..GEN

SABLE,TRIM4#

 1
81251 - LENS, ROOM LAMP, NO.2
81241-95013

HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2)

 1
81241-95013

HZJ80;FZJ80..SOB..VX;FZJ80,HDJ80..GX,STD;FZJ80,HDJ80..VX..GEN

 1
81260A - LAMP ASSY, MAP
81260-6002003

FJ80,HZJ80..STD..ARL

LIGHT GRAY,TRIM1#

 1
81260-6002006

FJ80,HZJ80..STD..ARL

LIGHT SABLE,TRIM4#

 1
81260-60020B6

FZJ80,HZJ80..STD..ARL

BLUEISH GRAY,TRIM1#

 1
81260-6002042

FZJ80,HZJ80..STD..ARL

SABLE,TRIM4#

 1
81260-60020B6

HZJ80..STD..ARL

BLUEISH GRAY,TRIM1#,4#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GX,VX

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-6002003

FJ80,HZJ80..STD..ARL

LIGHT GRAY,TRIM1#

 1
81261-6002006

FJ80,HZJ80..STD..ARL

LIGHT SABLE,TRIM4#

 1
81261-6002003

FZJ80,HZJ80..STD..ARL

LIGHT GRAY,TRIM1#

 1
81261-6002006

FZJ80,HZJ80..STD..ARL

LIGHT SABLE,TRIM4#

 1
81261-6002003

HZJ80..STD..ARL

LIGHT GRAY,TRIM1#,4#

 1
Common parts
90159-50087
93312-14010
93540-14016
93540-44520
93560-24020
