HZJ80R-GCMRSQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1998
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )HDJ80,HZJ80..RHD

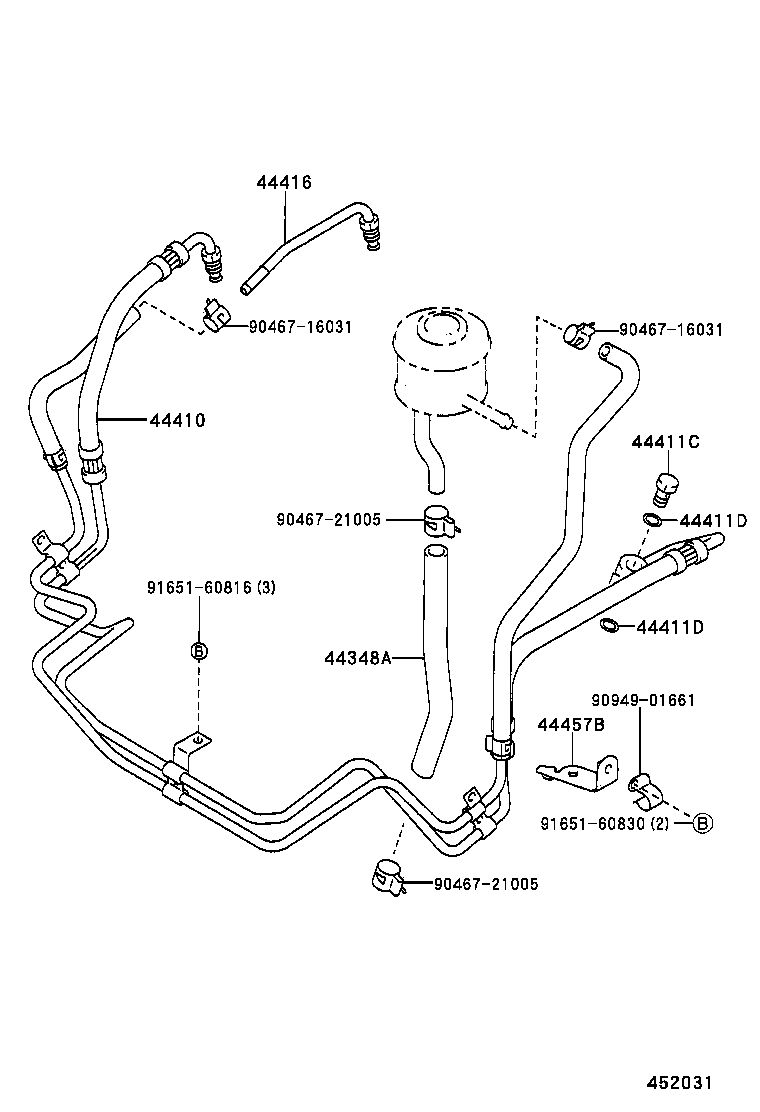

Click highlighted areas on diagram

diagram 44348A 44410 44411C 44411D 44411D 44416 44457B 9046716031 9046716031 9046721005 9046721005 9094901661 9165160816 9165160830
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60120

HDJ80,HZJ80

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60210

HDJ80,HZJ80..RHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

FJ80..VX;FZJ80,HDJ80,HZJ80

 1
90401-16008

HDJ80,HZJ80;FJ80..VX..EFI

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

HDJ80,HZJ80;FJ80..VX..EFI

 2
90430-16168

FJ80..VX;FZJ80,HDJ80,HZJ80

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

HDJ80,HZJ80;FJ80..VX..EFI

 2
90430-16168

FJ80..VX;FZJ80,HDJ80,HZJ80

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60170

FZJ80,HDJ80,HZJ80..RHD

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-60172

HDJ80,HZJ80

 1
44457-60172

HDJ80,HZJ80

 1
44457-60171

HDJ80,HZJ80

 1
Common parts
90467-16031
90467-21005
90949-01661
91651-60816
91651-60830
