Toyota Land cruiser HZJ80 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
GR
LAND CRUISER
HZJ80R-GCMRSQ (1990)
4103 - DISC WHEEL & WHEEL CAP

HZJ80R-GCMRSQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1998

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03045
90942-03047
90942-03049
90942-03050
90942-03051
90942-03052
90942-03053
90942-03064
90942-03083
90942-03084
90942-03085
90942-03086
90942-03106
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03223
90942-03224
90942-03225
90942-03226
90942-03227
90942-03228
90942-03229
90942-03230
90942-03231
90942-03232
90942-03233
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369

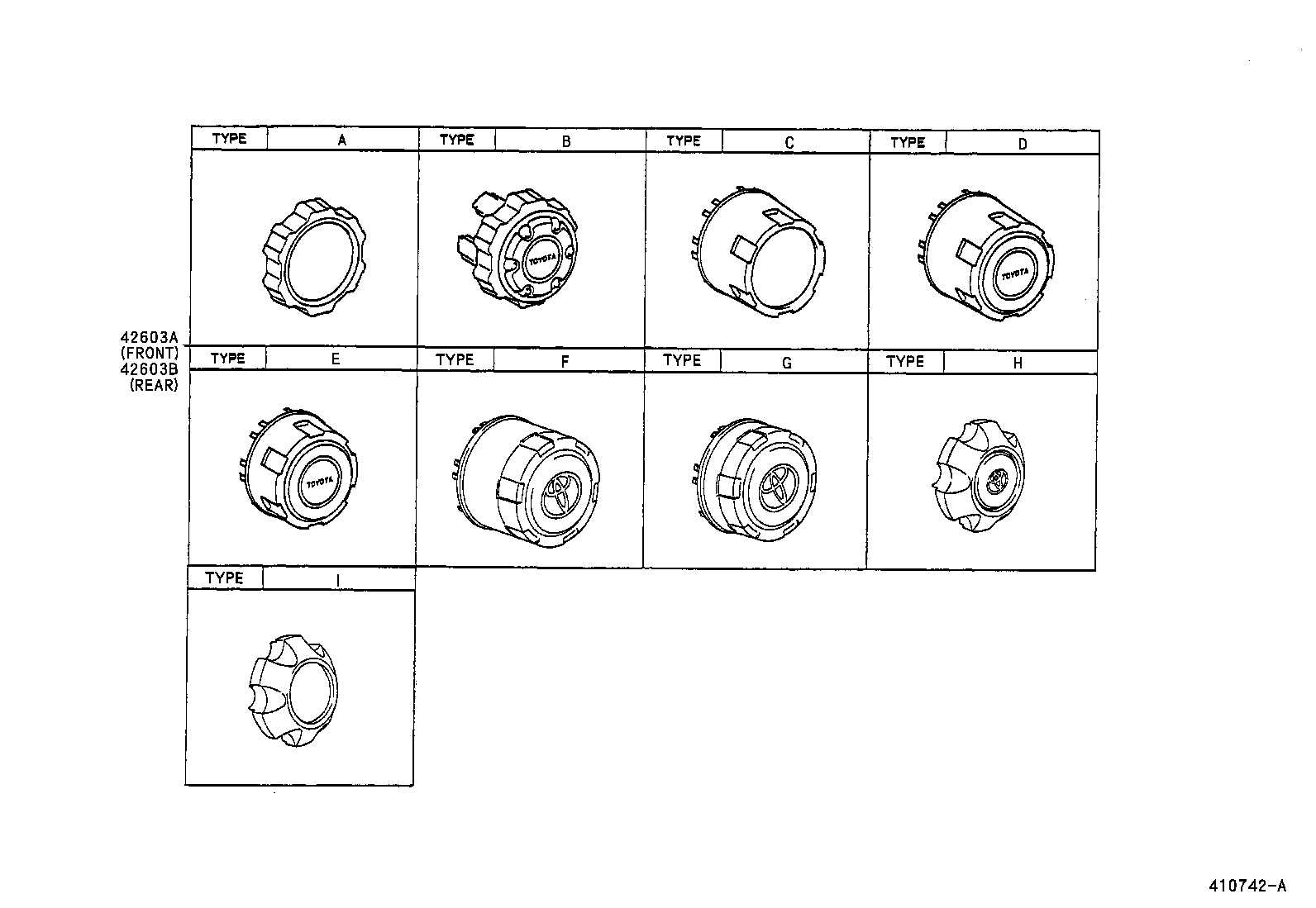

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603A - ORNAMENT SUB-ASSY, WHEEL HUB(FOR FRONT)
42603-60110	FJ80,HZJ80..STD..(ARL,GEN) *STE,TYPE D:REFER TO ILLUSTRATION, PAINTED(WHEEL)	01/1990 - 03/1990	2
42603-60110	FJ80,HZJ80..STD..ARL *STE,TYPE D:REFER TO ILLUSTRATION, PAINTED(WHEEL)	03/1990 - 08/1992	2
42603-60100	FJ80,HZJ80..STD..ARL *STE,TYPE C:REFER TO ILLUSTRATION,W(MECHANICAL FREE HEEL HUB & PAINTED(WHEEL))	01/1990 - 08/1992	2
42603B - ORNAMENT SUB-ASSY, WHEEL HUB(FOR REAR)
42603-60110	HDJ80..ARL;FJ80..(STD,VX)..ARL;FJ80,FZJ80..GX..(ARL,GCC);HZJ80..(GX,STD)..(ARL,GCC) *STE,TYPE D:REFER TO ILLUSTRATION	01/1990 - 08/1992	2

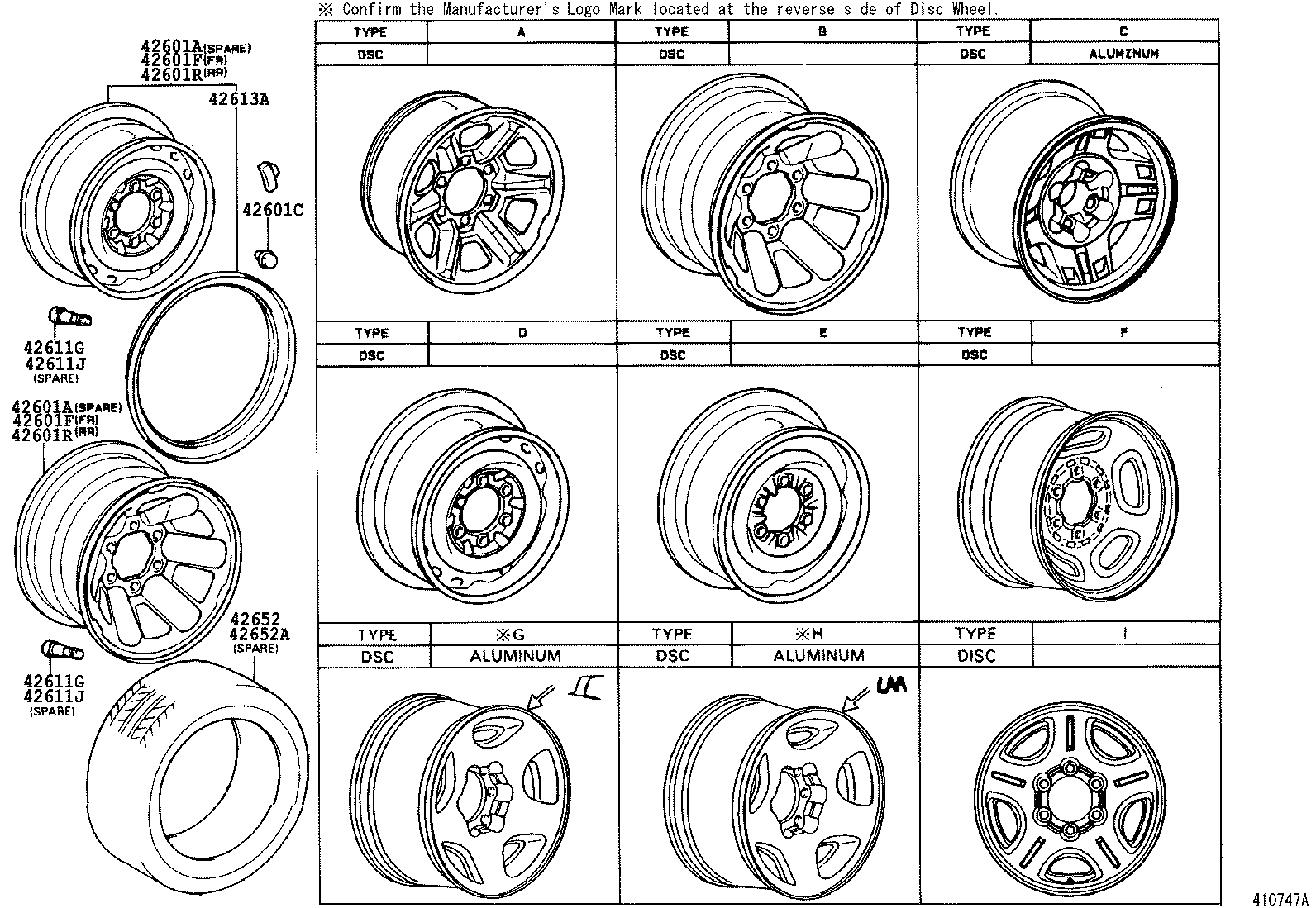

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601A - WHEEL, DISC (FOR SPARE)
42610-6017003	FJ80,HZJ80..STD..ARL;FJ80,HZJ80..(GX,STD)..GEN 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1990 - 01/1992	2
42610-6019003	FJ80,HZJ80..GX..GEN;FJ80,HZJ80..STD..ARL 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	01/1990 - 03/1990	2
42610-6019003	FJ80..4F..GX;FJ80..RHD..4F;FJ80,HZJ80..STD..ARL;HZJ80..(GX,STD)..GEN;FJ80..(4FC,5F)..(GX,STD)..GEN 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	03/1990 - 08/1990	2
42610-6017003	HZJ80..GEN;FZJ80..GX..GEN;HZJ80..STD..ARL;FJ80,FZJ80..SOB..STD..(ARL,GEN) 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1992 - 08/1992	2
42610-6019003	FJ80,HZJ80..STD..ARL 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	08/1990 - 08/1992	1
42610-60280	HDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD 5.50F-16,TYPE D:REFER TO ILLUSTRATION	08/1992 - 01/1993	1
42601A - WHEEL, DISC (FOR SPARE)
42610-6017003	FJ80,HZJ80..STD..ARL;FJ80,HZJ80..(GX,STD)..GEN 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1990 - 01/1992	2
42610-6019003	FJ80,HZJ80..GX..GEN;FJ80,HZJ80..STD..ARL 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	01/1990 - 03/1990	2
42610-6019003	FJ80..4F..GX;FJ80..RHD..4F;FJ80,HZJ80..STD..ARL;HZJ80..(GX,STD)..GEN;FJ80..(4FC,5F)..(GX,STD)..GEN 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	03/1990 - 08/1990	2
42610-6017003	HZJ80..GEN;FZJ80..GX..GEN;HZJ80..STD..ARL;FJ80,FZJ80..SOB..STD..(ARL,GEN) 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1992 - 08/1992	2
42610-6019003	FJ80,HZJ80..STD..ARL 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	08/1990 - 08/1992	1
42610-60280	HDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD 5.50F-16,TYPE D:REFER TO ILLUSTRATION	08/1992 - 01/1993	1
42601C - NUT, HUB (FOR AXLE)
90942-01082	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	24
42601F - WHEEL, DISC (FOR FRONT)
42610-6019003	FJ80,HZJ80..STD..ARL 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	01/1990 - 08/1992	2
42610-6017003	HZJ80..GEN;FZJ80..GX..GEN;HZJ80..STD..ARL;FJ80,FZJ80..SOB..STD..(ARL,GEN) 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1992 - 08/1992	2
42610-6017003	FJ80,HZJ80..STD..ARL;FJ80,HZJ80..(GX,STD)..GEN 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1990 - 01/1992	2
42610-60280	HDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD 5.50F-16,TYPE D:REFER TO ILLUSTRATION	08/1992 - 01/1993	2
42601F - WHEEL, DISC (FOR FRONT)
42610-6019003	FJ80,HZJ80..STD..ARL 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	01/1990 - 08/1992	2
42610-6017003	HZJ80..GEN;FZJ80..GX..GEN;HZJ80..STD..ARL;FJ80,FZJ80..SOB..STD..(ARL,GEN) 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1992 - 08/1992	2
42610-6017003	FJ80,HZJ80..STD..ARL;FJ80,HZJ80..(GX,STD)..GEN 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1990 - 01/1992	2
42610-60280	HDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD 5.50F-16,TYPE D:REFER TO ILLUSTRATION	08/1992 - 01/1993	2
42601R - WHEEL, DISC (FOR REAR)
42610-6017003	FJ80,HZJ80..STD..ARL;FJ80,HZJ80..(GX,STD)..GEN 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1990 - 01/1992	2
42610-60280	HDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD 5.50F-16,TYPE D:REFER TO ILLUSTRATION	08/1992 - 01/1993	2
42610-6019003	FJ80,HZJ80..STD..ARL 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	01/1990 - 08/1992	2
42610-6017003	HZJ80..GEN;FZJ80..GX..GEN;HZJ80..STD..ARL;FJ80,FZJ80..SOB..STD..(ARL,GEN) 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1992 - 08/1992	2
42601R - WHEEL, DISC (FOR REAR)
42610-6017003	FJ80,HZJ80..STD..ARL;FJ80,HZJ80..(GX,STD)..GEN 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1990 - 01/1992	2
42610-60280	HDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD 5.50F-16,TYPE D:REFER TO ILLUSTRATION	08/1992 - 01/1993	2
42610-6019003	FJ80,HZJ80..STD..ARL 5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.	01/1990 - 08/1992	2
42610-6017003	HZJ80..GEN;FZJ80..GX..GEN;HZJ80..STD..ARL;FJ80,FZJ80..SOB..STD..(ARL,GEN) 5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY	01/1992 - 08/1992	2
42613A - RING, DISC WHEEL SIDE
42613-60040	HDJ80;FJ80,HZJ80..STD,VX;FJ80..RHD..GX..GEN;FJ80,HZJ80..GX..(ARL,GCC) W(5.50F-16 TYPE A DISC WHEEL)	01/1990 - 03/1990	6
42613-36020	FJ80,HZJ80..STD..ARL;FJ80,HZJ80..(GX,STD)..GEN W(5.50F-16 TYPE D DISC WHEEL)	01/1990 - 01/1992	6
42613-60040	HDJ80..ARL;FJ80..VX..EFI;FJ80,HZJ80..(GX,STD)..(ARL,GEN)	03/1990 - 08/1990	6
42613-60040	FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80 W(5.50F-16 TYPE A DISC WHEEL)	01/1992 - 08/1992	6
42613-36020	HZJ80..GEN;FZJ80..GX..GEN;HZJ80..STD..ARL;FJ80,FZJ80..SOB..STD..(ARL,GEN) W(5.50F-16 TYPE D DISC WHEEL)	01/1992 - 08/1992	5
42613-60040	FJ80,HDJ80..ARL;HZJ80..STD..ARL;FJ80..LHD..GX..GEN;HZJ80..GX..(ARL,GEN)	01/1990 - 03/1990	6
42613-60040	HDJ80;FJ80,HZJ80..VX;FJ80,HZJ80..(GX,STD)..(ARL,GCC) W(5.50F-16 TYPE A DISC WHEEL)	03/1990 - 01/1992	6
42613-60080	HDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD	08/1992 - 01/1993	6
42652 - TIRE
42605-6A221	FZJ80,HDJ80,HZJ80..ARL 7.50R16-6	05/1996 - 01/1998	4
42605-6A220	FZJ80,HDJ80,HZJ80..ARL 7.50R16-6	08/1992 - 05/1996	4
42605-6A180	FJ80,HZJ80..STD..ARL 7.50R16-8,W(PAINTING WHEEL)	01/1990 - 08/1990	4
42605-6A180	FZJ80..(GX,VX)..GEN;FJ80,HZJ80..STD..ARL;FZJ80..SOB..STD..GEN;FJ80,HDJ80,HZJ80..GEN 7.50R16-8,W(PAINTING WHEEL)	08/1990 - 08/1992	4
42605-6A220	FJ80,HDJ80,HZJ80..ARL 7.50R16-6	01/1990 - 08/1992	4
42652A - TIRE (FOR SPARE)
42605-6A220	FJ80,HDJ80,HZJ80..ARL 7.50R16-6,W(BACK DOOR & UNDER BODY SPARE WHEEL CARRIER)	01/1990 - 08/1990	2
42605-6A180	FJ80,HZJ80..STD..ARL 7.50R16-8,W(PAINTING WHEEL & BACK DOOR & UNDER BODY SPARE WHEEL CARRIER)	01/1990 - 08/1990	2
42605-6A180	FJ80,HZJ80..STD..ARL 7.50R16-8,W(PAINTING WHEEL)	01/1990 - 08/1990	1
42605-6A220	FJ80,HDJ80,HZJ80..ARL 7.50R16-6	01/1990 - 08/1992	1
42605-6A180	FZJ80..(GX,VX)..GEN;FJ80,HZJ80..STD..ARL;FZJ80..SOB..STD..GEN;FJ80,HDJ80,HZJ80..GEN 7.50R16-8,W(PAINTING WHEEL)	08/1990 - 08/1992	1
42605-6A220	FZJ80,HDJ80,HZJ80..ARL 7.50R16-6	08/1992 - 05/1996	1

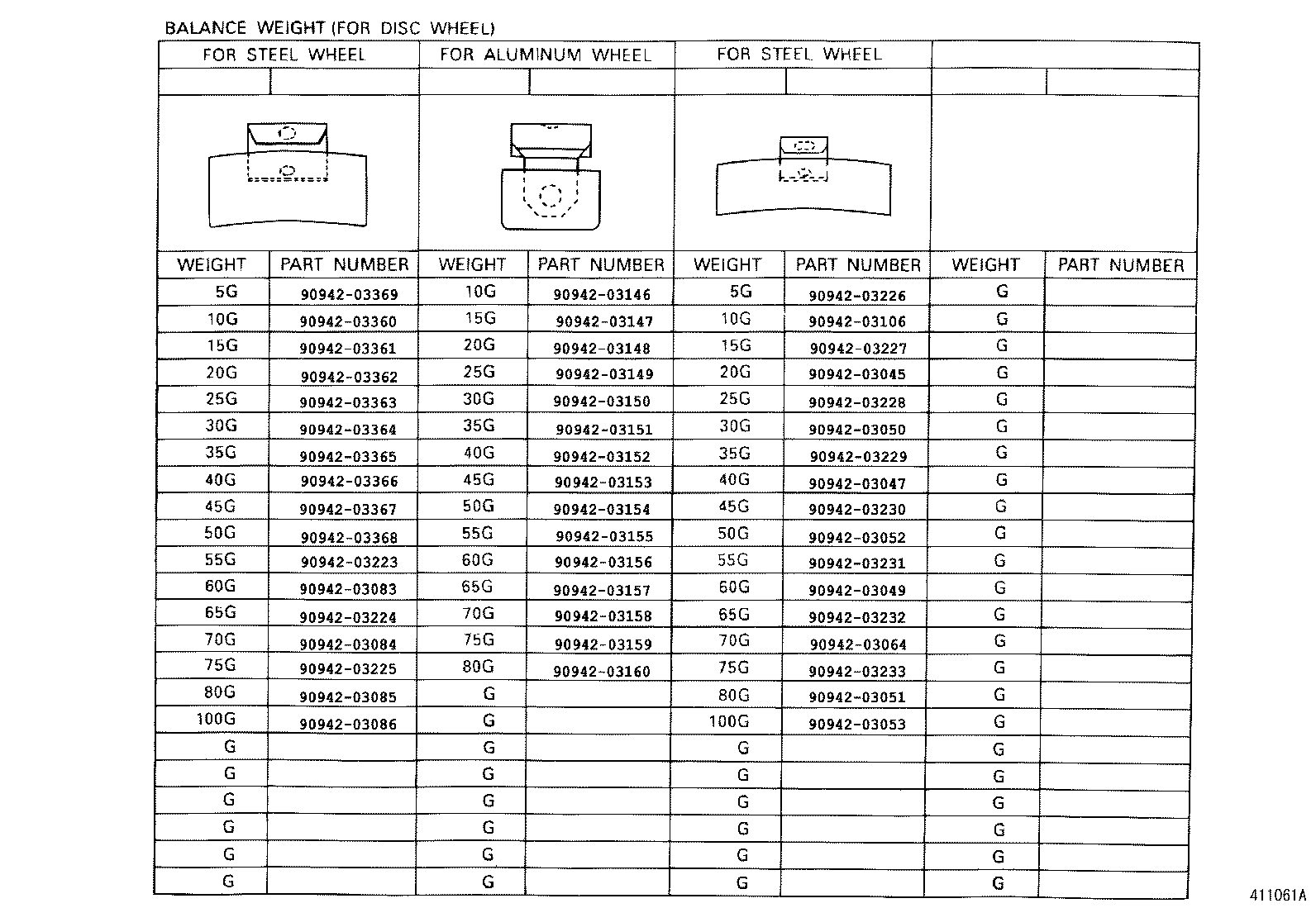

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03045
90942-03047
90942-03049
90942-03050
90942-03051
90942-03052
90942-03053
90942-03064
90942-03083
90942-03084
90942-03085
90942-03086
90942-03106
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03223
90942-03224
90942-03225
90942-03226
90942-03227
90942-03228
90942-03229
90942-03230
90942-03231
90942-03232
90942-03233
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369

HZJ80R-GCMRSQ (1990)

ILLUST NO. 1 OF 3(9001- )

ILLUST NO. 2 OF 3(9001- )

ILLUST NO. 3 OF 3(9001- )

ILLUST NO. 2 OF 3(9001- )

ILLUST NO. 1 OF 3(9001- )

ILLUST NO. 3 OF 3(9001- )
