8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

HZJ80R-GCMRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Mar 2001

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001- )RHD

Click highlighted areas on diagram

CONTROL PANEL

Part #	Description	Period	Qty	Price
Common parts
90170-11206
90206-11012
93568-55016
Linked diagrams
8302
8401

ILLUST NO. 2 OF 3(9001- )RHD

Click highlighted areas on diagram

AIR DUCT

Part #	Description	Period	Qty	Price
Common parts
90119-08879
90159-60198
90164-50008
90168-50027
93560-55016
93568-55012

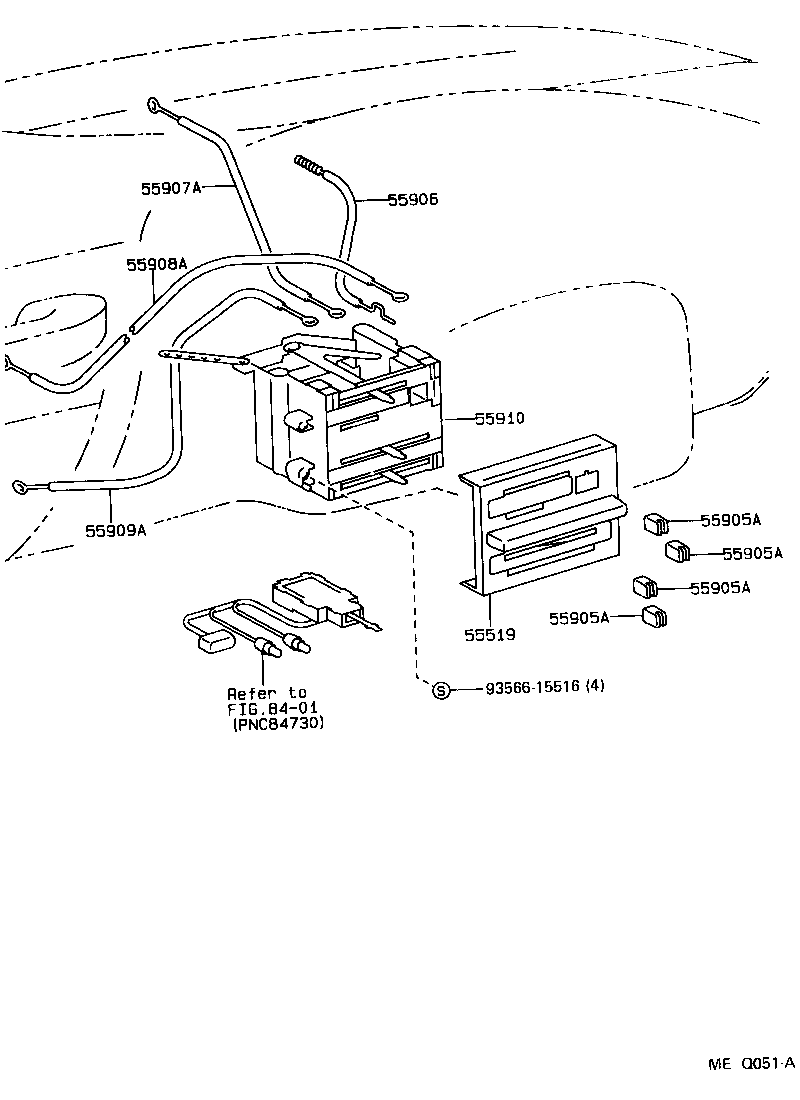

ILLUST NO. 1 OF 5(9001- )

Click highlighted areas on diagram

FRONT CONTROL---W(HEATER)

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-60030	FJ80,HZJ80..RHD..GEN W(HEATER)	01/1990 - 01/1992	1
55519-60050	HZJ80..RHD..STD..GEN W(HEATER & SINGLE MANUAL AIR CONDITIONER)	01/1990 - 01/1992	1
55519-60070	FJ80,HZJ80..RHD..GEN	01/1990 - 01/1992	1
55519-60031	FZJ80,HZJ80..RHD..(GX,STD)..GEN W(HEATER)	01/1992 - 08/1992	1
55519-60090	FJ80,HZJ80..RHD..STD..GEN W(SINGLE MANUAL AIR CONDITIONER)	01/1990 - 01/1992	1
55519-60031	HZJ80..RHD..STD..GEN W(HEATER)	08/1992 - 01/1998	1
55519-60071	FZJ80,HZJ80..RHD..(GX,STD)..GEN	01/1992 - 08/1992	1
55519-60071	HZJ80..RHD..STD..GEN;HZJ80..RHD..LUB..GEN;FZJ80..RHD..(GX,STD)..CBR	08/1992 - 03/2001	1
55905A - KNOB, HEATER CONTROL
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..RHD..STD;FJ80,HZJ80..(GX,STD)..GEN W(HEATER)	01/1990 - 08/1992	4
55905-12080	FZJ80..RHD;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC	01/1992 - 08/1992	4
55905-12080	FJ80..RHD..GEN;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC & W(HEATER) & W(AIR CONDITIONER)	03/1990 - 08/1991	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	08/1992 - 05/1993	4
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;FJ80,HZJ80..(GX,STD)..GEN	01/1990 - 08/1992	3
55905-89115	FZJ80..GX..GEN..CBR;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	05/1993 - 10/1995	4
55905-89115	FZJ80,HZJ80..RHD..GEN;FZJ80,HZJ80..LHD..SOB..GEN W(HEATER)	10/1995 - 08/1996	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN	08/1992 - 05/1993	3
55905-89115	FZJ80,HDJ80,HZJ80..GX,STD	05/1993 - 01/1998	4
55905A - KNOB, HEATER CONTROL
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..RHD..STD;FJ80,HZJ80..(GX,STD)..GEN W(HEATER)	01/1990 - 08/1992	4
55905-12080	FZJ80..RHD;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC	01/1992 - 08/1992	4
55905-12080	FJ80..RHD..GEN;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC & W(HEATER) & W(AIR CONDITIONER)	03/1990 - 08/1991	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	08/1992 - 05/1993	4
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;FJ80,HZJ80..(GX,STD)..GEN	01/1990 - 08/1992	3
55905-89115	FZJ80..GX..GEN..CBR;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	05/1993 - 10/1995	4
55905-89115	FZJ80,HZJ80..RHD..GEN;FZJ80,HZJ80..LHD..SOB..GEN W(HEATER)	10/1995 - 08/1996	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN	08/1992 - 05/1993	3
55905-89115	FZJ80,HDJ80,HZJ80..GX,STD	05/1993 - 01/1998	4
55905A - KNOB, HEATER CONTROL
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..RHD..STD;FJ80,HZJ80..(GX,STD)..GEN W(HEATER)	01/1990 - 08/1992	4
55905-12080	FZJ80..RHD;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC	01/1992 - 08/1992	4
55905-12080	FJ80..RHD..GEN;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC & W(HEATER) & W(AIR CONDITIONER)	03/1990 - 08/1991	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	08/1992 - 05/1993	4
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;FJ80,HZJ80..(GX,STD)..GEN	01/1990 - 08/1992	3
55905-89115	FZJ80..GX..GEN..CBR;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	05/1993 - 10/1995	4
55905-89115	FZJ80,HZJ80..RHD..GEN;FZJ80,HZJ80..LHD..SOB..GEN W(HEATER)	10/1995 - 08/1996	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN	08/1992 - 05/1993	3
55905-89115	FZJ80,HDJ80,HZJ80..GX,STD	05/1993 - 01/1998	4
55905A - KNOB, HEATER CONTROL
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..RHD..STD;FJ80,HZJ80..(GX,STD)..GEN W(HEATER)	01/1990 - 08/1992	4
55905-12080	FZJ80..RHD;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC	01/1992 - 08/1992	4
55905-12080	FJ80..RHD..GEN;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC & W(HEATER) & W(AIR CONDITIONER)	03/1990 - 08/1991	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	08/1992 - 05/1993	4
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;FJ80,HZJ80..(GX,STD)..GEN	01/1990 - 08/1992	3
55905-89115	FZJ80..GX..GEN..CBR;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	05/1993 - 10/1995	4
55905-89115	FZJ80,HZJ80..RHD..GEN;FZJ80,HZJ80..LHD..SOB..GEN W(HEATER)	10/1995 - 08/1996	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN	08/1992 - 05/1993	3
55905-89115	FZJ80,HDJ80,HZJ80..GX,STD	05/1993 - 01/1998	4
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-60030	FJ80,HDJ80,HZJ80..GX,STD	01/1990 - 05/1990	1
55906-60040	FJ80,HDJ80,HZJ80..RHD..(GX,STD)	05/1990 - 01/1992	1
55906-60041	FJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,STD)	01/1992 - 08/1992	1
55906-60070	FZJ80,HDJ80,HZJ80..RHD..(GX,STD) W(HEATER)	01/1995 - 01/1998	1
55906-60041	FZJ80,HDJ80,HZJ80..RHD..(GX,STD)	08/1992 - 01/1995	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-60020	FZJ80..RHD..GX;FJ80,HDJ80,HZJ80..RHD..(GX,STD)	01/1990 - 08/1992	1
55907-60100	FZJ80,HDJ80,HZJ80..RHD..(GX,STD)	01/1995 - 08/1996	1
55907-60020	FZJ80,HDJ80,HZJ80..RHD..(GX,STD)	08/1992 - 01/1995	1
55907-60100	FZJ80,HDJ80,HZJ80..RHD..(GX,STD)..(DSL,EFI,TD4)	08/1996 - 01/1998	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-60030	FJ80,FZJ80,HDJ80,HZJ80..GX,STD	01/1990 - 08/1992	1
55908-60030	FZJ80,HDJ80,HZJ80..GX,STD	08/1992 - 01/1995	1
55908-60060	FZJ80,HDJ80,HZJ80..GX,STD	01/1995 - 01/1998	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-60020	FJ80,HDJ80,HZJ80..RHD..(GX,STD)	01/1990 - 05/1990	1
55909-60022	FZJ80,HDJ80,HZJ80..RHD..(GX,STD)	08/1992 - 08/1996	1
55909-60022	FZJ80..RHD..GX;FJ80,HDJ80,HZJ80..RHD..(GX,STD)	01/1992 - 08/1992	1
55909-60021	FJ80,HDJ80,HZJ80..RHD..(GX,STD)	05/1990 - 01/1992	1
55909-60022	FZJ80,HDJ80,HZJ80..RHD..(GX,STD)..(DSL,EFI,TD4)	08/1996 - 01/1998	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-60050	FJ80,HZJ80..RHD..GEN W(MANUAL AIR CONDITIONER)	01/1990 - 05/1990	1
55910-60010	FJ80,HZJ80..RHD..GEN W(HEATER)	01/1990 - 05/1990	1
55910-60030	FJ80,HZJ80..RHD..GEN	01/1990 - 05/1990	1
55910-60011	FJ80,HZJ80..RHD..GEN W(HEATER)	05/1990 - 01/1992	1
55910-60031	FJ80,HZJ80..RHD..GEN	05/1990 - 01/1992	1
55910-60032	FZJ80,HZJ80..RHD..(GX,STD)..GEN	01/1992 - 08/1992	1
55910-60051	FJ80,HZJ80..RHD..GEN W(MANUAL AIR CONDITIONER)	05/1990 - 01/1992	1
55910-60052	FZJ80,HZJ80..RHD..(GX,STD)..GEN W(MANUAL AIR CONDITIONER)	08/1992 - 09/1994	1
55910-60032	FZJ80,HZJ80..RHD..(GX,STD)..GEN	08/1992 - 09/1994	1
55910-60012	FZJ80..RHD..GX;HZJ80..RHD..GEN W(HEATER)	01/1992 - 08/1992	1
55910-60052	FZJ80,HZJ80..RHD..(GX,STD)..GEN W(MANUAL AIR CONDITIONER)	01/1992 - 08/1992	1
55910-60012	FZJ80,HZJ80..RHD..(GX,STD)..GEN W(HEATER)	08/1992 - 09/1994	1
55910-60090	FZJ80,HZJ80..RHD..5F..(GX,STD)..GEN W(HEATER)	09/1994 - 01/1998	1
55910-60110	FZJ80,HZJ80..RHD..5F..(GX,STD)..GEN	09/1994 - 01/1998	1
Common parts
93566-15516
Linked diagrams
8401

ILLUST NO. 1 OF 5(9001- )

Click highlighted areas on diagram

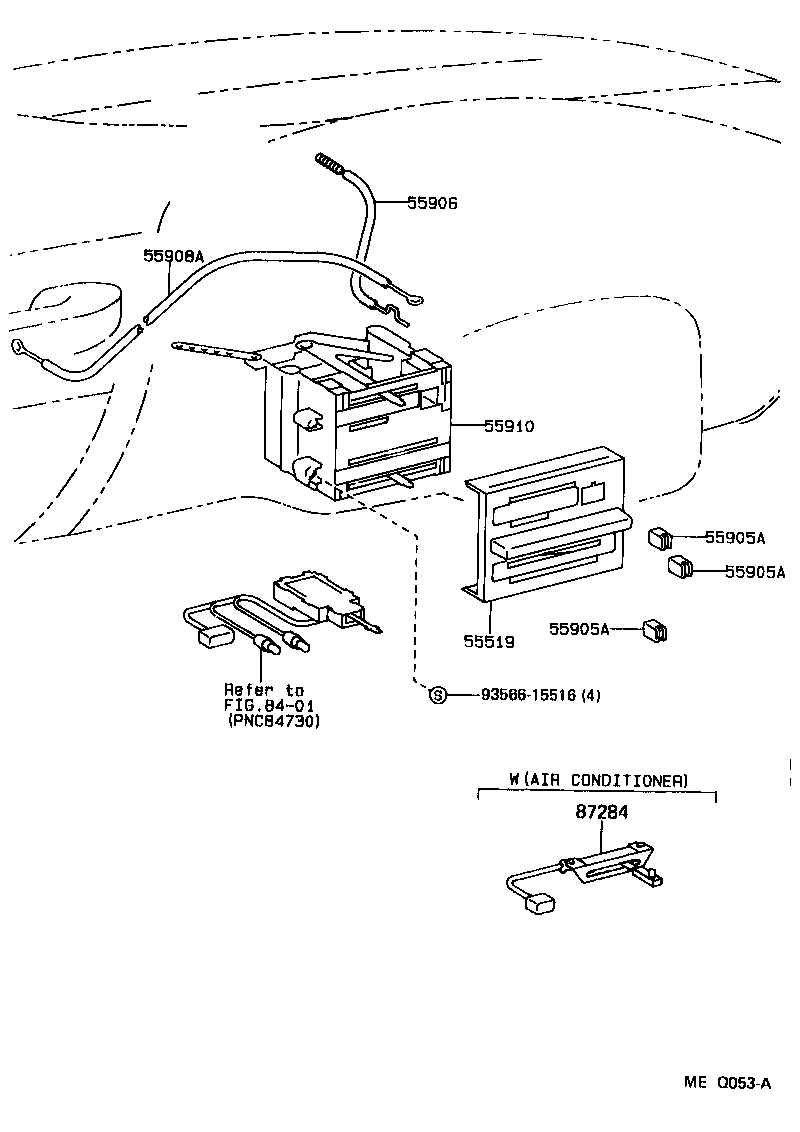

FRONT CONTROL---W(HEATER),PUSH TYPE

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-60030	FJ80,HZJ80..RHD..GEN W(HEATER)	01/1990 - 01/1992	1
55519-60050	HZJ80..RHD..STD..GEN W(HEATER & SINGLE MANUAL AIR CONDITIONER)	01/1990 - 01/1992	1
55519-60070	FJ80,HZJ80..RHD..GEN	01/1990 - 01/1992	1
55519-60031	FZJ80,HZJ80..RHD..(GX,STD)..GEN W(HEATER)	01/1992 - 08/1992	1
55519-60090	FJ80,HZJ80..RHD..STD..GEN W(SINGLE MANUAL AIR CONDITIONER)	01/1990 - 01/1992	1
55519-60031	HZJ80..RHD..STD..GEN W(HEATER)	08/1992 - 01/1998	1
55519-60071	FZJ80,HZJ80..RHD..(GX,STD)..GEN	01/1992 - 08/1992	1
55519-60071	HZJ80..RHD..STD..GEN;HZJ80..RHD..LUB..GEN;FZJ80..RHD..(GX,STD)..CBR	08/1992 - 03/2001	1
Common parts
93568-55014
Linked diagrams
8302

ILLUST NO. 1 OF 5(9001- )FJ80..STD..GCC ; (9001- )FJ80,FZJ80,HZJ80..GEN

Click highlighted areas on diagram

FRONT CONTROL---W(BOOST VENTILATOR)

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-60030	FJ80,HZJ80..RHD..GEN W(HEATER)	01/1990 - 01/1992	1
55519-60050	HZJ80..RHD..STD..GEN W(HEATER & SINGLE MANUAL AIR CONDITIONER)	01/1990 - 01/1992	1
55519-60070	FJ80,HZJ80..RHD..GEN	01/1990 - 01/1992	1
55519-60031	FZJ80,HZJ80..RHD..(GX,STD)..GEN W(HEATER)	01/1992 - 08/1992	1
55519-60090	FJ80,HZJ80..RHD..STD..GEN W(SINGLE MANUAL AIR CONDITIONER)	01/1990 - 01/1992	1
55519-60031	HZJ80..RHD..STD..GEN W(HEATER)	08/1992 - 01/1998	1
55519-60071	FZJ80,HZJ80..RHD..(GX,STD)..GEN	01/1992 - 08/1992	1
55519-60071	HZJ80..RHD..STD..GEN;HZJ80..RHD..LUB..GEN;FZJ80..RHD..(GX,STD)..CBR	08/1992 - 03/2001	1
55905A - KNOB, HEATER CONTROL
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..RHD..STD;FJ80,HZJ80..(GX,STD)..GEN W(HEATER)	01/1990 - 08/1992	4
55905-12080	FZJ80..RHD;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC	01/1992 - 08/1992	4
55905-12080	FJ80..RHD..GEN;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC & W(HEATER) & W(AIR CONDITIONER)	03/1990 - 08/1991	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	08/1992 - 05/1993	4
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;FJ80,HZJ80..(GX,STD)..GEN	01/1990 - 08/1992	3
55905-89115	FZJ80..GX..GEN..CBR;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	05/1993 - 10/1995	4
55905-89115	FZJ80,HZJ80..RHD..GEN;FZJ80,HZJ80..LHD..SOB..GEN W(HEATER)	10/1995 - 08/1996	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN	08/1992 - 05/1993	3
55905-89115	FZJ80,HDJ80,HZJ80..GX,STD	05/1993 - 01/1998	4
55905A - KNOB, HEATER CONTROL
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..RHD..STD;FJ80,HZJ80..(GX,STD)..GEN W(HEATER)	01/1990 - 08/1992	4
55905-12080	FZJ80..RHD;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC	01/1992 - 08/1992	4
55905-12080	FJ80..RHD..GEN;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC & W(HEATER) & W(AIR CONDITIONER)	03/1990 - 08/1991	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	08/1992 - 05/1993	4
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;FJ80,HZJ80..(GX,STD)..GEN	01/1990 - 08/1992	3
55905-89115	FZJ80..GX..GEN..CBR;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	05/1993 - 10/1995	4
55905-89115	FZJ80,HZJ80..RHD..GEN;FZJ80,HZJ80..LHD..SOB..GEN W(HEATER)	10/1995 - 08/1996	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN	08/1992 - 05/1993	3
55905-89115	FZJ80,HDJ80,HZJ80..GX,STD	05/1993 - 01/1998	4
55905A - KNOB, HEATER CONTROL
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..RHD..STD;FJ80,HZJ80..(GX,STD)..GEN W(HEATER)	01/1990 - 08/1992	4
55905-12080	FZJ80..RHD;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC	01/1992 - 08/1992	4
55905-12080	FJ80..RHD..GEN;HZJ80..RHD..STD..GEN SOUTH AFRICA SPEC & W(HEATER) & W(AIR CONDITIONER)	03/1990 - 08/1991	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	08/1992 - 05/1993	4
55905-89115	FJ80..STD..GCC;FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;FJ80,HZJ80..(GX,STD)..GEN	01/1990 - 08/1992	3
55905-89115	FZJ80..GX..GEN..CBR;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN W(HEATER)	05/1993 - 10/1995	4
55905-89115	FZJ80,HZJ80..RHD..GEN;FZJ80,HZJ80..LHD..SOB..GEN W(HEATER)	10/1995 - 08/1996	4
55905-89115	FZJ80..GX..GEN;FZJ80..SOB..STD..GEN;HZJ80..(GX,STD)..GEN	08/1992 - 05/1993	3
55905-89115	FZJ80,HDJ80,HZJ80..GX,STD	05/1993 - 01/1998	4
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-60030	FJ80,HDJ80,HZJ80..GX,STD	01/1990 - 05/1990	1
55906-60040	FJ80,HDJ80,HZJ80..RHD..(GX,STD)	05/1990 - 01/1992	1
55906-60041	FJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,STD)	01/1992 - 08/1992	1
55906-60070	FZJ80,HDJ80,HZJ80..RHD..(GX,STD) W(HEATER)	01/1995 - 01/1998	1
55906-60041	FZJ80,HDJ80,HZJ80..RHD..(GX,STD)	08/1992 - 01/1995	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-60030	FJ80,FZJ80,HDJ80,HZJ80..GX,STD	01/1990 - 08/1992	1
55908-60030	FZJ80,HDJ80,HZJ80..GX,STD	08/1992 - 01/1995	1
55908-60060	FZJ80,HDJ80,HZJ80..GX,STD	01/1995 - 01/1998	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-60050	FJ80,HZJ80..RHD..GEN W(MANUAL AIR CONDITIONER)	01/1990 - 05/1990	1
55910-60010	FJ80,HZJ80..RHD..GEN W(HEATER)	01/1990 - 05/1990	1
55910-60030	FJ80,HZJ80..RHD..GEN	01/1990 - 05/1990	1
55910-60011	FJ80,HZJ80..RHD..GEN W(HEATER)	05/1990 - 01/1992	1
55910-60031	FJ80,HZJ80..RHD..GEN	05/1990 - 01/1992	1
55910-60032	FZJ80,HZJ80..RHD..(GX,STD)..GEN	01/1992 - 08/1992	1
55910-60051	FJ80,HZJ80..RHD..GEN W(MANUAL AIR CONDITIONER)	05/1990 - 01/1992	1
55910-60052	FZJ80,HZJ80..RHD..(GX,STD)..GEN W(MANUAL AIR CONDITIONER)	08/1992 - 09/1994	1
55910-60032	FZJ80,HZJ80..RHD..(GX,STD)..GEN	08/1992 - 09/1994	1
55910-60012	FZJ80..RHD..GX;HZJ80..RHD..GEN W(HEATER)	01/1992 - 08/1992	1
55910-60052	FZJ80,HZJ80..RHD..(GX,STD)..GEN W(MANUAL AIR CONDITIONER)	01/1992 - 08/1992	1
55910-60012	FZJ80,HZJ80..RHD..(GX,STD)..GEN W(HEATER)	08/1992 - 09/1994	1
55910-60090	FZJ80,HZJ80..RHD..5F..(GX,STD)..GEN W(HEATER)	09/1994 - 01/1998	1
55910-60110	FZJ80,HZJ80..RHD..5F..(GX,STD)..GEN	09/1994 - 01/1998	1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-60010	FJ80,FZJ80,HZJ80..RHD..(GX,STD)..GEN	01/1990 - 08/1992	1
88032-60010	FZJ80,HZJ80..RHD..5F..(GX,STD)..GEN	08/1992 - 01/1998	1
88032-60010	HZJ80..STD	01/1998 - 03/2001	1
Common parts
93566-15516
Linked diagrams
8401

ILLUST NO. 2 OF 5(9001- )

Click highlighted areas on diagram

FRONT DUCT

Part #	Description	Period	Qty
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-60030	FZJ80,HDJ80,HZJ80..RHD	08/1992 - 01/1995	1
55085-60090	FZJ80,HDJ80..RHD..(CBR,EFI,TD4);HDJ80,HZJ80..RHD..5F..(DSL,TD2)	01/1995 - 01/1998	1
55085-60040	FJ80,FZJ80,HDJ80,HZJ80..RHD W(AIR CONDITIONER)	01/1990 - 08/1992	1
55085-60040	FZJ80,HDJ80,HZJ80..RHD W(AIR CONDITIONER)	08/1992 - 01/1995	1
55085-60110	FZJ80..RHD;HDJ80,HZJ80..GX..ARL;HDJ80,HZJ80..RHD..5F..GEN W(AIR CONDITIONER)	01/1995 - 03/2001	1
55085-60030	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-60020	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
55087-60040	FZJ80,HDJ80,HZJ80..RHD	01/1995 - 03/2001	1
55087-60020	FZJ80,HDJ80,HZJ80..RHD	08/1992 - 01/1995	1
55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5
55088-60020	FZJ80,HDJ80,HZJ80..RHD	08/1992 - 01/1995	1
55088-60020	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
55088-60060	FZJ80,HDJ80..RHD..(CBR,EFI,TD4);HDJ80,HZJ80..RHD..5F..(DSL,TD2)	01/1995 - 01/1999	1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-60050	FZJ80,HDJ80,HZJ80..RHD	01/1995 - 03/2001	1
55843-60020	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
55843-60020	FZJ80,HDJ80,HZJ80..RHD	08/1992 - 01/1995	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-60050	FZJ80,HDJ80,HZJ80..RHD	01/1995 - 03/2001	1
55845-60020	FZJ80,HDJ80,HZJ80..RHD	08/1992 - 01/1995	1
55845-60020	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-60020	FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..GEN	01/1990 - 08/1992	1
55847-60020	FZJ80,HDJ80,HZJ80..RHD W(AIR CONDITIONER)	08/1992 - 01/1995	1
55088-60060	HZJ80..RHD..GEN;FZJ80,HDJ80..RHD..VX..(EFI,TD2);FZJ80,HDJ80..RHD..(GX,STD)..(CBR,TD4)	01/1995 - 03/2001	1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-60020	FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..GEN	01/1990 - 08/1992	1
55847-60020	FZJ80,HDJ80,HZJ80..RHD W(AIR CONDITIONER)	08/1992 - 01/1995	1
55088-60060	HZJ80..RHD..GEN;FZJ80,HDJ80..RHD..VX..(EFI,TD2);FZJ80,HDJ80..RHD..(GX,STD)..(CBR,TD4)	01/1995 - 03/2001	1
87138B - RESISTOR, HEATER BLOWER
87138-60220	FJ80,HDJ80..ARL,GEN;FJ80..(GX,STD)..GCC;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..GEN	01/1990 - 08/1992	1
87138-60220	HDJ80..ARL;HDJ80..LHD;FZJ80..GX,STD;HDJ80..RHD..5F..GEN;HZJ80..5F..(GX,STD);FZJ80..4FC..VX..(ARL,GEN);FZJ80,HZJ80..VX..GEN..(CBR,DSL)	08/1992 - 01/1998	1
87211 - DUCT, AIR, NO.1
87211-60170	FZJ80..RHD;HDJ80..ARL;HZJ80..RHD..5F;HDJ80..RHD..5F..GEN	08/1992 - 01/1998	1
87211-60170	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
Common parts
90159-50068
90159-50138
90159-60198
90183-05094

ILLUST NO. 3 OF 5(9001- )

Click highlighted areas on diagram

REAR HEATER DUCT

Part #	Description	Period	Qty
87212 - DUCT, AIR, REAR NO.1
87212-60100	FZJ80,HDJ80,HZJ80..LUB..ARL;FZJ80,HDJ80,HZJ80..RHD..5F..GEN	08/1992 - 01/1998	1
87212-60100	FJ80..RHD..LUB;HZJ80..GX..ARL;HZJ80..RHD..GEN;FZJ80,HDJ80..RHD;FJ80..RHD..STD..GEN	01/1990 - 08/1992	1
87213 - DUCT, AIR, REAR NO.2
87213-60010	HZJ80..GEN;FJ80..STD..GEN;HZJ80..GX..ARL;FZJ80,HDJ80..ARL,GEN;FJ80..(GX,VX)..(ARL,GEN)	01/1990 - 08/1992	1
87213-60010	FZJ80..GEN;HZJ80..5F..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80,HDJ80,HZJ80..LUB..ARL	08/1992 - 01/1998	1
Common parts
90179-06054
93540-55016

HZJ80R-GCMRS (1990)

ILLUST NO. 1 OF 3(9001- )RHD

ILLUST NO. 2 OF 3(9001- )RHD

ILLUST NO. 1 OF 5(9001- )

ILLUST NO. 1 OF 5(9001- )

ILLUST NO. 1 OF 5(9001- )FJ80..STD..GCC ; (9001- )FJ80,FZJ80,HZJ80..GEN

ILLUST NO. 2 OF 5(9001- )

ILLUST NO. 3 OF 5(9001- )

Part Price Details
