HZJ80R-GCMRS (1990)
Toyota Land Cruiser

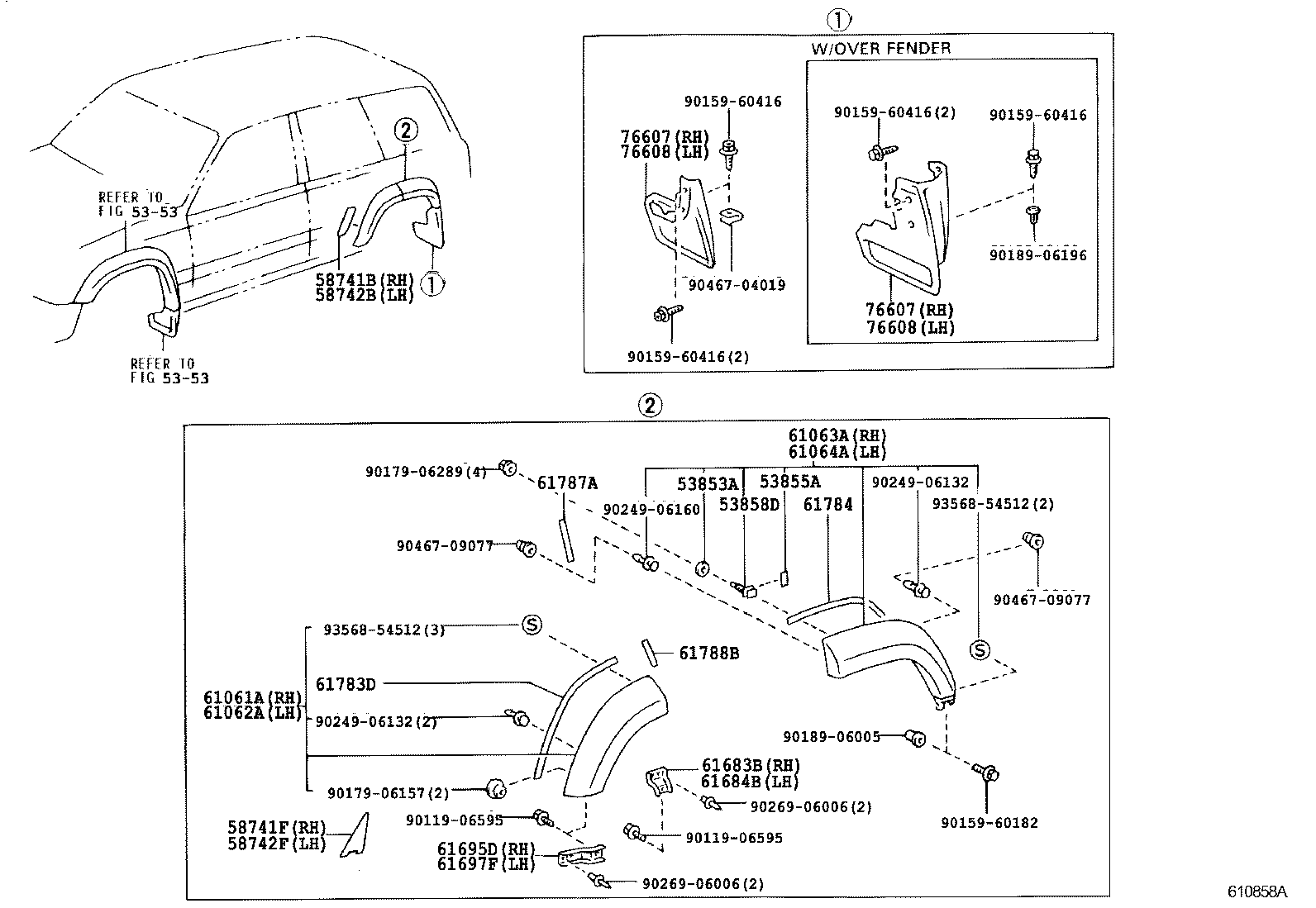

ILLUST NO. 2 OF 2(9001-9501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-60010 |
HDJ80..LHD;HZJ80..ARL,GEN;FZJ80..STD..GCC;FZJ80..RHD..STD;FZJ80..GX..GEN..EFI;FZJ80..SOB..GX..GEN;FZJ80..LUB..GEN..CBR;FZJ80,HDJ80..LUB..ARL |
1 | ||
| 58741-60010 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-60010 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| 58742-60010 |
HDJ80..LHD;HZJ80..ARL,GEN;FZJ80..STD..GCC;FZJ80..RHD..STD;FZJ80..GX..GEN..EFI;FZJ80..SOB..GX..GEN;FZJ80..LUB..GEN..CBR;FZJ80,HDJ80..LUB..ARL |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60140 |
HZJ80..RHD..STD..GEN |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60140 |
HZJ80..RHD..STD..GEN |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 76608-60140 |
HZJ80..RHD..STD..GEN |
1 | ||
| 76608-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 76608-60140 |
HZJ80..RHD..STD..GEN |
1 | ||
| 76608-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90159-60182 | ||||
| 90159-60416 | ||||
| 90159-60510 | ||||
| 90179-06014 | ||||
| 90179-06070 | ||||
| 90183-06016 | ||||
| 90189-06005 | ||||
| 90189-06196 | ||||
| 90249-06132 | ||||
| 90269-06006 | ||||
| 90467-04019 | ||||
| 90467-09077 | ||||
| 91621-F0614 | ||||
| 93566-54512 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 5353 | ||||
ILLUST NO. 2 OF 2(9501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-60010 |
HDJ80..LHD;HZJ80..ARL,GEN;FZJ80..STD..GCC;FZJ80..RHD..STD;FZJ80..GX..GEN..EFI;FZJ80..SOB..GX..GEN;FZJ80..LUB..GEN..CBR;FZJ80,HDJ80..LUB..ARL |
1 | ||
| 58741-60010 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-60010 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| 58742-60010 |
HDJ80..LHD;HZJ80..ARL,GEN;FZJ80..STD..GCC;FZJ80..RHD..STD;FZJ80..GX..GEN..EFI;FZJ80..SOB..GX..GEN;FZJ80..LUB..GEN..CBR;FZJ80,HDJ80..LUB..ARL |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60140 |
HZJ80..RHD..STD..GEN |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60140 |
HZJ80..RHD..STD..GEN |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 76608-60140 |
HZJ80..RHD..STD..GEN |
1 | ||
| 76608-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 76608-60140 |
HZJ80..RHD..STD..GEN |
1 | ||
| 76608-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90119-06595 | ||||
| 90159-60182 | ||||
| 90159-60416 | ||||
| 90179-06157 | ||||
| 90179-06289 | ||||
| 90189-06005 | ||||
| 90189-06196 | ||||
| 90249-06132 | ||||
| 90249-06160 | ||||
| 90269-06006 | ||||
| 90467-04019 | ||||
| 90467-09077 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 5353 | ||||

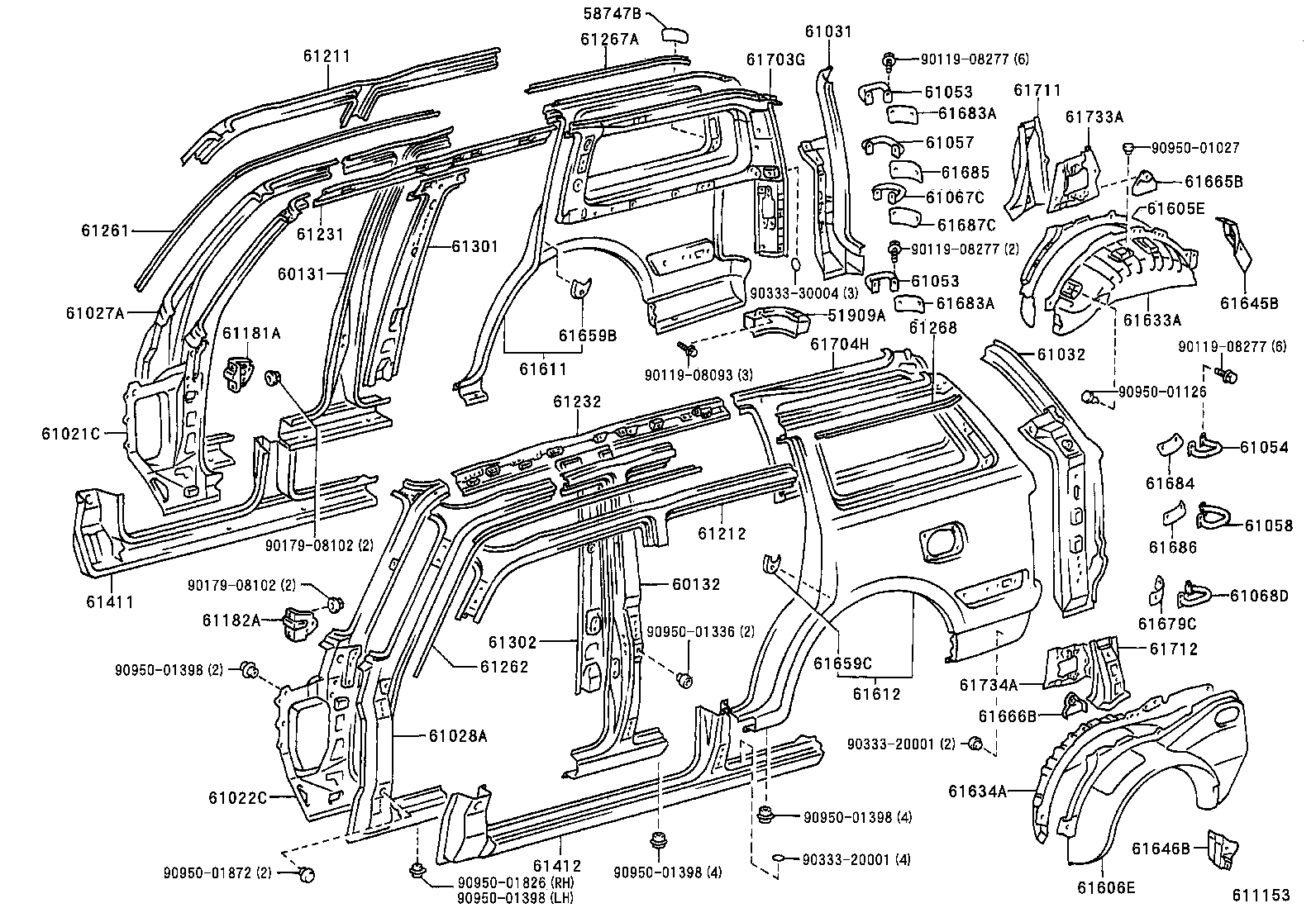

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51909A - RETAINER SUB-ASSY, SPARE WHEEL, NO.1 | ||||
| 51909-60010 |
HZJ80..GX..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 51909-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 51909-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 58747B - PROTECTOR, QUARTER PANEL, REAR | ||||
| 58747-60010 |
FJ80..LHD;FJ80..RHD..STD..GEN;HDJ80,HZJ80..GCC,GEN |
1 | ||
| 60131 - PILLAR SUB-ASSY, CENTER BODY, NO.2 RH | ||||
| 60131-60010 |
FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 60131-60011 |
FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 60131-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 60131-60022 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 60132 - PILLAR SUB-ASSY, CENTER BODY, NO.2 LH | ||||
| 60132-60010 |
FJ80,FZJ80,HDJ80,HZJ80..(GX,STD)..(ARL,GEN) |
1 | ||
| 60132-60010 |
FZJ80,HDJ80,HZJ80..(GX,STD)..(ARL,GEN) |
1 | ||
| 60132-60011 |
FZJ80,HDJ80,HZJ80..(GX,STD)..(ARL,GEN) |
1 | ||
| 60132-60022 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-60011 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 61021-60012 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 61021-60010 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-60042 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 61022-60040 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 61022-60041 |
FZJ80,HDJ80,HZJ80..RHD..GEN |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-60090 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 61027-60110 |
FJ80..(GX,STD)..GEN;FZJ80,HZJ80..(GX,STD)..(GCC,GEN) W(SNORKEL AIR CLEANER) |
1 | ||
| 61027-60090 |
FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 61027-60110 |
FZJ80,HZJ80..5F..(GX,STD)..(GCC,GEN) W(SNORKEL AIR CLEANER) |
1 | ||
| 61027-60111 |
HZJ80..STD..ARL;FZJ80,HZJ80..5F..(GX,STD)..(GCC,GEN) W(SNORKEL AIR CLEANER) |
1 | ||
| 61027-60091 |
FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 61027-60122 |
FZJ80..GX..CBR;FZJ80..SOB..STD;HZJ80..STD..ARL;FZJ80..VX..GEN..CBR;HZJ80..5F..(GCC,GEN) W(SNORKEL AIR CLEANER) |
1 | ||
| 61027-60102 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-60070 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 61028-60071 |
FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 61028-60070 |
FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 61028-60082 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61031 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH | ||||
| 61031-60060 |
HZJ80..STD;FJ80..STD..ARL;FJ80..SOB..GX..GEN W(*RWD) |
1 | ||
| 61031-60030 |
FJ80..STD..ARL;FJ80..SOB..GX..GEN;HZJ80..SOB..(ARL,GEN) W(SPARE WHEEL CARRIER(FLOOR)) |
1 | ||
| 61031-60050 |
FJ80,HZJ80..SOB..GEN W(SPARE WHEEL CARRIER(FLOOR) & ROOF RACK) |
1 | ||
| 61031-60050 |
FJ80,HZJ80..SOB..(ARL,GEN) |
1 | ||
| 61031-60040 |
FJ80,FZJ80,HZJ80..SOB..GEN W(SPARE WHEEL CARRIER(FLOOR) & *RWD) |
1 | ||
| 61031-60030 |
FJ80..SOB..GX..GEN;FZJ80,HZJ80..SOB..GEN W(SPARE WHEEL CARRIER(FLOOR)) |
1 | ||
| 61031-60050 |
FJ80,FZJ80,HZJ80..SOB..STD..GEN W(SPARE WHEEL CARRIER(FLOOR) & ROOF RACK) |
1 | ||
| 61031-60050 |
FJ80,FZJ80,HZJ80..SOB..GEN |
1 | ||
| 61031-60030 |
FZJ80,HZJ80..SOB..GEN W(SPARE WHEEL CARRIER(FLOOR)) |
1 | ||
| 61031-60040 |
FZJ80,HZJ80..SOB..GEN W(SPARE WHEEL CARRIER(FLOOR) & *RWD) |
1 | ||
| 61031-60060 |
FJ80..SOB..GX..GEN;FZJ80,HZJ80..SOB..GEN W(*RWD) |
1 | ||
| 61031-60050 |
FZJ80,HZJ80..SOB..GEN |
1 | ||
| 61031-60060 |
HZJ80..SOB..GEN W(*RWD) OR W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61031-60051 |
FZJ80..STD..GCC;FZJ80,HZJ80..5F..SOB..GEN W(SPARE WHEEL CARRIER(BACK DOOR)) OR W(ROOF RACK) |
1 | ||
| 61031-60031 |
FZJ80..STD..GCC;FZJ80,HZJ80..5F..SOB..GEN W(SPARE WHEEL CARRIER(FLOOR)) |
1 | ||
| 61031-60041 |
HZJ80..RHD..STD..GEN W(SPARE WHEEL CARRIER(FLOOR) & *RWD) |
1 | ||
| 61031-60061 |
FZJ80..SOB..STD;HZJ80..RHD..5F..SOB..GEN;HZJ80..LHD..SOB..GX..GEN W(*RWD) OR W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61032 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH | ||||
| 61032-60020 |
FJ80,FZJ80,HZJ80..SOB |
1 | ||
| 61032-60020 |
FZJ80,HZJ80..SOB |
1 | ||
| 61032-60021 |
HZJ80..RHD..STD..GEN |
1 | ||
| 61053 - STEP SUB-ASSY, QUARTER PANEL, NO.1 RH | ||||
| 61053-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61053-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61053 - STEP SUB-ASSY, QUARTER PANEL, NO.1 RH | ||||
| 61053-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61053-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61054 - STEP SUB-ASSY, QUARTER PANEL, NO.1 LH | ||||
| 61054-60020 |
FJ80..LHD;FJ80..RHD..STD..GEN;HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61054-60020 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61054-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61057 - STEP SUB-ASSY, QUARTER PANEL, NO.2 RH | ||||
| 61057-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61057-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61058 - STEP SUB-ASSY, QUARTER PANEL, NO.2 LH | ||||
| 61058-60010 |
FJ80..LHD;FJ80..RHD..STD..GEN;HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61058-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61058-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61067C - STEP SUB-ASSY, QUARTER PANEL, NO.3 RH | ||||
| 61067-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61067-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61068D - STEP SUB-ASSY, QUARTER PANEL, NO.3 LH | ||||
| 61068-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61068-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61068-60010 |
FJ80..LHD;FJ80..RHD..STD..GEN;HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61182A - PILLAR, FRONT BODY, INNER LH | ||||
| 61182-60010 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 61182-60010 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61211-60020 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-60020 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61212-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61231-60011 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61231-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61231-60012 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61232-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61232-60011 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61232-60012 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61261-60010 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61262-60010 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61207-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61207-60010 |
FJ80,HZJ80..SOB..GEN W(SPARE WHEEL CARRIER OR ROOF RACK) |
1 | ||
| 61267-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(ROOF CARRIER) |
1 | ||
| 61207-60010 |
FZJ80,HZJ80..SOB..STD..GEN W(SPARE WHEEL CARRIER) |
1 | ||
| 61267-60010 |
HZJ80..RHD..5F..SOB..GEN W(ROOF CARRIER) |
1 | ||
| 61207-60010 |
HZJ80..RHD..STD..GEN W(SPARE WHEEL CARRIER) |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GEN W(ROOF CARRIER) |
1 | ||
| 61208-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61268-60010 |
HZJ80..RHD..SOB..GEN W(ROOF CARRIER) |
1 | ||
| 61208-60010 |
HDJ80..RHD..4FC..GEN;HZJ80..RHD..STD..GEN W(ROOF RACK) |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-60110 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61301-60111 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61301-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61301-60080 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-60151 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61302-60150 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61302-60100 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61302-60080 |
HZJ80..ARL,GEN;HZJ80..VX..GCC;FJ80,FZJ80,HDJ80 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-60021 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61411-60020 |
FZJ80..LHD;HDJ80..GEN;FZJ80..LUB..ARL;HDJ80,HZJ80..DSL,TD4;FZJ80..RHD..(GX,STD)..CBR |
1 | ||
| 61411-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61412-60021 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61412-60020 |
FZJ80..LHD;HDJ80..GEN;FZJ80..LUB..ARL;HDJ80,HZJ80..DSL,TD4;FZJ80..RHD..(GX,STD)..CBR |
1 | ||
| 61605E - PANEL, QUARTER, RH | ||||
| 61605-60020 |
FZJ80..(ARL,GCC)..EFI;FZJ80..(GX,VX)..GEN..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 61605-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61606E - PANEL, QUARTER, LH | ||||
| 61606-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61606-60020 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 60161-60090 |
FJ80,HZJ80..STD..(ARL,GEN) |
1 | ||
| 60161-60200 |
FJ80,HZJ80..STD..(GCC,GEN) W(ROOF CARRIER) |
1 | ||
| 60161-60090 |
HZJ80..STD..GEN W(*RWD & ROOF RACK) |
1 | ||
| 60161-60080 |
FZJ80,HZJ80..SOB..STD..GEN W(SPAR WHEEL CARRIER(FLOOR)) |
1 | ||
| 60161-60020 |
HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,FZJ80,HDJ80..GX,VX;FJ80,FZJ80..SOB..STD..(GCC,GEN) W(*SPM & BELT MOULDING) |
1 | ||
| 60161-60090 |
FJ80,FZJ80,HZJ80..SOB..STD..GEN |
1 | ||
| 60161-60200 |
FJ80,FZJ80,HZJ80..SOB..STD..GEN W(SPARE WHEEL CARRIER(FLOOR) & ROOF RACK) |
1 | ||
| 60161-60090 |
FZJ80,HZJ80..SOB..STD..GEN |
1 | ||
| 60161-60080 |
FZJ80,HZJ80..SOB..STD..GEN W(SPAR WHEEL CARRIER(FLOOR)) |
1 | ||
| 60161-60200 |
FZJ80,HZJ80..SOB..STD..GEN W(ROOF CARRIER) |
1 | ||
| 60161-60091 |
FZJ80,HZJ80..SOB..STD..GEN |
1 | ||
| 60161-60201 |
HZJ80..RHD..STD..GEN W(SPARE WHEEL CARRIER(FLOOR) & ROOF RACK) |
1 | ||
| 60161-60081 |
HZJ80..RHD..STD..GEN W(SPAR WHEEL CARRIER(FLOOR)) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 60162-60170 |
FJ80,FZJ80,HZJ80..SOB..STD..GEN W(ROOF RACK) |
1 | ||
| 60162-60070 |
FZJ80,HZJ80..5F..SOB..STD..GEN W(SPARE WHEEL CARRIE(FLOOR) & W(ROOF RACK) |
1 | ||
| 60162-60070 |
FJ80,FZJ80,HZJ80..STD |
1 | ||
| 60162-60070 |
FZJ80,HZJ80..STD W(SPARE WHEEL CARRIE(FLOOR) & W(ROOF RACK) |
1 | ||
| 60162-60170 |
FZJ80,HZJ80..SOB..STD..GEN W(ROOF RACK) |
1 | ||
| 60162-60171 |
FZJ80,HZJ80..SOB..STD..GEN W(ROOF RACK) |
1 | ||
| 60162-60071 |
HZJ80..RHD..STD..GEN W(SPARE WHEEL CARRIE(FLOOR) & W(ROOF RACK) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-60020 |
FZJ80..SOB..GEN;FJ80..LUB..GX..GCC;FZJ80..LUB..(GX,STD);FZJ80,HDJ80..VX..GEN;FJ80,FZJ80..STD..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80,HZJ80..(ARL,GEN)..(CBR,DSL) |
1 | ||
| 61607-60030 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HZJ80..SOB..GEN W(REAR SEAT(UNITIZED,FIXED,3RD PARALLEL) |
1 | ||
| 61607-60020 |
FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;FZJ80..STD..GEN..EFI;HZJ80..RHD..5F..SOB..GEN;FZJ80..LHD..SOB..STD..GEN |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-60070 |
FZJ80..SOB..GEN;FJ80..LUB..GX..GCC;FZJ80..LUB..(GX,STD);FZJ80,HDJ80..VX..GEN;FJ80,FZJ80..STD..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80,HZJ80..(ARL,GEN)..(CBR,DSL) |
1 | ||
| 61608-60071 |
HZJ80..5F..GEN;FZJ80..STD..GCC;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..LHD..LUB..GX;FZJ80..LHD..SOB..GEN;FZJ80,HDJ80,HZJ80..GX..ARL;FZJ80,HDJ80..LHD..LUB..VX..GEN..(CBR,TD2) W(*FST) |
1 | ||
| 61608-60090 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HZJ80..SOB..GEN W(REAR SEAT(UNITIZED,FIXED,3RD PARALLEL) |
1 | ||
| 61608-60091 |
FZJ80..STD..GCC;HZJ80..5F..SOB..GEN;FZJ80..LHD..SOB..GEN W(REAR SEAT(UNITED,FIXED,3RD PARALLEL) & *FST) |
1 | ||
| 61608-60070 |
FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;FZJ80..STD..GEN..EFI;HZJ80..RHD..5F..SOB..GEN;FZJ80..LHD..SOB..STD..GEN |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61645-60020 |
FZJ80..(ARL,GCC)..EFI;FZJ80..(GX,VX)..GEN..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61646-60031 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 61646-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 61659B - RETAINER, REAR DOOR OPEN SWITCH SET, RH | ||||
| 61659-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61659-60010 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61659C - RETAINER, REAR DOOR OPEN SWITCH SET, LH | ||||
| 61659-60010 |
HDJ80,HZJ80..RHD..(STD,VX)..GEN |
1 | ||
| 61659-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-60010 |
HZJ80..STD;HZJ80..GX..ARL;FJ80,HDJ80..RHD;FJ80..LHD..4F..STD |
1 | ||
| 61665-60010 |
FZJ80..RHD;HZJ80..SOB..(STD,VX);HZJ80..GX..(ARL,GCC);FJ80,FZJ80,HDJ80..ARL,GCC;FZJ80..LHD..SOB..STD..GEN |
1 | ||
| 61665-60010 |
HZJ80..RHD..STD..GEN;FZJ80..LHD..SOB..STD..GEN |
1 | ||
| 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-60010 |
FZJ80..RHD;HZJ80..SOB..(STD,VX);HZJ80..GX..(ARL,GCC);FJ80,FZJ80,HDJ80..ARL,GCC;FZJ80..LHD..SOB..STD..GEN |
1 | ||
| 61665-60010 |
HZJ80..STD;HZJ80..GX..ARL;FJ80,HDJ80..RHD;FJ80..LHD..4F..STD |
1 | ||
| 61665-60010 |
HZJ80..RHD..STD..GEN;FZJ80..LHD..SOB..STD..GEN |
1 | ||
| 61679C - ORNAMENT, QUARTER PANEL STEP, NO.3 LH | ||||
| 61679-60011 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61679-60011 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61679-60011 |
FJ80..LHD;FJ80..RHD..STD..GEN;HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61679-60010 |
FJ80..LHD;FJ80..RHD..STD..GEN;HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61683A - ORNAMENT, QUARTER PANEL STEP, NO.1 RH | ||||
| 61683-60020 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61683-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61683A - ORNAMENT, QUARTER PANEL STEP, NO.1 RH | ||||
| 61683-60020 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61683-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61684 - ORNAMENT, QUARTER PANEL STEP, NO.1 LH | ||||
| 61684-60030 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61684-60030 |
FJ80..LHD;FJ80..RHD..STD..GEN;HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61684-60030 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61685 - ORNAMENT, QUARTER PANEL STEP, NO.2 RH | ||||
| 61685-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61685-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61686 - ORNAMENT, QUARTER PANEL STEP, NO.2 LH | ||||
| 61686-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61686-60010 |
FJ80..LHD;FJ80..RHD..STD..GEN;HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61686-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61687C - ORNAMENT, QUARTER PANEL STEP, NO.3 RH | ||||
| 61687-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 61687-60010 |
HDJ80..LHD;FZJ80..GCC,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(GCC,GEN) |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-60030 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HZJ80..SOB..GEN W(REAR SEAT(UNITIZED,FIXED,3RD TRANSVERS SEAT) |
1 | ||
| 61703-60010 |
FJ80..STD..GCC;FJ80..5F..LUB..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80,HZJ80..(ARL,GEN)..(CBR,DSL) |
1 | ||
| 61703-60010 |
HZJ80..ARL,GEN;FZJ80..SOB..GEN;FZJ80..STD..GCC;FJ80,HDJ80..GX,STD;FZJ80,HDJ80..LUB..(GCC,GEN) |
1 | ||
| 61703-60010 |
FZJ80..LHD..LUB;FZJ80..STD..GCC;HDJ80,HZJ80..GEN;FZJ80..LHD..SOB..GEN;FZJ80,HZJ80..GX..ARL;FZJ80..RHD..(GX,STD)..CBR |
1 | ||
| 61703-60030 |
FZJ80..STD..GCC;FZJ80,HZJ80..SOB..GEN W(REAR SEAT(UNITIZED,FIXED,3RD TRANSVERS SEAT) |
1 | ||
| 61703-60011 |
HZJ80..RHD..STD..GEN;FZJ80..LHD..SOB..STD..GEN |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-60030 |
FJ80..STD..GCC;FJ80,HZJ80..SOB..GEN W(REAR SEAT(UNITIZED,FIXED,3RD TRANSVERS SEAT) |
1 | ||
| 61704-60010 |
HDJ80..GEN;HZJ80..ARL,GEN;FJ80,FZJ80..STD..GCC;FJ80,FZJ80..LUB..CBR;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80..SOB..(ARL,GEN) |
1 | ||
| 61704-60031 |
FJ80,FZJ80..STD..GCC;FJ80,FZJ80,HZJ80..SOB..GEN W(REAR SEAT(UNITIZED,FIXED,3RD TRANSVERS SEAT) |
1 | ||
| 61704-60010 |
HDJ80..GEN;HZJ80..ARL,GEN;FZJ80..GX..ARL;FZJ80..STD..GCC;FZJ80..LHD..LUB;FZJ80..LHD..SOB..GEN;FZJ80..RHD..(GX,STD)..CBR |
1 | ||
| 61704-60031 |
FZJ80..STD..GCC;FZJ80,HZJ80..SOB..GEN W(REAR SEAT(UNITIZED,FIXED,3RD TRANSVERS SEAT) |
1 | ||
| 61704-60011 |
HZJ80..RHD..STD..GEN;FZJ80..LHD..SOB..STD..GEN |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61711-60010 |
FZJ80..(ARL,GCC)..EFI;FZJ80..(GX,VX)..GEN..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61712-60010 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61733-60010 |
FZJ80..(ARL,GCC)..EFI;FZJ80..(GX,VX)..GEN..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61734-60010 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 |
1 | ||
| Common parts | ||||
| 90119-08093 | ||||
| 90119-08277 | ||||
| 90179-08102 | ||||
| 90333-20001 | ||||
| 90333-30004 | ||||
| 90950-01027 | ||||
| 90950-01126 | ||||
| 90950-01336 | ||||
| 90950-01398 | ||||
| 90950-01826 | ||||
| 90950-01872 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
