HZJ80R-GCMNS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

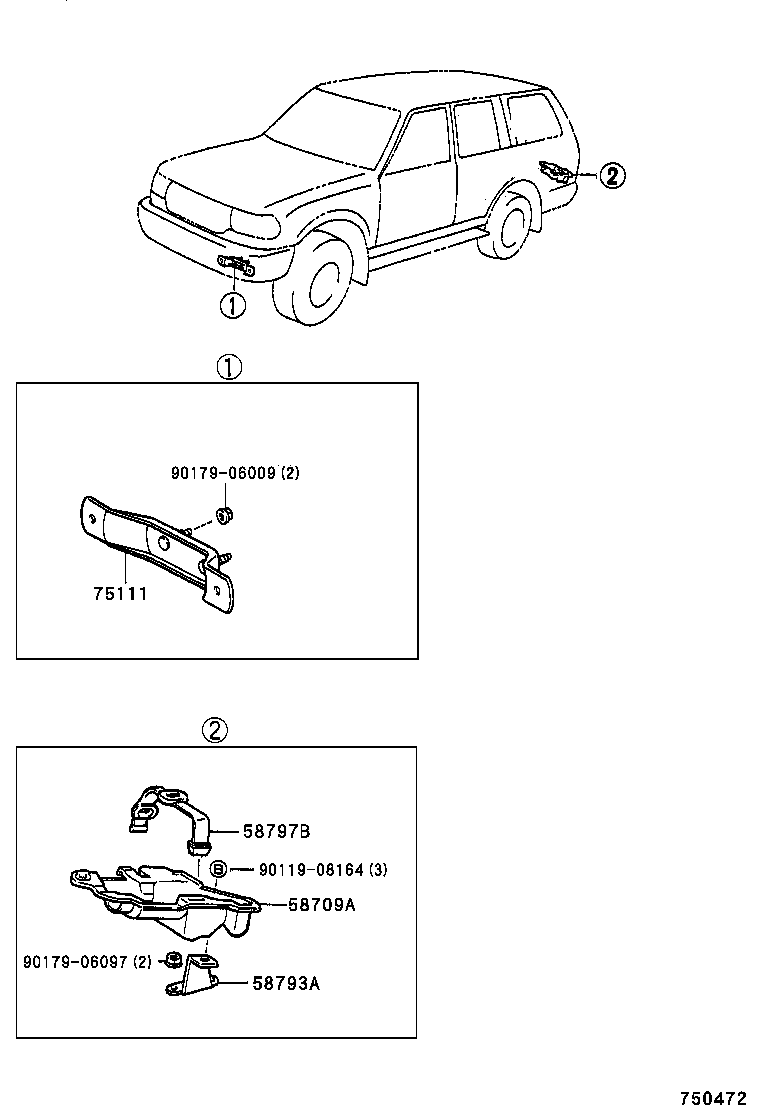

Click highlighted areas on diagram

diagram 58709A 58793A 58797B 75111 9011908164 9017906009 9017906097
Part # Description Qty Price
58709A - CARRIER SUB-ASSY, JACK
58709-90K01

FZJ80,HDJ80,HZJ80

 1
58709-90K01

FJ80,FZJ80,HDJ80,HZJ80

 1
58709-60010

FZJ80,HDJ80,HZJ80

 1
58793A - BRACKET, JACK CARRIER
58793-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
58793-60010

FZJ80,HDJ80,HZJ80

 1
58797B - BAND, JACK CLAMP
58797-60010

FZJ80,HDJ80,HZJ80

 1
58797-90K02

FZJ80,HDJ80,HZJ80

 1
58797-90K02

FJ80,FZJ80,HDJ80,HZJ80

 1
75111 - BRACKET, FRONT LICENSE PLATE
75111-60040

FZJ80..STD..GCC;FZJ80,HDJ80,HZJ80..GEN

 1
75111-60040

FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN)

W(WINCH)

 1
75111-60070

HDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)

W(WINCH)

 1
75111-60090

FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN)

W(WINCH & FRONT BUMPER GUARD)

 1
75111-60040

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
75111-60110

HDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)

W(WINCH & FRONT BUMPER GUARD)

 1
Common parts
90119-08164
90179-06009
90179-06097
