HZJ80R-GCMNS (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1999
Engine
1HZ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )1H#

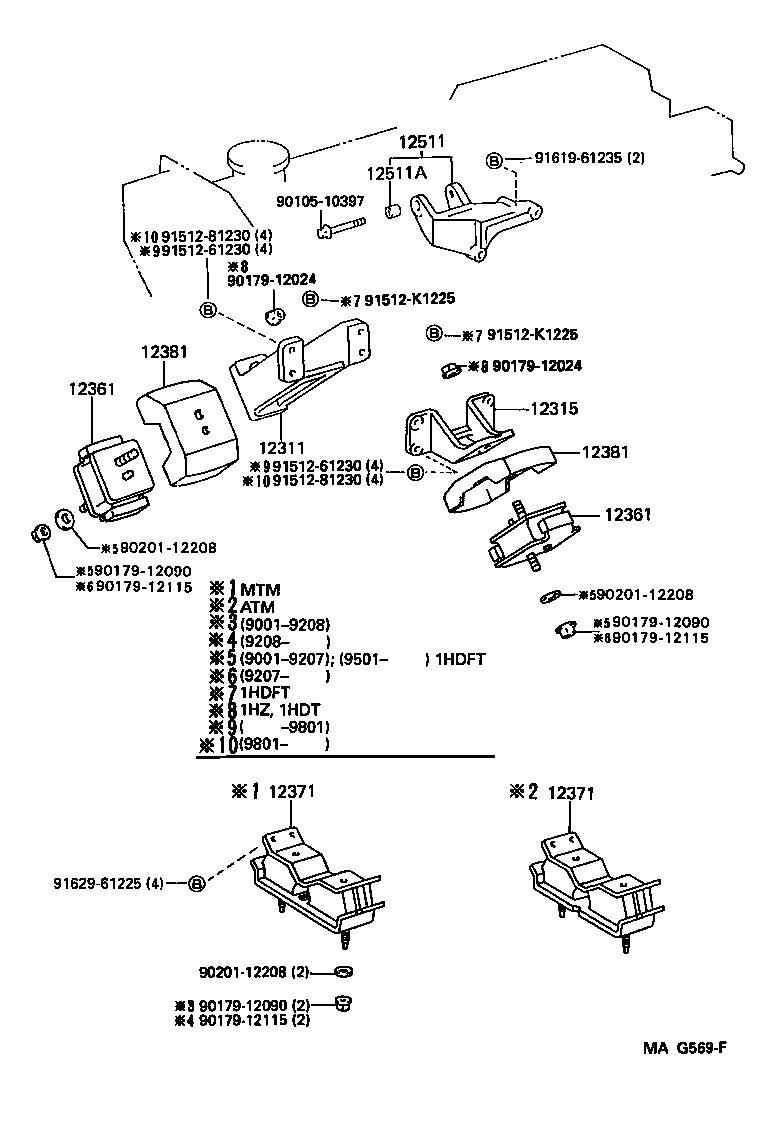

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12319-51010 | ||||
| 90105-10397 | ||||
| 90179-12024 | ||||
| 90179-12090 | ||||
| 90179-12115 | ||||
| 90201-12208 | ||||
| 91512-61230 | ||||
| 91512-81230 | ||||
| 91619-61230 | ||||
| 91619-61235 | ||||
| 91629-B1225 | ||||
| 91659-61225 | ||||
(9001- )1HD#,1HZ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 12311-17010 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-17010 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 12315-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-17010 |
1H#..HDJ80,HZJ80 |
2 | ||
| 12361-17040 |
1H#..HDJ80,HZJ80..5F |
2 | ||
| 12361-17010 |
1H#..HDJ80,HZJ80 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-17010 |
1H#..HDJ80,HZJ80 |
2 | ||
| 12361-17040 |
1H#..HDJ80,HZJ80..5F |
2 | ||
| 12361-17010 |
1H#..HDJ80,HZJ80 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-61050 |
1H#..HDJ80,HZJ80..MTM |
1 | ||
| 12371-61050 |
1H#..HDJ80,HZJ80..5F |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-61050 |
1H#..HDJ80,HZJ80..MTM |
1 | ||
| 12371-61050 |
1H#..HDJ80,HZJ80..5F |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-17010 |
1H#..HDJ80,HZJ80 |
2 | ||
| 12381-66010 |
1H#..HDJ80,HZJ80 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-17010 |
1H#..HDJ80,HZJ80 |
2 | ||
| 12381-66010 |
1H#..HDJ80,HZJ80 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 12511-17011 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 12511-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 12511-17012 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 12511A - BUSH, ALTERNATOR BRACKET | ||||
| 90387-10101 |
1H#..HDJ80,HZJ80 |
1 | ||
| 90387-10151 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 90387-10101 |
1H#..HDJ80,HZJ80 |
1 | ||
| 90387-10155 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90105-10397 | ||||
| 90179-12024 | ||||
| 90179-12090 | ||||
| 90179-12115 | ||||
| 90201-12208 | ||||
| 91512-61230 | ||||
| 91512-81230 | ||||
| 91512-K1225 | ||||
| 91619-61235 | ||||
| 91629-61225 | ||||
