HZJ80R-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 1HZ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )HZJ80..RHD

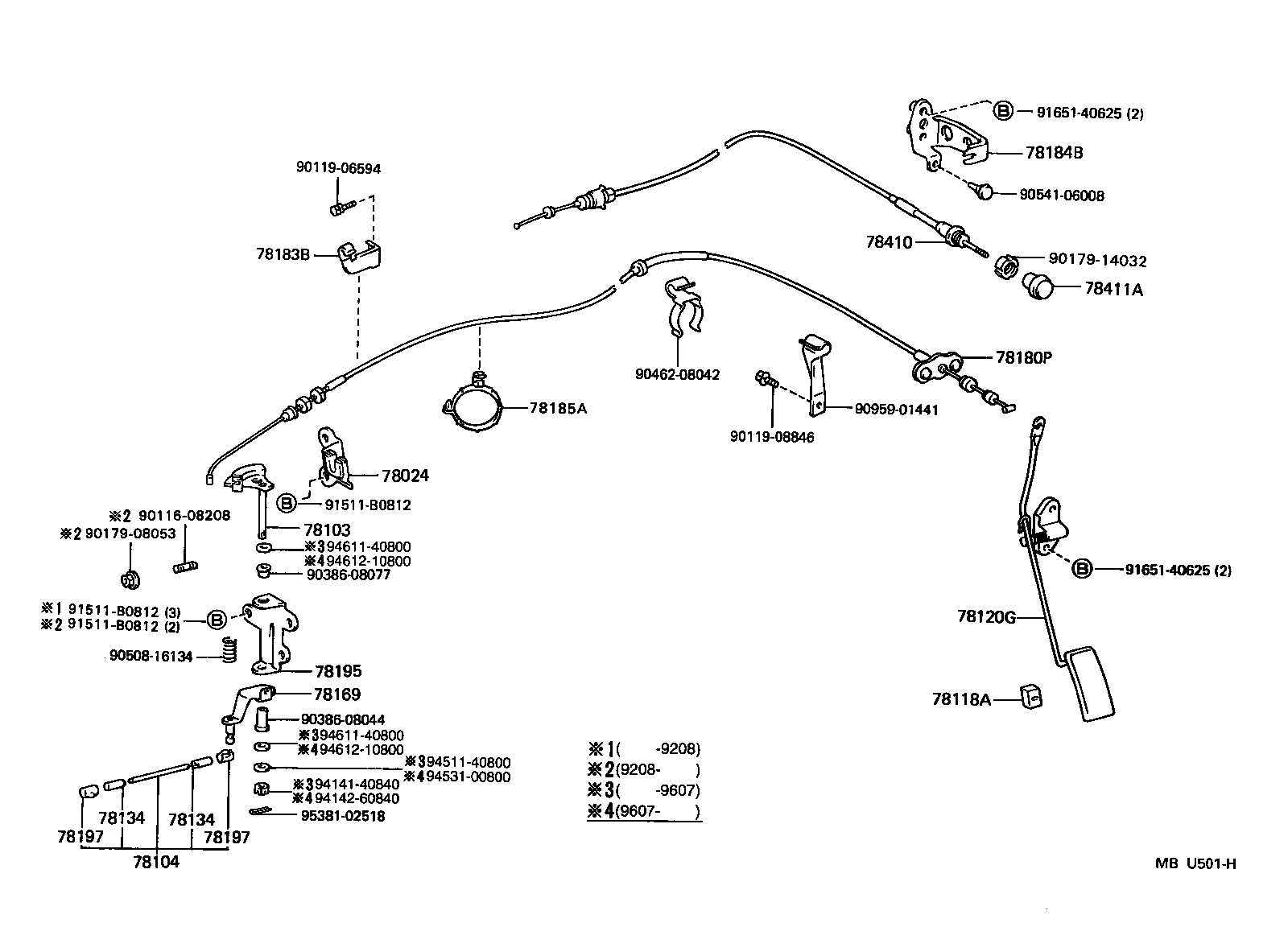

Click highlighted areas on diagram

diagram 78024 78103 78104 78118A 78120G 78134 78134 78169 78180P 78183B 78184B 78185A 78195 78197 78197 78410 78411A 9011608208 9011906594 9011908846 9017908053 9017914032 9038608044 9038608077 9046208042 9050816134 9054106008 9095901441 91511B0812 91511B0812 91511B0812 9165140625 9165140625 9414140840 9414260840 9451140800 9453100800 9461140800 9461140800 9461210800 9461210800 9538102518
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-60010

HDJ80,HZJ80

 1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-60020

HDJ80,HZJ80

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-60010

HDJ80,HZJ80

 1
78118A - STOPPER, ACCELERATOR PEDAL
78118-60010

FJ80,FZJ80,HDJ80,HZJ80..RHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60030

FJ80,HDJ80,HZJ80..RHD

 1
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010

HDJ80,HZJ80

 2
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010

HDJ80,HZJ80

 2
78169 - HANGER, ACCELERATOR SPRING
78169-60010

HDJ80,HZJ80

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60210

HDJ80,HZJ80..RHD..MTM

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-60040

HDJ80,HZJ80

 1
78195 - BRACKET, ACCELERATOR LINK
78195-60010

HDJ80,HZJ80

 1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

HDJ80,HZJ80

 2
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

HDJ80,HZJ80

 2
78410 - CABLE ASSY, THROTTLE CONTROL
78410-60100

HDJ80,HZJ80..RHD

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78402-60030

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90116-08208
90119-06594
90119-08846
90179-08053
90179-14032
90386-08044
90386-08077
90462-08042
90508-16134
90541-06008
90959-01441
91511-B0812
91651-40625
94141-40840
94142-60840
94511-40800
94531-00800
94611-40800
94612-10800
95381-02518
