HZJ80R-GCKRS (1990)
Toyota Land Cruiser
(9001-9208)1HZ..RHD ; (9208-0007)1HZ..HZJ70,75
W(PRE FILTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23347-54010 | ||||
| 90099-18010 | ||||
| 90119-08931 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60830 | ||||
| 93319-15008 | ||||
| 96132-31000 | ||||
| Linked diagrams | ||||
| 1703 | ||||

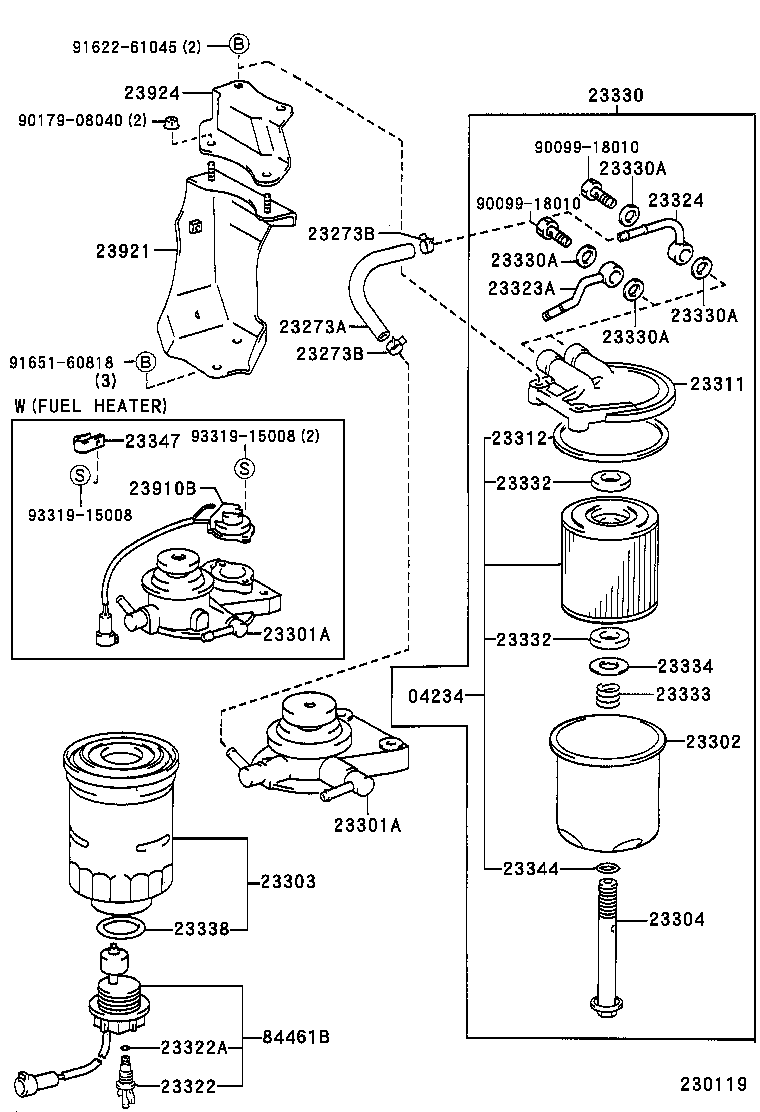

(9001- )1HZ
W(PRE FILTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04234 - ELEMENT KIT, FUEL FILTER | ||||
| 04234-68010 |
1HZ..HZJ80..GEN |
1 | ||
| 23273A - HOSE, FUEL, NO.2 | ||||
| 23273-17020 |
1HZ..HZJ80..GEN |
1 | ||
| 23273B - CLIP, HOSE | ||||
| 96132-41500 |
1HZ..HZJ80..GEN |
2 | ||
| 23273B - CLIP, HOSE | ||||
| 96132-41500 |
1HZ..HZJ80..GEN |
2 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-17020 |
1HZ..HZJ80..GEN;1HZ..HZJ80..VX..GCC W(FUEL HEATER) |
1 | ||
| 23301-17010 |
1HZ..HZJ80 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-17020 |
1HZ..HZJ80..GEN;1HZ..HZJ80..VX..GCC W(FUEL HEATER) |
1 | ||
| 23301-17010 |
1HZ..HZJ80 |
1 | ||
| 23302 - BODY SUB-ASSY, FUEL FILTER, LOWER | ||||
| 23302-17010 |
1HZ..HZJ80..GEN |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-56040 |
1H#..HDJ80,HZJ80 |
1 | ||
| 23304 - BAIL SUB-ASSY, FILTER BOWL | ||||
| 23304-56010 |
1HZ..HZJ80..GEN |
1 | ||
| 23311 - BODY, FUEL FILTER UPPER | ||||
| 23311-17010 |
1HZ..HZJ80..GEN |
1 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-68010 |
1HZ..HZJ80..GEN |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64020 |
1H#..HDJ80,HZJ80 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 23323A - UNION | ||||
| 23323-17010 |
1HZ..HZJ80..GEN |
1 | ||
| 23324 - NIPPLE UNION(FOR FUEL FILTER) | ||||
| 23324-17010 |
1HZ..HZJ80..GEN |
1 | ||
| 23330 - PREFILTER ASSY, FUEL | ||||
| 23330-17010 |
1HZ..HZJ80..GEN |
1 | ||
| 23330A - GASKET | ||||
| 90430-14002 |
1HZ..HZJ80..GEN |
4 | ||
| 23330A - GASKET | ||||
| 90430-14002 |
1HZ..HZJ80..GEN |
4 | ||
| 23330A - GASKET | ||||
| 90430-14002 |
1HZ..HZJ80..GEN |
4 | ||
| 23330A - GASKET | ||||
| 90430-14002 |
1HZ..HZJ80..GEN |
4 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
1HZ..HZJ80..GEN |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
1HZ..HZJ80..GEN |
2 | ||
| 23333 - SPRING, FILTER ELEMENT SET | ||||
| 23333-48012 |
1HZ..HZJ80..GEN |
1 | ||
| 23334 - PLATE, SPRING(FOR FILTER ELEMENT) | ||||
| 23334-46010 |
1HZ..HZJ80..GEN |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-68010 |
1HZ..HZJ80..GEN |
1 | ||
| 23347 - CLIP, CORD | ||||
| 23347-54010 |
1HZ..HZJ80..VX..GCC;1H#..HDJ80,HZJ80..GEN |
1 | ||
| 23910B - HEATER ASSY, FUEL | ||||
| 23910-17020 |
1H#..HDJ80,HZJ80..GEN |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23904-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 23924 - SUPPORT, FUEL PREFILTER | ||||
| 23924-17010 |
1HZ..HZJ80..GEN |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-60050 |
HDJ80,HZJ80..ARL,GEN |
1 | ||
| Common parts | ||||
| 90099-18010 | ||||
| 90179-08040 | ||||
| 91622-61045 | ||||
| 91651-60818 | ||||
| 93319-15008 | ||||

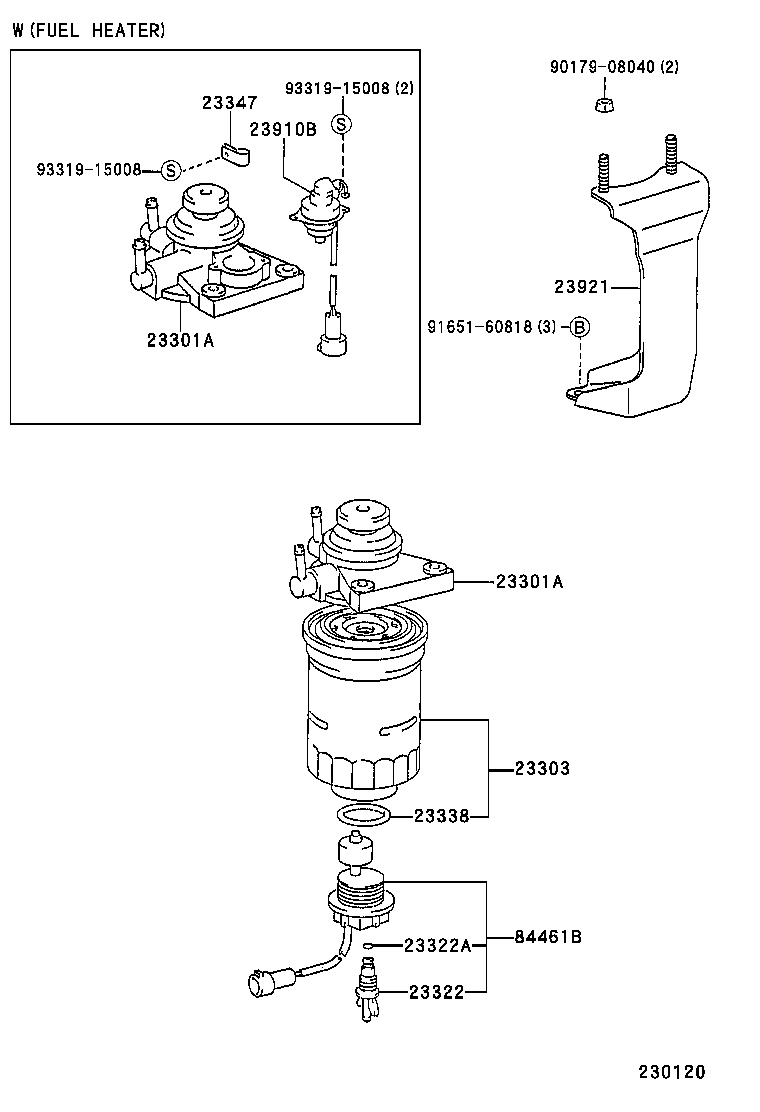

(9001-9609)1HDT,1HZ ; (9609- )1HDT ; (9609-)1HZ..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-17020 |
1HZ..HZJ80..GEN;1HZ..HZJ80..VX..GCC W(FUEL HEATER) |
1 | ||
| 23301-17010 |
1HZ..HZJ80 |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-17020 |
1HZ..HZJ80..GEN;1HZ..HZJ80..VX..GCC W(FUEL HEATER) |
1 | ||
| 23301-17010 |
1HZ..HZJ80 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-56040 |
1H#..HDJ80,HZJ80 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64020 |
1H#..HDJ80,HZJ80 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 23347 - CLIP, CORD | ||||
| 23347-54010 |
1HZ..HZJ80..VX..GCC;1H#..HDJ80,HZJ80..GEN |
1 | ||
| 23910B - HEATER ASSY, FUEL | ||||
| 23910-17020 |
1H#..HDJ80,HZJ80..GEN |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23904-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-60050 |
HDJ80,HZJ80..ARL,GEN |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 91651-60818 | ||||
| 93319-15008 | ||||
